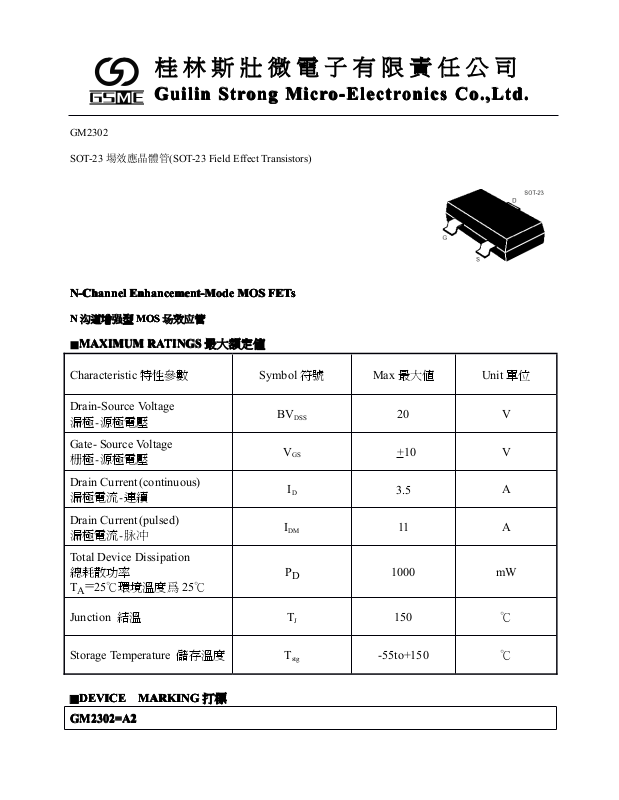

桂林斯壯微電子有限責任公司
GM 2302
SOT-23 場效應晶體管 (SOT-23 Field Effect Transistors)
N
N
N
N -Channel
-Channel
-Channel
-Channel Enhancement-Mode
Enhancement-Mode
Enhancement-Mode
Enhancement-Mode MOS
MOS
MOS
MOS FETs
FETs
FETs
FETs
N
N
N
N 沟道增强型 MOS
MOS
MOS
MOS 场效应管
■ MAXIMUM
MAXIMUM
MAXIMUM
MAXIMUM RATINGS
RATINGS
RATINGS
RATINGS 最大額定值
Characteristic 特性參數
Symbol 符號
Max 最大值
Unit 單位
Drain - Source V oltage
漏 極 - 源 極電壓
B V
DSS
20
V
Gate - Source V oltage
栅 極 - 源 極電壓
V
GS
+ 10
V
Drain Current (continuous)
漏 極電流 - 連續
I
D
3.5
A
Drain Current (pulsed)
漏 極電流 - 脉冲
I
DM
11
A
Total Device Dissipation
總耗散功率
T
A
= 25 ℃ 環境溫度爲 25 ℃
PD1000mWJunct io n 結溫
T
J
150℃Storage Temperature 儲存溫度
T
stg
-55to+15 0
℃
GM
GM
GM
GM 2302
2302
2302
2302 =
=
=
= A2
A2
A2
A2
Guilin
Guilin
Guilin
Guilin Strong
Strong
Strong
Strong Micro-Electronics
Micro-Electronics
Micro-Electronics
Micro-Electronics Co.,Ltd.
Co.,Ltd.
Co.,Ltd.
Co.,Ltd.
DEVICE
DEVICE
■ DEVICE
DEVICE MARKING
MARKING
MARKING
MARKING 打標
Page 2
桂林斯壯微電子有限責任公司
■ ELECTRICAL
ELECTRICAL
ELECTRICAL
ELECTRICAL CHARACTERISTICS
CHARACTERISTICS
CHARACTERISTICS
CHARACTERISTICS 電特性
(TA=25 ℃ unless otherwise noted 如無特殊說明，溫度爲 25 ℃ )
Characteristic
特性參數
Symbol符號Min
最小值
Typ
典型 值
Max
最大值
Unit
單位
Drain - Source Breakdown V oltage
漏 極 - 源 極擊穿電壓 ( ID= 25 0 u
A,
V
GS
=0 V )
B V
DSS
20
—
—
V
Gate Threshold V oltage
栅 極 開 启 電壓 ( ID= 25 0 u
A,
V
GS
= V
DS
)
V
G S ( th )
0.5
—
1.5
V
Diode Forward Voltage Drop
内附二 極 管正向 壓 降 ( IS= 0.75
A,
V
GS
=0 V )
VSD—
—
1 . 5
V
Zero Gate Voltage Drain Current
零栅 壓 漏 極電流 (V
GS
= 0
V,
V
DS
= 16V )
(V
GS
= 0
V,
V
DS
= 16V , T
A
= 5 5 ℃ )
I
DSS
——1
1 0
u A
Gate Body Leakage
栅 極 漏 電流 (V
GS
= + 10
V,
V
DS
= 0 V)
I
GSS
——+ 100
n A
Static Drain-Source On-State Resistance
静态漏源 導通電 阻 ( ID= 2.8
A,
V
GS
= 4. 5V )
( ID= 2
A,
V
GS
= 2.5 V )
R
DS ( ON )
——60
80
m Ω
Input Capacitance 輸入電容
(V
GS
= 0
V,
V
DS
= 10
V,
f=1 MHz)
C
ISS
——80 0pFCommon Source Output Capacitance
共源 輸出電容 (V
GS
= 0
V,
V
DS
= 10
V,
f=1 MHz)
C
OSS
——2 00pFTurn-ON Time 开启 時間
(V
DS
= 10
V,
ID= 3.5 A , R
GEN
= 10 Ω )
t
(on)
——20nsTurn-OFF Time 关断 時間
(V
DS
= 10
V,
ID= 3.5 A , R
GEN
= 10 Ω )
t
(off)
——80
ns
Guilin
Guilin
Guilin
Guilin Strong
GM2 302
Strong
Strong
Strong Micro-Electronics
Micro-Electronics
Micro-Electronics
Micro-Electronics Co.,Ltd.
Co.,Ltd.
Co.,Ltd.
Co.,Ltd.
Pulse Width < 300 μ s; Duty Cycle < 2.0%
Page 3
桂林斯壯微電子有限責任公司
GM 2302

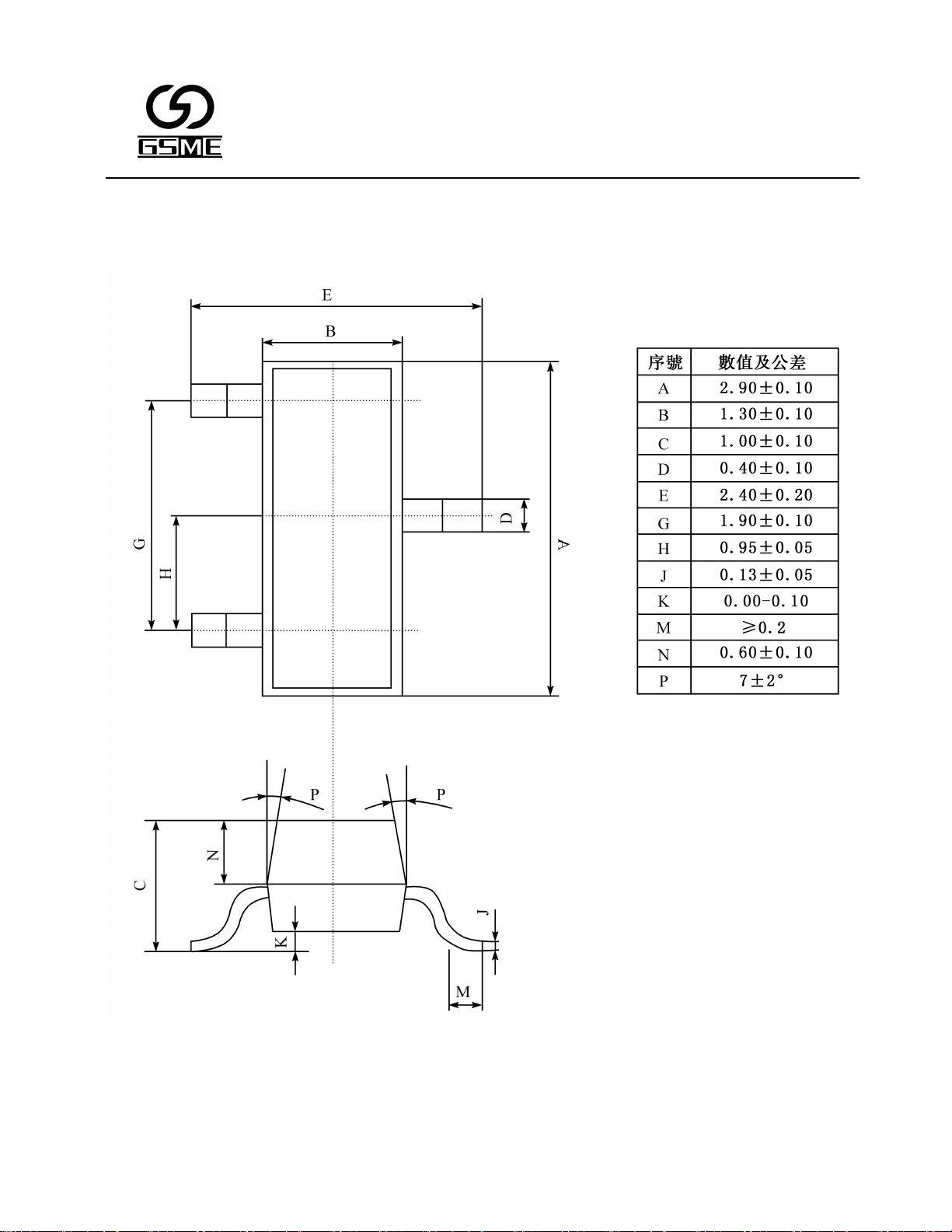

■ DIMENSION
DIMENSION
DIMENSION
DIMENSION 外形封裝尺寸
Guilin
Guilin
Guilin
Guilin Strong
Strong
Strong
Strong Micro-Electronics
Micro-Electronics
Micro-Electronics
Micro-Electronics Co.,Ltd.
Co.,Ltd.
Co.,Ltd.
Co.,Ltd.
