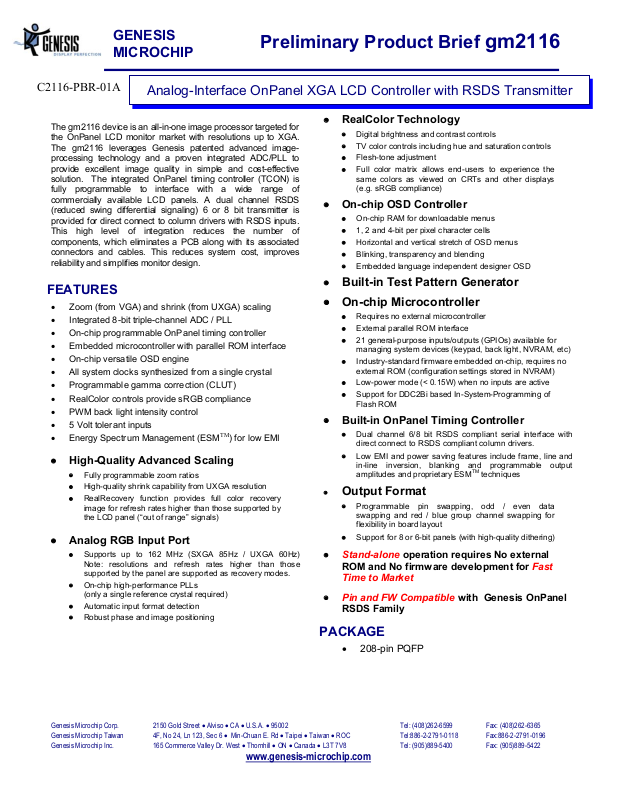

Page 1
GENESIS
MICROCHIP
Preliminary Product Brief gm2116
C2116-PBR-01A
The gm2116 device is an all-in-one image processor targeted for
the OnPanel LCD monitor market with resolutions up to XGA.
The gm2116 leverages Genesis patented advanced imageprocessing technology and a proven integrated ADC/PLL to
provide excellent image quality in simple and cost-effective
solution. The integrated OnPanel timing controller (TCON) is
fully programmable to interface with a wide range of
commercially available LCD panels. A dual channel RSDS
(reduced swing differential signaling) 6 or 8 bit transmitter is
provided for direct connect to column drivers with RSDS inputs.
This high level of integration reduces the number of
components, which eliminates a PCB along with its associated
connectors and cables. This reduces system cost, improves
reliability and simplifies monitor design.
Analog-Interface OnPanel XGA LCD Controller with RSDS Transmitter
• RealColor Technology
• Digital brightness and contrast controls
• TV color controls including hue and saturation controls
• Flesh-tone adjustment
• Full color matrix allows end-users to experience the
same colors as viewed on CRTs and other displays
(e.g. sRGB compliance)
• On-chip OSD Controller
• On-chip RAM for downloadable menus
• 1, 2 and 4-bit per pixel character cells
• Horizontal and vertical stretch of OSD menus
• Blinking, transparency and blending
• Embedded language independent designer OSD
FEATURES
• Zoom (from VGA) and shrink (from UXGA) scaling
• Integrated 8-bit triple-channel ADC / PLL
• On-chip programmable OnPanel timing controller
• Embedded microcontroller with parallel ROM interface
• On-chip versatile OSD engine
• All system clocks synthesized from a single crystal
• Programmable gamma correction (CLUT)
• RealColor controls provide sRGB compliance
• PWM back light intensity control
• 5 Volt tolerant inputs
• Energy Spectrum Management (ESM
• High-Quality Advanced Scaling
• Fully programmable zoom ratios
• High-quality shrink capability from UXGA resolution
• RealRecovery function provides full color recovery
image for refresh rates higher than those supported by
the LCD panel (“out of range” signals)
• Analog RGB Input Port
• Supports up to 162 MHz (SXGA 85Hz / UXGA 60Hz)
Note: resolutions and refresh rates higher than those
supported by the panel are supported as recovery modes.
• On-chip high-performance PLLs
(only a single reference crystal required)
• Automatic input format detection
• Robust phase and image positioning
TM
) for low EMI
• Built-in Test Pattern Generator
• On-chip Microcontroller
• Requires no external microcontroller
• External parallel ROM interface
• 21 general-purpose inputs/outputs (GPIOs) available for
managing system devices (keypad, back light, NVRAM, etc)
• Industry-standard firmware embedded on-chip, requires no
external ROM (configuration settings stored in NVRAM)
• Low-power mode (< 0.15W) when no inputs are active
• Support for DDC2Bi based In-System-Programming of
Flash ROM
• Built-in OnPanel Timing Controller
• Dual channel 6/8 bit RSDS compliant serial interface with
direct connect to RSDS compliant column drivers.
• Low EMI and power saving features include frame, line and
in-line inversion, blanking and programmable output
amplitudes and proprietary ESMTM techniques
Output Format
•
• Programmable pin swapping, odd / even data
swapping and red / blue group channel swapping for
flexibility in board layout
• Support for 8 or 6-bit panels (with high-quality dithering)
• Stand-alone operation requires No external
ROM and No firmware development for Fast
Time to Market
• Pin and FW Compatible with Genesis OnPanel
RSDS Family
PACKAGE
• 208-pin PQFP
Genesis Microchip Corp.
Genesis Microchip Taiwan
Genesis Microchip Inc.
2150 Gold Street • Alviso • CA • U.S.A. • 95002
4F, No 24, Ln 123, Sec 6 • Min-Chuan E. Rd • Taipei • Taiwan • ROC
165 Commerce Valle
y Dr. West • Thornhill • ON • Canada • L3T 7V8
www.genesis-microchip.com
Tel: (408)262-6599 Fax: (408)262-6365
Tel:886-2-2791-0118 Fax:886-2-2791-0196
Tel: (905)889-5400 Fax: (905)889-5422
Page 2
GENESIS
MICROCHIP
C2116-PBR-01A
Preliminary Product Brief gm2116
gm2116 Functional Block Diagram
Analog
RGB
EEPROM
Serial I/F
Interface
Triple
ADC &
Test
Pattern
Serial I/F
Host
GPIO
8051-style
Micro-
controller
MCU
RAM
Capture /
Measure-
ment
Parallel
ROM IF
External
ROM I/F
Internal
ROM
YUV to RGB
Conversion /
Brightness /
Contrast /
Hue / Sat /
RealColor
Clock
OSD
Controller
OSD
RAMs
Zoom /
Shrink /
Filter
Gamma
Control
Generation
Clock
Energy
Spectrum
Management
OnPanel Timing
Controller
Display
Control
RSDS
Tx
Row &
Column
Driver IC
Timing
Control
RSDS
Panel
Data
gm2116 OnPanel Design Example
RSDS
gm2116
EDID
Analog
RGB
Driver ICs
EEPROM
Keypad/LED
Note: ESM, RealColor and Real Recovery are trademarks of Genesis Microchip Inc.
Note: RSDS is a trademark of National Semiconductor Corporation
ROM
(optional)
Genesis Microchip
Row
Column
Driver ICs
LCD
Panel
