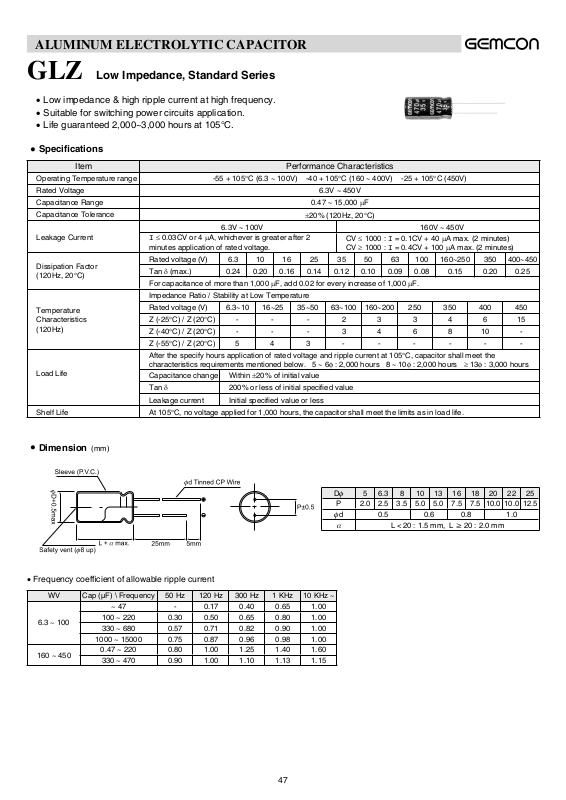

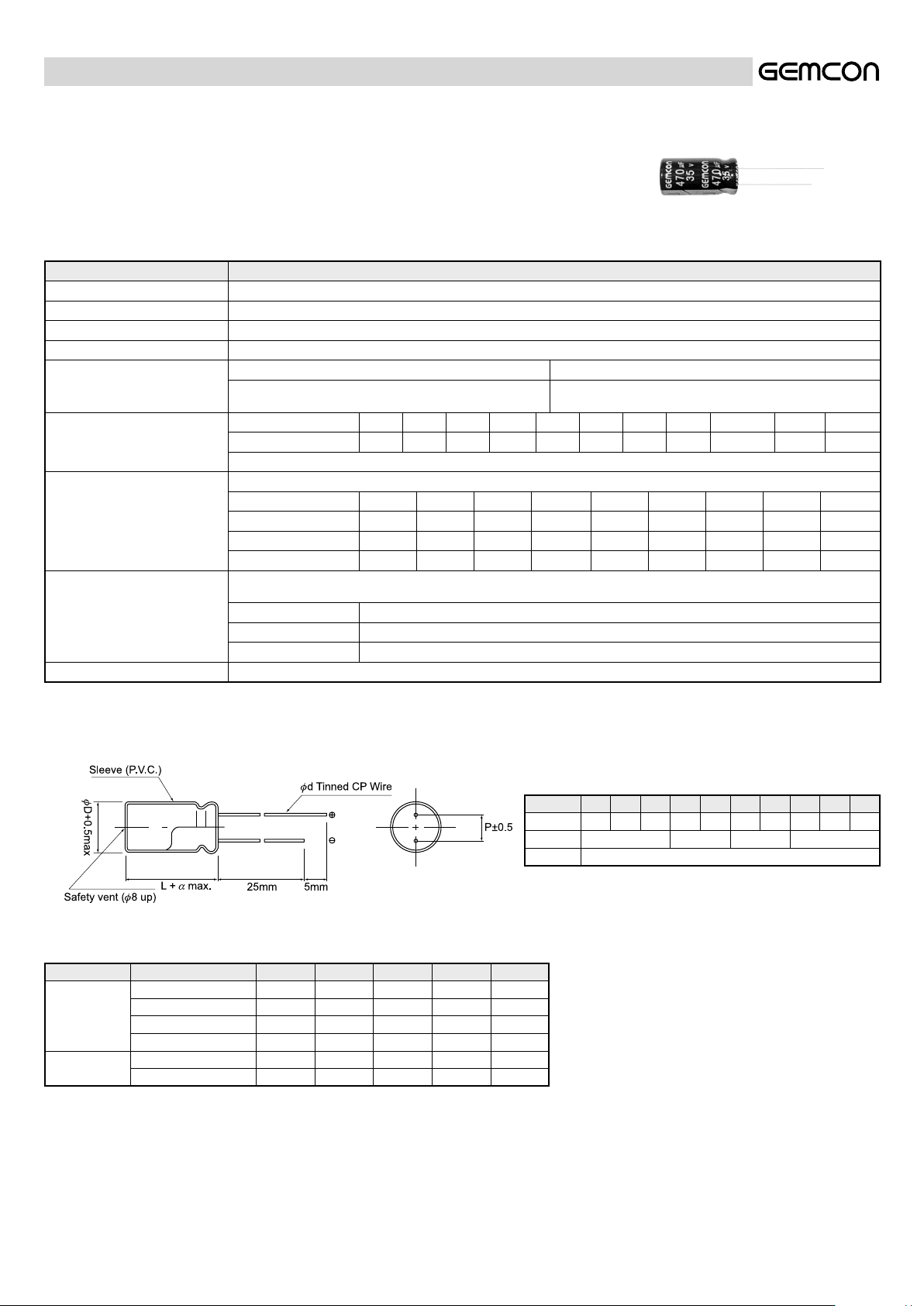

Page 1

ALUMINUM ELECTROLYTIC CAPACITOR

GLZ Low Impedance, Standard Series

• Low impedance & high ripple current at high frequency.

• Suitable for switching power circuits application.

• Life guaranteed 2,000~3,000 hours at 105°C.

●

Specications

Item Performance Characteristics

Operating Temperature range -55 + 105°C (6.3 ∼ 100V) -40 + 105°C (160 ∼ 400V) -25 + 105°C (450V)

Rated Voltage 6.3V ∼ 450V

Capacitance Range 0.47 ∼ 15,000 µF

Capacitance Tolerance

6.3V ∼ 100V 160V ∼ 450V

Leakage Current

Dissipation Factor (120Hz, 20°C)

Temperature Characteristics (120Hz)

Load Life

Shelf Life At 105°C, no voltage applied for 1,000 hours, the capacitor shall meet the limits as in load life.

I ≤ 0.03CV or 4 µA, whichever is greater after 2 minutes application of rated voltage.

Rated voltage (V) 6.3 10 16 25 35 50 63 100 160∼250 350 400∼450

Tan δ (max.) 0.24 0.20 0.16 0.14 0.12 0.10 0.09 0.08 0.15 0.20 0.25

For capacitance of more than 1,000 µF, add 0.02 for every increase of 1,000 µF.

Impedance Ratio / Stability at Low Temperature

Rated voltage (V) 6.3∼10 16∼25 35∼50 63∼100 160∼200 250 350 400 450

Z (-25°C) / Z (20°C) - - - 2 3 3 4 6 15

Z (-40°C) / Z (20°C) - - - 3 4 6 8 10 -

Z (-55°C) / Z (20°C) 5 4 3 - - - - - After the specify hours application of rated voltage and ripple current at 105°C, capacitor shall meet the

characteristics requirements mentioned below. 5 ∼ 6φ : 2,000 hours 8 ∼ 10φ : 2,000 hours ≥ 13φ : 3,000 hours Capacitance change Within ±20% of initial value

Tan δ 200% or less of initial specied value

Leakage current Initial specied value or less

±20% (120Hz, 20°C)

CV ≤ 1000 : I = 0.1CV + 40 µA max. (2 minutes) CV ≥ 1000 : I = 0.4CV + 100 µA max. (2 minutes)

●

Dimension (mm)

• Frequency coefcient of allowable ripple current

WV Cap (µF) \ Frequency 50 Hz 120 Hz 300 Hz 1 KHz 10 KHz ~

~ 47 - 0.17 0.40 0.65 1.00

6.3 ~ 100

160 ~ 450

100 ~ 220 0.30 0.50 0.65 0.80 1.00 330 ~ 680 0.57 0.71 0.82 0.90 1.00

1000 ~ 15000 0.75 0.87 0.96 0.98 1.00

0.47 ~ 220 0.80 1.00 1.25 1.40 1.60 330 ~ 470 0.90 1.00 1.10 1.13 1.15

Df 5 6.3 8 10 13 16 18 20 22 25

P 2.0 2.5 3.5 5.0 5.0 7.5 7.5 10.0 10.0 12.5

0.5 0.6 0.8 1.0 L < 20 : 1.5 mm, L ≥ 20 : 2.0 mm

Page 2

ALUMINUM ELECTROLYTIC CAPACITOR

●

Standard Products Table

Cap (µF)

4.7 5 x 11 1.50 160

10 5 x 11 1.50 160 22 5 x 11 1.50 160 5 x 11 1.50 160 5 x 11 1.50 160 5 x 11 1.50 160 33 5 x 11 1.50 160 5 x 11 1.50 160 5 x 11 1.50 160 5 x 11 1.50 160

47 5 x 11 1.50 160 5 x 11 1.50 160 5 x 11 1.50 160 5 x 11 1.50 160 100 5 x 11 1.50 160 5 x 11 1.50 160 6 x 11 0.50 250 6 x 11 0.50 250 220 6 x 11 0.50 250 6 x 11 0.50 250 8 x 11 0.28 410 8 x 11 0.28 410 330 6 x 11 0.50 250 8 x 11 0.28 410 8 x 11 0.28 410 10 x 12 0.19 600 470 8 x 11 0.28 410 8 x 11 0.28 410 10 x 12 0.19 600 10 x 16 0.14 800 680 10 x 12 0.19 600 10 x 12 0.19 600 10 x 16 0.14 800 10 x 20 0.11 1000

1000 10 x 12 0.19 600 10 x 16 0.14 800 10 x 20 0.11 1000 13 x 20 0.075 1250 1500 10 x 20 0.11 1000 10 x 20 0.11 1000 13 x 20 0.075 1250 16 x 25 0.038 1900 2200 13 x 20 0.075 1250 13 x 20 0.075 1250 13 x 25 0.057 1550 16 x 25 0.038 1900 3300 13 x 20 0.075 1250 13 x 25 0.057 1550 16 x 25 0.038 1900 16 x 31 0.033 2350 4700 16 x 25 0.038 1900 16 x 25 0.038 1900 16 x 31 0.033 2350 18 x 35 0.030 2700

6800 16 x 25 0.038 1900 16 x 31 0.033 2350 18 x 35 0.030 2700 18 x 40 0.027 3300 10000 16 x 31 0.033 2350 18 x 35 0.030 2700 18 x 40 0.027 3300

15000 18 x 35 0.030 2700 18 x 40 0.027 3300

Size Imp. Ripple Size Imp. Ripple Size Imp. Ripple Size Imp. Ripple

6.3V 10V 16V 25V

Df x L (mm)

Cap (µF)

0.47 5 x 11 7.50 25 5 x 11 43.0 20

1 5 x 11 5.30 40 5 x 11 20.0 30

2.2 5 x 11 4.50 55 5 x 11 9.80 44

3.3 5 x 11 3.90 65 5 x 11 6.60 58

4.7 5 x 11 1.50 160 5 x 11 3.50 90 5 x 11 4.70 68 5 x 11 4.60 74 10 5 x 11 1.50 160 5 x 11 2.10 120 5 x 11 2.10 110 6 x 11 1.80 130 22 5 x 11 1.50 160 5 x 11 1.80 150 6 x 11 0.98 180 8 x 11 0.68 230 33 5 x 11 1.50 160 6 x 11 0.65 250 6 x 11 0.71 220 10 x 12 0.46 320 47 6 x 11 0.50 250 6 x 11 0.65 250 8 x 11 0.65 310 10 x 16 0.37 420

100 8 x 11 0.28 410 8 x 11 0.36 340 10 x 12 0.31 390 13 x 20 0.18 580 150 8 x 11 0.28 410 10 x 12 0.26 490 10 x 16 0.25 440 13 x 25 0.13 710 220 10 x 12 0.19 600 10 x 16 0.18 650 10 x 20 0.20 700 16 x 25 0.10 890 330 10 x 16 0.14 800 10 x 20 0.15 810 13 x 20 0.12 980 16 x 25 0.090 1080 470 10 x 20 0.11 1000 13 x 20 0.13 1100 13 x 25 0.081 1200 16 x 31 0.076 1310

680 13 x 20 0.075 1250 13 x 25 0.10 1200 16 x 25 0.058 1300 16 x 35 0.064 1410 1000 13 x 25 0.057 1550 16 x 25 0.058 1600 16 x 31 0.049 1380 18 x 40 0.047 4520 1500 16 x 25 0.038 1900 16 x 31 0.040 2000 18 x 35 0.038 1750

2200 16 x 31 0.033 2350 18 x 35 0.035 2300 18 x 40 0.032 2120

3300 18 x 35 0.030 2700

4700 18 X 40 0.027 3300

Cap (µF)

0.47 6 x 11 12 6 x 11 12 6 x 11 12 8 x 11 11 1 6 x 11 17 6 x 11 17 6 x 11 17 10 x 12 17 10 x 12 16 10 x 12 18

2.2 6 x 11 25 6 x 11 25 8 x 11 29 10 x 16 31 10 x 16 27 10 x 20 29

3.3 8 x 11 36 8 x 11 36 10 x 12 42 10 x 16 38 10 x 20 36 13 x 20 41

4.7 8 x 11 43 10 x 12 50 10 x 12 50 10 x 20 49 10 x 20 43 13 x 20 49 10 10 x 12 70 10 x 16 80 10 x 20 88 13 x 20 82 13 x 25 72 16 x 25 75 22 10 x 20 130 10 x 20 140 13 x 25 155 16 x 25 130 16 x 25 110 16 x 31 115 33 13 x 20 180 13 x 25 190 13 x 25 190 16 x 31 160 16 x 31 140 18 x 35 145 47 13 x 25 220 13 x 25 220 16 x 25 230 18 x 35 200 18 x 35 170 20 x 40 175

100 16 x 25 330 16 x 31 335 18 x 35 340 20 x 40 290 22 x 50 350 25 x 50 350 220 18 x 35 500 18 x 40 515 20 x 40 525 25 x 50 550

330 20 x 40 900 22 x 40 1100 22 x 50 1150

470 22 x 50 1200 22x 50 1310 25 x 50 1350

Size Imp. Ripple Size Imp. Ripple Size Imp. Ripple Size Imp. Ripple

35V 50V 63V 100V

• Impedance: (Ω) Max. 20°C 100KHz • Allowable ripple current: (mA) at 105°C 100KHz

160V 200V 250V 350V 400V 450V

Case Size Ripple

• Allowable ripple current (mA) at 105°C 120Hz
