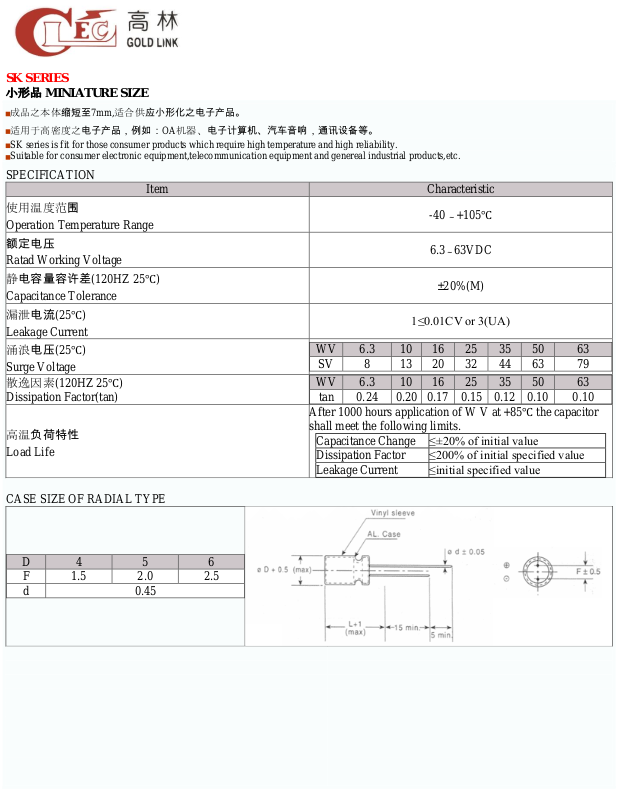

SK SERIES
小形品 MINIATURE SIZE
成品之本体缩短至7mm,适合供应小形化之电子产品。
适用于高密度之电子产品，例如：OA机器、电子计算机、汽车音响，通讯设备等。
SK series is fit for those consumer products which require high temperature and high reliability.
Suitable for consumer electronic equipment,telecommunication equipment and genereal industrial products,etc.
SPECIFICATION
Item
Characteristic
使用温度范围
Operation Temperature Range
-40
~
+105℃
额定电压
Ratad Working Voltage
6.3 ~ 63VDC
静电容量容许差(120HZ 25℃)
Capacitance Tolerance
±20%(M)
漏泄电流(25℃)
Leakage Current
1≤0.01CV or 3(UA)
涌浪电压(25℃)
Surge Voltage
WV
6.3
10
16
25
35
50
63
SV 8 13
20
32
44
63
79
散逸因素(120HZ 25℃)
Dissipation Factor(tan)
WV
6.3
10
16
25
35
50
63
tan
0.24
0.20
0.17
0.15
0.12
0.10
0.10
高温负荷特性
Load Life
After 1000 hours application of W V at +85℃ the capacitor
shall meet the following limits.
Capacitance Change
≤±20% of initial value
Dissipation Factor
≤200% of initial specified value
Leakage Current
≤initial specified value
CASE SIZE OF RADIAL TYPE
D 4 5
6 F 1.5
2.0
2.5
d
0.45
Page 2
CASE SIZE & MAX RIPPLE CURRENT
*SER*
Case size:Dxl(mm)
Max ripple current:mA(rms)
(R.C):105℃ 120HZ
uF
WV
6.3
10
16
25
35
50
63
ITEM
Dxl
R.C.
Dxl
R.C.
Dxl
R.C.
Dxl
R.C.
Dxl
R.C.
Dxl
R.C.
Dxl
R.C.
0.1
4X7
3
4X7 3 0.22
4X7
5
4X7 5 0.33
4X7
6
4X7 6 0.47
4X7
7
4X7 7 1.0
4x7
11
4X7
11
2.2
4X7
16
4X7
16
3.3
4X7
20
5X7
22
4.7
4X7
27
6X7
31
10
4X7
26
4X7
28
5X7
36
6X7
45
22
4X7
33
4X7
36
4X7
39
5X7
47
6X7
60
33
4X7
40
4X7
44
5X7
55
6X7
65
47
5X7
55
5X7
60
6X7
75
100
6X7
90
6X7
100
6X7
110
