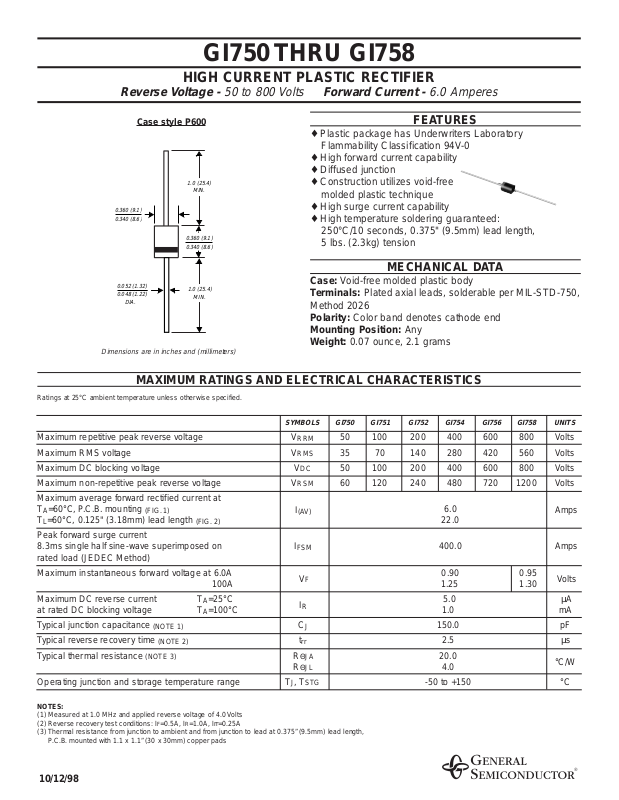

Page 1
GI750 THRU GI758
HIGH CURRENT PLASTIC RECTIFIER
Reverse Voltage - 50 to 800 Volts Forward Current - 6.0 Amperes
FEATURES
♦ Plastic package has Underwriters Laboratory
Flammability Classification 94V-0
♦ High forward current capability
♦ Diffused junction
♦ Construction utilizes void-free
molded plastic technique
♦ High surge current capability
♦ High temperature soldering guaranteed:
250°C/10 seconds, 0.375" (9.5mm) lead length,
5 lbs. (2.3kg) tension
MECHANICAL DATA
Case: Void-free molded plastic body
Terminals: Plated axial leads, solderable per MIL-STD-750,
Method 2026
Polarity: Color band denotes cathode end
Mounting Position: Any
Weight: 0.07 ounce, 2.1 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25°C ambient temperature unless otherwise specified.
SYMBOLS GI750 GI751 GI752 GI754 GI756 GI758 UNITS
Maximum repetitive peak reverse voltage V
RRM
50 100 200 400 600 800 Volts
Maximum RMS voltage V
RMS
35 70 140 280 420 560 Volts
Maximum DC blocking voltage V
DC
50 100 200 400 600 800 Volts
Maximum non-repetitive peak reverse voltage V
RSM
60 120 240 480 720 1200 Volts
Maximum average forward rectified current at
T
A
=60°C, P.C.B. mounting
(FIG. 1)
6.0
T
L
=60°C, 0.125" (3.18mm) lead length
(FIG. 2)
I
(AV)
22.0
Amps
Peak forward surge current
8.3ms single half sine-wave superimposed on I
FSM
400.0 Amps
rated load (JEDEC Method)
Maximum instantaneous forward voltage at 6.0A 0.90 0.95
100A
V
F
1.25 1.30
Volts
Maximum DC reverse current T
A
=25°C 5.0 µA
at rated DC blocking voltage T
A
=100°C
I
R
1.0 mA
Typical junction capacitance
(NOTE 1)
C
J
150.0 pF
Typical reverse recovery time
(NOTE 2)
t
rr
2.5 µs
Typical thermal resistance
(NOTE 3)
R
ΘJA
20.0
R
ΘJL
4.0
°C/W
Operating junction and storage temperature range T
J
, T
STG
-50 to +150 °C
NOTES:
(1) Measured at 1.0 MHz and applied reverse voltage of 4.0 Volts
(2) Reverse recovery test conditions:I
F
=0.5A, IR=1.0A, Irr=0.25A
(3) Thermal resistance from junction to ambient and from junction to lead at 0.375” (9.5mm) lead length,
P.C.B. mounted with 1.1 x 1.1” (30 x 30mm) copper pads
10/12/98
Case style P600
Dimensions are in inches and (millimeters)
1.0 (25.4)
MIN.
0.360 (9.1)
0.340 (8.6)
0.360 (9.1)
0.340 (8.6)
0.052 (1.32)
0.048 (1.22)
DIA.
1.0 (25.4)
MIN.
Page 2
RATINGS AND CHARACTERISTIC CURVES GI750 THRU GI758
FIG.1 - MAXIMUM FORWARD CURRENT
DERATING CURRENT
AMBIENT TEMPERATURE, °C
AVERAGE FORWARD RECTIFIED CURRENT,
AMPERES
60 HZRESISTIVE or
INDUCTIVE LOAD
AVERAGE FORWARD CURRENT,
AMPERES
LEAD TEMPERATURE, °C
TJ=25°C
PULSE WIDTH=300µs
1% DUTY CYCLE
FIG. 2 - MAXIMUM FORWARD CURRENT DERATING
CURVE
FIG. 3 - MAXIMUM PEAK FORWARD SURGE CURRENT
NUMBER OF CYCLES AT 60 H
Z
PEAK FORWARD SURGE CURRENT
AMPERES
TJ=150°C
NON-REPETITIVE
REPETITIVE
TJ=25°C
1.1 x 1.1” (30 x 30mm)
COPPER PADS
T
J
=25°C
T
J
=150°C
L=0.625”(15.8mm)
L=0.125” (3.18mm)
60 HZRESISTIVE or
INDUCTIVE LOAD
BOTH LEADS
ATTACHED to HEAT
SINKS with LENGTH
as SHOWN “L”
L=0.25”
(6.35mm)
L=0.375”
(9.5mm)
TJ=100°C
TJ=125°C
TJ=25°C
V
RRM
may be APPLIED
BETWEEN EACH CYCLE of
SURGE, the T
J
NOTED is T
J
PRIOR to SURGE
INSTANTANEOUS FORWARD VOLTAGE,
VOLTS
FIG. 4 - TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS
INSTANTANEOUS FORWARD CURRENT,
AMPERES
FIG. 6 - TYPICAL TRANSIENT THERMAL IMPEDANCE
t, PULSE DURATION, sec.
TRANSIENT THERMAL IMPEDANCE, °C/W
FIG. 5 - TYPICAL REVERSE CHARACTERISTICS
PERCENT OF RATED PEAK REVERSE VOLTAGE, %
INSTANTANEOUS REVERSE CURRENT,
MICROAMPERES
600
0 20 40 60 80 100 120 140 160 180 200
28
24
20
16
12
8.0
4.0
0
0 20 40 60 80 100 120 140 160 180 200
100
10
100
50
1
100
10
1
10
1
100
0.1
0.01
0.6 0.8 1.0 1.2 1.4 1.6 1.8
100
10
0.1
0.01
20
0
40
60
80
100
0.1
1
0.01
0.1
1
10
100
