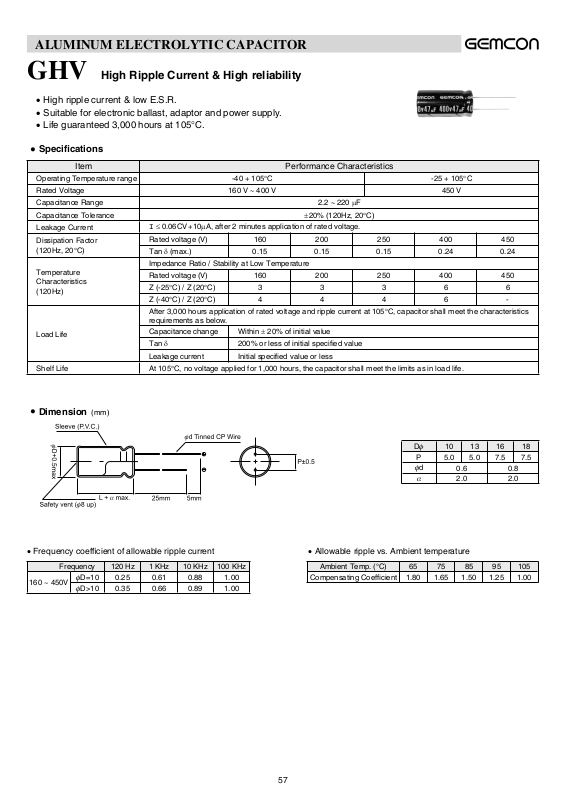

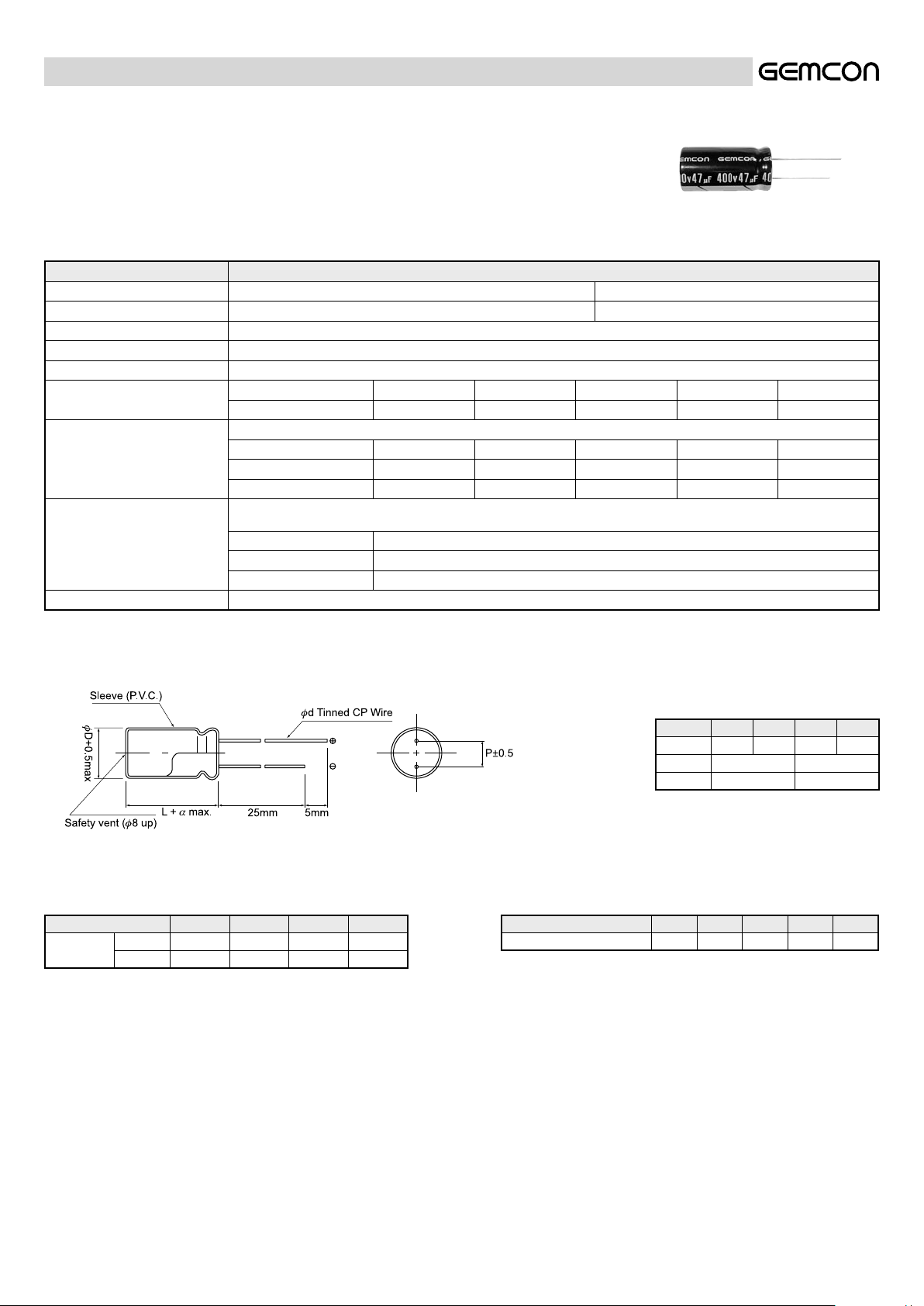

ALUMINUM ELECTROLYTIC CAPACITOR
GHV High Ripple Current & High reliability
• High ripple current & low E.S.R.
• Suitable for electronic ballast, adaptor and power supply.
• Life guaranteed 3,000 hours at 105°C.
●
Specications
Item Performance Characteristics
Operating Temperature range -40 + 105°C -25 + 105°C
Rated Voltage 160 V ∼ 400 V 450 V
Capacitance Range 2.2 ∼ 220 µF
Capacitance Tolerance
Leakage Current
Dissipation Factor
(120Hz, 20°C)
Temperature
Characteristics
(120Hz)
Load Life
Shelf Life At 105°C, no voltage applied for 1,000 hours, the capacitor shall meet the limits as in load life.
I ≤ 0.06CV + 10µA, after 2 minutes application of rated voltage.
Rated voltage (V) 160 200 250 400 450
Tan δ (max.) 0.15 0.15 0.15 0.24 0.24
Impedance Ratio / Stability at Low Temperature
Rated voltage (V) 160 200 250 400 450
Z (-25°C) / Z (20°C) 3 3 3 6 6
Z (-40°C) / Z (20°C) 4 4 4 6 After 3,000 hours application of rated voltage and ripple current at 105°C, capacitor shall meet the characteristics
requirements as below.
Capacitance change Within ± 20% of initial value
Tan δ 200% or less of initial specied value
Leakage current Initial specied value or less
±20% (120Hz, 20°C)
●
Dimension (mm)
Df 10 13 16 18
P 5.0 5.0 7.5 7.5
fd
a
0.6 0.8
2.0 2.0
• Frequency coefcient of allowable ripple current • Allowable ripple vs. Ambient temperature
Frequency 120 Hz 1 KHz 10 KHz 100 KHz
160 ~ 450V
fD=10
fD>10
0.25 0.61 0.88 1.00
0.35 0.66 0.89 1.00
Ambient Temp. (°C) 65 75 85 95 105
Compensating Coefcient 1.80 1.65 1.50 1.25 1.00
57
Page 2
ALUMINUM ELECTROLYTIC CAPACITOR
ALUMINUM ELECTROLYTIC CAPACITOR
59
●
Standard Products Table
WV(SV)
Cap (µF)
4.7 10 x 16 3.45 150
10 10 x 16 1.47 220 10 x 16 1.47 220 10 x 20 2.7 240
22 10 x 20 0.80 350 10 x 20 0.80 350 13 x 20 1.47 380
33 10 x 20 0.62 430 13 x 20 0.62 460 13 x 25 1.15 510
47 13 x 20 0.50 550 13 x 25 0.50 610 16 x 25 0.92 610
68 13 x 20 0.39 660 13 x 25 0.39 730 16 x 31 0.71 810
100 16 x 25 0.32 890 16 x 31 0.32 980 18 x 36 0.59 1110
220 16 x 36 0.17 1540 18 x 36 0.17 1640 18 x 40 0.31 1730
160
(200)
200
(250)
250
(300)
Df x L (mm)
WV(SV)
Cap (µF)
2.2 10 x 16 4.94 110
3.3 10 x 20 2.60 170 10 x 20 4.11 150
4.7 10 x 25 2.20 220 13 x 20 3.47 190
10 13 x 25 1.72 340 13 x 25 2.72 300
22 16 x 25 0.94 510 16 x 31 1.48 500
33 16 x 31 0.73 690 16 x 31 1.15 620
47 16 x 31 0.59 820 18 x 31 0.92 780
68 16 x 31 0.46 990
100 18 x 31 0.38 1280
120 18 x 36 0.32 1480
150 18 x 40 0.26 1740
180 18 x 40 0.23 1910 Case size Imp. Ripple
400
(450)
450
(500)
• Impedance: (Ω) max. at 20°C 100KHz • Rated ripple current (mA) at 105°C 100KHz
