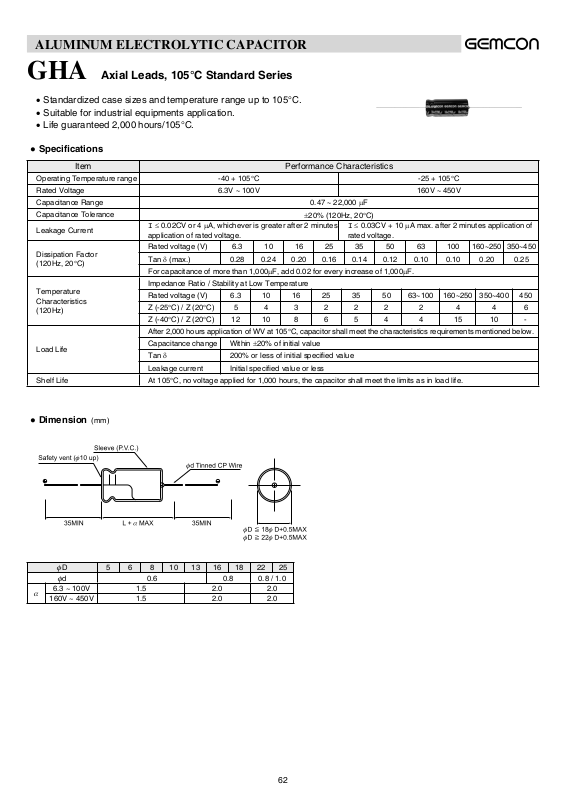

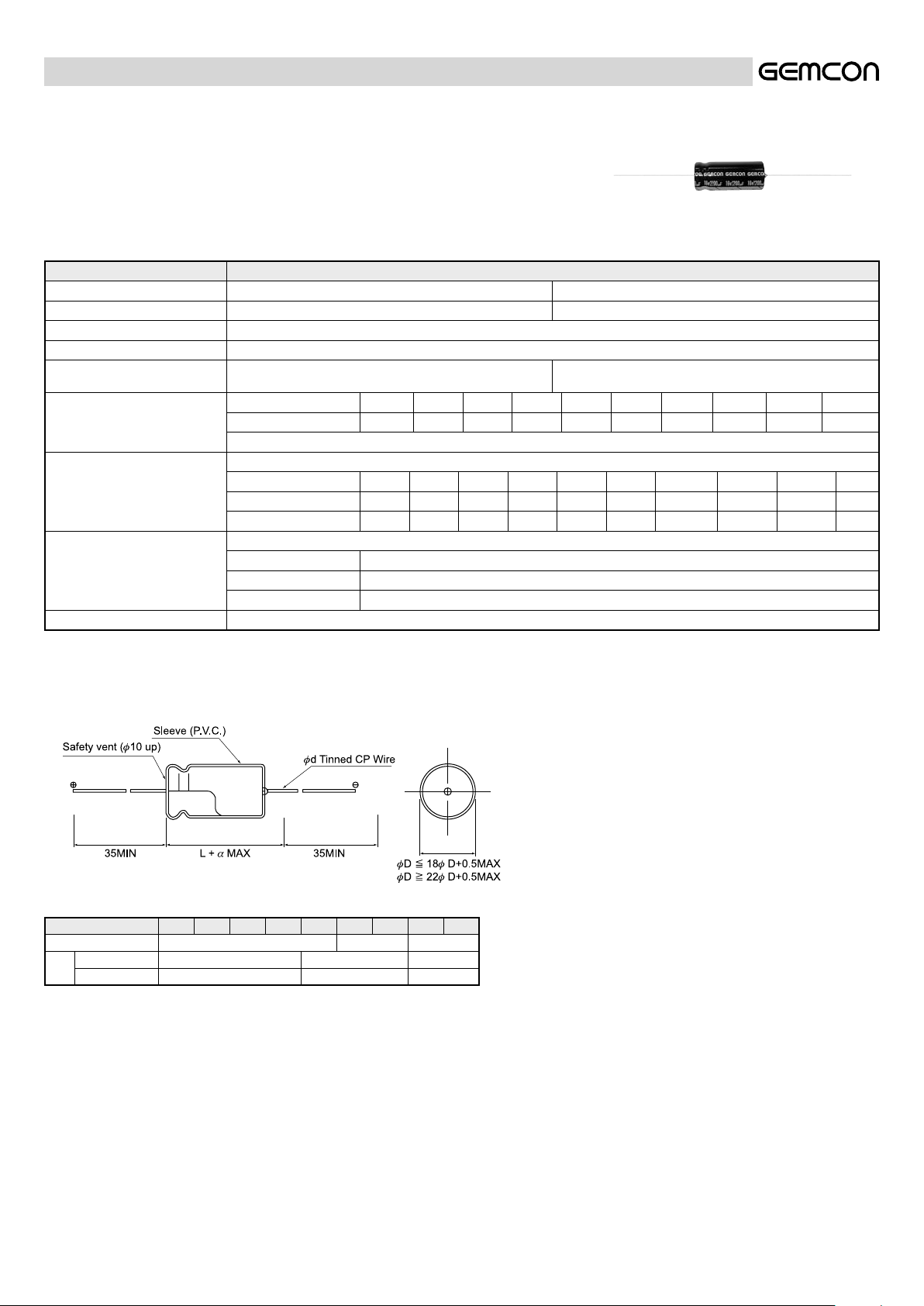

Page 1

ALUMINUM ELECTROLYTIC CAPACITOR

GHA Axial Leads, 105°C Standard Series

• Standardized case sizes and temperature range up to 105°C.

• Suitable for industrial equipments application.

• Life guaranteed 2,000 hours/105°C.

●

Specications

Item Performance Characteristics

Operating Temperature range -40 + 105°C -25 + 105°C

Rated Voltage 6.3V ∼ 100V 160V ∼ 450V

Capacitance Range 0.47 ∼ 22,000 µF

Capacitance Tolerance

Leakage Current

Dissipation Factor (120Hz, 20°C)

Temperature Characteristics (120Hz)

Load Life

Shelf Life At 105°C, no voltage applied for 1,000 hours, the capacitor shall meet the limits as in load life.

I ≤ 0.02CV or 4 µA, whichever is greater after 2 minutes application of rated voltage.

Rated voltage (V) 6.3 10 16 25 35 50 63 100 160∼250 350∼450

Tan δ (max.) 0.28 0.24 0.20 0.16 0.14 0.12 0.10 0.10 0.20 0.25

For capacitance of more than 1,000µF, add 0.02 for every increase of 1,000µF.

Impedance Ratio / Stability at Low Temperature

Rated voltage (V) 6.3 10 16 25 35 50 63∼100 160∼250 350∼400 450

Z (-25°C) / Z (20°C) 5 4 3 2 2 2 2 4 4 6

Z (-40°C) / Z (20°C) 12 10 8 6 5 4 4 15 10 -

After 2,000 hours application of WV at 105°C, capacitor shall meet the characteristics requirements mentioned below.

Capacitance change Within ±20% of initial value

Tan δ 200% or less of initial specied value

Leakage current Initial specied value or less

±20% (120Hz, 20°C)

I ≤ 0.03CV + 10 µA max. after 2 minutes application of rated voltage.

●

Dimension (mm)

fD fd

6.3 ~ 100V 1.5 2.0 2.0

160V ~ 450V 1.5 2.0 2.0

5 6 8 10 13 16 18 22 25

0.6 0.8 0.8 / 1.0

Page 2

ALUMINUM ELECTROLYTIC CAPACITOR

●

Standard Products Table

WV(SV)

Cap (µF)

0.47 5 x 13 5 5 x 13 9

1 5 x 13 10 5 x 13 14

2.2 5 x 13 18 5 x 13 19

3.3 5 x 13 22 6.3 x 13 27

4.7 5 x 13 26 6.3 x 13 32

10 5 x 13 30 5 x 13 33 5 x 13 36 6.3 x 13 44 6.3 x 16 52

22 5 x 13 41 5 x 13 48 6.3 x 13 57 6.3 x 16 69 6.3 x 16 73 8 x 16 85

33 5 x 13 54 6.3 x 13 64 6.3 x 16 76 6.3 x 16 82 6.3 x 16 89 8 x 20 115

47 5 x 13 57 6.3 x 13 71 6.3 x 16 85 6.3 x 16 88 6.3 x 16 100 8 x 16 115 8 x 20 135 100 6.3 x 13 89 6.3 x 16 105 6.3 x 16 115 6.3 x 16 120 8 x 16 140 8 x 16 155 8 x 20 185 10 x 26 240 220 6.3 x 16 145 6.3 x 16 155 8 x 16 185 8 x 16 200 8 x 20 240 10 x 21 290 10 x 26 340 13 x 31 430 330 8 x 16 200 8 x 16 220 8 x 16 230 8 x 20 270 10 x 21 330 10 x 26 400 13 x 26 460 16 x 31 570 470 8 x 16 240 8 x 16 250 8 x 20 310 10 x 21 370 10 x 26 430 13 x 26 530 13 x 31 590 16 x 41 770

1000 10 x 21 430 10 x 21 460 10 x 26 550 13 x 26 640 13 x 31 750 16 x 31 890 16 x 31 940 22 x 41 1210 2200 13 x 26 720 13 x 26 780 13 x 31 910 16 x 31 1040 16 x 31 1120 18 x 41 1360 22 x 41 1520 25 x 60 2170 3300 13 x 26 860 13 x 31 980 16 x 31 1140 16 x 31 1200 16 x 41 1430 22 x 41 1660 22 x 51 1740

4700 13 x 31 1060 16 x 31 1220 16 x 31 1300 18 x 41 1540 22 x 41 1740 22 x 51 1860 25 x 51 2400

6800 16 x 31 1300 16 x 31 1370 16 x 41 1620 22 x 41 1810 22 x 51 1910

10000 16 x 41 1620 18 x 41 1690 22 x 41 1900 22 x 51 1980 25 x 51 2510

15000 18 x 41 1740 22 x 41 1950 22 x 51 2050

22000 22 x 41 2000 22 x 51 2080 25 x 51 2650

6.3 (8)

(13)

(20)

(32)

(44)

(63)

(75)

Df x L (mm)

100

(125)

WV(SV)

Cap (µF)

1 6.3 x 13 10 6.3 x 16 11 6.3 x 16 10 8 x 16 12 8 x 16 12

2.2 6.3 x 16 17 8 x 16 20 8 x 16 17 8 x 20 19 10 x 21 22

3.3 8 x 16 24 8 x 16 24 8 x 20 24 10 x 21 27 10 x 21 27

4.7 8 x 16 28 8 x 16 28 8 x 20 32 10 x 21 33 10 x 21 33 10 x 26 36 10 8 x 20 43 10 x 21 50 10 x 21 50 13 x 26 60 13 x 26 60 13 x 31 67 22 10 x 26 85 13 x 26 100 13 x 26 100 16 x 31 110 16 x 31 110 16 x 41 130 33 13 x 26 120 13 x 26 120 13 x 31 135 16 x 31 135 16 x 41 160 18 x 41 165 47 13 x 31 155 13 x 31 155 16 x 31 175 16 x 41 185 18 x 41 200 22 x 41 220

100 16 x 31 270 16 x 41 300 16 x 41 300 22 x 41 310

220 22 x 41 510 22 x 41 510

160

(200)

200

(250)

250

(300)

350

(400)

400

(450)

Ripple current (mA) at 105°C 120 Hz

• Frequency coefcient of allowable ripple current

WV Cap(µF) \ Frequency 50 Hz 120 Hz 300 Hz 1 KHz 10 KHz~

~ 47 0.75 1 1.35 1.57 2.00

6.3~100

160~450 1 ~ 220 0.80 1 1.25 1.40 1.60

100 ~ 470 0.80 1 1.23 1.34 1.50

1,000 ~ 22,000 0.85 1 1.10 1.13 1.15

450

(500)

Case Size

Ripple
