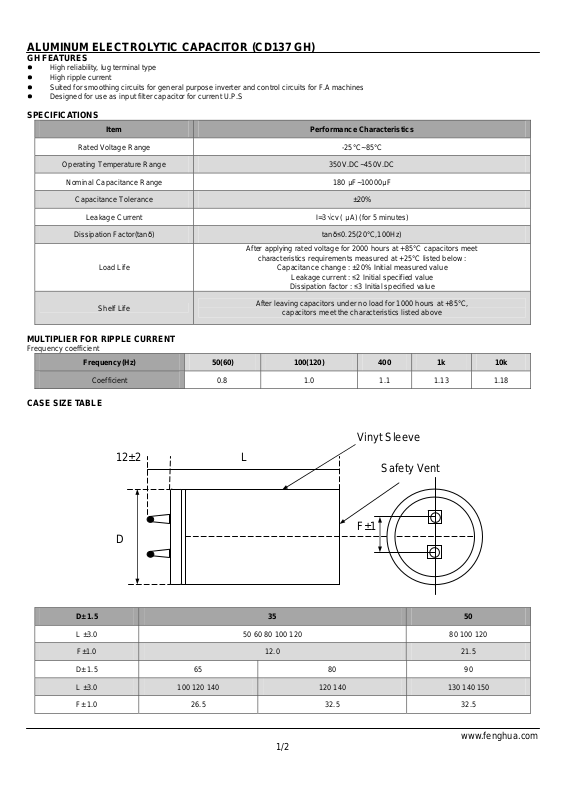

ALUMINUM ELECTROLYTIC CAPACITOR (CD137 GH)
GH FEATURES
High reliability , lug terminal type
High ripple current
Suited for smoothing circuits for general purpose inverter and control circuits for F.A machines
Designed for use as input filter capacitor for current U.P.S
SPECIFICATIONS
Item Performance Characteristics
Rated Voltage Range -25°C~85°C
Operating Temperature Range 350V.DC~450V.DC
Nominal Capacitance Range 180 μF~10000μF
Capacitance Tolerance ±20%
Leakage Current I=3√cv ( μA) (for 5 minutes)
Dissip ation Factor (tanδ) tanδ≤0.25(20°C,100Hz)
After app l yin g rated volt ag e f or 20 00 hours at +85°C cap ac it ors meet
characteristics requirements measured at +25°C listed below :
Load Lif e
Capacitance change : ±20% Initial measured value
Leakage current :
Dissipation factor :
≤
2 Initial specified value
≤
3 Initial sp ecif ied value
Shelf Life
MULTIPLIER FOR RIPPLE CURRENT
Frequency coefficient
Frequency(Hz) 50(60) 100(120) 400 1k 10k
Coefficient 0.8 1.0 1.1 1.13 1.18

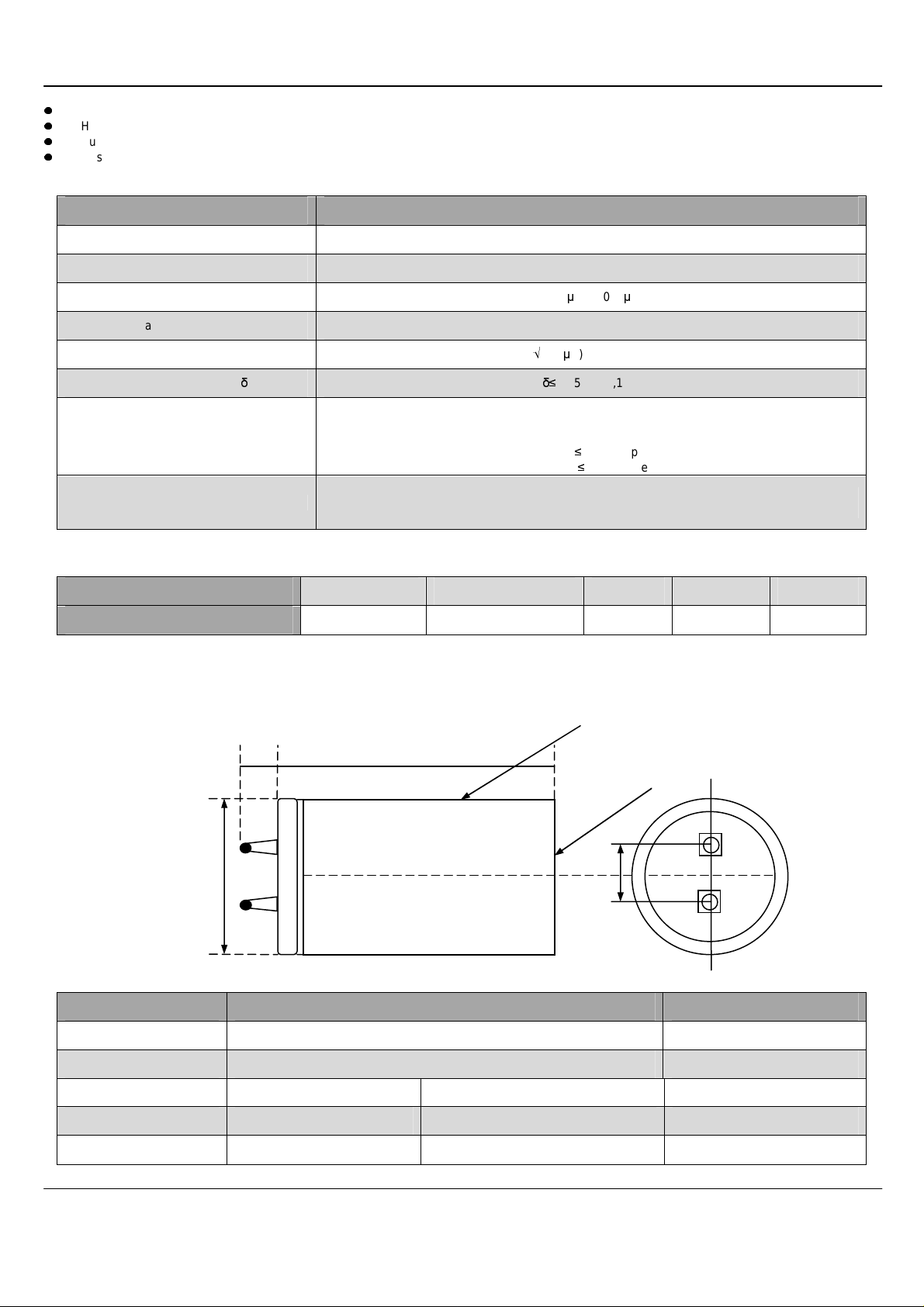

CASE SIZE TABLE
D± 1.5 35 50
12±2
D
After leavin g capacitors under no load for 1000 hours at +85°C,
capa citors meet the characteristics listed above
Vinyt Sleeve
L
Safety Vent
F±1
L ±3.0 50 60 80 100 120 80 100 120
F±1.0 12.0 21.5
D± 1.5 65 80 90
L ±3.0 100 120 140 120 140 130 140 150
F± 1.0 26.5 32.5 32.5
www.fenghua.com
1/2
Page 2
ALUMINUM ELECTROLYTIC CAPACITOR (CD137 GH)
DIMENSIONS, RATED VOLTAGE RANGE AND CAPACITANCE
350 400 450
Ф
DxL(mm)
180 35x50 2.9 1.0
220 35x50 3.0 1.1 35x50 3.2 1.1
270 35x50 3.3 1.2 35x50 3.3 1.2 35x50 3.6 1.2
330 35x50 3.7 1.3 35x50 3.9 1.4 35x60 4.4 1.5
390 35x50 4.3 1.5 35x60 4.3 1.5 35x80 4.8 1.7
470 35x60 4.7 1.6 35x80 5.3 1.8 35x80 5.8 2.0
560 35x80 5.8 2.0 35x80 6.3 2.2 35x100 6.3 2.2
680 35x80 6.4 2.2 35x100 7.0 2.4 35x120 7.5 2.6
820 35x100 7.7 2.7 35x100 8.3 2.9 50x80 8.0 2.8
Ripple current (A rms)
40° C 120Hz 85° C 120Hz
Ф
DxL(mm)
Ripple current (A rms)
40° C 120Hz 85° C 120Hz
Ф
DxL(mm)
Ripple current (A rms)
40° C 120Hz 85° C 120Hz
1000
1200
1500
1800
2200
2700
3300
3900
4700
5600
6800
8200
10000 90x150 44.0 15.4 90x150 44.0 15.4
35x100 9.2 3.2 50x80 8.8 3.1 50x80 9.6 3.4
50x80 9.7 3.4 50x80 9.7 3.4 50x100 10.6 3.7
50x80 10.8 3.8 50x100 11.8 4.1 50x120 12.7 4.4
50x100 12.9 4.5 50x100 13.9 4.9 65x100 13.8 4.8
50x100 15.4 5.4 50x120 16.4 5.7 65x100 16.3 5.7
65x100 18.2 6.4 65x100 18.1 6.3 65x120 19.2 6.7
65x120 20.0 7.0 65x120 21.3 7.4 80x120 20.6 7.2
65x120 23.1 8.1 65x120 24.4 8.6 80x120 23.7 8.3
80x120 26.8 9.4 80x120 26.0 9.1 80x140 27.5 9.6
80x140 28.4 10.0 80x140 30.0 10.5 90x140 31.3 10.9
90x140 33.0 11.6 90x130 34.5 12.1 90x150 36.3 12.7
90x140 37.8 13.2 90x140 39.8 13.9
