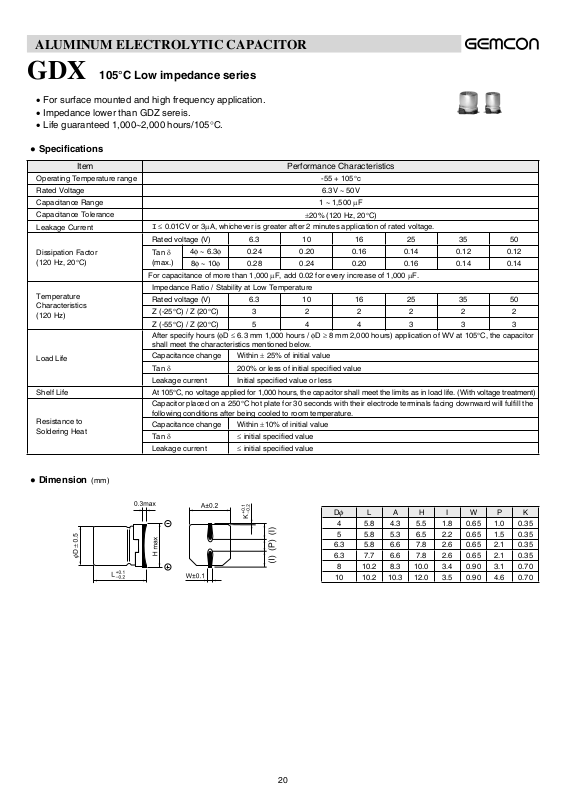

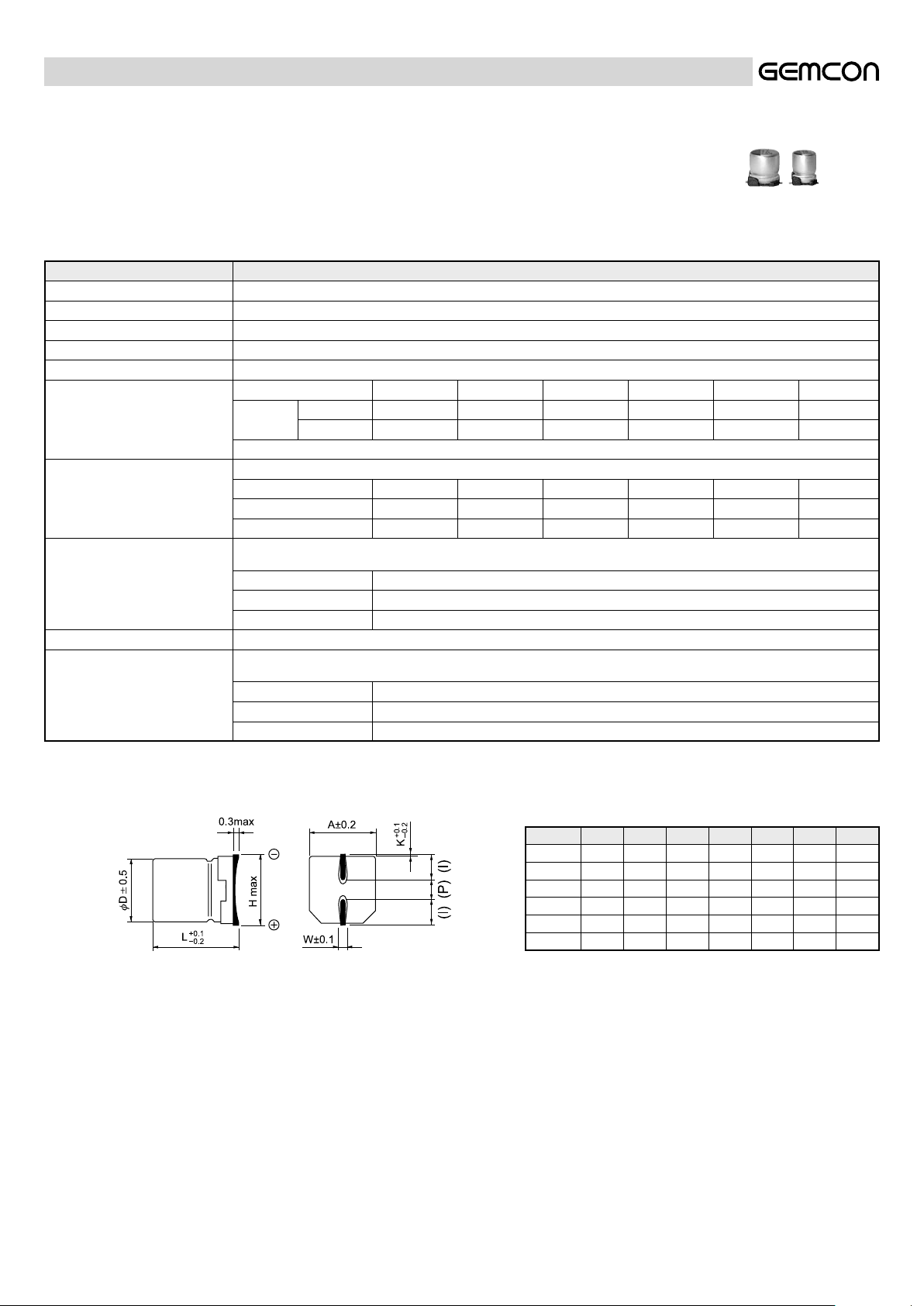

Page 1

ALUMINUM ELECTROLYTIC CAPACITOR

GDX 105°C Low impedance series

• For surface mounted and high frequency application.

• Impedance lower than GDZ sereis.

• Life guaranteed 1,000∼2,000 hours/105°C.

●

Specications

Item Performance Characteristics

Operating Temperature range -55 + 105°c

Rated Voltage 6.3V ∼ 50V

Capacitance Range 1 ∼ 1,500 µF

Capacitance Tolerance

Leakage Current

Dissipation Factor (120 Hz, 20°C)

Temperature Characteristics (120 Hz)

Load Life

Shelf Life At 105°C, no voltage applied for 1,000 hours, the capacitor shall meet the limits as in load life. (With voltage treatment)

Resistance to Soldering Heat

I ≤ 0.01CV or 3µA, whichever is greater after 2 minutes application of rated voltage.

Rated voltage (V) 6.3 10 16 25 35 50

Tan δ (max.)

For capacitance of more than 1,000 µF, add 0.02 for every increase of 1,000 µF.

Impedance Ratio / Stability at Low Temperature

Rated voltage (V) 6.3 10 16 25 35 50

Z (-25°C) / Z (20°C) 3 2 2 2 2 2

Z (-55°C) / Z (20°C) 5 4 4 3 3 3 After specify hours (φD ≤ 6.3 mm 1,000 hours / φD ≥ 8 mm 2,000 hours) application of WV at 105°C, the capacitor

shall meet the characteristics mentioned below. Capacitance change Within ± 25% of initial value

Tan δ 200% or less of initial specied value

Leakage current Initial specied value or less

Capacitor placed on a 250°C hot plate for 30 seconds with their electrode terminals facing downward will fulll the following conditions after being cooled to room temperature.

Capacitance change Within ±10% of initial value

Tan δ

Leakage current

4φ ∼ 6.3φ 0.24 0.20 0.16 0.14 0.12 0.12

8φ ∼ 10φ 0.28 0.24 0.20 0.16 0.14 0.14

≤ initial specied value

±20% (120 Hz, 20°C)

●

Dimension (mm)

Df L A H I W P K

4 5.8 4.3 5.5 1.8 0.65 1.0 0.35 5 5.8 5.3 6.5 2.2 0.65 1.5 0.35

6.3 5.8 6.6 7.8 2.6 0.65 2.1 0.35

6.3 7.7 6.6 7.8 2.6 0.65 2.1 0.35 8 10.2 8.3 10.0 3.4 0.90 3.1 0.70

10 10.2 10.3 12.0 3.5 0.90 4.6 0.70

Page 2

ALUMINUM ELECTROLYTIC CAPACITOR

●

Standard Products Table

WV(SV)

Cap (µF)

10 4 x 5.8 1.80 80

15 4 x 5.8 1.80 80

22 4 x 5.8 1.80 80 5 x 5.8 0.76 150 27 4 x 5.8 1.80 80 5 x 5.8 0.76 150 5 x 5.8 0.76 150 33 5 x 5.8 0.76 150 5 x 5.8 0.76 150 6.3 x 5.8 0.44 230 47 5 x 5.8 0.76 150 6.3 x 5.8 0.44 230 6.3 x 5.8 0.44 230 56 5 x 5.8 0.76 150 6.3 x 5.8 0.44 230 6.3 x 5.8 0.44 230

68 6.3 x 5.8 0.44 230 6.3 x 5.8 0.44 230 6.3 x 5.8 0.44 230 100 6.3 x 5.8 0.44 230 6.3 x 5.8 0.44 230 6.3 x 5.8 0.44 230 150 6.3 x 5.8 0.44 230 6.3 x 5.8 0.44 230 6.3 x 7.7 0.34 280 220 6.3 x 5.8 0.44 230 6.3 x 7.7 0.34 280 6.3 x 7.7 0.34 280 330 6.3 x 7.7 0.34 280 8 x 10.2 0.17 450 8 x 10.2 0.17 450 470 8 x 10.2 0.17 450 8 x 10.2 0.17 450 8 x 10.2 0.17 450 680 8 x 10.2 0.17 450 10 x 10.2 0.09 670 10 x 10.2 0.09 670

1000 8 x 10.2 0.17 450 10 x 10.2 0.09 670

1500 10 x 10.2 0.09 670

D x L Imp. R.C. D x L Imp. R.C. D x L Imp. R.C.

6.3 (8)

(13)

(20)

Df x L (mm)

WV(SV)

Cap (µF)

1.0 4 x 5.8 5.00 30

2.2 4 x 5.8 5.00 30

3.3 4 x 5.8 5.00 30

4.7 4 x 5.8 1.80 80 5 x 5.8 1.50 85

6.8 5 x 5.8 1.20 120 5 x 5.8 1.20 120 10 4 x 5.8 1.80 80 5 x 5.8 0.76 150 6.3 x 5.8 0.90 165 15 5 x 5.8 0.76 150 5 x 5.8 0.76 150 6.3 x 5.8 0.90 165 22 5 x 5.8 0.76 150 5 x 5.8 0.76 150 6.3 x 5.8 0.90 165 27 6.3 x 5.8 0.76 230 6.3 x 5.8 0.44 230 6.3 x 7.7 0.70 185 33 6.3 x 5.8 0.44 230 6.3 x 5.8 0.44 230 6.3 x 7.7 0.70 185 47 6.3 x 5.8 0.44 230 6.3 x 5.8 0.44 230 6.3 x 7.7 0.70 185 56 6.3 x 5.8 0.44 230 6.3 x 7.7 0.34 280 8 x 10.2 0.35 300 68 6.3 x 5.8 0.44 230 6.3 x 7.7 0.34 280 8 x 10.2 0.35 300

100 6.3 x 7.7 0.34 280 8 x 10.2 0.17 450 8 x 10.2 0.35 300 150 8 x 10.2 0.17 450 8 x 10.2 0.17 450 10 x 10.2 0.20 680 220 8 x 10.2 0.17 450 8 x 10.2 0.17 450 10 x 10.2 0.20 680 330 8 x 10.2 0.17 450 10 x 10.2 0.09 670

470 10 x 10.2 0.09 670

D x L Imp. R.C. D x L Imp. R.C. D x L Imp. R.C.

(32)

Impedance: (Ω) max. at 20°C 100KHz Ripple current (mA) at 105°C 100KHz

(44)

(63)
