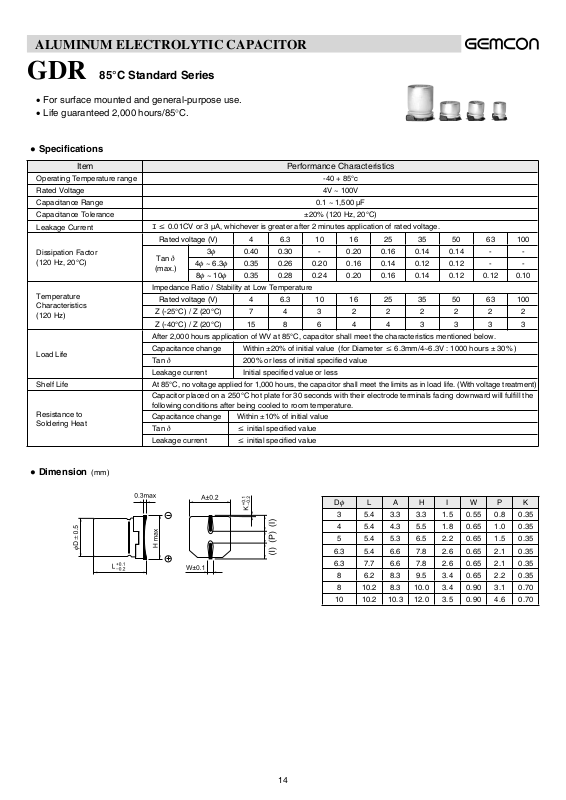

ALUMINUM ELECTROLYTIC CAPACITOR
ALUMINUM ELECTROLYTIC CAPACITOR
15
GDR 85°C Standard Series
• For surface mounted and general-purpose use.
• Life guaranteed 2,000 hours/85°C.
●
Specications
Item Performance Characteristics
Operating Temperature range -40 + 85°c
Rated Voltage 4V ~ 100V
Capacitance Range 0.1 ~ 1,500 µF
Capacitance Tolerance ±20% (120 Hz, 20°C)
Leakage Current
Dissipation Factor
(120 Hz, 20°C)
Temperature
Characteristics
(120 Hz)
Load Life
Shelf Life At 85°C, no voltage applied for 1,000 hours, the capacitor shall meet the limits as in load life. (With voltage treatment)
Resistance to
Soldering Heat
I ≤ 0.01CV or 3 µA, whichever is greater after 2 minutes application of rated voltage.
Rated voltage (V) 4 6.3 10 16 25 35 50 63 100
Tan d
(max.)
Impedance Ratio / Stability at Low Temperature
Rated voltage (V) 4 6.3 10 16 25 35 50 63 100
Z (-25°C) / Z (20°C) 7 4 3 2 2 2 2 2 2
Z (-40°C) / Z (20°C) 15 8 6 4 4 3 3 3 3
After 2,000 hours application of WV at 85°C, capacitor shall meet the characteristics mentioned below.
Capacitance change Within ±20% of initial value (for Diameter ≤ 6.3mm/4~6.3V : 1000 hours ± 30% )
Tan d 200% or less of initial specied value
Leakage current Initial specied value or less
Capacitor placed on a 250°C hot plate for 30 seconds with their electrode terminals facing downward will fulll the
following conditions after being cooled to room temperature.
Capacitance change Within ±10% of initial value
Tan d ≤ initial specied value
Leakage current ≤ initial specied value
3f 0.40 0.30 - 0.20 0.16 0.14 0.14 - -
4f ~ 6.3f 0.35 0.26 0.20 0.16 0.14 0.12 0.12 - -
8f ~ 10f 0.35 0.28 0.24 0.20 0.16 0.14 0.12 0.12 0.10
●
Dimension (mm)
Df L A H I W P K
3 5.4 3.3 3.3 1.5 0.55 0.8 0.35
4 5.4 4.3 5.5 1.8 0.65 1.0 0.35
5 5.4 5.3 6.5 2.2 0.65 1.5 0.35
6.3 5.4 6.6 7.8 2.6 0.65 2.1 0.35
6.3 7.7 6.6 7.8 2.6 0.65 2.1 0.35
8 6.2 8.3 9.5 3.4 0.65 2.2 0.35
8 10.2 8.3 10.0 3.4 0.90 3.1 0.70
10 10.2 10.3 12.0 3.5 0.90 4.6 0.70
14
Page 2
ALUMINUM ELECTROLYTIC CAPACITOR
●
Standard Products Table
WV(SV)
Cap (µF)
4.7 4 x 5.4 17
10
22
33
47
100
220
330
470
1000 8 x 10.2 300 10 x 10.2 460 10 x 10.2 610
1500 10 x 10.2 440 10 x 10.2 560 Case size Ripple
4
(5)
4 x 5.4 29 5 x 5.4 38 5 x 5.4 44 6.3 x 5.4 55 6.3 x 5.4 60
4 x 5.4 35 5 x 5.4 46 6.3 x 5.4 60 6.3 x 5.4 65 8 x 6.2 100
5 x 5.4 60 6.3 x 5.4 70 6.3 x 5.4 80 6.3 x 5.4 90 8 x 6.2 150
6.3 x 5.4 80 8 x 6.2 150 8 x 6.2 190 8 x 10.2 260 8 x 10.2 270
6.3 x 5.4 120 6.3 x 7.7 190 10 x 10.2 670 10 x 10.2 370
8 x 6.2 140 8 x 6.2 180 8 x 10.2 290 8 x 10.2 310 10 x 10.2 450
6.3 x 7.7 200 10 x 10.2 680 10 x 10.2 690 10 x 10.2 700
8 x 10.2 210 8 x 10.2 260 10 x 10.2 420 10 x 10.2 450
6.3
(8)
4 x 5.4 27 5 x 5.4 36 5 x 5.4 40 6.3 x 5.4 49
4 x 5.4 30 4 x 5.4 32 5 x 5.4 43 5 x 5.4 46
4 x 5.4 36 5 x 5.4 47 5 x 5.4. 50 6.3 x 5.4 60
5 x 5.4 71 8 x 6.2 130 8 x 6.2 140 6.3 x 7.7 145
6.3 x 5.4 6.3 x 7.7 175 6.3 x 7.7 165 10x 10.2 560
10
(13)
4 x 5.4 30 4 x 5.4 30 5 x 5.4 38
16
(20)
4 x 5.4 25
4 x 5.4 24 5 x 5.4 29
Df x L (mm)
25
(32)
WV(SV)
Cap (µF)
0.1 4 x 5.4 3
0.22 4 x 5.4 4
0.33 4 x 5.4 5
0.47 4 x 5.4 6
1 4 x 5.4 9
2.2
3.3
4.7 4 x 5.4 19 5 x 5.4 21 8 x 10.2 60
10
22
33
47
100
220
330 10 x 10.2 540 Case size Ripple
Size 3 x 5.4 available for symbol with "" above Ripple current (mA) at 85°C 120 Hz
35
(44)
4 x 5.4 27 5 x 5.4 30
5 x 5.4 31 6.3 x 5.4 36 8 x 10.2 85
5 x 5.4 39 6.3 x 5.4 48 8 x 10.2 75
6.3 x 5.4 55 8 x 6.2 110 8 x 10.2 120 10 x 10.2 150
6.3 x 5.4 58 6.3 x 7.7 95
8 x 6.2 120 8 x 6.2 130 8 x 10.2 140 10 x 10.2 180
6.3 x 5.4 70 6.3 x 7.7 105 8 x 10.2 170
8 x 6.2 140 8 x 10.2 190 10 x 10.2 190
6.3 x 7.7 160 8 x 10.2 270
8 x 10.2 250 10 x 10.2 310 10 x 10.2 280
8 x 10.2 320
10 x 10.2 440 10 x 10.2 460
50
(63)
4 x 5.4 13
4 x 5.4 17 8 x 6.2 41
63
(79)
100
(125)
15
