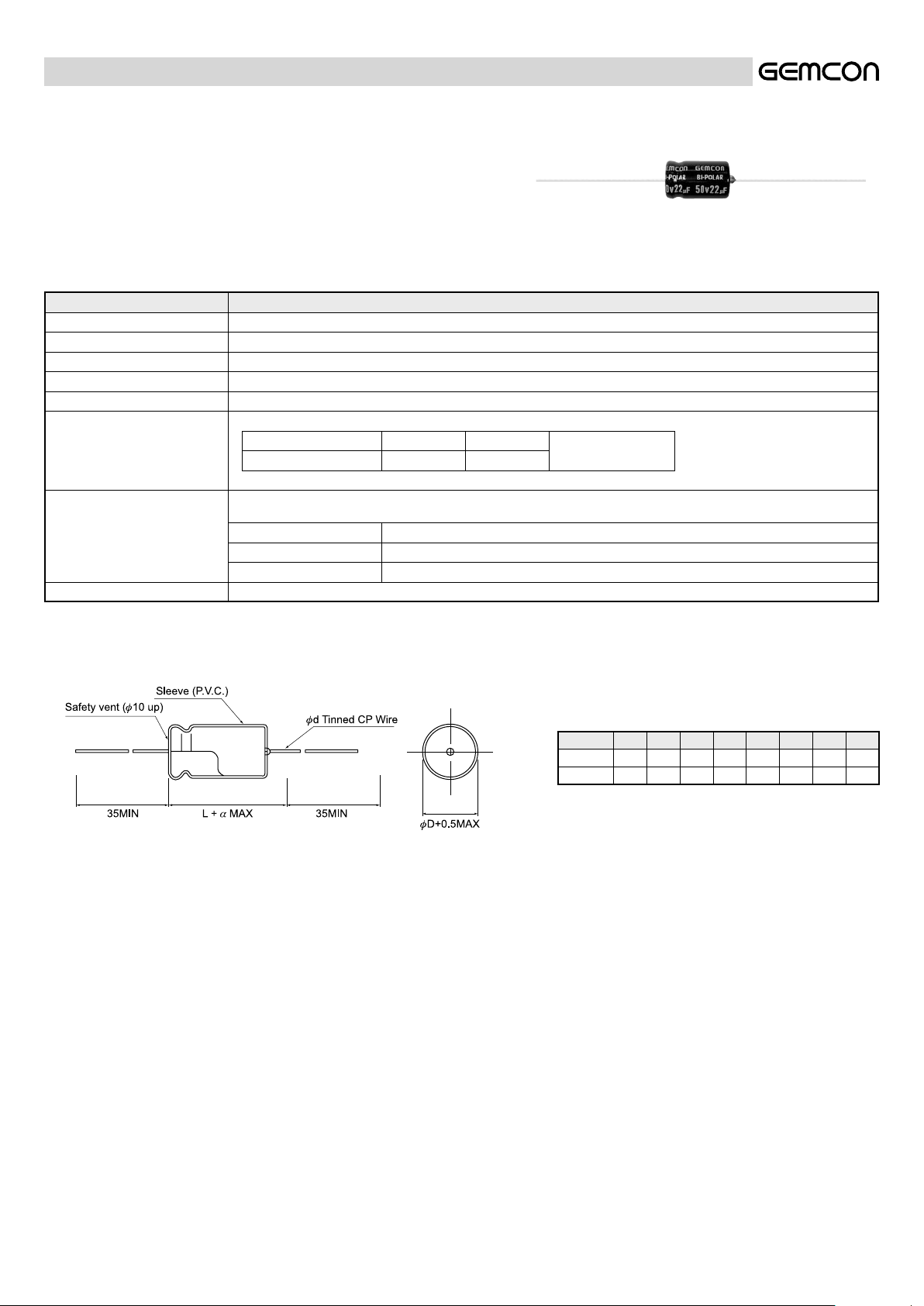

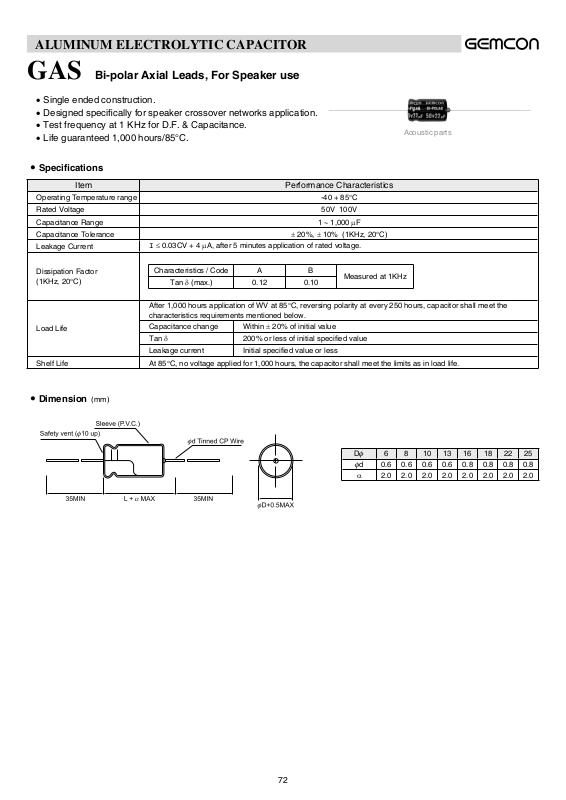

ALUMINUM ELECTROLYTIC CAPACITOR

GAS Bi-polar Axial Leads, For Speaker use

• Single ended construction.

• Designed specically for speaker crossover networks application.

• Test frequency at 1 KHz for D.F. & Capacitance.

• Life guaranteed 1,000 hours/85°C.

●

Specications

Item Performance Characteristics

Operating Temperature range -40 + 85°C

Rated Voltage 50V 100V

Capacitance Range 1 ∼ 1,000 µF

Capacitance Tolerance

Leakage Current

I ≤ 0.03CV + 4 µA, after 5 minutes application of rated voltage.

± 20%, ± 10% (1KHz, 20°C)

Acoustic parts

Dissipation Factor (1KHz, 20°C)

Load Life

Shelf Life At 85°C, no voltage applied for 1,000 hours, the capacitor shall meet the limits as in load life.

●

Dimension (mm)

Characteristics / Code A B

Tan δ (max.) 0.12 0.10

After 1,000 hours application of WV at 85°C, reversing polarity at every 250 hours, capacitor shall meet the characteristics requirements mentioned below.

Capacitance change Within ± 20% of initial value

Tan δ 200% or less of initial specied value

Leakage current Initial specied value or less

Measured at 1KHz

Df 6 8 10 13 16 18 22 25 fd

0.6 0.6 0.6 0.6 0.8 0.8 0.8 0.8

2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0

Page 2

ALUMINUM ELECTROLYTIC CAPACITOR

●

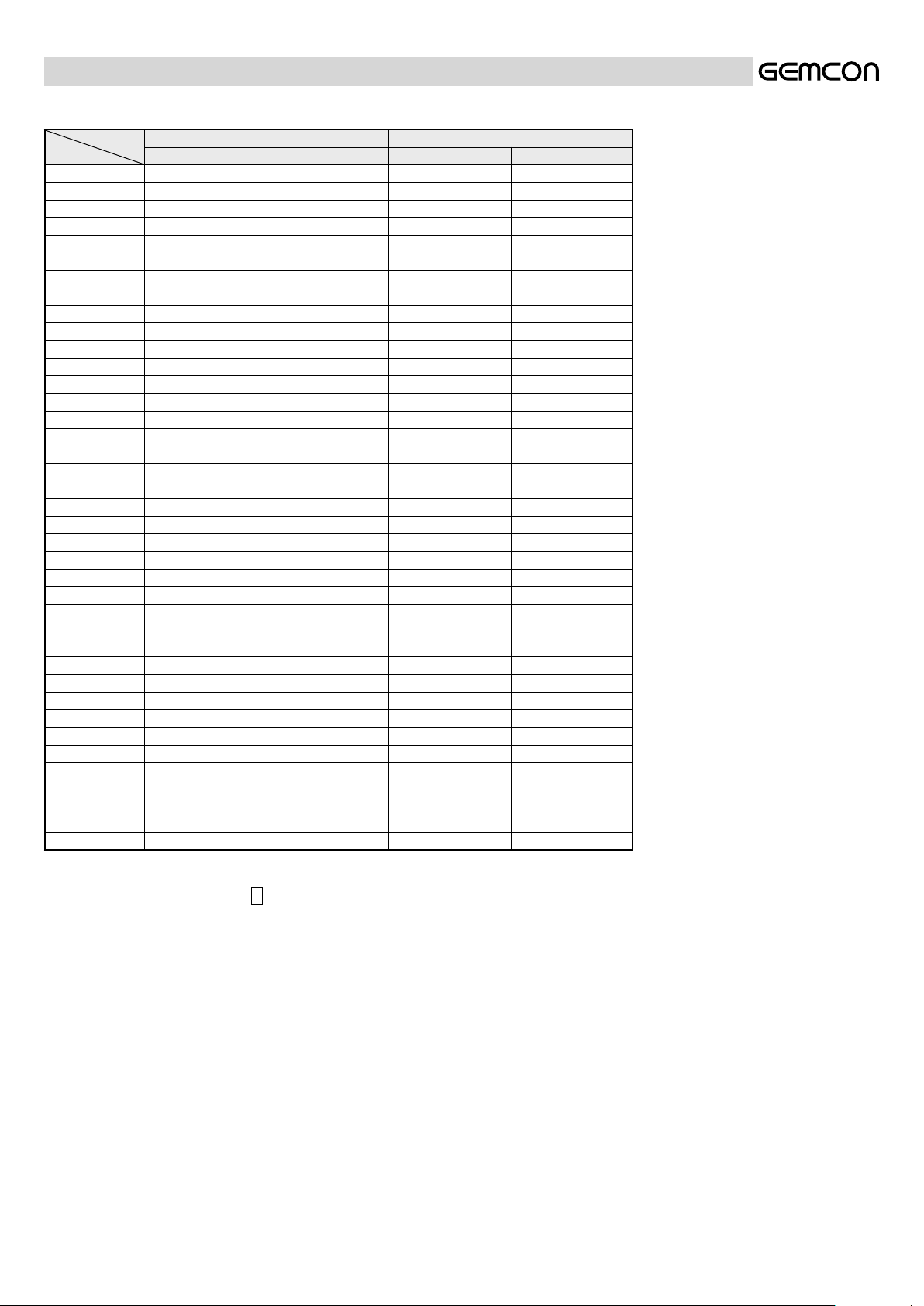

Standard Products Table

Cap (µF)

1 6 x 16 8 x 16 8 x 16 8 x 16

1.5 6 x 16 8 x 16 8 x 16 8 x 16

2.2 6 x 16 8 x 16 8 x 16 8 x 16

2.7 6 x 16 8 x 16 8 x 16 8 x 16

3.3 6 x 16 8 x 16 8 x 16 10 x 17

3.9 6 x 16 8 x 16 8 x 16 10 x 17

4.7 8 x 16 8 x 16 8 x 16 10 x 17

5.6 8 x 16 8 x 16 10 x 17 10 x 17

6.8 8 x 16 10 x 17 10 x 17 10 x 17

7.5 8 x 16 10 x 17 10 x 17 10 x 17

8.2 8 x 16 10 x 17 10 x 17 10 x 17 10 10 x 17 10 x 17 10 x 17 10 x 17 12 10 x 17 10 x 17 10 x 17 10 x 17 15 10 x 17 10 x 17 10 x 17 13 x 25 18 10 x 17 10 x 17 13 x 25 13 x 25 22 10 x 17 10 x 17 13 x 25 13 x 25 27 10 x 17 13 x 25 13 x 25 13 x 25 33 10 x 17 13 x 25 13 x 25 13 x 25 39 10 x 17 13 x 25 13 x 25 13 x 31 47 13 x 25 13 x 31 13 x 31 13 x 31 56 13 x 25 13 x 31 13 x 31 13 x 31 68 13 x 25 13 x 31 13 x 31 13 x 31 75 13 x 31 13 x 31 13 x 31 13 x 31 82 13 x 31 13 x 31 13 x 31 16 x 31

100 13 x 31 13 x 31 16 x 31 16 x 31 120 13 x 31 13 x 31 16 x 31 16 x 31 150 13 x 31 13 x 31 16 x 41 16 x 41 180 16 x 31 16 x 31 16 x 41 16 x 41 220 16 x 31 16 x 31 18 x 41 18 x 41 250 16 x 31 16 x 31 18 x 41 18 x 41 270 16 x 31 16 x 31 18 x 41 18 x 41 330 16 x 31 16 x 41 22 x 41 22 x 41 390 16 x 41 16 x 41 22 x 41 22 x 41 470 18 x 41 16 x 41 25 x 51 25 x 51 560 18 x 41 22 x 41 25 x 51 25 x 51 680 22 x 41 25 x 45 25 x 55 25 x 55 750 22 x 41 25 x 45 25 x 55 25 x 55 820 25 x 45 25 x 45 25 x 55 25 x 55

1000 25 x 51 25 x 51 25 x 60 25 x 60

A (DF: 12%) B (DF: 10%) A (DF: 12%) B (DF: 10%)

• Specic capacitance value or size may acceptable per request.

• Indicating the right P/N : Example : GAS150M050-1331BA (The last digit stands for characteristic/DF code)

50V 100V

Df x L (mm)
