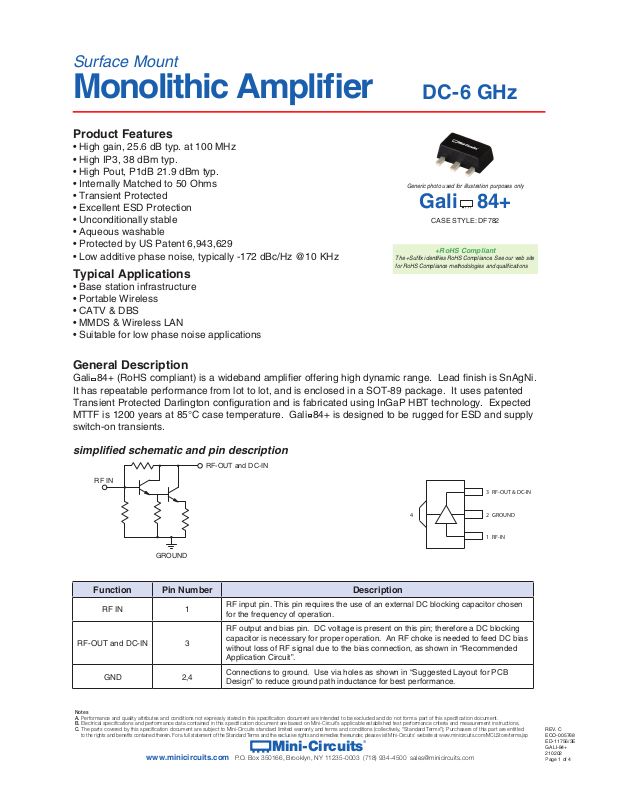

Page 1
Surface Mount
Notes
www.minicircuits.com
+RoHS Compliant
The +Suffix identifies RoHS Compliance. See our web site
for RoHS Compliance methodologies and qualifications
Monolithic Amplier
DC-6 GHz
Product Features
• High gain, 25.6 dB typ. at 100 MHz
• High IP3, 38 dBm typ.
• High Pout, P1dB 21.9 dBm typ.
• Internally Matched to 50 Ohms
Generic photo used for illustration purposes only
• Transient Protected
• Excellent ESD Protection
• Unconditionally stable
Gali 84+
CASE STYLE: DF782
• Aqueous washable
• Protected by US Patent 6,943,629
• Low additive phase noise, typically -172 dBc/Hz @10 KHz
Typical Applications
• Base station infrastructure
• Portable Wireless
• CATV & DBS
• MMDS & Wireless LAN
• Suitable for low phase noise applications
General Description
Gali 84+ (RoHS compliant) is a wideband amplifier offering high dynamic range. Lead finish is SnAgNi.
It has repeatable performance from lot to lot, and is enclosed in a SOT-89 package. It uses patented
Transient Protected Darlington configuration and is fabricated using InGaP HBT technology. Expected
MTTF is 1200 years at 85°C case temperature. Gali 84+ is designed to be rugged for ESD and supply
switch-on transients.

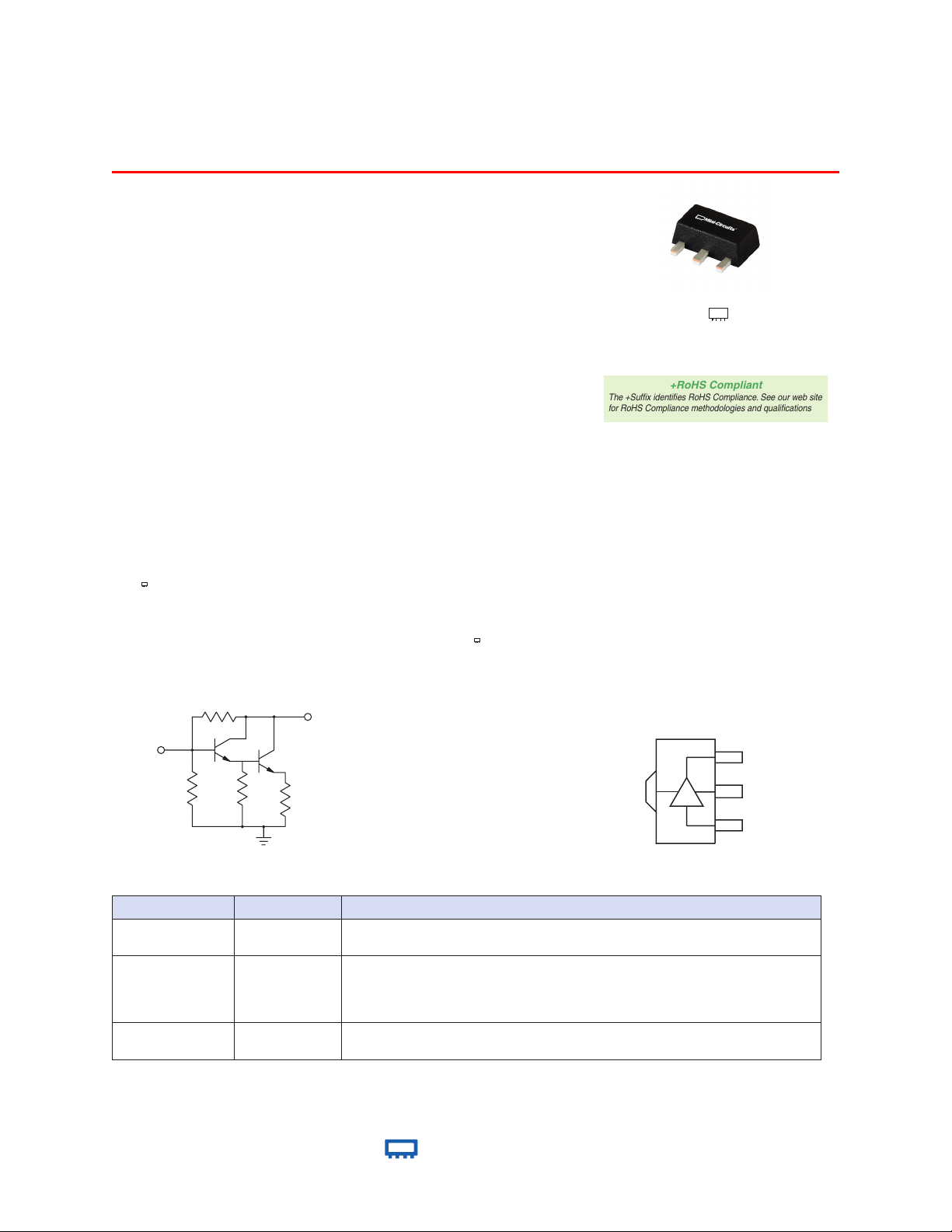

simplified schematic and pin description
RF IN
Function Pin Number Description
RF IN 1
RF-OUT and DC-IN 3
GND 2,4
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
GROUND
RF-OUT and DC-IN
4
RF input pin. This pin requires the use of an external DC blocking capacitor chosen
for the frequency of operation.
RF output and bias pin. DC voltage is present on this pin; therefore a DC blocking
capacitor is necessary for proper operation. An RF choke is needed to feed DC bias
without loss of RF signal due to the bias connection, as shown in “Recommended
Application Circuit”.
Connections to ground. Use via holes as shown in “Suggested Layout for PCB
Design” to reduce ground path inductance for best performance.
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 [email protected]
Mini-Circuits
®
3 RF-OUT & DC-IN
2 GROUND
1 RF-IN
REV. C
ECO-005768
ED-11756/3E
GALI-84+
210202
Page 1 of 4
Page 2
Monolithic InGaP HBT MMIC Amplier
Notes
www.minicircuits.com
Gali 84+
Electrical Specications at 25°C and 100mA, unless noted
Parameter Min. Typ. Max. Units Cpk
Frequency Range* DC 6 GHz
Gain
Magnitude of Gain Variation versus Temperature
(values are negative)
Input Return Loss
Output Return Loss
Reverse Isolation f=2 GHz 22 26.5 — dB
Output Power @1 dB compression
Saturated Output Power
(at 3dB compression)
Output IP3
Noise Figure
Additive Phase Noise 2 GHz, 10 KHz offset -172 dBc/Hz
Group Delay f=2 GHz 94 psec
Recommended Device Operating Current 100 mA
Device Operating Voltage 5.4 5.8 6.2 V >1.5
Device Voltage Variation vs. Temperature at 100mA -3.6 mV/°C
Device Voltage Variation vs Current at 25°C 3.3 mV/mA
*Guaranteed specification DC-6 GHz. Low frequency cut off determined by external coupling capacitors.
f=0.1 GHz 24.3 25.6 26.9 dB >1.5
f=1 GHz — 22.7 —
f=2 GHz 18.2 19.2 20.2
f=3 GHz — 16.7 —
f=4 GHz 14.3 15.0 15.8
f=6 GHz — 11.8 —
f=0.1 GHz — 0.0025 — dB/°C
f=1 GHz — 0.0036 —
f=2 GHz — 0.0045 0.0090
f=3 GHz — 0.0057 —
f=4 GHz — 0.0074 —
f=6 GHz — 0.0148 —
f=0.1 GHz — 25.8 — dB
f=1 GHz — 21.2 —
f=2 GHz 14.0 18.0 —
f=3 GHz — 15.6 —
f=4 GHz — 14.7 —
f=6 GHz — 16.7 —
f=0.1 GHz — 16.3 — dB
f=1 GHz — 11.0 —
f=2 GHz 6.0 8.9 —
f=3 GHz — 9.0 —
f=4 GHz — 9.7 —
f=6 GHz — 8.4 —
f=0.1 GHz 20.8 21.9 — dBm >1.5
f=1 GHz 20.4 21.5 —
f=2 GHz 20.1 21.2 —
f=3 GHz — 20.9 —
f=4 GHz — 19.2 —
f=6 GHz — 15.5 —
f=0.1 GHz 23.0 dBm
f=1 GHz 22.6
f=2 GHz 22.1
f=3 GHz 21.7
f=4 GHz 20.3
f=6 GHz 17.1
f=0.1 GHz 33.8 37.6 — dBm >1.5
f=1 GHz 34.0 37.8 —
f=2 GHz 34.2 38.0 —
f=3 GHz — 37.4 —
f=4 GHz — 34.7 —
f=6 GHz — 32.7 —
f=0.1 GHz 4.2 dBm >1.5
f=1 GHz 4.4
f=2 GHz 4.4
f=3 GHz 4.4
f=4 GHz 4.6
f=6 GHz 5.3
Absolute Maximum Ratings
Parameter Ratings
Operating Temperature* -45°C to 85°C
Storage Temperature -65°C to 150°C
Operating Current 160mA
Power Dissipation 1W
Input Power 13 dBm
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
Mini-Circuits
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 [email protected]
Note: Permanent damage may occur if any of these limits are exceeded.
These ratings are not intended for continuous normal operation.
1
Case is defined as ground leads.
*Based on typical case temperature rise 9°C above ambient.
®
Page 2 of 4
Page 3
Monolithic InGaP HBT MMIC Amplier
Notes
www.minicircuits.com
Gali 84+

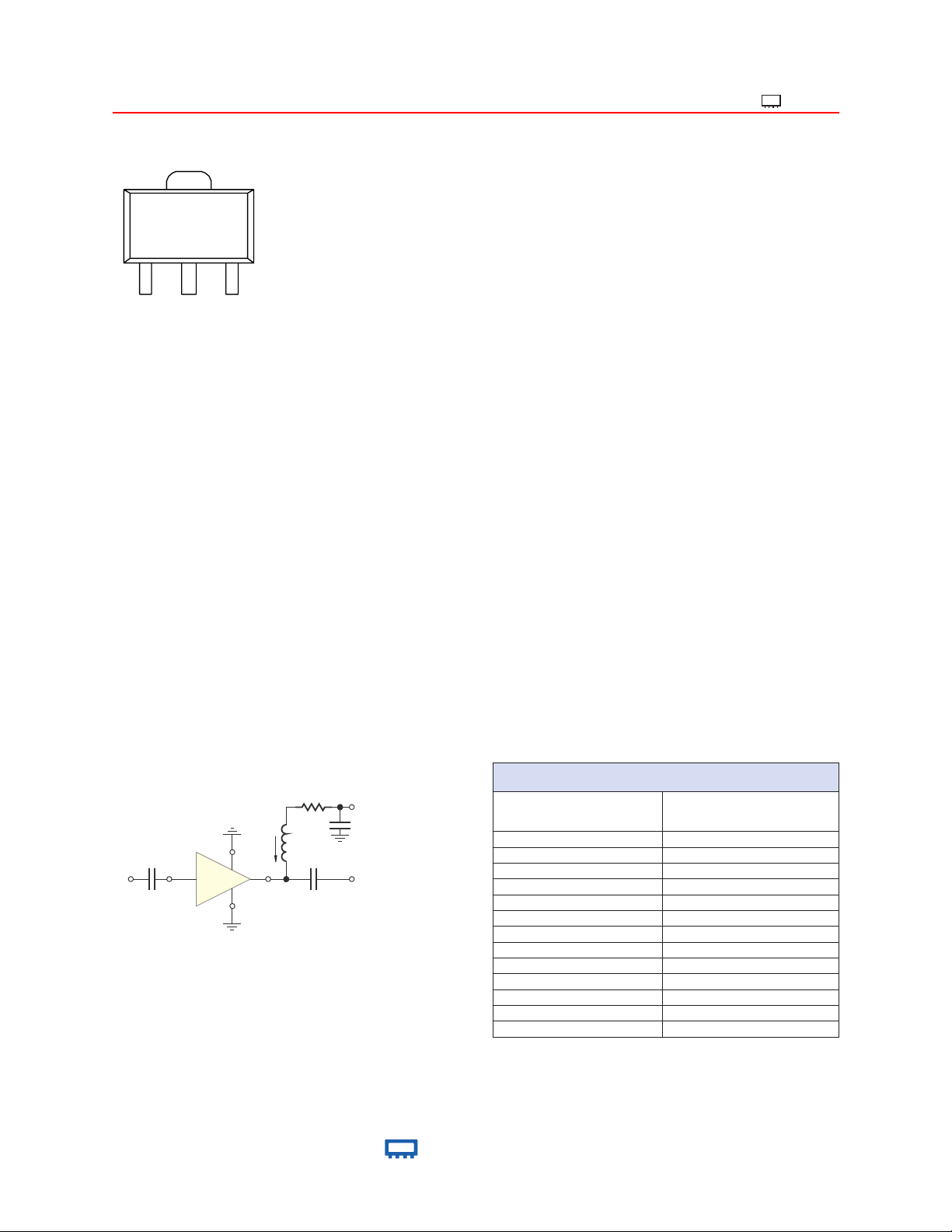

Product Marking
4
84
1 2 3
Markings in addition to model number designation may appear for internal quality control purposes.
Additional Detailed Technical Information
Additional information is available on our web site. To access this information enter the model number on
our web site home page.
Performance data, graphs, s-parameter data set (.zip le)

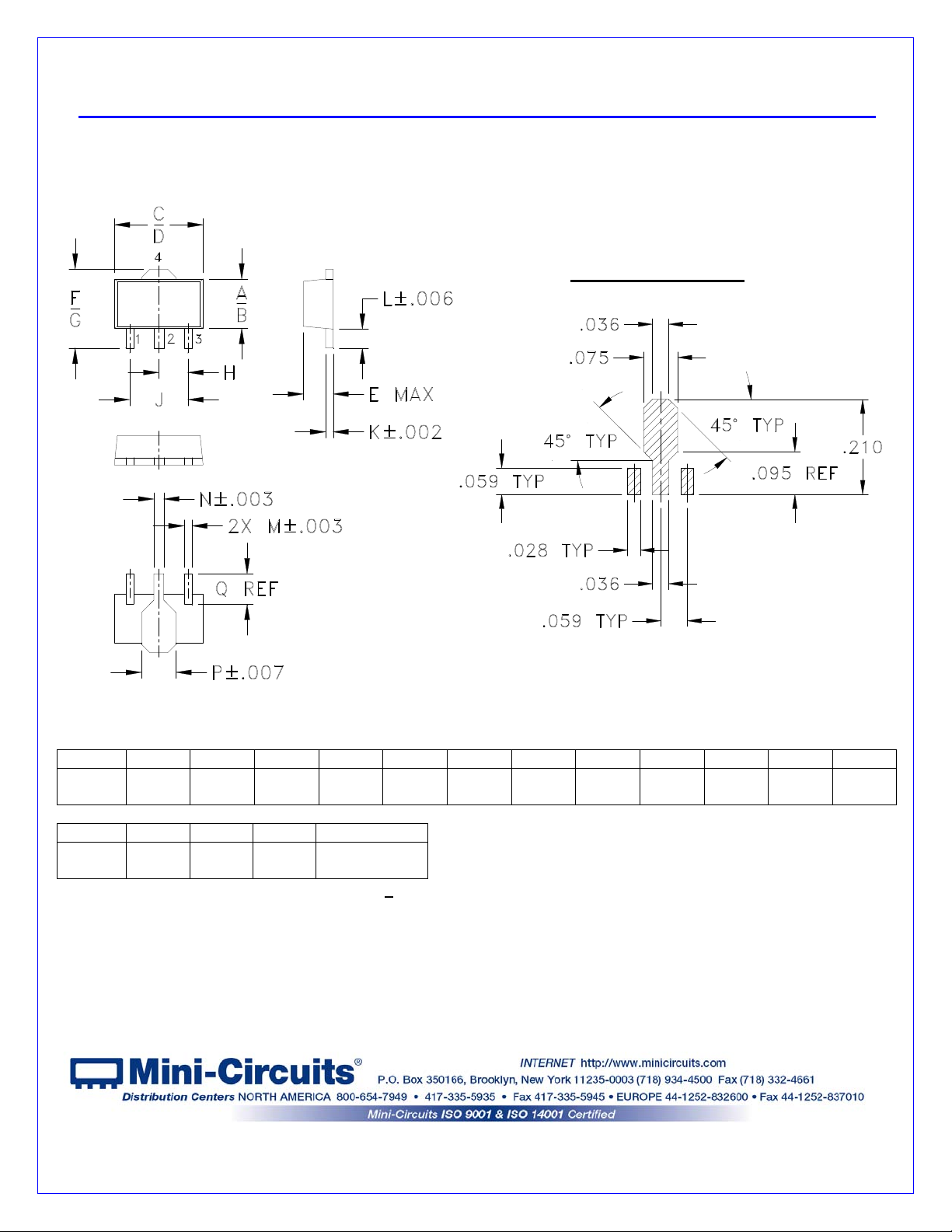

Case Style: DF782
Plastic package, exposed paddle, lead finish: Matte-Tin

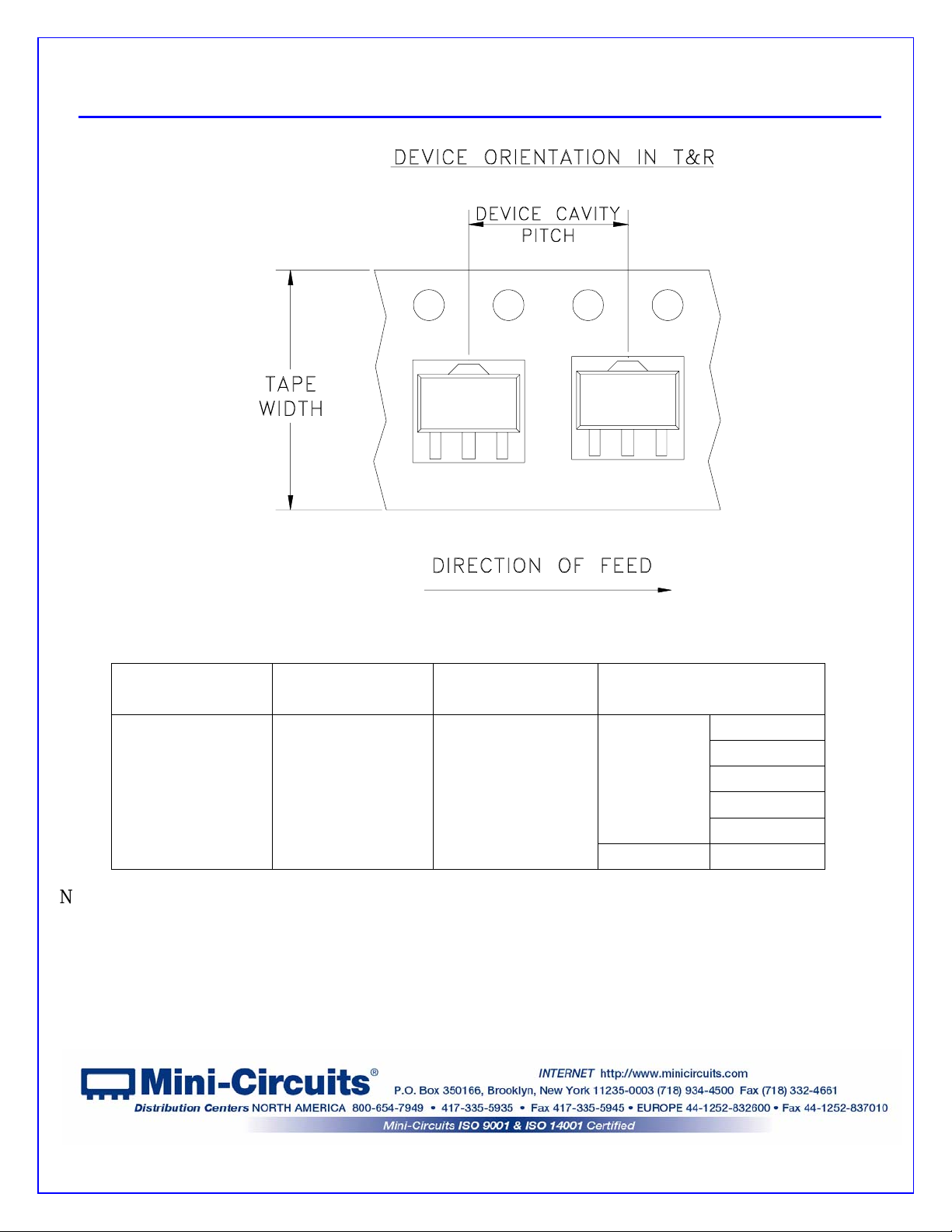

Tape & Reel: F55
7” reels with 20, 50, 100, 200, 500, 1K devices.

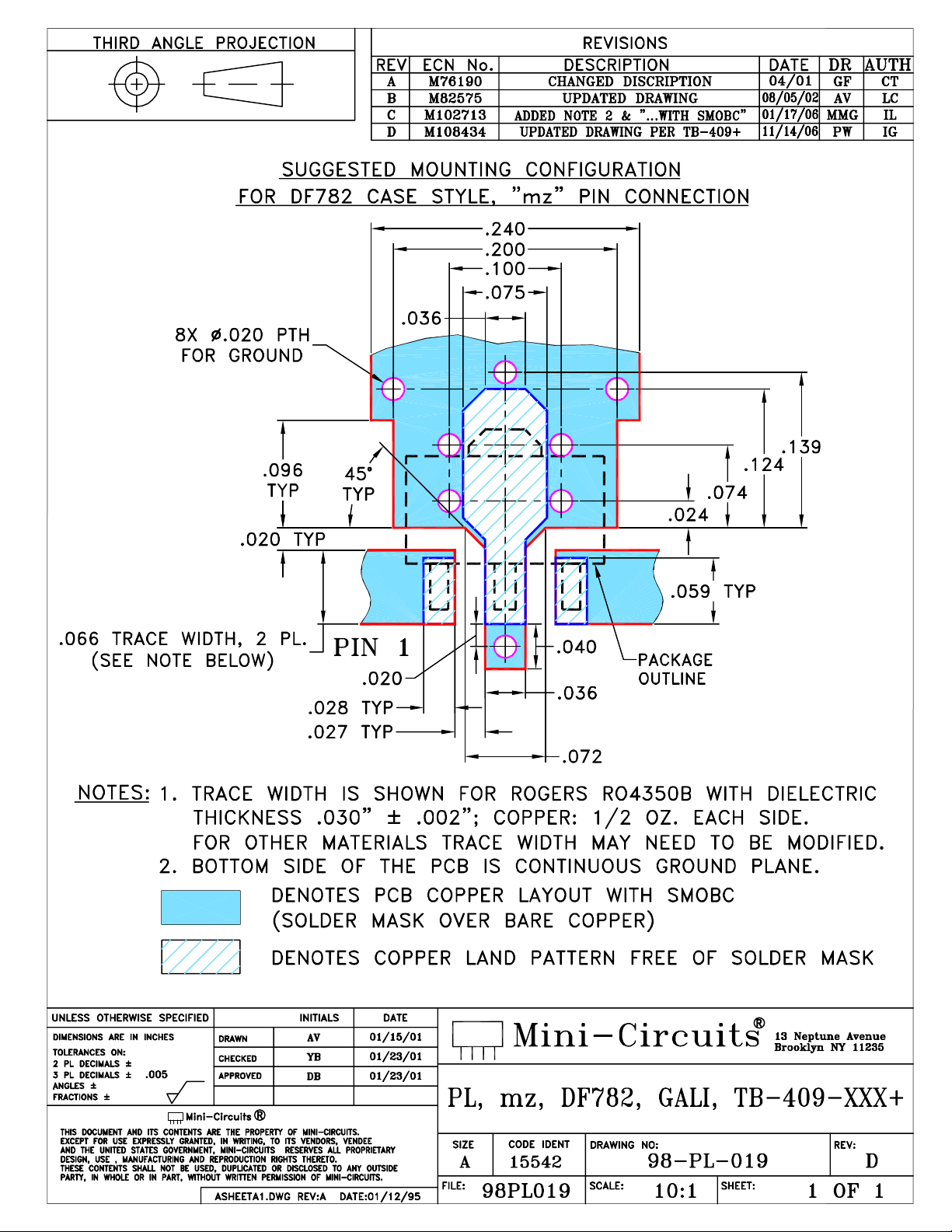

Suggested Layout for PCB Design: PL-019

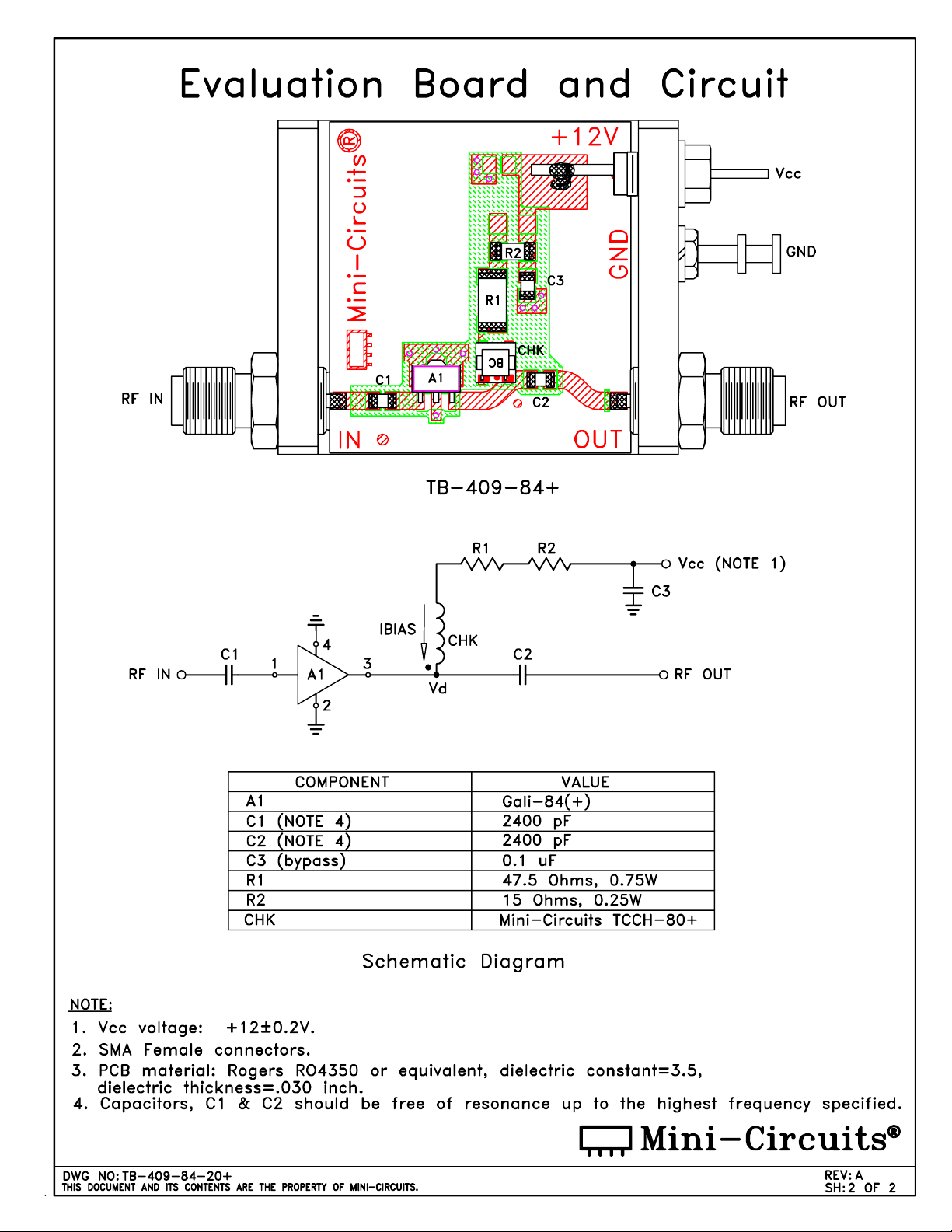

Evaluation Board: TB-409-84+
Environmental Ratings: ENV08T2
Recommended Application Circuit
R bias (R equired)
Ibias
C block
IN
Test Board includes case, connectors, and components (in bold) soldered to PCB
1
4
2
R FC (O ptional)
3
Vd
C block
Vcc
C bypass
OU T
R BIAS
Vcc “1%” Res. Values (ohms)
for Optimum Biasing
8 22.1
9 32.4
10 42.2
11 52.3
12 61.9
13 71.5
14 82.5
15 93.1
16 102
17 113
18 121
19 133
20 140
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
Mini-Circuits
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 [email protected]
®
Page 3 of 4
Page 4
Monolithic InGaP HBT MMIC Amplier
Notes
www.minicircuits.com
Gali 84+
ESD Rating
Human Body Model (HBM): Class 1C (1000v to < 2000v) in accordance with ANSI/ESD STM 5.1 - 2001
Machine Model (MM): Class M2 (< 100v) in accordance with ANSI/ESD STM 5.2 - 1999
MSL Rating
Moisture Sensitivity: MSL1 in accordance with IPC/JEDECJ-STD-020C
No. Test Required Condition Standard Quantity
1 Visual Inspection
Low Power Microscope
Magnification 40x
2 Electrical Test Room Temperature
3 SAM Analysis
Moisture Sensitivity
4
Level 1
Less than 10% growth in term of
delamination
Bake at 125°C for 24 hours
Soak at 85°C/85%RH for 168 hours
Reflow 3 cycles at 260°C peak
MSL Test Flow Chart
Start
Visual
Inspection
Reflow 3 cycles,
260°C
Visual
Inspection
Electrical Test SAM Analysis
Soak
85°C/85RH
168 hours
Electrical Test SAM Analysis
MIP-IN-0003
(MCT spec)
SCD
(MCL spec)
J-Std-020C
(Jedec Standard)
J-Std-020C
(Jedec Standard)
Bake at 125°C,
24 hours
45 units
45 units
45 units
45 units
A.
Performance and quality attributes and conditions not expressly stated in this specification document are intended to be excluded and do not form a part of this specification document.
B.
Electrical specifications and performance data contained in this specification document are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
C.
The parts covered by this specification document are subject to Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled
to the rights and benefits contained therein. For a full statement of the Standard Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp
Mini-Circuits
P.O. Box 350166, Brooklyn, NY 11235-0003 (718) 934-4500 [email protected]
®
Page 4 of 4
Page 5
MMIC Amplifier GALI-84+
Definitions:
50
25.68
29.60
25.63
16.34
1.08
0.635037.67
21.85
4.07
100
25.65
29.87
25.32
16.02
1.09
0.61
100
37.59
21.91
4.22
200
25.50
29.53
25.84
15.53
1.08
0.62
200
37.76
21.70
4.23
400
25.06
29.43
24.81
14.14
1.08
0.59
400
37.38
21.77
4.30
600
24.43
29.26
24.03
12.67
1.09
0.56
600
37.16
21.49
4.30
800
23.72
28.96
23.13
11.58
1.10
0.53
800
37.58
21.49
4.47
1000
22.96
28.77
22.21
10.75
1.13
0.49
1000
37.79
21.53
4.38
1200
22.19
28.44
21.48
10.12
1.14
0.47
1200
37.63
21.12
4.41
1400
21.46
28.09
20.67
9.64
1.16
0.45
1400
37.30
21.10
4.32
1600
20.75
27.73
19.97
9.30
1.18
0.42
1600
37.71
21.17
4.48
1800
20.07
27.41
19.43
9.03
1.20
0.40
1800
38.26
21.06
4.52
2000
19.46
27.07
18.68
8.85
1.21
0.39
2000
38.03
21.16
4.33
2200
18.89
26.79
18.20
8.85
1.23
0.37
2200
37.73
21.26
4.38
2400
18.36
26.45
17.70
8.85
1.25
0.36
2400
37.43
21.26
4.47
2600
17.89
26.08
16.97
8.85
1.25
0.35
2600
37.13
21.14
4.45
2800
17.40
25.99
16.97
9.01
1.30
0.33
2800
37.29
21.03
4.41
3000
17.05
25.49
16.23
8.95
1.27
0.33
3000
37.35
20.88
4.39
3200
16.67
25.22
16.01
9.06
1.28
0.33
3200
37.32
20.70
4.47
3400
16.33
25.01
15.79
9.17
1.30
0.32
3400
37.16
20.45
4.55
3600
16.02
24.75
15.62
9.20
1.30
0.32
3600
36.60
20.22
4.64
3800
15.72
24.53
15.57
9.25
1.31
0.32
3800
35.47
19.78
4.60
4000
15.47
24.41
15.49
9.28
1.33
0.31
4000
34.65
19.23
4.64
4200
15.17
24.26
15.84
9.21
1.35
0.31
4200
35.11
18.81
4.69
4400
14.88
24.15
16.00
9.15
1.37
0.30
4400
34.83
18.52
4.74
4600
14.68
23.97
15.99
9.00
1.37
0.31
4600
34.50
18.14
4.89
4800
14.40
23.95
16.10
8.73
1.40
0.30
4800
34.24
17.67
4.98
5000
14.17
23.94
16.57
8.56
1.43
0.30
5000
33.96
17.23
5.02
5200
13.93
23.94
16.58
8.37
1.45
0.29
5200
33.96
16.89
5.02
5400
13.64
23.86
16.60
8.08
1.47
0.29
5400
33.36
16.66
5.12
5600
13.38
23.91
17.32
7.97
1.52
0.28
5600
33.19
16.42
5.14
6000
12.69
24.02
17.45
7.64
1.63
0.27
5800
33.07
15.95
5.35
6500
11.60
24.21
16.78
7.33
1.84
0.27
6000
32.75
15.50
5.27
7000
10.15
24.45
14.06
7.05
2.16
0.26
6200
32.89
15.08
5.28
7500
8.43
24.43
11.12
6.71
2.47
0.27
6400
32.80
14.65
5.30
8000
6.56
23.93
9.04
6.40
2.69
0.29
6600
32.24
14.35
5.41
8500
4.69
23.00
7.75
6.12
2.79
0.30
6800
32.31
14.18
5.52
9000
3.18
21.79
6.90
5.86
2.67
0.30
7000
33.07
14.00
5.60
10000
0.94
18.56
6.72
6.11
2.34
0.27
7200
33.50
13.57
5.58
12000
-1.34
11.90
7.50
7.28
1.61
0.26
7500
32.55
13.06
5.55
13000
-1.79
7.82
9.18
8.78
1.28
0.32
8000
30.07
11.61
6.10
Typical Performance Data
NOTE: Use PDF Bookmarks to view DATA at required conditions
or to view GRAPHS.
Input Return Loss = -S11 (dB)
Gain(Power Gain) = S21 (dB)
Reverse Isolation = -S12 (dB)
Output Return Loss = -S22 (dB)
TEST CONDITIONS: Icc = 100mA, Vd = 5.76V @Temperature = +25degC
Input
IsolationFREQ Gain
(MHz) (dB) (dB) (dB) (dB) K Delta (MHz) (dBm) (dBm) (dB)
Return
Loss
Output
Return
Loss
Stability
FREQ
IP3
Output
1dB
Comp.
Output
Noise
Figure
REV. X1
GALI-84+
120123
Page 1 of 11
Page 6
MMIC Amplifier GALI-84+
Definitions:
50
25.43
28.60
22.54
18.45
1.04
0.695033.82
19.25
4.09
100
25.36
29.30
22.08
18.12
1.08
0.63
100
33.63
19.34
4.21
200
25.21
29.11
21.97
17.33
1.07
0.63
200
33.72
19.15
4.22
400
24.79
29.15
21.97
15.28
1.09
0.59
400
33.69
18.96
4.39
600
24.16
28.92
21.57
13.49
1.09
0.56
600
33.79
19.05
4.32
800
23.47
28.60
21.25
12.13
1.10
0.53
800
34.46
18.79
4.44
1000
22.74
28.45
20.71
11.12
1.12
0.49
1000
34.84
18.88
4.37
1200
22.00
28.06
20.34
10.37
1.13
0.47
1200
34.94
19.17
4.38
1400
21.28
27.81
19.66
9.82
1.15
0.44
1400
34.82
19.32
4.45
1600
20.59
27.47
19.11
9.45
1.16
0.42
1600
35.19
19.21
4.45
1800
19.92
27.20
18.41
9.16
1.19
0.40
1800
35.95
19.09
4.38
2000
19.34
26.88
17.75
8.96
1.20
0.39
2000
35.76
19.11
4.32
2200
18.75
26.57
17.31
8.89
1.22
0.37
2200
35.88
19.06
4.39
2400
18.23
26.22
16.75
8.86
1.22
0.36
2400
35.76
19.09
4.38
2600
17.77
25.99
16.29
8.87
1.24
0.34
2600
35.79
18.94
4.42
2800
17.34
25.71
15.95
8.95
1.26
0.33
2800
35.68
18.59
4.40
3000
16.96
25.39
15.47
8.96
1.26
0.33
3000
35.76
18.08
4.44
3200
16.56
25.21
15.40
9.12
1.29
0.32
3200
35.76
17.87
4.39
3400
16.27
24.91
15.06
9.20
1.28
0.32
3400
35.48
17.66
4.54
3600
15.96
24.60
14.89
9.22
1.28
0.32
3600
35.16
17.30
4.57
3800
15.64
24.42
14.82
9.31
1.30
0.31
3800
34.29
16.77
4.69
4000
15.37
24.27
14.78
9.32
1.32
0.31
4000
33.51
16.41
4.65
4200
15.07
24.11
14.86
9.31
1.34
0.31
4200
33.47
16.13
4.81
4400
14.79
24.06
14.97
9.22
1.37
0.30
4400
33.47
15.86
4.71
4600
14.53
23.87
15.00
9.03
1.37
0.30
4600
33.04
15.68
4.89
4800
14.20
23.79
15.31
8.80
1.40
0.30
4800
32.61
15.35
4.88
5000
13.99
23.92
15.72
8.75
1.45
0.29
5000
32.53
14.75
5.05
5200
13.71
23.93
15.92
8.50
1.48
0.28
5200
32.46
13.32
5.01
5400
13.40
23.88
16.47
8.25
1.52
0.28
5400
32.02
12.95
5.15
5600
13.16
23.88
17.29
8.16
1.56
0.28
5600
31.62
13.44
5.22
6000
12.47
24.19
16.86
7.85
1.70
0.26
5800
31.43
13.41
5.27
6500
11.51
24.29
16.72
7.75
1.91
0.26
6000
31.38
13.35
5.34
7000
10.15
24.42
14.04
7.47
2.20
0.26
6200
31.51
13.41
5.35
7500
8.31
24.24
11.31
7.22
2.53
0.27
6400
31.88
13.49
5.36
8000
6.44
24.17
9.02
6.67
2.84
0.28
6600
31.00
13.50
5.48
8500
4.55
23.74
7.81
6.38
3.13
0.29
6800
30.55
13.47
5.62
9000
2.92
21.97
7.23
6.22
2.95
0.29
7000
30.45
13.43
5.75
10000
0.72
18.57
6.96
6.62
2.54
0.26
7200
30.89
12.86
5.81
12000
-1.52
12.08
7.54
7.45
1.69
0.25
7500
30.69
11.99
5.89
13000
-1.98
7.92
9.04
8.44
1.29
0.31
8000
29.31
11.45
6.53
Typical Performance Data
Input Return Loss = -S11 (dB)
Gain(Power Gain) = S21 (dB)
Reverse Isolation = -S12 (dB)
Output Return Loss = -S22 (dB)
TEST CONDITIONS: Icc = 80mA, Vd=5.72V @Temperature = +25degC
Input
FREQ Isolation StabilityGain
(MHz) (dB) (dB) (dB) (dB) K Delta (MHz) (dBm) (dBm) (dB)
Return
Loss
Output
Return
Loss
FREQ
IP3
Output
1dB
Comp.
Output
Noise
Figure
REV. X1
GALI-84+
120123
Page 2 of 11
Page 7
MMIC Amplifier GALI-84+
Definitions:
50
25.85
30.23
28.44
15.16
1.10
0.605040.55
22.76
4.14
100
25.82
29.88
28.42
14.89
1.08
0.62
100
40.66
22.85
4.31
200
25.66
29.82
29.12
14.57
1.08
0.61
200
40.70
22.72
4.28
400
25.21
29.66
27.02
13.44
1.09
0.59
400
39.88
22.81
4.38
600
24.57
29.48
25.60
12.25
1.10
0.56
600
39.10
22.50
4.38
800
23.85
29.23
24.38
11.26
1.11
0.53
800
38.91
22.50
4.54
1000
23.07
28.91
23.20
10.53
1.13
0.50
1000
38.85
22.54
4.46
1200
22.29
28.63
22.33
9.95
1.15
0.47
1200
38.61
22.34
4.48
1400
21.55
28.24
21.40
9.50
1.17
0.45
1400
38.23
22.32
4.41
1600
20.83
27.91
20.66
9.19
1.19
0.42
1600
38.46
22.35
4.56
1800
20.15
27.55
20.05
8.94
1.20
0.41
1800
38.81
22.23
4.61
2000
19.54
27.22
19.26
8.78
1.22
0.39
2000
38.42
22.20
4.43
2200
18.95
26.88
18.76
8.79
1.24
0.37
2200
38.04
22.15
4.47
2400
18.42
26.59
18.25
8.80
1.26
0.36
2400
37.75
22.01
4.54
2600
17.96
26.14
17.48
8.80
1.25
0.35
2600
37.35
21.92
4.55
2800
17.46
26.04
17.50
8.95
1.30
0.34
2800
37.45
21.81
4.49
3000
17.11
25.53
16.71
8.89
1.27
0.34
3000
37.51
21.68
4.49
3200
16.74
25.28
16.46
9.00
1.28
0.33
3200
37.45
21.36
4.58
3400
16.40
25.04
16.23
9.10
1.30
0.33
3400
37.50
21.07
4.68
3600
16.09
24.77
16.07
9.12
1.30
0.32
3600
36.88
20.83
4.76
3800
15.78
24.52
16.02
9.15
1.31
0.32
3800
35.94
20.37
4.70
4000
15.55
24.40
15.90
9.18
1.32
0.32
4000
35.12
19.77
4.76
4200
15.25
24.25
16.26
9.10
1.34
0.31
4200
35.13
19.34
4.82
4400
14.97
24.16
16.41
9.00
1.36
0.31
4400
35.53
19.09
4.87
4600
14.78
24.02
16.42
8.83
1.36
0.31
4600
34.96
18.73
5.00
4800
14.51
23.90
16.54
8.57
1.38
0.31
4800
34.73
18.22
5.11
5000
14.27
23.90
17.01
8.37
1.40
0.30
5000
34.34
17.76
5.17
5200
14.04
23.93
16.97
8.16
1.43
0.29
5200
34.28
17.47
5.14
5400
13.76
23.84
17.02
7.86
1.44
0.29
5400
33.80
17.24
5.29
5600
13.52
23.85
17.75
7.74
1.48
0.29
5600
33.47
17.04
5.30
6000
12.85
24.00
17.85
7.39
1.58
0.28
5800
33.13
16.56
5.51
6500
11.79
24.11
17.07
7.03
1.77
0.27
6000
33.20
16.12
5.42
7000
10.33
24.36
14.22
6.76
2.07
0.27
6200
33.51
15.56
5.45
7500
8.63
24.34
11.20
6.44
2.37
0.28
6400
33.36
14.98
5.48
8000
6.73
23.85
9.08
6.15
2.59
0.29
6600
32.53
14.79
5.61
8500
4.85
22.94
7.77
5.91
2.69
0.31
6800
32.46
14.52
5.72
9000
3.34
21.76
6.94
5.66
2.60
0.31
7000
33.32
14.46
5.79
10000
1.07
18.53
6.75
5.93
2.28
0.28
7200
33.43
14.12
5.78
12000
-1.22
11.85
7.54
7.16
1.58
0.26
7500
32.64
13.50
5.77
13000
-1.69
7.78
9.23
8.69
1.27
0.33
8000
30.18
12.01
6.34
Typical Performance Data
Input Return Loss = -S11 (dB)
Gain(Power Gain) = S21 (dB)
Reverse Isolation = -S12 (dB)
Output Return Loss = -S22 (dB)
TEST CONDITIONS: Icc = 120mA, Vd = 5.81V @Temperature = +25degC
Input
FREQ
(MHz) (dB) (dB) (dB) (dB) K Delta (MHz) (dBm) (dBm) (dB)
Isolation StabilityGain
Return
Loss
Output
Return
Loss
FREQ
IP3
Output
1dB
Comp.
Output
Noise
Figure
REV. X1
GALI-84+
120123
Page 3 of 11
Page 8
MMIC Amplifier GALI-84+
Definitions:
50
25.81
29.75
25.09
16.07
1.07
0.635037.88
21.80
3.65
100
25.78
29.62
24.31
16.12
1.07
0.63
100
37.67
21.91
3.81
200
25.64
29.74
23.99
15.98
1.08
0.61
200
37.77
21.65
3.80
400
25.22
29.48
25.86
13.79
1.08
0.60
400
37.69
21.85
3.87
600
24.61
29.32
24.36
12.60
1.09
0.57
600
37.56
21.54
3.85
800
23.93
29.02
23.39
11.57
1.10
0.54
800
38.00
21.57
3.98
1000
23.20
28.72
22.60
10.88
1.11
0.51
1000
38.36
21.56
3.90
1200
22.44
28.44
22.20
10.21
1.13
0.48
1200
38.39
21.15
3.91
1400
21.72
28.09
21.50
9.61
1.14
0.46
1400
38.26
21.16
3.82
1600
21.02
27.79
20.63
9.29
1.16
0.44
1600
38.68
21.27
3.98
1800
20.36
27.43
20.14
9.00
1.18
0.42
1800
39.96
21.19
4.04
2000
19.76
27.08
19.50
8.82
1.19
0.41
2000
40.16
21.27
3.80
2200
19.19
26.80
19.05
8.77
1.21
0.39
2200
40.22
21.50
3.82
2400
18.67
26.53
18.66
8.75
1.23
0.38
2400
40.36
21.59
3.92
2600
18.21
26.10
17.78
8.73
1.22
0.37
2600
39.93
21.50
3.88
2800
17.74
25.96
17.74
8.85
1.26
0.35
2800
40.07
21.41
3.85
3000
17.40
25.44
17.07
8.81
1.23
0.36
3000
40.53
21.34
3.80
3200
17.06
25.25
16.90
8.92
1.25
0.35
3200
40.68
21.24
3.91
3400
16.73
24.98
16.66
9.07
1.26
0.34
3400
40.90
21.14
3.96
3600
16.43
24.73
16.52
9.00
1.26
0.34
3600
39.77
21.06
4.01
3800
16.17
24.51
16.48
9.10
1.27
0.34
3800
38.27
20.75
3.96
4000
15.94
24.35
16.71
9.11
1.28
0.34
4000
36.92
20.28
4.02
4200
15.68
24.20
17.18
8.95
1.29
0.34
4200
37.85
19.92
4.07
4400
15.42
24.01
17.42
8.74
1.29
0.34
4400
38.86
19.59
4.08
4600
15.26
23.98
17.09
8.58
1.30
0.33
4600
37.94
19.28
4.26
4800
15.03
23.79
17.22
8.24
1.29
0.33
4800
37.78
18.88
4.28
5000
14.84
23.81
17.61
8.01
1.31
0.33
5000
37.09
18.47
4.32
5200
14.66
23.73
17.36
7.82
1.31
0.32
5200
37.47
18.07
4.30
5400
14.46
23.73
17.40
7.52
1.32
0.32
5400
37.24
17.80
4.43
5600
14.25
23.71
17.81
7.45
1.34
0.32
5600
36.27
17.64
4.39
6000
13.75
23.72
18.49
7.06
1.39
0.31
5800
36.45
17.32
4.61
6500
12.80
23.84
18.28
6.50
1.52
0.31
6000
36.22
16.93
4.49
7000
11.46
24.06
14.86
6.07
1.73
0.30
6200
36.27
16.15
4.51
7500
9.80
24.01
11.28
5.79
1.96
0.32
6400
37.27
15.35
4.53
8000
7.96
23.58
9.17
5.66
2.16
0.33
6600
36.34
15.02
4.61
8500
6.12
22.65
7.89
5.52
2.24
0.34
6800
35.42
14.89
4.70
9000
4.54
21.54
6.96
5.19
2.18
0.34
7000
37.18
14.77
4.79
10000
2.08
18.54
6.55
5.29
1.94
0.32
7200
36.90
14.21
4.76
12000
-0.13
11.80
7.47
6.82
1.38
0.30
7500
34.77
13.81
4.71
13000
-0.88
7.88
8.22
7.72
1.12
0.37
8000
32.29
12.76
5.32
Typical Performance Data
Input Return Loss = -S11 (dB)
Gain(Power Gain) = S21 (dB)
Reverse Isolation = -S12 (dB)
Output Return Loss = -S22 (dB)
TEST CONDITIONS: Icc = 100mA, Vd = 6.03V @Temperature = -45degC
Input
FREQ Isolation StabilityGain
(MHz) (dB) (dB) (dB) (dB) K Delta (MHz) (dBm) (dBm) (dB)
Return
Loss
Output
Return
Loss
FREQ
IP3
Output
1dB
Comp.
Output
Noise
Figure
REV. X1
GALI-84+
120123
Page 4 of 11
Page 9
MMIC Amplifier GALI-84+
Definitions:
50
25.59
28.77
21.83
18.18
1.04
0.685033.93
19.08
3.63
100
25.52
29.31
21.51
18.21
1.07
0.64
100
33.65
19.07
3.71
200
25.38
29.22
21.34
17.60
1.07
0.63
200
33.73
18.88
3.76
400
24.99
29.36
22.77
14.85
1.09
0.59
400
33.91
18.83
3.88
600
24.40
28.96
22.19
13.35
1.08
0.57
600
34.04
18.91
3.80
800
23.72
28.72
21.55
12.01
1.09
0.54
800
34.70
18.63
3.91
1000
23.00
28.43
21.29
11.14
1.10
0.51
1000
35.08
18.83
3.83
1200
22.28
28.12
20.87
10.39
1.12
0.49
1200
35.26
19.11
3.83
1400
21.57
27.82
20.37
9.80
1.13
0.46
1400
35.33
19.39
3.88
1600
20.87
27.51
19.81
9.41
1.15
0.44
1600
35.66
19.32
3.88
1800
20.23
27.29
19.31
9.13
1.17
0.42
1800
36.63
19.14
3.77
2000
19.65
26.87
18.62
8.89
1.17
0.41
2000
36.78
19.19
3.74
2200
19.08
26.63
18.37
8.79
1.20
0.39
2200
37.15
19.26
3.77
2400
18.57
26.26
17.87
8.72
1.20
0.38
2400
37.50
19.29
3.78
2600
18.10
26.09
17.41
8.81
1.23
0.36
2600
37.85
19.46
3.78
2800
17.70
25.73
17.02
8.81
1.23
0.36
2800
37.80
19.12
3.75
3000
17.35
25.32
16.48
8.78
1.21
0.35
3000
38.13
18.78
3.80
3200
17.02
25.08
16.42
8.97
1.23
0.35
3200
38.32
18.68
3.73
3400
16.70
24.89
16.09
8.92
1.24
0.34
3400
38.28
18.46
3.87
3600
16.43
24.57
15.73
9.07
1.24
0.34
3600
38.09
18.14
3.86
3800
16.14
24.41
15.57
9.22
1.25
0.34
3800
36.82
17.75
3.97
4000
15.89
24.25
15.43
9.16
1.26
0.33
4000
35.78
17.41
3.91
4200
15.63
23.99
15.36
8.97
1.25
0.34
4200
35.71
17.15
4.10
4400
15.34
23.87
15.42
8.70
1.26
0.33
4400
36.18
16.84
3.96
4600
15.12
23.81
15.89
8.46
1.28
0.33
4600
35.75
16.66
4.11
4800
14.84
23.68
16.11
8.25
1.29
0.33
4800
35.61
16.43
4.05
5000
14.66
23.68
16.21
7.97
1.30
0.32
5000
35.10
15.90
4.22
5200
14.43
23.76
16.77
7.79
1.33
0.31
5200
34.79
14.48
4.21
5400
14.22
23.76
17.26
7.60
1.35
0.31
5400
34.92
14.06
4.35
5600
14.03
23.66
18.75
7.42
1.37
0.31
5600
33.92
14.40
4.38
6000
13.52
23.76
18.43
7.15
1.44
0.31
5800
33.41
14.32
4.44
6500
12.81
23.64
17.91
6.97
1.54
0.32
6000
33.70
14.27
4.45
7000
11.51
24.38
14.00
6.23
1.80
0.31
6200
33.47
14.39
4.46
7500
9.63
23.23
12.07
6.30
1.93
0.32
6400
33.87
14.43
4.48
8000
7.85
23.13
9.35
5.87
2.12
0.32
6600
33.44
14.42
4.53
8500
5.90
22.48
8.10
5.83
2.34
0.33
6800
32.86
14.33
4.69
9000
4.38
21.64
6.92
5.52
2.31
0.34
7000
32.71
14.24
4.84
10000
1.97
18.63
6.52
5.69
2.06
0.31
7200
32.52
13.83
4.88
12000
-0.22
11.80
7.20
7.19
1.41
0.30
7500
32.70
13.02
4.93
13000
-1.11
8.12
8.16
7.57
1.13
0.33
8000
31.21
12.90
5.61
Typical Performance Data
Input Return Loss = -S11 (dB)
Gain(Power Gain) = S21 (dB)
Reverse Isolation = -S12 (dB)
Output Return Loss = -S22 (dB)
TEST CONDITIONS: Icc = 80mA, Vd=6.01V @Temperature = -45degC
Input
FREQ
(MHz) (dB) (dB) (dB) (dB) K Delta (MHz) (dBm) (dBm) (dB)
Isolation StabilityGain
Return
Loss
Output
Return
Loss
FREQ
IP3
Output
1dB
Comp.
Output
Noise
Figure
REV. X1
GALI-84+
120123
Page 5 of 11
Page 10
MMIC Amplifier GALI-84+
Definitions:
50
25.96
29.97
27.92
15.12
1.08
0.625040.80
23.04
3.70
100
25.93
29.97
26.63
15.07
1.08
0.62
100
40.64
23.13
3.85
200
25.79
29.80
26.29
15.08
1.07
0.62
200
40.60
22.97
3.85
400
25.35
29.73
28.00
13.20
1.08
0.60
400
40.17
23.10
3.92
600
24.74
29.49
25.89
12.20
1.09
0.57
600
39.64
22.88
3.89
800
24.04
29.25
24.57
11.25
1.10
0.54
800
39.71
22.89
4.03
1000
23.30
28.89
23.57
10.65
1.11
0.51
1000
39.92
22.91
3.95
1200
22.54
28.62
23.03
10.04
1.14
0.48
1200
39.99
22.67
3.96
1400
21.81
28.26
22.13
9.48
1.15
0.46
1400
39.89
22.64
3.88
1600
21.10
27.89
21.23
9.19
1.17
0.44
1600
40.37
22.69
4.02
1800
20.43
27.60
20.72
8.92
1.19
0.42
1800
41.71
22.63
4.09
2000
19.84
27.19
20.02
8.76
1.20
0.41
2000
41.63
22.69
3.88
2200
19.26
26.86
19.57
8.71
1.21
0.40
2200
41.46
22.74
3.91
2400
18.73
26.56
19.17
8.68
1.23
0.38
2400
41.37
22.63
3.98
2600
18.28
26.18
18.26
8.67
1.23
0.37
2600
40.85
22.54
3.97
2800
17.81
26.02
18.25
8.78
1.26
0.36
2800
40.93
22.58
3.95
3000
17.47
25.58
17.56
8.76
1.24
0.36
3000
41.69
22.41
3.90
3200
17.12
25.25
17.38
8.87
1.24
0.35
3200
41.31
22.15
3.99
3400
16.80
25.02
17.17
9.01
1.26
0.35
3400
41.45
21.95
4.03
3600
16.50
24.77
17.02
8.94
1.26
0.34
3600
40.79
21.84
4.09
3800
16.24
24.52
16.98
9.03
1.26
0.34
3800
38.88
21.49
4.03
4000
16.01
24.41
17.17
9.04
1.28
0.34
4000
38.04
20.93
4.11
4200
15.76
24.23
17.67
8.86
1.28
0.34
4200
39.16
20.50
4.16
4400
15.50
24.01
17.91
8.63
1.28
0.34
4400
40.97
20.19
4.18
4600
15.34
23.92
17.56
8.45
1.28
0.34
4600
39.81
19.88
4.33
4800
15.11
23.80
17.72
8.12
1.28
0.34
4800
40.16
19.47
4.36
5000
14.94
23.81
18.13
7.88
1.30
0.33
5000
39.78
19.01
4.41
5200
14.76
23.77
17.85
7.67
1.30
0.33
5200
39.55
18.62
4.38
5400
14.58
23.70
17.90
7.36
1.30
0.33
5400
39.96
18.38
4.53
5600
14.37
23.72
18.32
7.28
1.32
0.32
5600
38.58
18.26
4.49
6000
13.89
23.68
18.99
6.85
1.36
0.32
5800
39.22
17.89
4.73
6500
12.97
23.76
18.73
6.27
1.47
0.31
6000
39.92
17.47
4.62
7000
11.65
23.95
15.05
5.83
1.66
0.32
6200
40.97
16.87
4.66
7500
9.99
23.94
11.35
5.56
1.88
0.33
6400
42.99
16.08
4.68
8000
8.15
23.57
9.24
5.43
2.09
0.34
6600
39.61
15.49
4.79
8500
6.30
22.62
7.93
5.32
2.17
0.34
6800
39.90
15.36
4.85
9000
4.70
21.49
6.99
5.02
2.11
0.35
7000
43.22
15.26
4.92
10000
2.24
18.48
6.58
5.13
1.88
0.32
7200
39.15
14.82
4.89
12000
0.00
11.74
7.54
6.72
1.36
0.30
7500
35.85
14.27
4.87
13000
-0.76
7.83
8.28
7.63
1.10
0.38
8000
32.59
13.25
5.49
Typical Performance Data
Input Return Loss = -S11 (dB)
Gain(Power Gain) = S21 (dB)
Reverse Isolation = -S12 (dB)
Output Return Loss = -S22 (dB)
TEST CONDITIONS: Icc = 120mA, Vd = 6.09V @Temperature = -45degC
Input
FREQ Isolation StabilityGain
(MHz) (dB) (dB) (dB) (dB) K Delta (MHz) (dBm) (dBm) (dB)
Return
Loss
Output
Return
Loss
FREQ
IP3
Output
1dB
Comp.
Output
Noise
Figure
REV. X1
GALI-84+
120123
Page 6 of 11
Page 11
MMIC Amplifier GALI-84+
Definitions:
50
25.54
29.58
25.38
16.87
1.08
0.625037.33
21.73
4.43
100
25.50
29.41
25.77
16.32
1.07
0.63
100
37.35
21.81
4.59
200
25.35
29.33
27.16
15.52
1.08
0.62
200
37.59
21.65
4.60
400
24.89
29.44
24.27
14.33
1.09
0.58
400
36.96
21.71
4.71
600
24.25
29.12
23.07
12.94
1.10
0.56
600
36.51
21.39
4.71
800
23.52
28.90
22.14
11.75
1.11
0.52
800
36.72
21.36
4.88
1000
22.75
28.61
21.22
10.95
1.13
0.49
1000
36.70
21.40
4.82
1200
21.96
28.31
20.60
10.29
1.15
0.46
1200
36.39
21.00
4.84
1400
21.22
27.98
19.90
9.75
1.17
0.43
1400
35.91
21.03
4.79
1600
20.49
27.64
19.26
9.37
1.19
0.41
1600
36.09
21.06
4.92
1800
19.80
27.38
18.67
9.11
1.21
0.39
1800
36.24
20.98
4.99
2000
19.17
26.99
17.97
8.93
1.22
0.37
2000
35.92
20.96
4.80
2200
18.57
26.77
17.43
8.91
1.26
0.35
2200
35.42
20.98
4.89
2400
18.04
26.40
16.97
8.93
1.27
0.34
2400
35.24
20.90
4.98
2600
17.56
26.08
16.27
8.93
1.28
0.33
2600
34.65
20.81
4.97
2800
17.05
25.88
16.21
9.09
1.32
0.32
2800
34.65
20.64
4.92
3000
16.67
25.47
15.59
9.05
1.30
0.32
3000
34.51
20.41
4.93
3200
16.28
25.28
15.34
9.18
1.33
0.31
3200
34.19
20.08
5.01
3400
15.92
25.04
15.05
9.34
1.35
0.30
3400
33.98
19.79
5.11
3600
15.58
24.82
14.82
9.45
1.36
0.29
3600
33.51
19.50
5.21
3800
15.25
24.58
14.81
9.58
1.38
0.29
3800
32.65
19.03
5.14
4000
14.98
24.42
14.71
9.67
1.39
0.29
4000
32.13
18.40
5.22
4200
14.67
24.31
15.02
9.67
1.43
0.28
4200
31.94
18.01
5.26
4400
14.36
24.24
15.17
9.62
1.46
0.28
4400
31.76
17.78
5.31
4600
14.11
24.11
15.20
9.46
1.48
0.28
4600
31.27
17.37
5.48
4800
13.80
24.07
15.30
9.21
1.51
0.27
4800
30.95
16.84
5.61
5000
13.51
24.08
15.72
9.04
1.56
0.27
5000
30.70
16.42
5.64
5200
13.20
24.16
15.59
8.86
1.61
0.26
5200
30.48
16.14
5.64
5400
12.87
24.09
15.73
8.62
1.64
0.26
5400
29.92
15.88
5.75
5600
12.55
24.16
16.26
8.56
1.71
0.25
5600
29.61
15.61
5.80
6000
11.75
24.33
16.65
8.35
1.89
0.24
5800
29.44
15.12
6.04
6500
10.56
24.50
16.19
8.18
2.18
0.23
6000
29.38
14.72
5.99
7000
9.05
24.71
13.75
7.98
2.58
0.23
6200
29.32
14.23
6.00
7500
7.33
24.67
11.10
7.61
2.96
0.24
6400
29.21
13.85
6.02
8000
5.44
24.13
8.98
7.08
3.19
0.26
6600
29.00
13.52
6.12
8500
3.58
23.25
7.60
6.58
3.28
0.27
6800
28.85
13.43
6.23
9000
2.11
22.01
6.82
6.24
3.13
0.28
7000
28.62
13.32
6.36
10000
0.04
18.65
6.78
6.63
2.69
0.24
7200
28.77
12.95
6.35
12000
-2.32
12.04
7.50
7.45
1.83
0.24
7500
28.03
12.56
6.34
13000
-2.60
7.89
9.53
9.21
1.42
0.29
8000
26.61
11.02
6.87
Typical Performance Data
Input Return Loss = -S11 (dB)
Gain(Power Gain) = S21 (dB)
Reverse Isolation = -S12 (dB)
Output Return Loss = -S22 (dB)
TEST CONDITIONS: Icc = 100mA, Vd = 5.56V @Temperature = +85degC
Input
FREQ
(MHz) (dB) (dB) (dB) (dB) K Delta (MHz) (dBm) (dBm) (dB)
Isolation StabilityGain
Return
Loss
Output
Return
Loss
FREQ
IP3
Output
1dB
Comp.
Output
Noise
Figure
REV. X1
GALI-84+
120123
Page 7 of 11
Page 12
MMIC Amplifier GALI-84+
Definitions:
50
25.27
29.19
21.34
19.43
1.08
0.635033.74
19.42
4.46
100
25.19
29.34
22.03
18.68
1.09
0.61
100
33.65
19.53
4.57
200
25.04
28.96
22.85
17.40
1.08
0.63
200
33.82
19.42
4.58
400
24.60
28.96
21.39
15.50
1.09
0.59
400
33.56
19.10
4.76
600
23.98
28.81
20.71
13.72
1.10
0.55
600
33.52
19.16
4.71
800
23.27
28.46
20.24
12.25
1.10
0.53
800
34.04
18.88
4.83
1000
22.53
28.27
19.77
11.30
1.12
0.49
1000
34.30
18.97
4.78
1200
21.78
28.02
19.45
10.51
1.14
0.46
1200
34.25
19.20
4.80
1400
21.04
27.65
18.90
9.92
1.15
0.44
1400
33.98
19.31
4.87
1600
20.32
27.42
18.48
9.51
1.18
0.41
1600
34.26
19.19
4.89
1800
19.66
27.11
17.82
9.22
1.20
0.39
1800
34.73
18.94
4.77
2000
19.06
26.84
17.18
9.00
1.21
0.37
2000
34.43
18.88
4.74
2200
18.47
26.53
16.65
8.97
1.23
0.35
2200
34.32
18.77
4.81
2400
17.94
26.22
16.07
8.94
1.25
0.34
2400
34.01
18.65
4.85
2600
17.47
25.90
15.53
9.03
1.26
0.33
2600
33.81
18.40
4.87
2800
17.01
25.69
15.20
9.05
1.28
0.32
2800
33.62
18.00
4.87
3000
16.61
25.34
14.71
9.04
1.28
0.31
3000
33.54
17.44
4.91
3200
16.22
25.15
14.50
9.24
1.31
0.30
3200
33.22
17.19
4.86
3400
15.88
24.90
14.26
9.32
1.32
0.30
3400
33.00
16.94
5.03
3600
15.54
24.66
14.20
9.46
1.34
0.29
3600
32.56
16.57
5.09
3800
15.22
24.54
14.15
9.63
1.37
0.29
3800
31.76
15.99
5.20
4000
14.93
24.37
14.07
9.72
1.39
0.28
4000
31.26
15.57
5.14
4200
14.60
24.16
14.21
9.70
1.41
0.28
4200
31.00
15.34
5.34
4400
14.29
24.05
14.42
9.63
1.44
0.28
4400
30.88
15.07
5.24
4600
13.97
24.01
14.65
9.48
1.48
0.28
4600
30.43
14.83
5.42
4800
13.64
23.94
14.74
9.29
1.51
0.27
4800
30.20
14.57
5.42
5000
13.35
24.02
14.78
9.12
1.56
0.26
5000
29.98
13.99
5.60
5200
13.02
24.10
14.88
8.93
1.62
0.26
5200
29.64
12.64
5.58
5400
12.70
24.17
15.18
8.83
1.69
0.25
5400
29.29
12.46
5.73
5600
12.37
24.28
15.64
8.78
1.77
0.24
5600
28.87
12.90
5.82
6000
11.60
24.47
16.06
8.51
1.95
0.23
5800
28.72
12.88
5.87
6500
10.50
24.56
16.69
8.57
2.24
0.22
6000
28.55
12.85
5.98
7000
9.08
25.20
13.61
8.21
2.73
0.22
6200
28.54
12.96
6.01
7500
7.23
24.34
11.21
8.12
2.96
0.24
6400
28.22
13.01
6.04
8000
5.42
24.12
8.89
7.41
3.24
0.25
6600
28.06
13.02
6.15
8500
3.55
23.17
7.85
6.87
3.35
0.26
6800
27.75
12.98
6.28
9000
1.94
22.14
7.24
6.58
3.40
0.27
7000
27.71
12.92
6.41
10000
-0.16
18.75
7.04
7.01
2.90
0.24
7200
27.19
12.45
6.49
12000
-2.30
11.93
7.67
7.59
1.83
0.23
7500
27.63
11.64
6.58
13000
-2.79
8.08
9.78
8.88
1.46
0.27
8000
26.29
10.57
7.20
Typical Performance Data
Input Return Loss = -S11 (dB)
Gain(Power Gain) = S21 (dB)
Reverse Isolation = -S12 (dB)
Output Return Loss = -S22 (dB)
TEST CONDITIONS: Icc = 80mA, Vd=5.54V @Temperature = +85degC
Input
FREQ Isolation StabilityGain
(MHz) (dB) (dB) (dB) (dB) K Delta (MHz) (dBm) (dBm) (dB)
Return
Loss
Output
Return
Loss
FREQ
IP3
Output
1dB
Comp.
Output
Noise
Figure
REV. X1
GALI-84+
120123
Page 8 of 11
Page 13
MMIC Amplifier GALI-84+
Definitions:
50
25.72
29.34
28.39
15.50
1.06
0.655039.92
22.57
4.52
100
25.68
29.56
29.19
15.09
1.07
0.63
100
40.11
22.64
4.73
200
25.52
29.65
31.19
14.43
1.08
0.62
200
40.20
22.47
4.69
400
25.04
29.61
26.51
13.60
1.09
0.58
400
39.15
22.55
4.80
600
24.39
29.30
24.73
12.45
1.10
0.56
600
38.17
22.20
4.80
800
23.65
29.16
23.41
11.42
1.12
0.51
800
37.80
22.20
5.00
1000
22.86
28.85
22.26
10.70
1.14
0.48
1000
37.54
22.25
4.90
1200
22.07
28.46
21.50
10.10
1.16
0.46
1200
37.14
22.03
4.95
1400
21.31
28.16
20.66
9.61
1.18
0.43
1400
36.63
21.99
4.89
1600
20.57
27.82
19.96
9.27
1.20
0.41
1600
36.69
21.98
5.03
1800
19.88
27.52
19.35
9.03
1.22
0.39
1800
36.61
21.83
5.12
2000
19.25
27.15
18.57
8.85
1.24
0.37
2000
36.25
21.78
4.93
2200
18.65
26.83
17.98
8.86
1.26
0.36
2200
35.77
21.64
5.00
2400
18.11
26.52
17.47
8.88
1.28
0.34
2400
35.50
21.50
5.09
2600
17.63
26.15
16.76
8.87
1.28
0.34
2600
34.94
21.40
5.10
2800
17.12
25.97
16.70
9.04
1.33
0.32
2800
34.77
21.26
5.09
3000
16.74
25.55
16.02
9.00
1.31
0.32
3000
34.72
21.05
5.06
3200
16.34
25.36
15.76
9.12
1.34
0.31
3200
34.39
20.66
5.17
3400
15.99
25.10
15.49
9.25
1.35
0.30
3400
34.27
20.33
5.24
3600
15.65
24.81
15.24
9.38
1.36
0.30
3600
33.63
20.03
5.35
3800
15.33
24.62
15.21
9.47
1.38
0.30
3800
32.92
19.57
5.33
4000
15.07
24.41
15.08
9.53
1.38
0.29
4000
32.28
18.92
5.40
4200
14.74
24.29
15.41
9.52
1.42
0.29
4200
32.07
18.50
5.44
4400
14.45
24.24
15.54
9.45
1.45
0.29
4400
31.92
18.27
5.48
4600
14.20
24.13
15.57
9.28
1.47
0.28
4600
31.49
17.88
5.64
4800
13.89
24.01
15.67
9.03
1.49
0.28
4800
31.14
17.35
5.80
5000
13.62
24.06
16.05
8.85
1.53
0.27
5000
30.90
16.93
5.80
5200
13.32
24.12
15.92
8.64
1.57
0.27
5200
30.60
16.59
5.82
5400
12.99
24.05
16.03
8.39
1.61
0.26
5400
29.96
16.42
5.97
5600
12.67
24.11
16.57
8.31
1.67
0.26
5600
29.74
16.17
6.02
6000
11.90
24.27
16.95
8.09
1.84
0.24
5800
29.52
14.82
6.23
6500
10.71
24.47
16.40
7.88
2.12
0.24
6000
29.29
15.24
6.19
7000
9.21
24.66
13.85
7.68
2.50
0.23
6200
29.47
14.85
6.21
7500
7.48
24.62
11.15
7.33
2.87
0.24
6400
28.95
14.52
6.23
8000
5.58
24.09
9.00
6.84
3.10
0.26
6600
28.93
13.89
6.32
8500
3.71
23.24
7.62
6.37
3.20
0.28
6800
28.60
13.81
6.48
9000
2.22
21.95
6.84
6.07
3.04
0.29
7000
28.57
13.74
6.63
10000
0.15
18.60
6.81
6.47
2.62
0.25
7200
28.61
13.38
6.62
12000
-2.23
11.96
7.53
7.36
1.79
0.24
7500
27.67
12.94
6.63
13000
-2.52
7.85
9.56
9.15
1.41
0.29
8000
27.18
11.34
7.17
Typical Performance Data
Input Return Loss = -S11 (dB)
Gain(Power Gain) = S21 (dB)
Reverse Isolation = -S12 (dB)
Output Return Loss = -S22 (dB)
TEST CONDITIONS: Icc = 120mA, Vd = 5.62V @Temperature = +85degC
Input
FREQ
(MHz) (dB) (dB) (dB) (dB) K Delta (MHz) (dBm) (dBm) (dB)
Isolation StabilityGain
Return
Loss
Output
Return
Loss
FREQ
IP3
Output
1dB
Comp.
Output
Noise
Figure
REV. X1
GALI-84+
120123
Page 9 of 11
Page 14
MMIC Amplifier GALI-84+

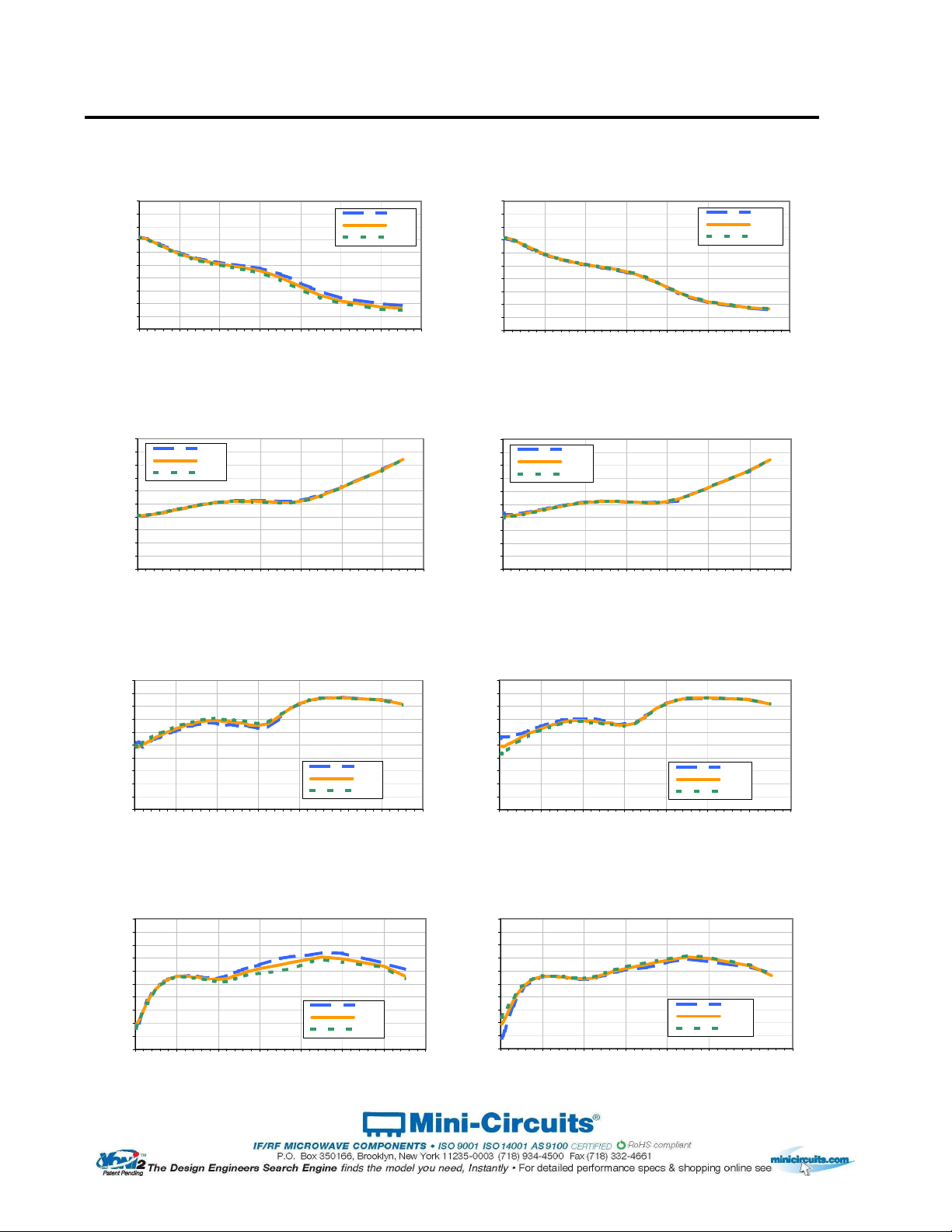

Typical Performance Curves
GAIN vs. TEMPERATURE
40
35
30
25
20
15
(dB)
10
5
0
-5
-10
0 2000 4000 6000 8000 10000 12000 14000
INPUT POWER = -25dBm,, CURRENT = 100mA
Frequency (MHz)
-45°C
+25°C
+85°C
40
35
30
25
20
15
(dB)
10
5
0
-5
-10
0 2000 4000 6000 8000 10000 12000 14000
GAIN vs. CURRENT
INPUT POWER = -25dBm,, Temperature = +25°C
Frequency (MHz)
80mA
100mA
120mA
ISOLATION vs. TEMPERATURE
0
5
10
15
20
25
(dB)
30
35
40
45
50
0 2000 4000 6000 8000 10000 12000 14000
INPUT POWER = -25dBm,, CURRENT = 100mA
-45°C
+25°C
+85°C
Frequency (MHz)
INPUT RETURN LOSS vs. TEMPERATURE
INPUT POWER = -25dBm,, CURRENT = 100mA
0
5
10
15
20
25
(dB)
30
35
40
45
50
0 2000 4000 6000 8000 10000 12000 14000
Frequency (MHz)
-45°C
+25°C
+85°C
ISOLATION vs. CURRENT
INPUT POWER = -25dBm,, Temperature = +25°C
0
5
10
15
20
25
(dB)
30
35
40
45
50
0 2000 4000 6000 8000 10000 12000 14000
80mA
100mA
120mA
Frequency (MHz)
INPUT RETURN LOSS vs. CURRENT
INPUT POWER = -25dBm,, Temperature = +25°C
0
5
10
15
20
25
(dB)
30
35
40
45
50
0 2000 4000 6000 8000 10000 12000 14000
Frequency (MHz)
80mA
100mA
120mA
OUTPUT RETURN LOSS vs. TEMPERATURE
0
2
4
6
8
10
(dB)
12
14
16
18
20
0 2000 4000 6000 8000 10000 12000 14000
INPUT POWER = -25dBm,, CURRENT = 100mA
Frequency (MHz)
-45°C
+25°C
+85°C
OUTPUT RETURN LOSS vs. CURRENT
INPUT POWER = -25dBm,, Temperature = +25°C
0
2
4
6
8
10
(dB)
12
14
16
18
20
0 2000 4000 6000 8000 10000 12000 14000
Frequency (MHz)
80mA
100mA
120mA
REV. X1
GALI-84+
120123
Page 10 of 11
Page 15
MMIC Amplifier GALI-84+

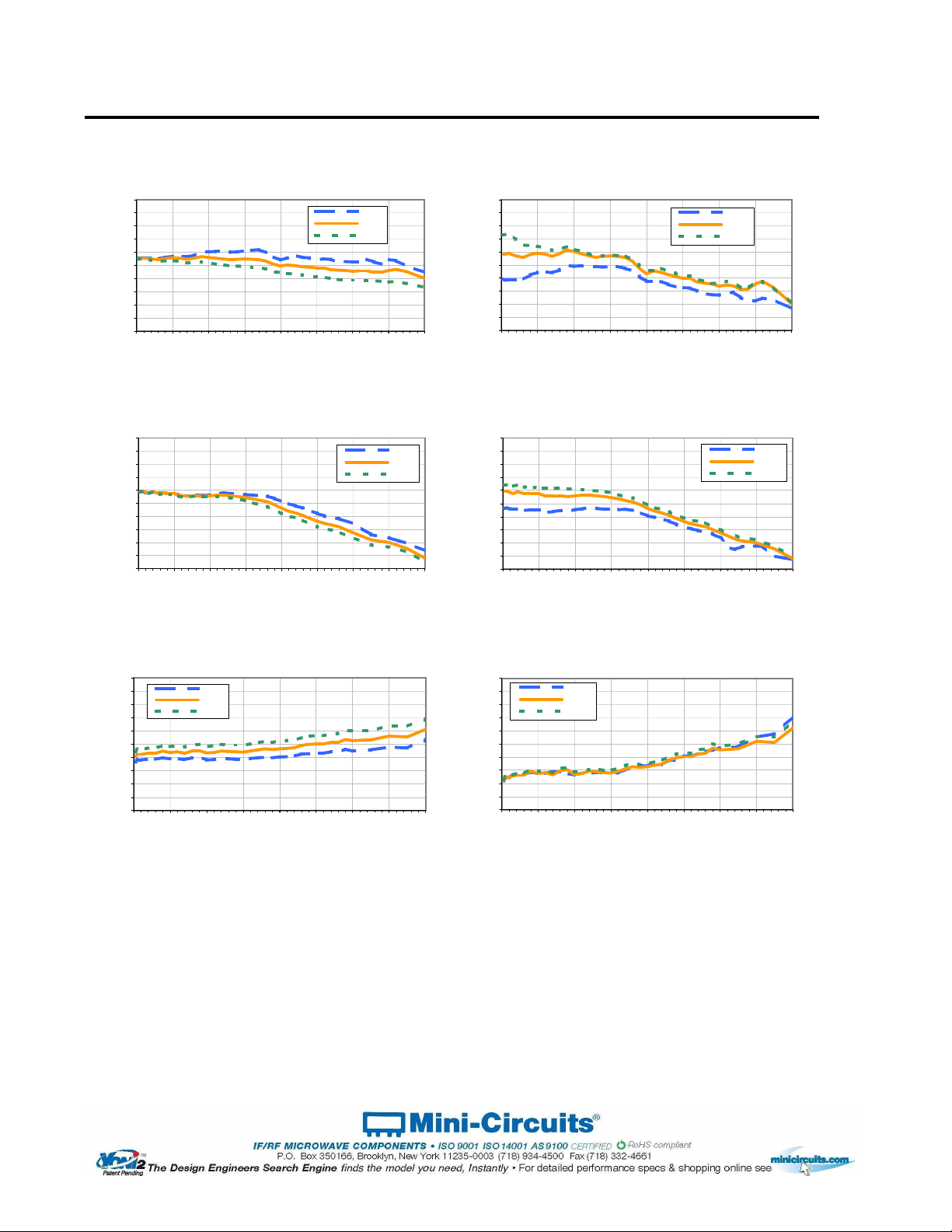

Typical Performance Curves
OUTPUT IP3 vs. TEMPERATURE
60
55
50
45
40
35
(dBm)
30
25
20
15
10
0 1000 2000 3000 4000 5000 6000 7000 8000
INPUT POWER = -25dBm,, CURRENT = 100mA
Frequency (MHz)
-45°C
+25°C
+85°C
46
44
42
40
38
36
(dBm)
34
32
30
28
26
0 1000 2000 3000 4000 5000 6000 7000 8000
OUTPUT IP3 vs. CURRENT
INPUT POWER = -25dBm,, Temperature = +25°C
Frequency (MHz)
80mA
100mA
120mA
OUTPUT POWER at 1dB Compression vs. TEMPERATURE
30
28
26
24
22
20
(dBm)
18
16
14
12
10
0 1000 2000 3000 4000 5000 6000 7000 8000
CURRENT = 100mA
Frequency (MHz)
Noise Figure vs. TEMPERATURE
10
9
8
7
6
5
(dB)
4
3
2
1
0
0 1000 2000 3000 4000 5000 6000 7000 8000
-45°C
+25°C
+85°C
CURRENT = 100mA
Frequency (MHz)
-45°C
+25°C
+85°C
OUTPUT POWER at 1dB Compression vs. CURRENT
30
28
26
24
22
20
(dBm)
18
16
14
12
10
0 1000 2000 3000 4000 5000 6000 7000 8000
Temperature = +25°C
Frequency (MHz)
Noise Figure vs. CURRENT
Temperature = +25°C
8.0
7.5
7.0
6.5
6.0
5.5
(dB)
5.0
4.5
4.0
3.5
3.0
0 1000 2000 3000 4000 5000 6000 7000 8000
80mA
100mA
120mA
Frequency (MHz)
80mA
100mA
120mA
REV. X1
GALI-84+
120123
Page 11 of 11
Page 16
MMIC Amplifier GALI-84+
Typical Performance Curves
GAIN vs. TEMPERATURE
40
35
30
25
20
15
(dB)
10
5
0
-5
-10
0 2000 4000 6000 8000 10000 12000 14000
INPUT POWER = -25dBm,, CURRENT = 100mA
Frequency (MHz)
-45°C
+25°C
+85°C
40
35
30
25
20
15
(dB)
10
5
0
-5
-10
0 2000 4000 6000 8000 10000 12000 14000
GAIN vs. CURRENT
INPUT POWER = -25dBm,, Temperature = +25°C
Frequency (MHz)
80mA
100mA
120mA
ISOLATION vs. TEMPERATURE
0
5
10
15
20
25
(dB)
30
35
40
45
50
0 2000 4000 6000 8000 10000 12000 14000
INPUT POWER = -25dBm,, CURRENT = 100mA
-45°C
+25°C
+85°C
Frequency (MHz)
INPUT RETURN LOSS vs. TEMPERATURE
INPUT POWER = -25dBm,, CURRENT = 100mA
0
5
10
15
20
25
(dB)
30
35
40
45
50
0 2000 4000 6000 8000 10000 12000 14000
Frequency (MHz)
-45°C
+25°C
+85°C
ISOLATION vs. CURRENT
INPUT POWER = -25dBm,, Temperature = +25°C
0
5
10
15
20
25
(dB)
30
35
40
45
50
0 2000 4000 6000 8000 10000 12000 14000
80mA
100mA
120mA
Frequency (MHz)
INPUT RETURN LOSS vs. CURRENT
INPUT POWER = -25dBm,, Temperature = +25°C
0
5
10
15
20
25
(dB)
30
35
40
45
50
0 2000 4000 6000 8000 10000 12000 14000
Frequency (MHz)
80mA
100mA
120mA
OUTPUT RETURN LOSS vs. TEMPERATURE
0
2
4
6
8
10
(dB)
12
14
16
18
20
0 2000 4000 6000 8000 10000 12000 14000
INPUT POWER = -25dBm,, CURRENT = 100mA
Frequency (MHz)
-45°C
+25°C
+85°C
OUTPUT RETURN LOSS vs. CURRENT
INPUT POWER = -25dBm,, Temperature = +25°C
0
2
4
6
8
10
(dB)
12
14
16
18
20
0 2000 4000 6000 8000 10000 12000 14000
Frequency (MHz)
80mA
100mA
120mA
REV. X1
GALI-84+
120123
Page 1 of 2
Page 17
MMIC Amplifier GALI-84+
Typical Performance Curves
OUTPUT IP3 vs. TEMPERATURE
60
55
50
45
40
35
(dBm)
30
25
20
15
10
0 1000 2000 3000 4000 5000 6000 7000 8000
INPUT POWER = -25dBm,, CURRENT = 100mA
Frequency (MHz)
-45°C
+25°C
+85°C
46
44
42
40
38
36
(dBm)
34
32
30
28
26
0 1000 2000 3000 4000 5000 6000 7000 8000
OUTPUT IP3 vs. CURRENT
INPUT POWER = -25dBm,, Temperature = +25°C
Frequency (MHz)
80mA
100mA
120mA
OUTPUT POWER at 1dB Compression vs. TEMPERATURE
30
28
26
24
22
20
(dBm)
18
16
14
12
10
0 1000 2000 3000 4000 5000 6000 7000 8000
CURRENT = 100mA
Frequency (MHz)
Noise Figure vs. TEMPERATURE
10
9
8
7
6
5
(dB)
4
3
2
1
0
0 1000 2000 3000 4000 5000 6000 7000 8000
-45°C
+25°C
+85°C
CURRENT = 100mA
Frequency (MHz)
-45°C
+25°C
+85°C
OUTPUT POWER at 1dB Compression vs. CURRENT
30
28
26
24
22
20
(dBm)
18
16
14
12
10
0 1000 2000 3000 4000 5000 6000 7000 8000
Temperature = +25°C
Frequency (MHz)
Noise Figure vs. CURRENT
Temperature = +25°C
8.0
7.5
7.0
6.5
6.0
5.5
(dB)
5.0
4.5
4.0
3.5
3.0
0 1000 2000 3000 4000 5000 6000 7000 8000
80mA
100mA
120mA
Frequency (MHz)
80mA
100mA
120mA
REV. X1
GALI-84+
120123
Page 2 of 2
Page 18
Case Style DF
Outline Dimensions
CASE # A B C D E F G H J K L M
DF782
CASE # N P Q WT. GRAM
DF782
Dimensions are in inches (mm). Tolerances: 2 Pl. + .01; 3Pl. .005
.102
(2.59)
.019
(0.48)
.090
(2.29)
.065
(1.65)
.181
(4.60)
.062
(1.57)
.173
(4.39)
.2
.063
(1.60)
.167
(4.24)
PCB Land Pattern
Suggested Layout,
Tolerance to be within .002
.155
(3.94)
.059
(1.50)
.118
(3.00)
.015
(0.38)
DF782
.041
(1.04)
.016
(0.41)
Notes:
1. Case material: Plastic.
2. Termination finish:
For RoHS Case Styles: Tin-Silver alloy plate over Nickel barrier or Matte-Tin.
All models, (+) suffix. See model Data sheet.
For RoHS-5 Case Styles: Tin-Lead plate. All models, no (+) suffix.
98-DF Rev.: G (02/08/17) M159001 File: 98-DF Sheet 1 of 2
This document and its contents are the property of Mini-Circuits.
Page 19
Tape & Reel Packaging TR-F55
Tape Width,
mm
12 8 7
Note: Please consult individual model dat a sheet to determine device per reel availability.
Mini-Circuits carr ier tape mater ials provide pro t ection fro m ESD (Elect ro- Static Discharge) dur ing handling
and transportation. Tapes are static dissipative and comply with industry standards EIA-481/EIA-541.
Go to: www.minicircuits.com/pages/pdfs/tape.pdf
Device Cavity
Pitch, mm
Reel Size,
inches
Devices per Reel
Small
quantity
standard
(see note)
Standard 1000
20
50
100
200
500
98-TR-F 55 Rev.: B (04/18/11) M131392 File: 98-TR-F55.doc Sheet 1 of 1
This document and its contents are the property of Mini-Circuits.
Page 20
Page 21
Page 22
Environmental Specifications
ENV08T2
Mini-Circuits
All Mini-Circuits products are manufactured under exacting quality assurance and control standards, and are capable of meeting published specifications after being subjected to
any or all of the following physical and environmental test.
Specification Test/Inspection Condition Reference/Spec
Operating Temperature -45° to 85°C or -40° to 85°C
Ambient Environment
Storage Temperature -65° to 150° C
Ambient Environment
Thermal Shock -55° to 100°C, 100 cycles MIL-STD-202, Method 107, Condition A-3, except
Mechanical Shock 1.5Kg, 0.5 ms, 5 shock pulses, Y1 direction only MIL-STD-883, Method 2002, Condition B, except Y1
Vibration (Variable Frequency) 50g peak MIL-STD-883, Method 2007, Condition B
Autoclave 15 psig, 100% RH, 121°C, 96 hours JESD22-A102, Condition C
HAST 130°C, 85% RH, 96 hours JESD22-A110
Solderability 10X Magnification J-STD-002, Para 4.2.5, Test S, 95% Coverage
Solder Reflow Heat Sn-Pb Eutetic Process: 240°C peak
Pb-Free Process: 260°C peak
Individual Model Data Sheet
Individual Model Data Sheet
+100°C
direction only
J-STD-020, Table 4-1, 4-2 and 5-2; Figure 5-1
Moisture Sensitivity: Level 1 Bake at 125°C for 24 hours
Soak at 85°C/85% RH for 168 hours, Reflow 3 cycles at
260°C peak
Marking Resistance to Solvents Isopropyl alcohol + mineral spirits at 25°C; terpene defluxer
at 25°C;
distilled water + proylene glycol monomethyl ether +
Rev:ENV08T2 B 02/10/14 File:M145154 ENV08T2.pdf
This document and its contents are the property of Mini-Circuits.
J-STD-020
MIL-STD-202, Method 215
Page: 1
Page 23
Environmental Specifications
ENV08T2
Mini-Circuits
All Mini-Circuits products are manufactured under exacting quality assurance and control standards, and are capable of meeting published specifications after being subjected to
any or all of the following physical and environmental test.
Specification Test/Inspection Condition Reference/Spec
monoethanolamine at 63°C to 70°C
Rev:ENV08T2 B 02/10/14 File:M145154 ENV08T2.pdf
This document and its contents are the property of Mini-Circuits.
Page: 2
Loading...
