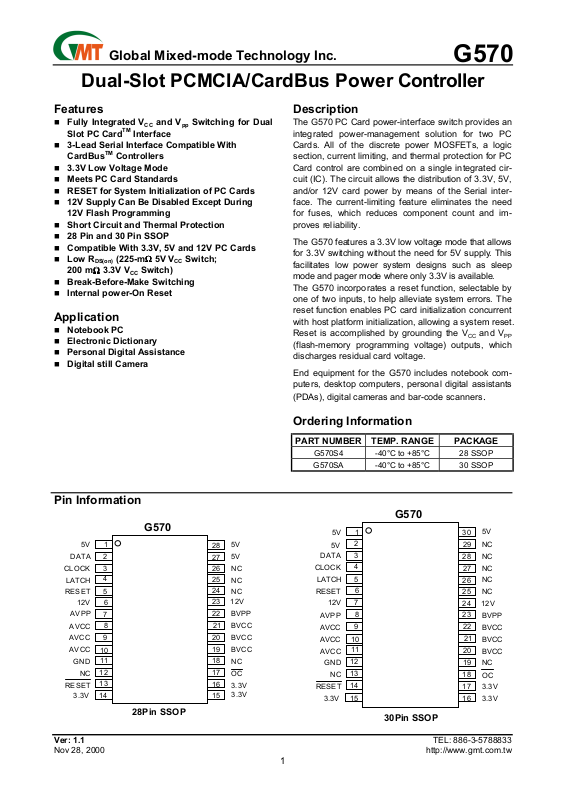

Global Mixed-mode Technology Inc.
Dual-Slot PCMCIA/CardBus Power Controller
Features
Fully Integrated VCC and Vpp Switching for Dual
Slot PC Card
3-Lead Serial Interface Compatible With
CardBus
3.3V Low Voltage Mode
Meets PC Card Standards
RESET for System Initialization of PC Cards
12V Supply Can Be Disabled Except During
TM
Interface
TM
Controllers
12V Flash Programming
Short Circuit and Thermal Protection
28 Pin and 30 Pin SSOP
Compatible With 3.3V, 5V and 12V PC Cards
Low R
200 m
Break-Before-Make Switching
Internal power-On Reset
DS(on)
3.3V V
ΩΩΩΩ
(225-m
CC
5V VCC Switch;
ΩΩΩΩ
Switch)
Application
Notebook PC
Electronic Dictionary
Personal Digital Assistance
Digital still Camera
Description
The G570 PC Card power-interface switch provides an
integrated power-management solution for two PC
Cards. All of the discrete power MOSFETs, a logic
section, current limiting, and thermal protection for PC
Card control are combined on a single integrated circuit (IC). The circuit allows the distribution of 3.3V, 5V,
and/or 12V card power by means of the Serial interface. The current-limiting feature eliminates the need
for fuses, which reduces component count and improves reliability.
The G570 features a 3.3V low voltage mode that allows
for 3.3V switching without the need for 5V supply. This
facilitates low power system designs such as sleep
mode and pager mode where only 3.3V is available.
The G570 incorporates a reset function, selectable by
one of two inputs, to help alleviate system errors. The
reset function enables PC card initialization concurrent
with host platform initialization, allowing a system reset.
Reset is accomplished by grounding the V
(flash-memory programming voltage) outputs, which
discharges residual card voltage.
End equipment for the G570 includes notebook computers, desktop computers, personal digital assistants
(PDAs), digital cameras and bar-code scanners
G570
and VPP
CC
.
Pin Information
5V
1
12V
NC
2
3
4
5
6
7
8
9
10
11
12
13
14
28Pin SSOP
DATA
CLOCK
LATCH
RESET
AVPP
AVCC
AVCC
AVCC
GND
RESET
3.3V
G570
28
27
26
25
24
23
22
20
19
18
17
16
15
21
5V
5V
NC
NC
NC
12V
BVPP
BVCC
BVCC
BVCC
NC
OC
3.3V
3.3V
Ordering Information
PART NUMBER TEMP. RANGE PACKAGE
G570S4 -40°C to +85°C 28 SSOP
G570SA -40°C to +85°C 30 SSOP
G570
5V
5V
DATA
CLOCK
LATCH
RESET
12V
AVPP
AVCC
AVCC
AVCC
GND
NC
RESET
3.3V
1
2
3
4
5
6
7
8
9
10
11
12
13
14
30Pin SSOP
30
28
27
26
25
24
23
22
20
19
18
17
1615
29
21
5V
NC
NC
NC
NC
NC
12V
BVPP
BVCC
BVCC
BVCC
NC
OC
3.3V
3.3V
Ver: 1.1
Nov 28, 2000
1
TEL: 886-3-5788833
http://www.gmt.com.tw
Page 2
Global Mixed-mode Technology Inc.
Absolute maximum ratings over operating
free-air temperature
Input voltage range for card power:
V
V
V
Logic input voltage...................................…-0.3V to 7V
Output current (each card):
I
I
.................................………………-0.3V to 7V
I(3.3V)
........................………..…...………..-0.3V to 7V
I(5V)
...................………..…………….. -0.3V to 14V
I(12V)
O (xVCC)…
O(xVPP).
…………………..……...…..internally limited
..............................…........... internally limited
(unless otherwise noted)*
Operating virtual junction temperature range, T
……………………………………………….-40°C to 150°C
Operating free-air temperature range, T
...…………………….……..……………….-40°C to 85°C
Storage temperature range, T
Thermal resistance
SSOP 28………………………………………….125°C/W
SSOP 30………………………………………….122°C/W
Power dissipation P
SSOP 28……………………….………………….800mW
SSOP 30…………………………………………1024mW
….…...-55°C to 150°C
STG
θ
JA
+25°C)
(T
≤
D
A
G570
J
A
ESD…………………………..………………………Note1
*Stresses beyond those listed under "absolute maximum ratings”may cause permanent damage to the device. These are stress rating
only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating
conditions”is not implied. Exposure to absolute–maximum-rated conditions for extended periods may affect device reliability.
Note 1: ESD (electrostatic discharge) sensitive device. Proper ESD precautions are recommended to avoid performance degradation or
less of functionality.
Recommended Operating Conditions
V
0 5.25 V
I (5V)
Input voltage range, VI
Output current
Clock frequency 0 2.5 MHz
Operating virtual junction temperature, TJ -40 125 °C
V
0 5.25 V
I (3.3V)
V
0 13.5 V
I (12V)
I
at 25°C 1 A
O (xVCC)
I
at 25°C 150 mA
O (xVPP)
Min Max Unit

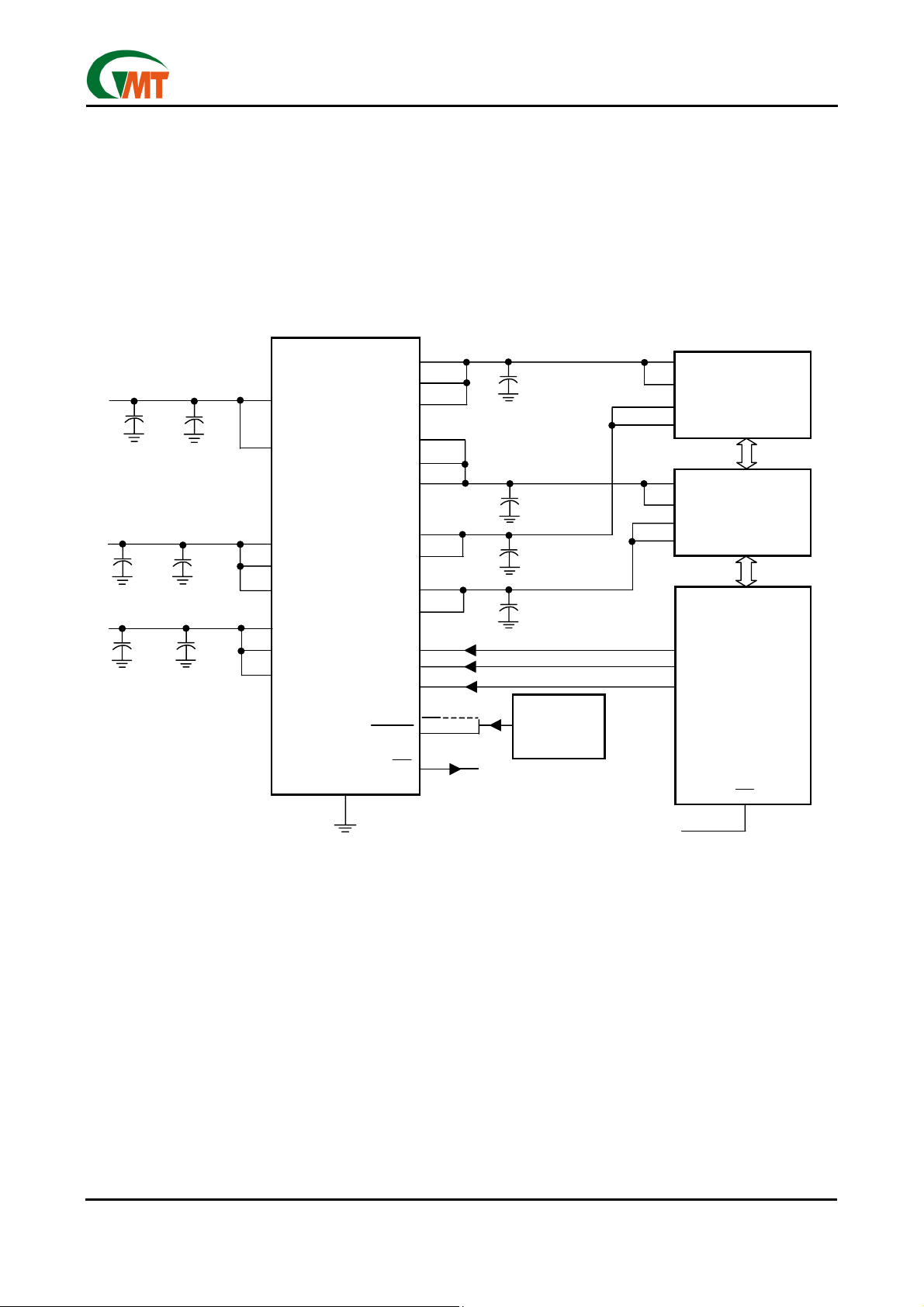

Typical PC Card Power-Distribution Application
Power Supply
12V
5V
3.3V
Supervisor
PCMCIA
Controller
12V
5V
3.3V
RESET
RESET
3
Serial Interface
OC
G570
AVPP
AVCC
AVCC
AVCC
BVPP
BVCC
BVCC
BVCC
V
PP1
V
PP2
V
CC
V
CC
V
PP1
V
PP2
V
CC
V
CC
PC Card A
PC Card B
Ver: 1.1
Nov 28, 2000
2
TEL: 886-3-5788833
http://www.gmt.com.tw
Page 3
Global Mixed-mode Technology Inc.
Terminal Functions
28 Pin
TERMINAL
NAME NO.
3.3V 14,15,16 I 3.3V VCC input for card power
5V 1,27,28 I 5V VCC input for card power and/or chip power
12V 6,23 I 12V VPP input for card power
AVCC 8,9,10 O Switched output that delivers 0V,3.3V,5V or high impedance to card
AVPP 7 O Switched output that delivers 0V,3.3V,5V,12V or high impedance to card
BVCC 19,20,21 O Switched output that delivers 0V, 3.3V, 5V or high impedance
BVPP 22 O Switch output that delivers 0V, 3.3V, 5V, 12V or high impedance
CLOCK 3 I Logic-level clock for serial data word
DATA 2 I Logic-level serial data word
GND 11 Ground
LATCH 4 I Logic level latch for serial data word
NC 12,18,24,25,26 No internal connection
OC
RESET 5 I Logic-level RESET input active high. Do not connect if terminal 13 is used.
RESET
17 O
13
I/O DESCRIPTION
OC
Logic-level overcurrent.
exists
I
Logic-level
input active low. Do not connect if terminal 5 is used.
RESET
reports output that goes low when an overcurrent condition
G570
30 Pin
TERMINAL
NAME NO.
3.3V 15,16,17 I 3.3V VCC input for card power
5V 1,2,30 I 5V VCC input for card power and/or chip power
12V 7,24 I 12V VPP input for card power
AVCC 9,10,11 O Switched output that delivers 0V, 3.3V, 5V or high impedance to card
AVPP 8 O Switched output that delivers 0V, 3.3V, 5V, 12V or high impedance to card
BVCC 20,21,22 O Switched output that delivers 0V, 3.3V, 5V or high impedance
BVPP 23 O Switch output that delivers 0V, 3.3V, 5V, 12V or high impedance
CLOCK 4 I Logic level clock for serial data word
DATA 3 I Logic level serial data word
GND 12 Ground
LATCH 5 I Logic level latch for serial data word
NC
OC
RESET 6 I Logic-level RESET input active high. Do not connect if terminal 14 is used.
RESET
13,19,25,26,
27,28,29
18 O
14
I/O DESCRIPTION
No internal connection
OC
Logic-level overcurrent.
exists
I
Logic-level
RESET
input active low. Do not connect if terminal 6 is used.
reports output that goes low when an overcurrent condition
Ver: 1.1
Nov 28, 2000
3
TEL: 886-3-5788833
http://www.gmt.com.tw
Page 4
Global Mixed-mode Technology Inc.
Electrical Characteristics
(TA = 25
°C,
V
= 5V; unless otherwise noted)
I(5V)
G570
DC Characteristics
PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
5V to x VCC 170 225
mΩ
Ω
µA
µA
Switch resistance*
3.3V to x VCC V
3.3V to x VCC V
5V to x VPP 6
I(5V)
I(5V)
= 5V, V
= 0V, V
=3.3V 140 200
I(3.3V)
=3.3V 150 200
I(3.3V)
3.3V to x VPP 6
12V to x VPP 6
V
Clamp low voltage IPP at 10mA 0.8 V
O(xVPP)
V
Clamp low voltage ICC at 10mA 0.8 V
O(xVCC)
I
Leakage current
IKG
I
Input current
I
Short-circuit
OS
Output current Limit
IPP high impedance State TA = 25°C 1 10
I
high-impedance State TA = 25°C 1 10
CC
V
= 5V V
I(5V)
V
= 0V
I(5V)
= 3.3V
V
I(3.3V)
Shutdown mode V
I
0.8 2.2 A I
O(xVCC)
I
O(xVPP)
O(AVCC)
V
O(AVPP)
V
O(AVCC)
V
O(AVPP)
O(BVCC)
=V
O(AVPP)
= V
= V
= V
= V
= V
= V
O(BVCC)
O(BVPP)
O(BVCC)
O(BVPP)
O(AVCC)
O(BVPP)
= 5V
= 12V
= 3.3V
= 0V
= Hi-Z
Output powered up into a short to
GND
115 150
131 150
2
120 400 mA
*Pulse-testing techniques are used to maintain junction temperature close to ambient te mper at ures; t hermal effects must b e taken into account
separately.
Logic Section
PARAMETER TEST CONDITION MIN MAX UNIT
Logic input current 1 µA
Logic input high level 2 V
Logic input low level 0.8 V
0.4
V
－
Logic output high level
V
= 5V, IO = 1mA
I(5V)
= 0V, IO = 1mA
V
I(5V)
V
= 3.3V
I(3.3V)
V
I(5V)
I(3.3V)
－
0.4
V
Logic output low level IO = 1mA 0.4 V
Switching Characteristics *, **
PARAMETER TEST CONDITION MIN TYP MAX UNIT
V
2
tr Output rise time
tf Output fall time
Propagation delay (see
tpd
Figure 1)
* Refer to Parameter Measurement Information
**Switching Characteristics are with C
O (xVCC)
V
10
O (xVPP)
V
16
O (xVCC)
V
45
O (xVPP)
LATCH↑to V
LATCH↑to V
LATCH↑to V
LATCH↑to V
= 147µF
L
O(xVPP)
O(xVCC)
O(xVCC)
O(xVCC)
(3.3V), V
(5V)
(3.3V), V
I(5V)
I(5V)
= 5V
= 0V
ton 7 ms
30 ms
t
off
ton 5 ms
16 ms
t
off
ton 3.2 ms
25 ms
t
off
ton 6 ms
21 ms
t
off
ms
Ver: 1.1
Nov 28, 2000
4
TEL: 886-3-5788833
http://www.gmt.com.tw
Page 5
Global Mixed-mode Technology Inc.
Parameter Measurement Information
V
PP
C
L
LOAD CIRCUIT
50%
LATCH
t
off
t
on
V
O(xVPP)
90%
VOLTAGE WAVEFORMS
Figure 1. Test Circuits and Voltage Waveforms
Table of Timing Diagrams
10%
V
DD
GND
V
GND
I(12V)
LATCH
V
O(xVCC)
V
CC
LOAD CIRCUIT
50%
t
off
t
on
90%
VOLTAGE WAVEFORMS
G570
C
L
V
DD
GND
V
I(5V)
10%
GND
DATA
LATCH
CLOCK
D7D8
D6 D5 D4 D3 D2 D1 D0
Note:Data is clocked in on the positive leading edge of the clock. The latch should occur before the next
positive leading edge of the clock. For definition of D0 to D8, see the control logic table.
Figure 2. Serial-Interface Timing
Ver: 1.1
Nov 28, 2000
5
TEL: 886-3-5788833
http://www.gmt.com.tw
Page 6
Global Mixed-mode Technology Inc.

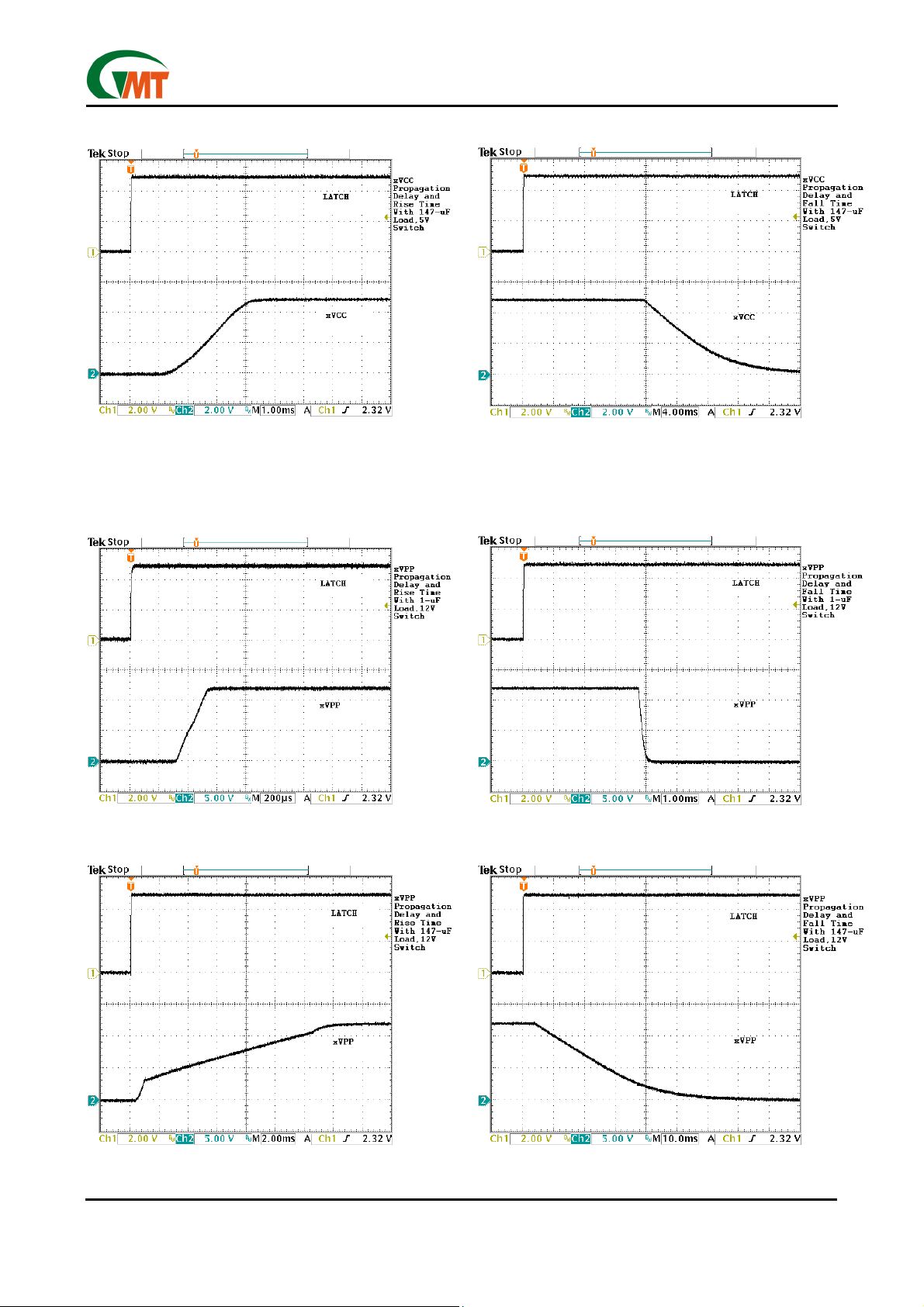

Switching Characteristics
G570

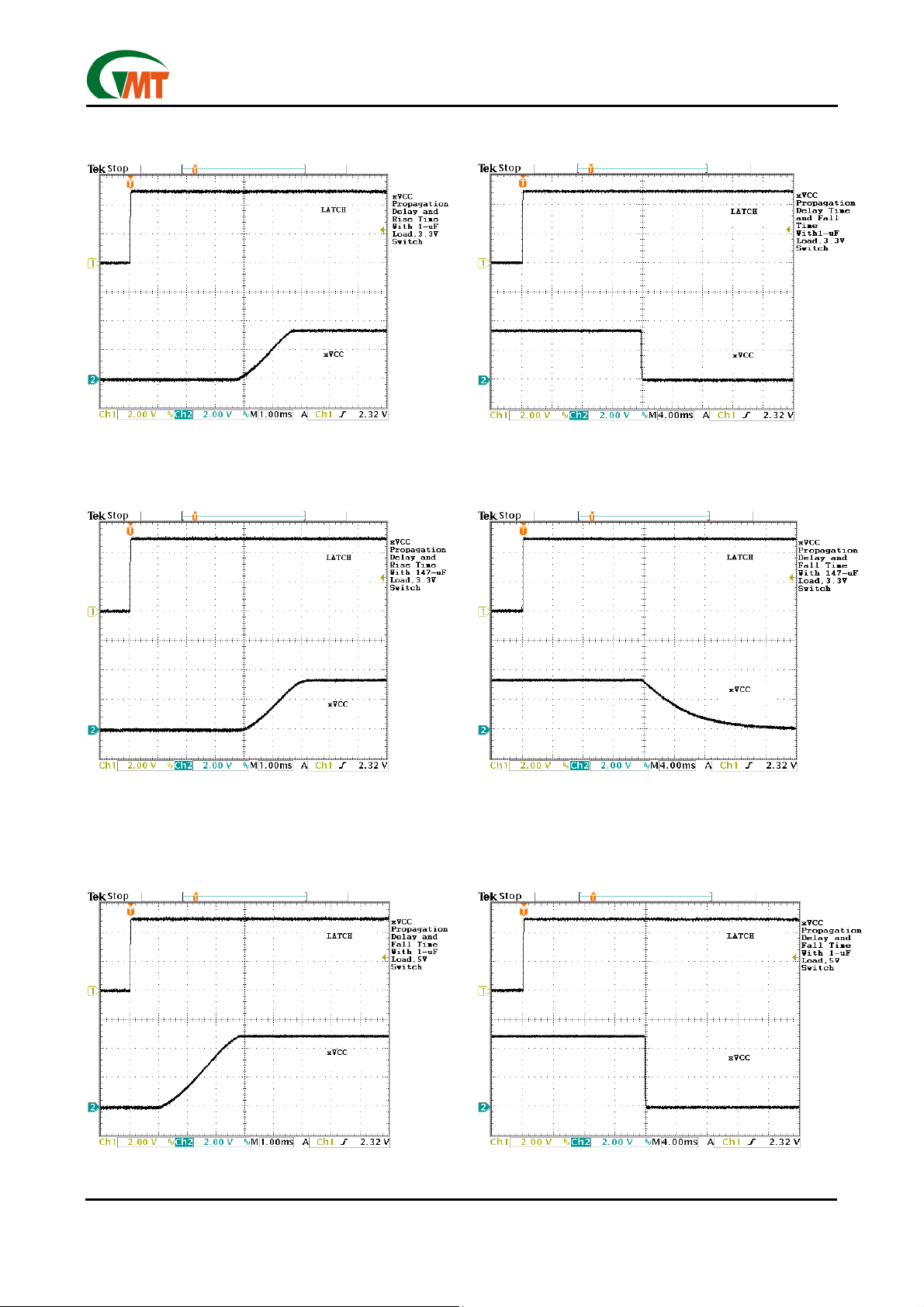

Switching Characteristics
Ver: 1.1
Nov 28, 2000
6
TEL: 886-3-5788833
http://www.gmt.com.tw
Page 7
Global Mixed-mode Technology Inc.
G570
Switching Characteristics
Ver: 1.1
Nov 28, 2000
7
TEL: 886-3-5788833
http://www.gmt.com.tw
Page 8
Global Mixed-mode Technology Inc.
Application Information
Overview
PC Cards were initially introduced as a means to add
EEPROM (flash memory) to portable computers with
limited on-board memory. The idea of add-in cards
quickly took hold; modems, wireless LANs, Global
Positioning Satellite (GPS), multimedia, and hard-disk
versions were soon available. As the number of PC
Card applications grew, the engineering community
quickly recognized the need for a standard to ensure
compatibility across platforms. To this end, the
PCMCIA was established, comprised of members
from leading computer, software, PC Card, and
semiconductor manufactures. One key goal was to
realize the “plug-and play” concept. Cards and hosts
from different vendors should be compatible—able to
communicate with one another transparently.
PC Card Power Specification
System compatibility also means power compatibility.
The most current set of specifications (PC Card Standard) set forth by the PCMCIA committee states that
power is to be transferred between the host and the
card through eight of the 68 terminals of the PC Card
connector. This power interface consists of two V
two V
ground terminals minimize connector-terminal and line
resistance. The two V
specified as separate signals but are commonly tied
together in the host to form a single node to minimize
voltage losses. Card primary power is supplied
through the V
and erase voltage is supplied through the V
nals.
Overcurrent and Over-Temperature Protection
PC Cards are inherently subject to damage that can
result from mishandling. Host systems require protection against short-circuited cards that could lead to
power supply or PCB-trace damage. Even systems
robust enough to withstand a short circuit would still
undergo rapid battery discharge into the damaged PC
Card, resulting in the rather sudden and unacceptable
loss of system power. Most hosts include fuses for
protection. However, the reliability of fused systems is
poor, as blown fuses require troubleshooting and repair, usually by the manufacturer.
The G570 takes a two-pronged approach to overcurrent protection. First, instead of fuses, sense FETs
monitor each of the power outputs. Excessive current
generates an error signal that linearly limits the output
current, preventing host damage or failure. Sense
FETs, unlike sense resistors or polyfuses, have an
added advantage in that they do not add to the series
, and four ground terminals. Multiple VCC and
PP
PP
terminals; flash-memory programming
CC
,
CC
terminals were originally
termi-
PP
G570
resistance of the switch and thus produce no additional voltage losses. Second, when an overcurrent
condition is detected, the G570 asserts a signal at
OC that can be monitored by the microprocessor to
initiate diagnostics and/or send the user a warning
message. In the event that an overcurrent condition
persists, causing the IC to exceed its maximum
junction temperature, thermal-protection circuitry
activates, shutting down all power outputs until the
device cools to within a safe operating region.
12V Supply Not Required
Most PC Card switches use the externally supplied
12V V
power for switch-gate drive and other chip
PP
functions, which requires that power be present at all
times. The G570 offers considerable power savings by
using an internal charge pump to generate the required higher voltages from 5V or 3.3V input; therefore,
the external 12V supply can be disable except when
needed for flash-memory functions, thereby extending
battery lifetime. Do not ground the 12V input if the 12V
input is not used. Additional power savings are realized by the G570 during a software shutdown in which
quiescent current drops to a typical of 2µA.
3.3V Low Voltage Mode
The G570 operates in 3.3V low voltage mode when
3.3V is the only available input voltage (V
=0).This
I(5V)
allows host and PC Cards to be operated in low power
3.3V only modes such as sleep modes or pager
modes. Note that in this operation mode, the G570
derives its bias current from the 3.3V input pin and
only 3.3V can be delivered to the Card. The 3.3V
switch resistance increases, but the added switch resistance should not be critical, because only a small
amount of current is delivered in this mode.
Voltage Transitioning Requirement
PC Cards, like portables, are migrating from 5V to
3.3V to minimize power consumption, optimize board
space, and increase logic speeds. The G570 is designed to meet all combinations of power delivery as
currently defined in the PCMCIA standard. The latest
protocol accommodates mixed 3.3V/5V systems by
first powering the card with 5V, then polling it to determine its 3.3V compatibility. The PCMCIA specification requires that the capacitors on 3.3V compatible
cards be discharged to below 0.8 V before applying
3.3V power. This ensures that sensitive 3.3V circuitry
is not subjected to any residual 5V charge and functions as a power reset. The G570 offer a selectable
V
and VPP ground state, in accordance with PCMCIA
CC
3.3V/5V switching specifications, to fully discharge the
card capacitors while switching between V
voltage.
CC
Ver: 1.1
Nov 28, 2000
8
TEL: 886-3-5788833
http://www.gmt.com.tw
Page 9
Global Mixed-mode Technology Inc.
Output Ground Switches
Several PCMCIA power distribution switches on the
market do not have an active grounding FET switch.
These devices do not meet the PC Card specification
requiring a discharge of V
resistance can not be relied on to provide a discharge
path for voltages stored on PC Card capacitance because of possible high impedance isolation by power
management schemes. A method commonly shown to
alleviate this problem is to add to the switch output an
external 100kΩ resistor in parallel with the PC Card.
Considering that this is the only discharge path to
ground, a timing analysis show that the RC time constant delays the required discharge time to more than
2 seconds. The only way to ensure timing compatibility
with PC Card standards is to use a power-distribution
switch that has an internal ground switch, like that of
the G570, or add an external ground FET to each of
the output lines with the control logic necessary to select it.
In summary, the G570 is a complete single-chip
dual-slot PC Card power interface. It meets all currently defined PCMCIA specifications for power delivery in 5V, 3.3V, and mixed systems, and offers a serial
control interface. The G570 offers functionality, power
savings, overcurrent and thermal protection, and fault
reporting in one 30 pin SSOP surface-mount package
for maximum value added to new portable designs.
Power Supply Considerations
The G570 has multiple pins for each of its 3.3V, 5V,
and 12V power inputs and for switched V
Any individual pin can conduct the rated input or output current. Unless all pins are connected in parallel,
the series resistance is significantly higher than that
specified, resulting in increased voltage drops and lost
power. Both 12V inputs must be connected for proper
V
switching; it is recommended that all input and
PP
output power pins be paralleled for optimum operation.
Although the G570 is fairly immune to power input
fluctuations and noise, it is generally considered good
design practice to bypass power supplies typically with
a 1µF electrolytic or tantalum capacitor paralleled by a
0.047µF to 0.1µF ceramic capacitor. It is strongly recommended that the switched V
bypassed with a 0.1µF or larger capacitor; doing so
improves the immunity of the G570 to electrostatic
discharge (ESD). Care should be taken to minimize
the inductance of PCB traces between the G570 and
the load. High switching currents can produce large
negative-voltage transients, which forward biases
substrate diodes, resulting in unpredictable performance. Similarly, no pin should be taken below –0.3V.
within 100ms. PC Card
CC
outputs.
CC
and VPP outputs be
CC
RESET or
RESET Inputs
G570
To ensure that cards are in a known state after power
brownouts or system initialization, the PC Cards
should be reset at the same time as the host by applying a low impedance to the V
and VPP terminals.
CC
A low impedance output state allows discharging of
residual voltage remaining on PC Card filter capacitance, permitting the system (host and PC Cards) to
be powered up concurrently. The RESET or
RESET
input closes internal switches S1, S4, S7, and S10
with all other switches left open (see G570 control
logic table). The G570 remains in the low impedance
output state until the signal is deasserted and further
data is clocked in and latched. RESET or
RESET is
provided for direct compatibility with systems that use
either an active-low or active-high reset voltage supervisor. The unused pin is internally pulled up or down
and should be left unconnected.
Overcurrent and Thermal Protection
The G570 uses sense FETs to check for overcurrent
conditions in each of the V
and V
CC
outputs. Unlike
PP
sense resistors or polyfuses, these FETs do not add to
the series resistance of the switch; therefore, voltage
and power losses are reduced. Overcurrent sensing is
applied to each output separately. When an overcurrent condition is detected, only the power output affected is limited; all other power outputs continue to
function normally. The OC indicator, normally a logic
high, is a logic low when any overcurrent condition is
detected, providing for initiation of system diagnostics
and/or sending a warning message to the user.
During power up, the G570 controls the rise time of
the V
and VPP outputs and limits the current into a
CC
faulty card or connector. If a short circuit is applied
after power is established (e.g., hot insertion of a bad
card), current is initially limited only by the impedance
between the short and the power supply. In extreme
cases, as much as 10A to 15A may flow into the short
before the current limiting of the G570 engages. If the
V
CC
or V
outputs are driven below ground, the G570
PP
may latch nondestructively in an off state. Cycling
power will reestablish normal operation.
Overcurrent limiting for the V
outputs is designed to
CC
activate, if powered up, into a short in the range of
0.8A to 2.2A. The V
outputs limit from 120mA to
PP
400mA. The protection circuitry acts by linearly limiting
the current passing through the switch rather than initiating a full shutdown of the supply. Shutdown occurs
only during thermal limiting.
Thermal limiting prevents destruction of the IC from
overheating if the package power-dissipation ratings are
exceeded. Thermal limiting disables all power outputs
(both A and B slots) until the device has cooled.
Ver: 1.1
Nov 28, 2000
9
TEL: 886-3-5788833
http://www.gmt.com.tw
Page 10
Global Mixed-mode Technology Inc.
Logic Input and Outputs
The serial interface consists of DATA, CLOCK, and
LATCH leads. The data is clocked in on the positive
leading edge of the clock (see Figure 2). The 9-bit (D0
through D8) serial data word is loaded during the positive
edge of the latch signal. The latch signal should occur
before the next positive leading edge of the block.
The shutdown bit of the data word places all V
outputs in a high-impedance state and reduces chip qui-
G570
3.3V
3.3V
3.3V
5V
5V
5V
12V
12V
S1
S2
S3
S4
S5
S6
and VPP
CC
cs
cs
G570
escent current to 2µA to conserve battery power.
The G570 serial interface is designed to be compatible
with serial-interface PCMCIA controllers and current
PCMCIA and Japan Electronic Industry Development
Association (JEIDA) standards.
An overcurrent output (
overcurrent condition in any of the V
OC ) is provided to indicate an
or VPP outputs as
CC
previously discussed.
S7
S8
S9
cs
See Note A
cs
S10
S11
S12
See Note A
Card A
V
PP1
V
PP2
V
CC
V
CC
Card B
V
CC
V
CC
V
PP1
V
PP2
Internal
Current Monitor
Supervisor
Controller
NOTE:
CPU
MOSFET switches S9 and S12 have a back-gate diode from the source to the drain.
RESET
RESET
DATA
CLOCK
LATCH
OC
Unused switch inputs should never be grounded.

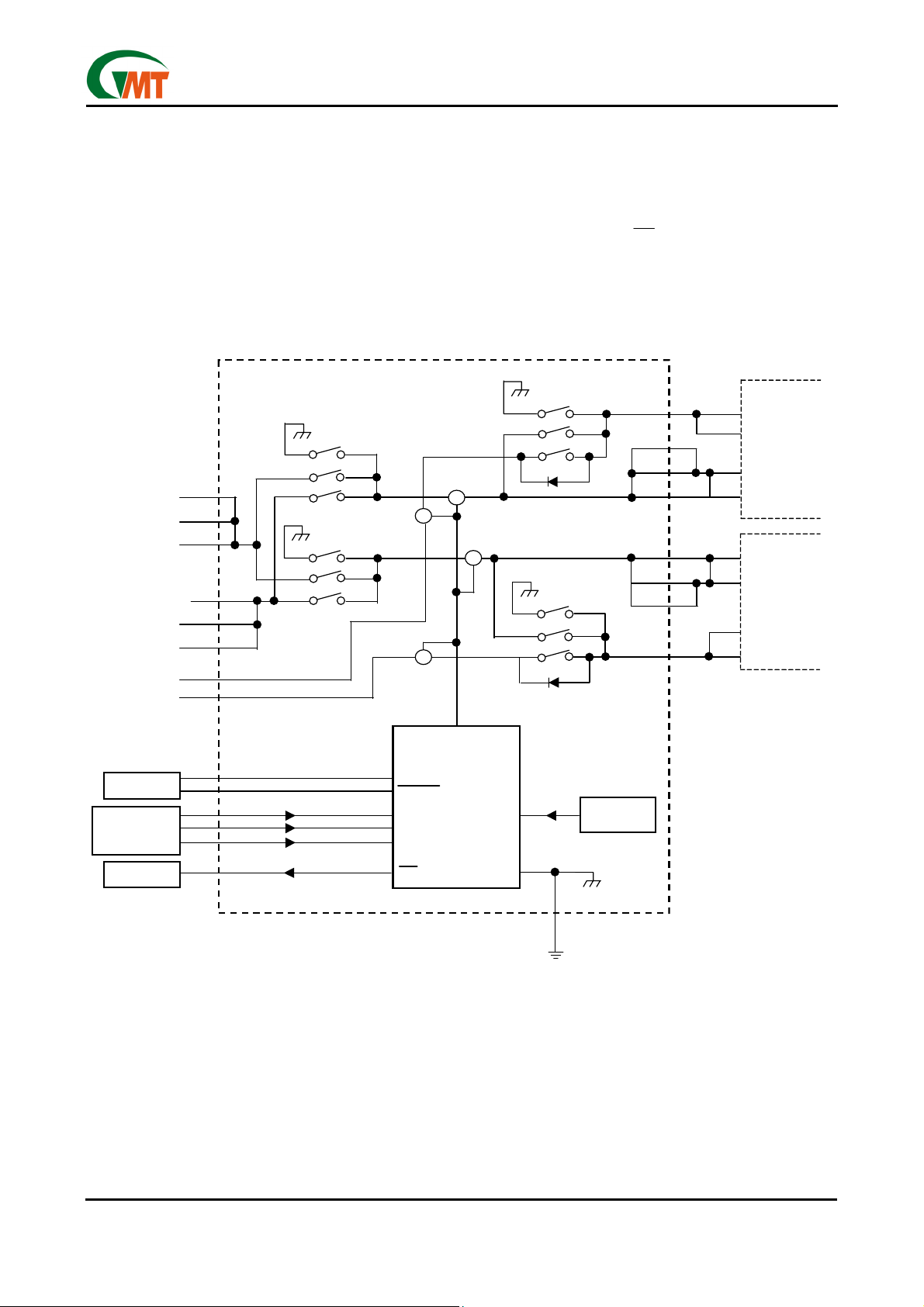

Figure 3 Internal Switching Matrix
Serial
}
Interface
Thermal
GND
Ver: 1.1
Nov 28, 2000
10
TEL: 886-3-5788833
http://www.gmt.com.tw
Page 11
Global Mixed-mode Technology Inc.
G570
G570 control logic
AVPP
CONTROL SIGNALS INTERNAL SWITCH SETTING OUTPUT
D8
SHDN
1 0 0 CLOSED OPEN OPEN 0V
1 0 1 OPEN CLOSED OPEN VCC*
1 1 0 OPEN OPEN CLOSED VPP(12 V)
1 1 1 OPEN OPEN OPEN Hi-Z
0 × × OPEN OPEN OPEN Hi-Z
BVPP
D8
SHDN
1 0 0 CLOSED OPEN OPEN 0V
1 0 1 OPEN CLOSED OPEN VCC**
1 1 0 OPEN OPEN CLOSED VPP(12V)
1 1 1 OPEN OPEN OPEN Hi-Z
0 × × OPEN OPEN OPEN Hi-Z
AVCC
D8
SHDN
1 0 0 CLOSED OPEN OPEN 0V
1 0 1 OPEN CLOSED OPEN 3.3V
1 1 0 OPEN OPEN CLOSED 5V
1 1 1 CLOSED OPEN OPEN 0V
0 × × OPEN OPEN OPEN Hi-Z
D0 A_VPP_PGM D1 A_VPP_VCC S7 S8 S9 VAVPP
CONTROL SIGNALS INTERNAL SWITCH SETTING OUTPUT
D4 B_VPP_PGM D5 B_VPP_VCC S10 S11 S12 VBVPP
CONTROL SIGNALS INTERNAL SWITCH SETTING OUTPUT
D3
3BCC_A D25VCC_A
S1 S2 S3 VAVCC
BVCC
CONTROL SIGNALS INTERNAL SWITCH SETTING OUTPUT
D8
*Output depends on AVCC
**Output depends on BVCC
SHDN
1 0 0 CLOSED OPEN OPEN 0V
1 0 1 OPEN CLOSED OPEN 3.3V
1 1 0 OPEN OPEN CLOSED 5V
1 1 1 CLOSED OPEN OPEN 0V
0 × × OPEN OPEN OPEN Hi-Z
D6
3VCC_B D75VCC_B
S4 S5 S6 VBVCC
Ver: 1.1
Nov 28, 2000
11
TEL: 886-3-5788833
http://www.gmt.com.tw
Page 12
Global Mixed-mode Technology Inc.
ESD Protection
All G570 inputs and outputs incorporate
ESD-protection circuitry designed to withstand a 2kV
human-body-model discharge as defined in
MIL-STD-883C, Method 3015. The V
12V
5V
(Ceramic)
3.3V
(Ceramic)
0.1µF
(Ceramic)
0.1µF
0.1µF
1µF
1µF
1µF
12V
12V
5V
5V
5V
3.3V
3.3V
3.3V
and VPP out-
CC
G570
GND
AVCC
AVCC
AVCC
BVCC
BVCC
BVCC
AVPP
AVPP
BVPP
BVPP
DATA
CLOCK
LATCH
RESET
RESET
OC
G570
puts can be exposed to potentially higher discharges
from the external environment through the PC Card
connector. Bypassing the outputs with 0.1µF capacitors protects the devices from discharges up to 10 kV.
V
0.1µF
0.1µF
0.1µF
0.1µF
System Voltage
Supervisor
or
PCI Bus Reset
To CPU
CC
V
CC
V
PP1
V
PP2
V
CC
V
CC
V
PP1
V
PP2
DATA
CLOCK
LATCH
PC Card
Connector A
PC Card
Connector B
PCMCIA
Controller
CS
Ver: 1.1
Nov 28, 2000
Shutdown Signal
From CPU
Figure 4. Detailed Interconnections and Capacitor Recommendations
12
TEL: 886-3-5788833
http://www.gmt.com.tw
Page 13
Global Mixed-mode Technology Inc.
G570

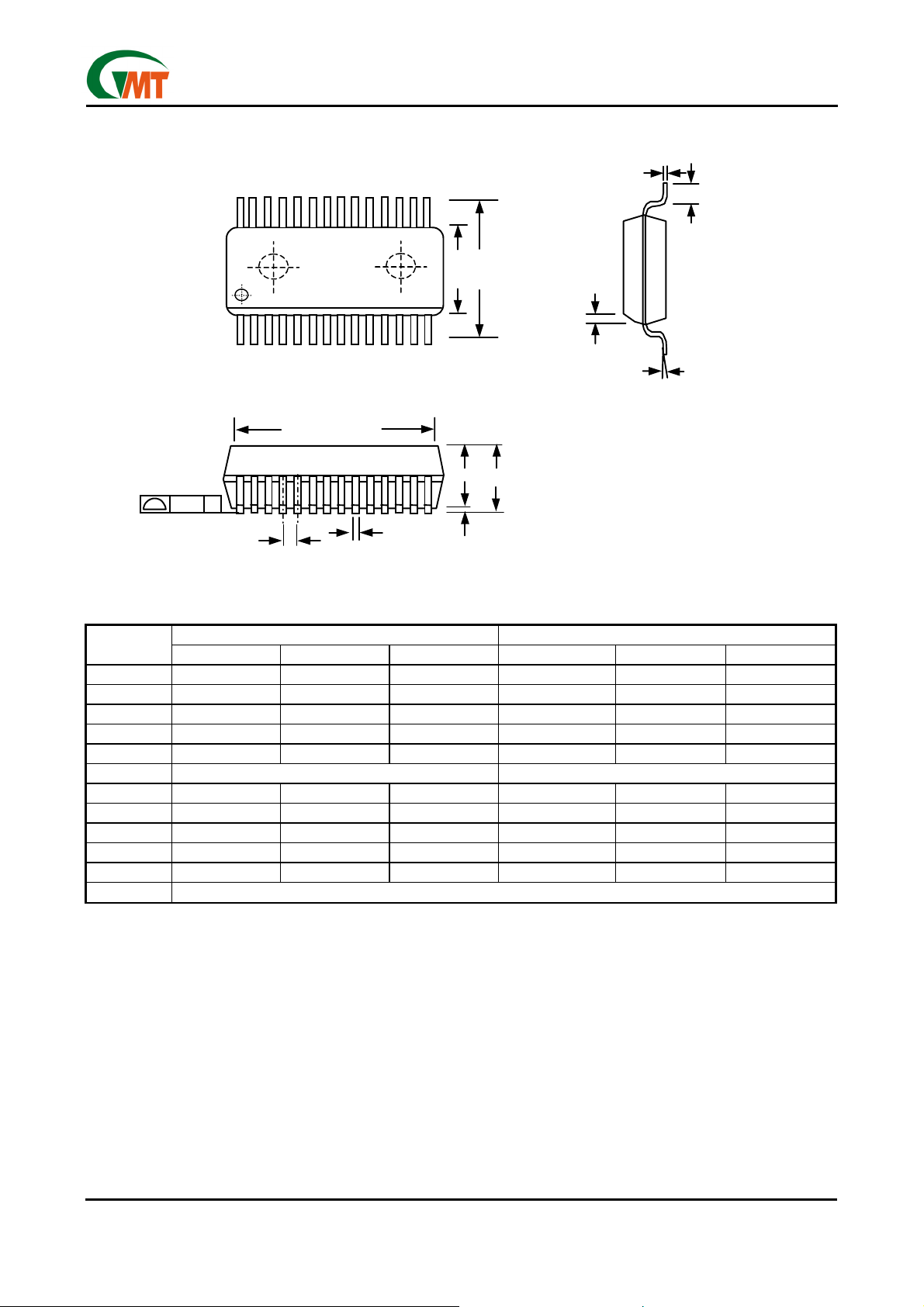

G570 28Pin Package
C
L
E1
E
D
A2
A
C
0.004
SEATING PLANE
e
b
A1
SYMBOL
A 2.0 0.079
A1 0.05 0.002
A2 1.65 1.75 1.85 0.065 0.069 0.073
b 0.22 0.30 0.33 0.009 0.012 0.013
c 0.09 0.15 0.21 0.004 0.006 0.008
e 0.65 BASIC 0.026 BASIC
D 9.90 10.20 10.50 0.390 0.402 0.413
E 7.40 7.80 8.20 0.291 0.307 0.323
E1 5.00 5.30 5.60 0.197 0.209 0.220
L 0.55 0.75 0.95 0.022 0.030 0.038
θ
JEDEC MO-150 (AH)
MIN. NOM. MAX. MIN. NOM. MAX.
0 4 8 0 4 8
DIMENSION IN MM DIMENSION IN INCH
h x 45
°
θ
Ver: 1.1
Nov 28, 2000
13
TEL: 886-3-5788833
http://www.gmt.com.tw
Page 14
Global Mixed-mode Technology Inc.

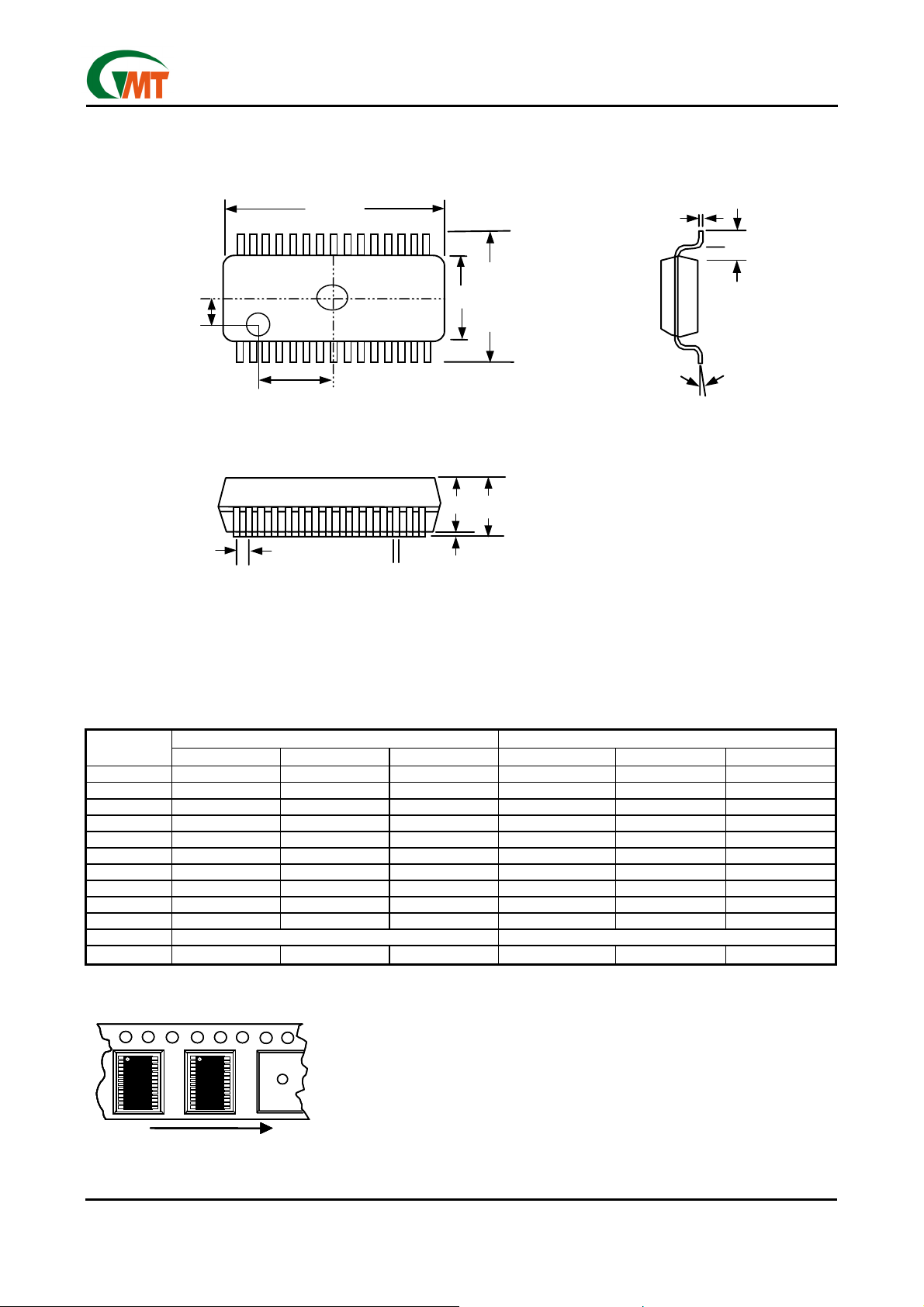

G570 30Pin Package
1.15
3.6
D
E
E1
A1
A
G570
c
L1
L
θ
e
b
A2
Note:
1. Dimensional tolerance ±0.10mm
2. Plating thickness 5~15µm
3. Dimensions “D” does not include burrs, however dimension including protrusions or gate burrs
Shall be MAX. 0.20mm
Dimension “E1” does not include inter-lead flash or protrusion. Inter-lead flash or protrusion small not exceeds
4.
0.25 per side.
SYMBOL
A 1.80 1.90 2.00 0.071 0.075 0.079
A1 0.05 0.10 0.15 0.002 0.004 .006
A2 1.75 1.80 1.85 0.069 0.071 0.073
b 0.25 0.30 0.35 0.010 0.012 0.014
C 0.10 0.15 0.20 0.004 0.006 0.008
D 10.10 10.15 10.20 0.398 0.400 .402
E 7.50 ----- 7.90 0.295 ----- 0.311
E1 5.20 5.25 5.30 0.205 0.207 0.209
L1 0.53 0.68 0.83 0.021 0.027 0.033
L 1.10 1.20 1.30 0.043 0.047 0.051
e 0.65 BSC 0.026BSC
θ
MIN. NOM. MAX. MIN. NOM. MAX.
1° 4
DIMENSION IN MM DIMENSION IN INCH
7
°
°
1º
4°
7º
Taping Specification
Feed Direction
Typical SSOP Package Orientation
Typical SSOP Package Orientation
GMT Inc. d oes not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and GMT Inc. reserves the right at any time without notice to change said circuitry and specifications.
Ver: 1.1
Nov 28, 2000
Feed Direction
14
TEL: 886-3-5788833
http://www.gmt.com.tw
Loading...
