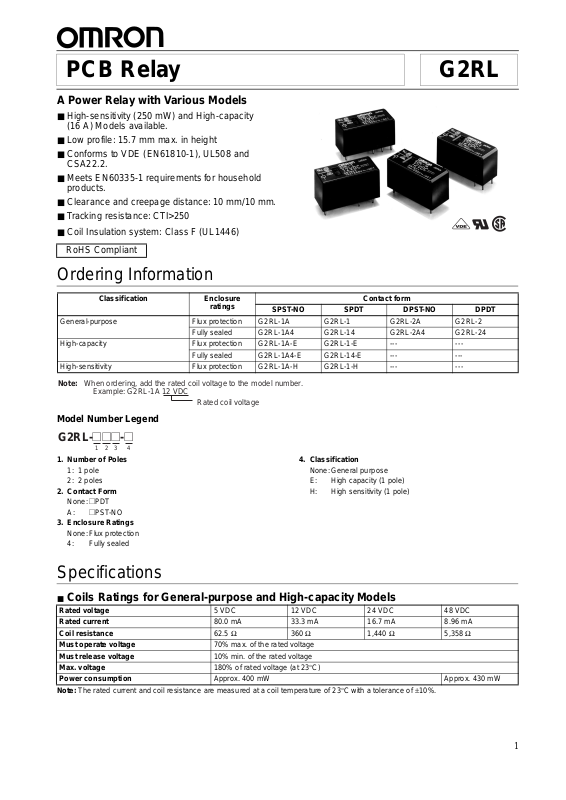

A Power Relay with Various Models
■ High-sensitivity (250 mW) and High-capacity
(16 A) Models available.
■ Low profile: 15.7 mm max. in height
■ Conforms to VDE (EN61810-1), UL508 and
CSA22.2.
■ Meets EN60335-1 requirements for household
products.
■ Clearance and creepage distance: 10 mm/10 mm.
■ Tracking resistance: CTI>250
■ Coil Insulation system: Class F (UL1446)
RoHS Compliant
Ordering Information
G2RL PCB Relay
Classification Enclosure
General-purpose Flux protection G2RL-1A G2RL-1 G2RL-2A G2RL-2
High-capacity Flux protection G2RL-1A-E G2RL-1-E --- ---
High-sensitivity Flux protection G2RL-1A-H G2RL-1-H --- ---
Note: When ordering, add the rated coil voltage to the model number.
Example: G2RL-1A 12 VDC
ratings
Fully sealed G2RL-1A4 G2RL-14 G2RL-2A4 G2RL-24
Fully sealed G2RL-1A4-E G2RL-14-E --- ---
Rated coil voltage
SPST-NO SPDT DPST-NO DPDT
Contact form
Model Number Legend
G2RL-@@@-@
1 23 4
1. Nu mber of Poles
1: 1 pole
2: 2 poles
2. Co n tact Form
None:@PDT
A: @PST-NO
3. Enclosure Ratings
None:Flux protection
4: Fully sealed
4. Classification
None:General purpose
E: High capacity (1 pole)
H: High sensitivity (1 pole)
Specifications
■ Coils Ratings for General-purpose and High-capacity Models
Rated voltage 5 VDC 12 VDC 24 VDC 48 VDC
Rated current 80.0 mA 33.3 mA 16.7 mA 8.96 mA
Coil resistance 62.5
Must operate voltage 70% max. of the rated voltage
Must release voltage 10% min. of the rated voltage
Max. voltage 180% of rated voltage (at 23
Power consumption Approx. 400 mW Approx. 430 mW
Note: The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of ±10%.
Ω 360 Ω 1,440 Ω 5,358 Ω
°C)
1
Page 2
■ Coils Ratings for High-sensitivity Models
Rated voltage 5 VDC 12 VDC 24 VDC
Rated current 50.0 mA 20.8 mA 10.42 mA
Coil resistance 100
Must operate voltage 75% max. of the rated voltage
Must release voltage 10% min. of the rated voltage
Max. voltage 180% of rated voltage (at 23
Power consumption Approx. 250 mW
Note: The rated current and coil resistance are measured at a coil temperature of 23°C with a tolerance of ±10%.
Contact Ratings
■
Item General-purpose Models High-capacity Models High-sensitivity Models
Number of poles 1 pole 2 poles 1 pole 1 pole
Contact material Ag Alloy (Cd free)
Load Resistive load (cos
Rated load 12 A at 250 VAC
Rated carry current 12 A (See note.) 8 A (70
Max. switching voltage 440 VAC, 300 VDC
Max. switching current 12 A 8 A 16 A 10 A
Max. switching power 3,000 VA (4,000 VA) 2,000 VA 4,000 VA 2,500 VA
Note: Contact your OMRON representative for the ratings on fully sealed models.
Characteristics
■
Item General-purpose
Number of poles 1 pole 2 pole 1 pole
Contact resistance 100 m
Operate (set) time 15 ms max.
Release (reset) time 5 ms max.
Max. operating fre quency Mechanical:18,000 operation/hr
Insulation resistance 1,000 M
Dielectric strength 5,000 VAC, 1 min between coil and
Impulse withstand voltage 10 kV (1.2
Vibration resistance Destruction: 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
Shock resistance Destruction: 1,000 m/s
Endurance (Mechanical) 20,000,000 operations (at 18,000 operations/hr)
Ambient temperature Operating: –40
Ambient humidity 5% to 85%
Weight Approx. 12 g
Note: Values in the above table are the initial values.
Approved Standards
■
Ω 576 Ω 2,304 Ω
°C)
φ=1)
12 A at 24 VDC (See
note.)
(High-capacity) Models
Ω max.
Electrical:1,800 operation/hr at rated load
Ω min. (at 500 VDC)
contacts
1,000 VAC, 1 min between contacts of same polarity
×50 µs) between coil and contact
Malfunction: 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude)
Malfunction: 100 m/s
Storage: –40
8 A at 250 VAC
8 A at 30 VDC (See note.)
°C)/5 A (85°C)
(See note.)
5,000 VAC, 1 min between coil and
contacts
2,500 VAC, 1 min between contacts
of different polarity
1,000 VAC, 1 min between contacts
of same polarity
2
(approx. 100 G)
2
(approx. 10 G)
°C to 85°C (with no icing)
°C to 85°C (with no icing)
General-purpose Models High-sensitivity Models
16 A at 250 VAC
16 A at 30 VDC (See note.)
16 A (See note.) 10 A (See note.)
5,000 VAC, 1 min between coil and
contacts
1,000 VAC, 1 min between contacts of same polarity
10 A at 250 VAC
10 A at 24 VDC
(See note.)
UL508 (File No. E41643)/CSA C22.2 (No. 14) (File No. LR31928)
Model Contact form Coil ratings Contact ratings
G2RL-1A SPST-NO 3 to 48 VDC 12 A at 250 VAC (General use)
G2RL-1 SPDT
G2RL-1A-E SPST-NO 16 A at 250 VAC (General use)
G2RL-1-E SPDT
G2RL-1A-H SPST-NO 5 to 24 VDC 10 A at 250 VAC (General use)
G2RL-1-H SPDT
G2RL-2A DPST-NO 3 to 48 VDC 8 A at 277 VAC (General use)
G2RL-2 DPDT
12 A at 24 VDC (Resistive)
16 A at 24 VDC (Resistive)
10 A at 24 VDC (Resistive)
8 A at 30 VDC (Resistive)
G2RLG2RL
2
Page 3
VDE (EN61810-1) (License No. 119650)
Model Contact form Coil ratings Contact ratings
G2RL-1(A) 1 pole 5, 12, 18, 22, 24, 48 VDC 12 A at 250 VAC (cos
G2RL-1(A)-E 1 pole 5, 12, 18, 22, 24, 48 VDC 16 A at 250 VAC (cos
G2RL-1(A)-H 1 pole 5, 9, 12, 24 VDC 10 A at 250 VAC (cos
G2RL-2(A) 2 poles 5, 12, 18, 22, 24, 48 VDC 8 A at 250 VAC (cos
12 A at 24 VDC (L/R=0 ms)
AC15: 3 A at 240 VAC
DC13: 2.5 A at 24 VDC, 50 ms
16 A at 24 VDC (L/R=0 ms)
AC15: 3 A at 240 VAC (NO)
1.5 A at 240 VAC (NC)
DC13: 2.5 A at 24 VDC (NO), 50 ms
10 A at 24 VDC (L/R=0 ms)
8 A at 24 VDC (L/R=0 ms)
AC15: 1.5 A at 240 VAC
DC13: 2 A at 30 VDC, 50 ms
Engineering Data

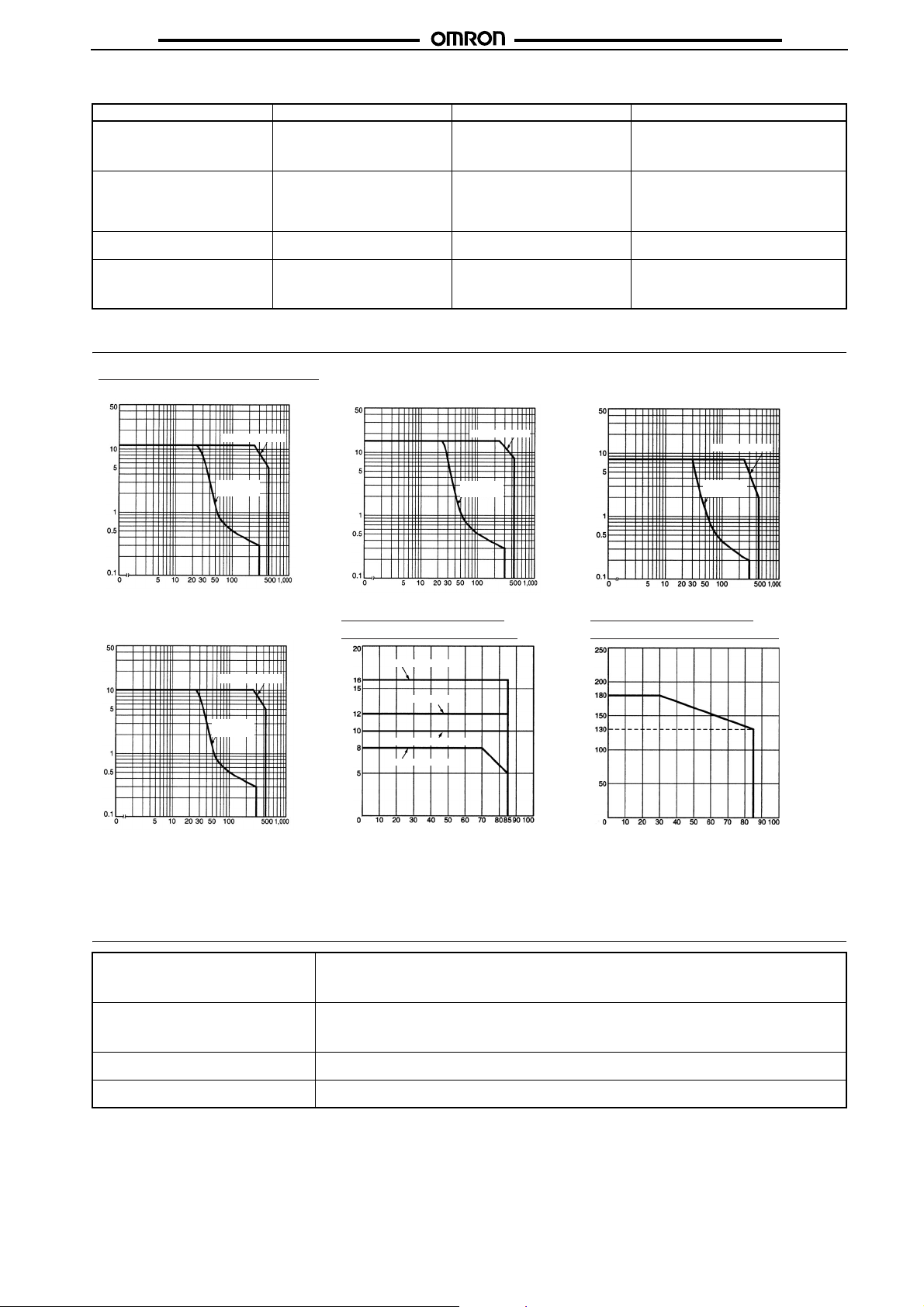

Maximum Switching Capacity
G2RL-1A, G2RL-1
G2RL-1A-E, G2RL-1-E
G2RL-2A, G2RL-2
G2RLG2RL
φ=1)
φ=1)
φ=1)
φ=1)
AC resistive load
DC resistive
load
Switching voltage (V)
Switching current (A)
AC resistive load
DC resistive
load
Switching voltage (V)
Switching current (A)
Ambient Temperature
G2RL-1A-H, G2RL-1-H
AC resistive load
DC resistive
Switching current (A)
load
Switching voltage (V)
Note: Contact your OMRON representative for the data on fully sealed models.
vs Rated Carry Current
G2RL-1A-E, G2RL-1-E
G2RL-1A, G2RL-1
G2RL-1A-H, G2RL-1-H
Rated carry current (A)
G2RL-2A, G2RL-2
Ambient temperature (°C)
AC resistive load
DC resistive
Switching current (A)
load
Switching voltage (V)
Ambient Temperature
vs Maximum Coil Voltage
Maximum coil voltage (%)
Note: The maximum coil voltage refers to the maximum
value in a varying range of operating power
voltage, not a continuous voltage.
Ambient temperature (°C)
85
Electrical Endurance Data
G2RL-1-E 16 A at 250 VAC (cosφ=1) 30,000 operations min .
G2RL-1 12 A at 250 VAC (cos
G2RL-1-H 10 A at 250 VAC (cos
G2RL-2 8 A at 250 VAC (cos
Note: The results shown reflect values measured using very severe test conditions i.e., Duty: 1 s ON/1 s OFF.
Electrical end urance wi ll vary depending on the test cond itions. C ontact your O MRON repr esentative if you require more de tailed infor mation for the
electrical endurance under your test conditions.
16 A at 24 VDC 30,000 operations min.
8 A at 250 VAC (cos
8 A at 30 VDC (L/R=7 ms) 10,000 operation min. (normally open side operation)
12 A at 24 VDC 30,000 operations min.
5 A at 250 VAC (cos
5 A at 30 VDC (L/R=7 ms) 20,000 operation min. (normally open side operation)
10 A at 24 VDC 50,000 operations min.
8 A at 30 VDC 30,000 operations min.
φ=0.4) 200,000 operation min. (normally open side operation)
φ=1) 50,000 opera ti ons min.
φ=0.4) 150,000 operation min. (normally open side operation)
φ=1) 100,000 operations min.
φ=1) 30,000 ope ra tions min.
3
Page 4

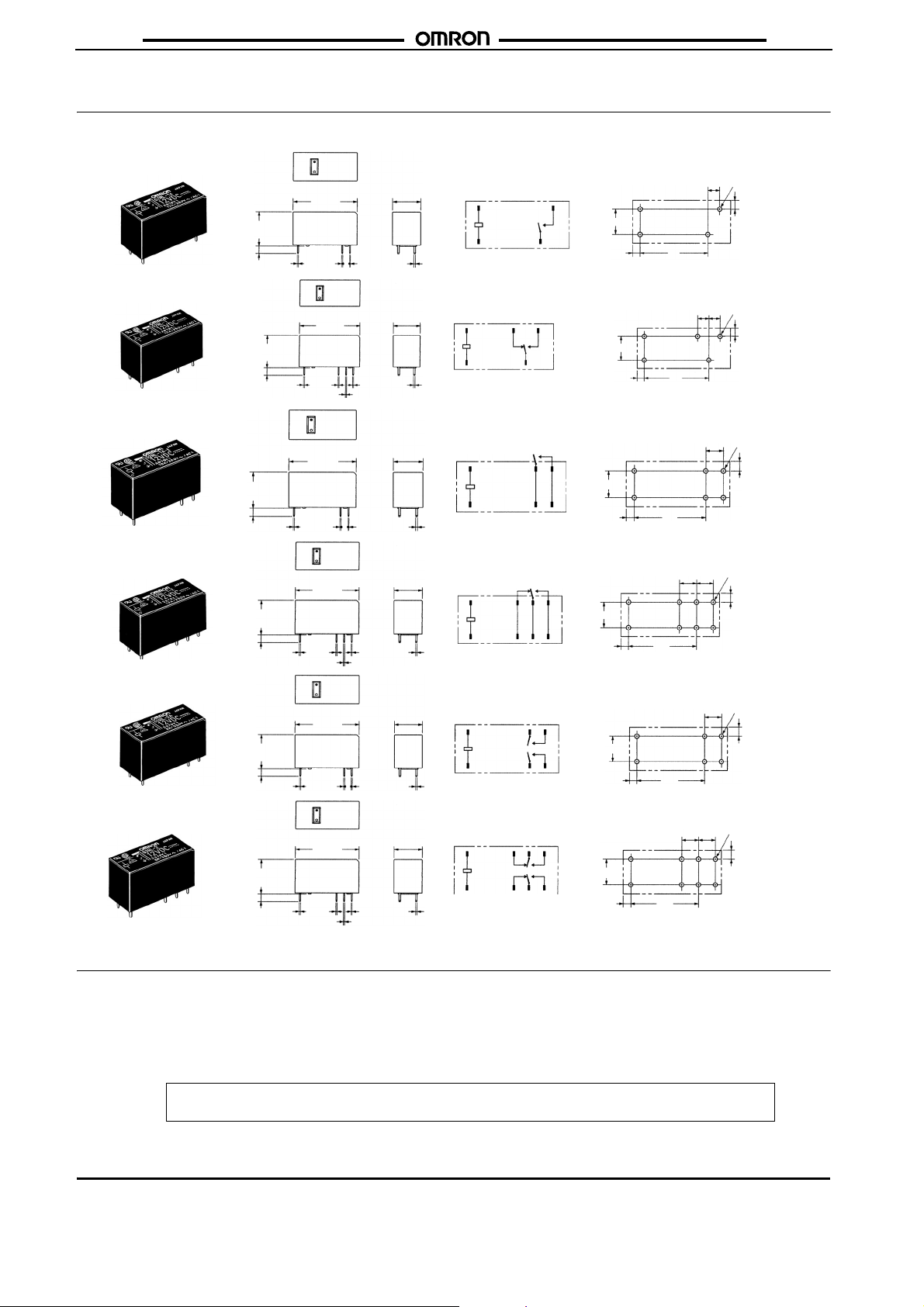

Dimensions
Note: All units are in millimeters unless otherwise indicated.
G2RLG2RL
G2RL-1A(-H), G2RL-1A4
15.7 max.
(15.5)*
G2RL-1(-H), G2RL-14
15.7 max.
(15.5)*
G2RL-1A-E, G2RL-1A4-E
15.7 max.
(15.5)*
3.5
G2RL-1-E, G2RL-14-E
15.7 max.
(15.5)*
G2RL-2A, G2RL-2A4
15.7 max.
(15.5)*
G2RL-2, G2RL-24
15.7 max.
(15.5)*
3.5
3.5
3.5
3.5
Terminal Arrangement/
Internal Connection
(Bottom View)
1
5
* Indicates average dimensions.
0.8
3
4
0.5
29 max.
(28.8)*
0.5
0.5
12.7 max.
(12.5)*
Terminal Arrangement/
29 max.
(28.8)*
3.5
0.5
0.5
12.7 max.
(12.5)*
0.5
0.5
Internal Connection
(Bottom View)
1
* Indicates average dimensions.
0.8
2
3
45
Terminal Arrangement/
Internal Connection
(Bottom View)
1
8
* Indicates average dimensions.
0.8
453
6
0.5
29 max.
(28.8)*
0.5
0.5
12.7 max.
(12.5)*
Terminal Arrangement/
Internal Connection
(Bottom View)
1
0.8
8
* Indicates average dimensions.
4
2
3
6
5
7
0.5
29 max.
(28.8)*
0.5
0.5
0.5
12.7 max.
(12.5)*
Terminal Arrangement/
Internal Connection
(Bottom View)
1
8
0.8
* Indicates average dimensions.
4
3
5
6
0.5
29 max.
(28.8)*
0.5
0.5
12.7 max.
(12.5)*
Terminal Arrangement/
Internal Connection
(Bottom View)
1
8
7
* Indicates average dimensions.
0.8
4
2
3
5
6
0.5
29 max.
(28.8)*
0.5
0.5
0.5
12.7 max.
(12.5)*
Mounting Holes
(Bottom View)
7.5
(2.3)
Mounting Holes
(Bottom View)
7.5
(2.3)
Mounting Holes
(Bottom View)
7.5
(2.3)
Mounting Holes
(Bottom View)
7.5
(2.3)
Mounting Holes
(Bottom View)
7.5
(2.3)
Mounting Holes
(Bottom View)
7.5
(2.3)
Four, 1.3±0.1 dia.
3.5
holes
(2.5)
20
Five, 1.3±0.1 dia.
3.53.5
holes
(2.5)
20
Six, 1.3±0.1 dia.
holes
5
(2.5)
20
Eight, 1.3±0.1 dia.
holes
5
5
(2.5)
20
Six, 1.3±0.1 dia.
holes
5
(2.5)
20
Eight, 1.3±0.1 dia.
holes
55
(2.5)
20
Precautions
Disclaimer:
All technical performance data applies to the product as such; specific conditions of individual applications are not considered. Always
check the suitability of the product for your intended purpose. OMRON does not assume any responsibility or liability for noncompliance
herein, and we recommend prior technical clarification for applications where requirements, loading, or ambient conditions differ from
those applying to general electric applications. Any responsibility for the application of the product remains with the c ust ome r alone. THIS
COMPONENT CAN NOT BE USED FOR AUTOMOTIVE APPLICATIONS.
ALL DIMENSIONS SHOWN ARE IN MILLIMETERS.
To convert millimeters into inches, multiply by 0.03937. To convert grams into ounces, multiply by 0.03527.
Cat. No. J117-E1-04
OMRON RELAY & DEVICES Corporation
C & C Power Relay Division
Marketing D e partment
1110, Sugi, Yamaga-city, Kumamoto-Pref., 861-0596 Japan
Tel: (81)968-44-4160/Fax: (81)968-44-4107
In the interest of product improvement, specifications are subject to change without notic e.
Printed in Japan
0406-0.5M (0999) (M)
