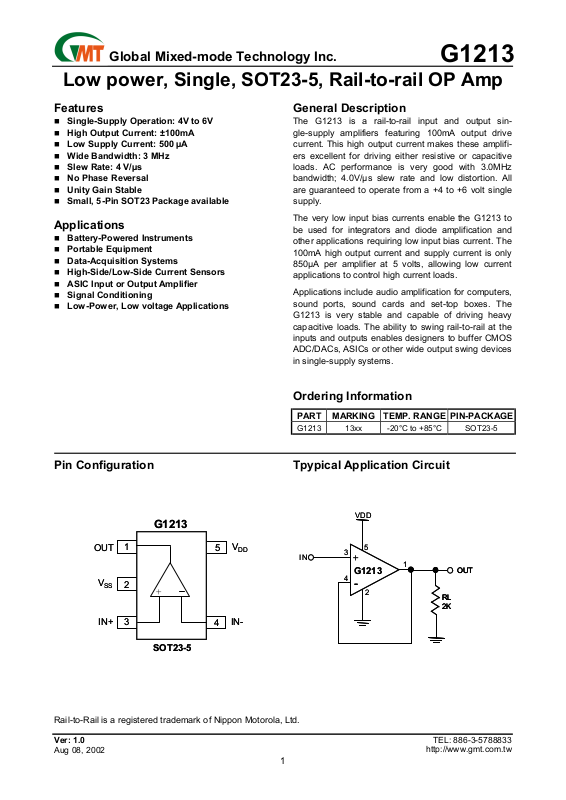

Global Mixed-mode Technology Inc.
G1213
Low power, Single, SOT23-5, Rail-to-rail OP Amp
Features
Single-Supply Operation: 4V to 6V
High Output Current: ±100mA
Low Supply Current: 500 µA
Wide Bandwidth: 3 MHz
Slew Rate: 4 V/µs
No Phase Reversal
Unity Gain Stable
Small, 5-Pin SOT23 Package available
Applications
Battery-Powered Instruments
Portable Equipment
Data-Acquisition Systems
High-Side/Low-Side Current Sensors
ASIC Input or Output Amplifier
Signal Conditioning
Low-Power, Low voltage Applications
General Description
The G1213 is a rail-to-rail input and output single-supply amplifiers featuring 100mA output drive
current. This high output current makes these amplifiers excellent for driving either resistive or capacitive
loads. AC performance is very good with 3.0MHz
bandwidth; 4.0V/µs slew rate and low distortion. All
are guaranteed to operate from a +4 to +6 volt single
supply.
The very low input bias currents enable the G1213 to
be used for integrators and diode amplification and
other applications requiring low input bias current. The
100mA high output current and supply current is only
850µA per amplifier at 5 volts, allowing low current
applications to control high current loads.
Applications include audio amplification for computers,
sound ports, sound cards and set-top boxes. The
G1213 is very stable and capable of driving heavy
capacitive loads. The ability to swing rail-to-rail at the
inputs and outputs enables designers to buffer CMOS
ADC/DACs, ASICs or other wide output swing devices
in single-supply systems.
Ordering Information
PART MARKING TEMP. RANGE PIN-PACKAGE
G1213 13xx -20°C to +85°C SOT23-5
Pin Configuration Tpypical Application Circuit
VDD
VDD
G1213
G1213
1
OUT
OUT
V
V
SS
SS
IN+
IN+
1
2
2
3
3
+
+
SOT23-5
SOT23-5
V
V
5
5
DD
DD
IN-
IN-
4
4
IN
IN
3
3
+
+
+
+
G1213
G1213
4
4
-
-
-
-
5
5
1
1
2
2
RL
RL
RL
RL
2K
2K
2K
2K
OUT
OUT
OUT
OUT
Rail-to-Rail is a registered trademark of Nippon Motorola, Ltd.
Ver: 1.0
Aug 08, 2002
1
TEL: 886-3-5788833
http://www.gmt.com.tw
Page 2
Global Mixed-mode Technology Inc.
G1213
Absolute Maximum Ratings
Supply Voltage (V
All Other Pins…………………(Vss-0.3V) to (V
to VSS)…………………….…+7.0V
DD
(Note1)
DD
+0.3V)
Operating Ambient Temperature ……...-20°C to +85°C
Storage Temperature Range…….……-65°C to +150°C
Notes:
1. Absolute Maximum Ratings are limits beyond which damage to the device may occur.
Thermal Characteristics
SYMBOL PARAMETER VALUE UNIT
R
Thermal resistance from junction to ambient in free air SOT23-5 240 °C/W
thj-a
Electrical Characteristics
V
= 5V; VSS = 0V; T
DD
= 25°C; fi = 1kHz; VCM=VDD/2, RL = 2K
amb
connected to VDD/2; unless otherwise specified.
ΩΩΩΩ
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
Supplies
Supply voltage 4.0 5.0 6.0 V
VDD
VSS Negative supply voltage (dual) -2.0 -2.5 -3.0 V
IDD Supply current no load 0.85 1.2 mA
P
Total power dissipation no load 4.25 6.0 mW
tot
DC Characteristics
V
I (OS)
VCM Common mode voltage 0 5.0 V
I
B
I
OS
R
IN
A
V
IO Maximum output current THD<0.1%, RL= 16Ω 100 mA
RO Output resistance Open-loop, RL= 20Ω 5.5
VO Output voltage swing
PSRR Power supply rejection ratio
CMRR Common-Mode Rejection Ratio 56 dB
AC Characteristics
THD Total harmonic distortion
GBWP Gain-Bandwidth Product Open-loop; No Load 3.0 MHz
SR Slew-Rate
PM Phase Margin 60 deg
PO Maximum output power Note 1; RL = 32Ω 135 mW
B Power bandwidth Unity gain; RL = 32Ω 25 KHz
Single 4.0 5.0 6.0 V
Dual 2 2.5 3.0 V
Input offset voltage ±1.5 ±6 mV
Input Bias Current ±0.05 nA
Input Bias Current Offset ±0.05 nA
Input Resistance 1000 MΩ
Large-Signal Voltage Gain 80 dB
RL = 32Ω 1.0 4.0 V
R
= 2kΩ 0.1 4.9 V
L
fi = 1kHz;
V
Note 2
R
Measured from 30% to 70% of
5Vp-p step
= 1V
ripple(peak)
= 2kΩ, Note 2
L
60 dB
< 0.1 %
4 V/µs
Ω
Notes:
1. Values are proportional to V
2. V
= 5.0V; V
DD
= 4.0V (at 0 dB)
O (P-P)
Ver: 1.0
Aug 08, 2002
; THD < 0.1%
DD
2
TEL: 886-3-5788833
http://www.gmt.com.tw
Page 3
Global Mixed-mode Technology Inc.
Output Swing Range Voltage Figure
Test Condition
TA = 25°C, AV = -1
：：：：
G1213
V+ = 2.5V , V- = - 2.5V , RL=2k
V+ = 2.5V , V- = - 2.5V , RL=32
ΩΩΩΩ
ΩΩΩΩ
=250
ΩΩΩΩ
ΩΩΩΩ
V+ = 2.5V , V- = - 2.5V , R
V+ = 2.5V , V- = - 2.5V , RL=16
L
Ver: 1.0
Aug 08, 2002
3
TEL: 886-3-5788833
http://www.gmt.com.tw
Page 4
Global Mixed-mode Technology Inc.
Input Common Mode Voltage Range Figure
Test Condition
TA = 25°C, AV = 1
：：：：
G1213
V+ = 5V, V -
V+ = 5V, V-
= 0V, RL = 2K
= 0V, RL = 250
ΩΩΩΩ
ΩΩΩΩ
Ver: 1.0
Aug 08, 2002
4
TEL: 886-3-5788833
http://www.gmt.com.tw
Page 5
Global Mixed-mode Technology Inc.
G1213
Large Signal Transient Response Figure
Test Condition
V+ = 2.5V, V- = -2.5V
TA=25°C, AV=1 , RL = 2k
：：：：
ΩΩΩΩ
Small Signal Transient Response Figure
Test Condition
V+ = 2.5V, V- = -2.5V
TA=25°C, AV=1 , RL = 32Ω
：：：：
Gain - dB
Ver: 1.0
Aug 08, 2002
Test Condition: Vs = ±2.5V, TA = 25°C
Open-Loop Gain & Phase vs . Frequenc y
100.0
80.0
60.0
40.0
20.0
0.0
0.1 1 10 100 1000 10000
Frequency - kHZ
-50
-70
-90
-110
-130
-150
Phase - degree
Test Condition: Vs = ±2.5V, TA = 25°C
70.0
60.0
50.0
40.0
30.0
20.0
10.0
Power Supply Rejection - dB
0.0
0.1 1 10 100 1000
5
PSR R
Frequency - kHZ
PSRR +
PSRR -
TEL: 886-3-5788833
http://www.gmt.com.tw
Page 6
Global Mixed-mode Technology Inc.
Package Information
G1213
D
H
E
e1
e
A2
b
A
A1
Note:
1. Package body sizes exclude mold flash protrusions or gate burrs
2. Tolerance ±0.1000 mm (4mil) unless otherwise specified
3. Coplanarity: 0.1000mm
4.
Dimension L is measured in gage plane
SYMBOLS
A 1.00 1.10 1.30
A1 0.00 ----- 0.10
A2 0.70 0.80 0.90
b 0.35 0.40 0.50
C 0.10 0.15 0.25
D 2.70 2.90 3.10
E 1.40 1.60 1.80
e ----- 1.90(TYP) -----
e1 ----- 0.95 -----
H 2.60 2.80 3.00
L 0.37 ------ -----
1
θ
MIN NOM MAX
1º 5º 9º
DIMENSIONS IN MILLIMETERS
Package Orientation
C
L
θ
1
Feed Direction
Feed Direction
SOT23-5 Package Orientation
SOT23-5 Package Orientation
GMT Inc. d oes not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and GMT Inc. reserves the right at any time without notice to change said circuitry and specifications.
