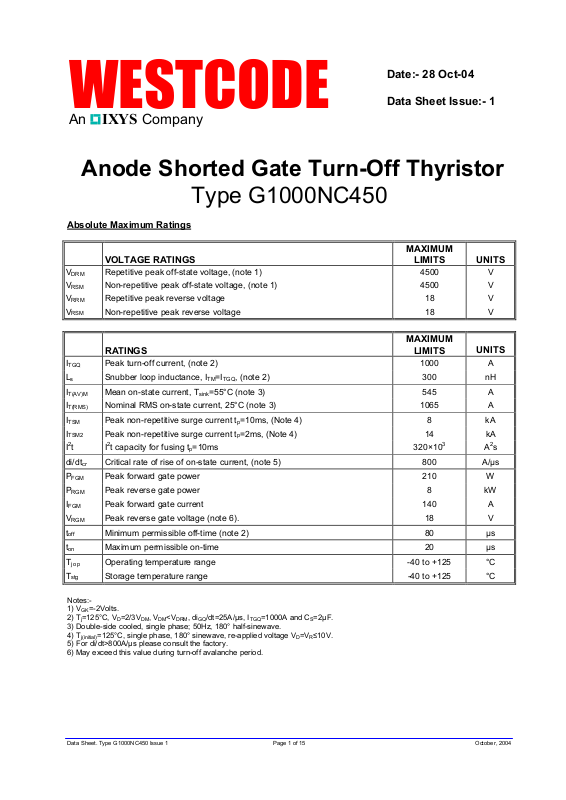

Page 1
Date:- 28 Oct-04
WESTCODE
Data Sheet Issue:- 1
An IXYS Company
Anode Shorted Gate Turn-Off Thyristor
Type G1000NC450
Absolute Maximum Ratings
MAXIMUM
VOLTAGE RATINGS
V
DRM
V
RSM
V
RRM
V
RSM
Repetitive peak off-state voltage, (note 1) 4500 V
Non-repetitive peak off-state voltage, (note 1) 4500 V
Repetitive peak reverse voltage 18 V
Non-repetitive peak reverse voltage 18 V
RATINGS
I
TGQ
L
s
I
T(AV)M
I
T(RMS)
I
TSM
I
TSM2
I2tI
di/dt
P
FGM
P
RGM
I
FGM
V
RGM
t
off
t
on
T
j op
T
stg
Peak turn-off current, (note 2) 1000 A
Snubber loop inductance, ITM=I
Mean on-state current, T
Nominal RMS on-state current, 25°C (note 3) 1065 A
Peak non-repetitive surge current tp=10ms, (Note 4) 8 kA
Peak non-repetitive surge current tp=2ms, (Note 4) 14 kA
2
t capacity for fusing tp=10ms 320×10
Critical rate of rise of on-state current, (note 5) 800 A/µs
cr
Peak forward gate power 210 W
Peak reverse gate power 8 kW
Peak forward gate current 140 A
Peak reverse gate voltage (note 6). 18 V
Minimum permissible off-time (note 2) 80 µs
Maximum permissible on-time 20 µs
Operating temperature range -40 to +125 °C
Storage temperature range -40 to +125 °C
, (note 2) 300 nH
TGQ
=55°C (note 3) 545 A
sink
LIMITS
MAXIMUM
LIMITS
3
UNITS
UNITS
A2s
Notes:-
=-2Volts.
1) V
GK
=125°C, VD=2/3VDM, VDM<V
2) T
j
3) Double-side cooled, single phase; 50Hz, 180° half-sinewave.
4) T
5) For di/dt>800A/µs please consult the factory.
6) May exceed this value during turn-off avalanche period.
Data Sheet. Type G1000NC450 Issue 1 Page 1 of 15 October, 2004
=125°C, single phase, 180° sinewave, re-applied voltage VD=VR≤10V.
j(initial)
, diGQ/dt=25A/µs, I
DRM
=1000A and CS=2µF.
TGQ
Page 2
WESTCODE
WESTCODE An IXYS Company Anode Shorted Gate Turn-Off Thyristor type G1000NC450
WESTCODEWESTCODE
Characteristics
Parameter MIN TYP MAX TEST CONDITIONS
V
TM
I
L
I
H
dv/dtcrCritical rate of rise of off-state voltage 1000 - - VD=2/3V
I
DRM
I
RRM
I
GKM
GT
GT
t
d
t
gt
t
f
t
gq
I
GQ
Q
t
tail
t
gw
Maximum peak on-state voltage - 3.5 4.0 IG=2A, IT=1000A V
Latching current - 10 - Tj=25°C A
Holding current. - 10 - Tj=25°C A
Peak off state current - - 50 Rated V
Peak reverse current - - 60 VRR=16V mA
Peak negative gate leakage current - - 60 VGR=-16V mA
-1.2-T
Gate trigger voltage
-1-T
-0.8-T
-1.54T
Gate trigger current
-0.82T
-0.30.7T
Delay time - 1.5 - µs
Turn-on time - 4.5 6
=-40°C V
j
=25°C VV
j
=125°C
j
=-40°C A
j
=25°C AI
j
=125°C
j
=50%V
V
D
I
=20A, diG/dt=10A/µs
GM
Fall time - 1 - µs
Turn-off time - 14 18 µs
Peak turn-off gate current - 280 - A
Turn-off gate charge - 2 3 mC
GQ
V
=2/3V
D
16V, C
Tail time - 40 60 µs
Gate off-time (note 3) 100 - -
, VGR=-2V V/µs
DRM
, VGR=-2V mA
DRM
V
=25V, RL=25mΩ
D
VD=25V, RL=25mΩ
, I
=1000A, diT/dt=300A/µs,
TGQ
, I
=1000A, diGQ/dt=25A/µs, VGR=-
TGQ
DRM
=2µF
S
DRM
UNITS
V
A
µs
µs
- - 0.027 Double side cooled K/W
R
thJK
Thermal resistance junction to sink
- - 0.07 Cathode side cooled K/W
- - 0.045 Anode side cooled K/W
F Mounting force 15 - 25 (see note 2) kN
W
Weight - 480 - g
t
Notes:-
1) Unless otherwise indicated T
2) For other clamping forces, consult factory.
3) The gate off-time, is the period during which the gate circuit is required to remain at low impedance to allow for the passage of
tail current.
Data Sheet. Type G1000NC450 Issue 1 Page 2 of 15 October, 2004
=125oC.
j
Page 3
WESTCODE
WESTCODE An IXYS Company Anode Shorted Gate Turn-Off Thyristor type G1000NC450
WESTCODEWESTCODE
Notes on ratings and characteristics.
1. Maximum Ratings.
1.1 Off-state voltage ratings. Unless otherwise indicated, all off-state voltage ratings are given for gate conditions as diagram 1. For other gate conditions see the curves of figure 5. It should be noted that V
is the repeatable peak
DRM
voltage which may be applied to the device and does not relate to a DC operating condition. While not
given in the ratings, V
should ideally be limited to 55% V
DC
in this product.
DRM
Diagram 1.
1.2 Reverse voltage rating. All devices in this series have a minimum V
of 18 Volts.
RRM
1.3 Peak turn-off current. The figure given in maximum ratings is the highest value for normal operation of the device under conditions given in note 2 of ratings. For other combinations of I
, VD and Cs see the curves in figures
TGQ
15 & 16. The curves are effective over the normal operating range of the device and assume a snubber
circuit equivalent to that given in diagram 2. If a more complex snubber, such as an Underland circuit, is
employed then the equivalent C
should be used and Ls<0.3µH must be ensured for the curves to be
S
applied.
L
s
D
s
C
s
Diagram 2.
R
1.4 R.M.S and average current. Measured as for standard thyristor conditions, double side cooled, single phase, 50Hz, 180° halfsinewave. These are included as a guide to compare the alternative types of GTO thyristors available, values can not be applied to practical applications, as they do not include switching losses.
2
1.5 Surge rating and I
t.
Ratings are for half-sinewave, peak value against duration is given in the curve of figure 2.
1.6 Snubber loop inductance. Use of GTO thyristors with snubber loop inductance, L
<0.3µH implies no dangerous Vs voltages (see
s
diagrams 2 & 3) can be applied, provided the other conditions given in note 1.3 are enforced. Alternatively
should be limited to 800 Volts to avoid possible device failure.
V
s
Data Sheet. Type G1000NC450 Issue 1 Page 3 of 15 October, 2004
Page 4
WESTCODE
WESTCODE An IXYS Company Anode Shorted Gate Turn-Off Thyristor type G1000NC450
WESTCODEWESTCODE
1.7 Critical rate of rise of on-state current The value given is the maximum repetitive rating, but does not imply any specific operating condition. The high turn-on losses associated with limit di/dt would not allow for practical duty cycle at this maximum condition. For special pulse applications, such as crowbars and pulse power supplies, a much higher di/dt is possible. Where the device is required to operate with infrequent high current pulses, with natural commutation (i.e. not gate turn-off), then di/dt>5kA/µs is possible. For this type of operation individual specific evaluation is required.
1.8 Gate ratings The absolute conditions above which the gate may be damaged. It is permitted to allow V off to exceed V
which is the implied DC condition.
RGM
GK(AV)
during turn-
1.9 Minimum permissible off time. This time relates specifically to re-firing of device (see also note on gate-off time 2.7). The value given in the ratings applies only to operating conditions of ratings note 2.
1.10 Minimum permissible on-time. Figure is given for minimum time to allow complete conduction of all the GTO thyristor islands. W here a simple snubber, of the form given in diagram 1. (or any other non-energy recovery type which discharges through the GTO at turn-on) the actual minimum on-time will usually be fixed by the snubber circuit time constant, which must be allowed to fully discharge before the GTO thyristor is turned off. If the anode circuit has di/dt<10A/µs then the minimum on-time should be increased, the actual value will depend upon the di/dt and operating conditions (each case needs to be assessed on an individual basis).
Data Sheet. Type G1000NC450 Issue 1 Page 4 of 15 October, 2004
Page 5
WESTCODE
A
A
WESTCODE An IXYS Company Anode Shorted Gate Turn-Off Thyristor type G1000NC450
WESTCODEWESTCODE
2 Characteristics
2.1 Instantaneous on-state voltage Measured using a 500µs square pulse, see also the curves of figure 1 for other values of I
TM
.
2.2 Latching and holding current These are considered to be approximately equal and only the latching current is measured, type test only as outlined below. The test circuit and wave diagrams are given in diagram 4. The anode current is monitored on an oscilloscope while V period between the end of I
and the application of reverse gate voltage. Test frequency is 100Hz with I
G
is increased, until the current is seen to flow during the un-gated
D
GM
& IG as for td of characteristic data.
I
Gate-drive
I
GM
R1
CT
C1
Vs
DUT
G
100µs
100µs
Unlatched
Latched
Gate current
16V
node current
unlatched condition
node current
Latched condition
Diagram 4, Latching test circuit and waveforms.
2.3 Critical dv/dt The gate conditions are the same as for 1.1, this characteristic is for off-state only and does not relate to dv/dt at turn-off. The measurement, type test only, is conducted using the exponential ramp method as shown in diagram 5. It should be noted that GTO thyristors have a poor static dv/dt capability if the gate is open circuit or R
is high impedance. Typical values: - dv/dt<100V/µs for RGK>10Ω.
GK
Diagram 5, Definition of dV/dt.
2.4 Off-state leakage. For I
DRM
& I
see notes 1.1 & 1.2 for gate leakage IGK, the off-state gate circuit is required to sink this
RRM
leakage and still maintain minimum of –2 Volts. See diagram 6.
Diagram 6.
Data Sheet. Type G1000NC450 Issue 1 Page 5 of 15 October, 2004
Page 6
WESTCODE
WESTCODE An IXYS Company Anode Shorted Gate Turn-Off Thyristor type G1000NC450
WESTCODEWESTCODE
2.5 Gate trigger characteristics. These are measured by slowly ramping up the gate current and monitoring the transition of anode current and voltage (see diagram 7). Maximum and typical data of gate trigger current, for the full junction temperature range, is given in the curves of figure 6. Only typical figures are given for gate trigger voltage, however, the curves of figure 3 give the range of gate forward characteristics, for the full allowable junction temperature range. The curves of figures 3 & 6 should be used in conjunction, when considering forward gate drive circuit requirement. The gate drive requirements should always be calculated for lowest junction temperature start-up condition.
Current-
sence
Gate-drive
Feedback
CT
DUT
0.9V
AK
R1
Not to scale
C1
Vs
0.1I
A
Anode current
I
GT
Gate current
Anode-Cathode
Voltage
Diagram 7, Gate trigger circuit and waveforms.
2.6 Turn-on characteristics The basic circuit used for turn-on tests is given in diagram 8. The test is initiated by establishing a circulating current in T
, resulting in VD appearing across Cc/Lc. When the test device is fired Cc/L
x
discharges through DUT and commutates Tx off, as pulse from Cc/Lc decays the constant current source
continues to supply a fixed current to DUT. Changing value of C
respectively, V
and i are also adjustable.
D
Tx
i
D
Cc
Lc
CT
Gate-drive
& Lc allows adjustment of ITM and di/dt
c
R1
Cd
Vd
DUT
Diagram 8, Turn-on test circuit of FT40.
c
The definitions of turn-on parameters used in the characteristic data are given in diagram 9. The gate
circuit conditions I
& IG are fully adjustable, IGM duration 10µs.
GM
diG/dt
I
GM
t
t
V
D
t
gt
d
r
di/dt
VD=V
Eon integral
period
I
G
I
TM
DM
Diagram 9, Turn-on wave-diagrams.
Data Sheet. Type G1000NC450 Issue 1 Page 6 of 15 October, 2004
Page 7
WESTCODE
WESTCODE An IXYS Company Anode Shorted Gate Turn-Off Thyristor type G1000NC450
WESTCODEWESTCODE
In addition to the turn-on time figures given in the characteristics data, the curves of figure 9 give the
relationship of t
to di/dt and IGM. The data in the curves of figures 7 & 8, gives the turn-on losses both with
gt
and without snubber discharge, a snubber of the form given in diagram 2 is assumed. Only typical losses
are given due to the large number of variables which effect E
. It is unlikely that all negative aspects
on
would appear in any one application, so typical figures can be considered as worst case. Where the turnon loss is higher than the figure given it will in most cases be compensated by reduced turn-off losses, as
variations in processing inversely effect many parameters. For a worst case device, which would also
have the lowest turn-off losses, E
would be 1.5x values given in the curves of figures 7 & 8. Turn-on
on
losses are measured over the integral period specified below:-
µs
10
=
dtivEon
.
∫
0
The turn-on loss can be sub-divided into two component parts, firstly that associated with t
the contribution of the voltage tail. For this series of devices t
contributes 40% and the voltage tail 60%
gt
(These figures are approximate and are influenced by several second order effects). The loss during t
greatly affected by gate current and as with turn-on time (figure 9), it can be reduced by increasing I
and secondly
gt
is
gt
GM
The turn-on loss associated with the voltage tail is not effected by the gate conditions and can only be
reduced by limiting di/dt, where appropriate a turn-on snubber should be used. In applications where the
snubber is discharged through the GTO thyristor at turn-on, selection of discharge resistor will effect E
on
The curves of figure 8 are given for a snubber as shown in diagram 2, with R=5Ω, this is the lowest
recommended value giving the highest E
, higher values will reduce Eon.
on
2.7 Turn-off characteristics The basic circuit used for the turn-off test is given in diagram 10. Prior to the negative gate pulse being applied constant current, equivalent to I
, is established in the DUT. The switch Sx is opened just before
TGQ
DUT is gated off with a reverse gate pulse as specified in the characteristic/data curves. After the period
voltage rises across the DUT, dv/dt being limited by the snubber circuit. Voltage will continue to rise
t
gt
across DUT until D
until energy stored in L
required V
Over the full tail time period. The overshoot voltage VDM is derived from Lc and forward voltage
D
characteristic of D
turns-on at a voltage set by the active clamp Cc, the voltage will be held at this value
c
is depleted, after which it will fall to VDC .The value of Lx is selected to give
x
, typically VDM=1.2VD to 1.5VD depending on test settings. The gate is held reverse
C
biased through a low impedance circuit until the tail current is fully extinguished.
L
D
c
S
x
R
L
c
.
.
R
L
x
Gatedrive
CT
DUT
i
D
X
s
D
s
C
RCD snubber
C
c
V
d
C
d
s
V
c
Diagram 10, Turn-off test circuit.
The definitions of turn-off parameters used in the characteristic data are given in diagram 11.
Data Sheet. Type G1000NC450 Issue 1 Page 7 of 15 October, 2004
Page 8
WESTCODE
WESTCODE An IXYS Company Anode Shorted Gate Turn-Off Thyristor type G1000NC450
WESTCODEWESTCODE
t
gq
t
f
I
0.9
TGQ
0.1
V
DM
V
D
0.1
Q
GQ
I
GQ
V
G(AV)
t
gw
V
GQ
V
GR
Diagram 11, Turn-off parameter definitions.
In addition to the turn-off figures given in characteristic data, the curves of figures 10, 11 & 12 give the
relationship of I
GQ QGQ
and tgq to turn-off current (I
) and diGQ/dt. Only typical values of IGQ are given due
TGQ
to a great dependence upon the gate circuit impedance, which is a function of gate drive design not the
device. The t
is also, to a lesser extent, affected by circuit impedance and as such the maximum figures
gq
given in data assume a good low impedance circuit design. The curves of figures 17 & 18 give the tail time
and minimum off time to re-fire device as a function of turn-off current. The minimum off time to re-fire the
device is distinct from t
, the gate off time given in characteristics. The GTO thyristor may be safely re-
gw
triggered when a small amount of tail current is still flowing. In contrast, the gate circuit must remain low
impedance until the tail current has fallen to zero or below a level which the higher impedance V
circuit
GR
can sink without being pulled down below –2 Volts. If the gate circuit is to be switched to a higher
impedance before the tail current has reached zero then the requirements of diagram 12 must be applied.
i
tail
R
(V - i R)>2V
tail
GR
Diagram 12.
V
GR
The figure t
, as given in the characteristic data, is the maximum time required for the tail current to
gw
decay to zero. The figure is applicable under all normal operating conditions for the device; provided
suitable gate drive is employed. At lower turn-off current, or with special gate drive considerations, this
time may be reduced (each case needs to be considered individually).Typical turn-off losses are given in
the curves of figures 13 & 14, the integration period for the losses is nominally taken to the end of the tail
time (I
<1A) i.e. :-
tail
+=ttailtgt
dtivEoff
..
∫
0
Data Sheet. Type G1000NC450 Issue 1 Page 8 of 15 October, 2004
Page 9
WESTCODE
WESTCODE An IXYS Company Anode Shorted Gate Turn-Off Thyristor type G1000NC450
WESTCODEWESTCODE
The curves of figure 13 give the turn-off energy for a fixed VD with a VDM=120%VD, whereas the curves of
figure 14 give the turn-off energy with a fixed value of V
and VD=50%V
DM
. The curves are for energy
DRM
against turn-off current/snubber capacitance with a correction for voltage inset as an additional graph
(snubber equivalent to diagram 2 is assumed). From these curves a typical value of turn-off energy for any
combination of I
off with on-state voltage (V
losses in an application, the use of a maximum V
frequencies) give a more realistic value. The lowest V
and VD or VDM can be derived. Only typical data is included, to allow for the trade-
TGQ/Cs
) which is a feature of these devices, see diagram 13. When calculating
TM
and typical E
TM
device of this type would have a maximum turn-
TM
will (under normal operating
off
off energy of 1.5x the figure given in the curves of figures 13 & 14.
Trade-off between V & E
E
off
V
TM
off
TM
Diagram 13.
2.8 Safe turn-off periphery The necessity to control dv/dt at tun-off for the GTO thyristor implies a trade-off between I
TGQ/VDM/Cs
. This
information is given in the curves of figures 15 & 16. The information in these curves should be
considered as maximum limits and not implied operating conditions, some margin of 'safety' is advised
with the conditions of the curves reserved for occasional excursions. It should be noted that these curves
are derived at maximum junction temperature, however, they may be applied across the full operating
temperature range of the device provided additional precautions are taken. At very low temperature,
(below –10°C) the fall-time of device becomes very rapid and can give rise to very high turn-off voltage
spikes, as such it is advisable to reduce snubber loop inductance to <0.2µH to minimise this effect.
Data Sheet. Type G1000NC450 Issue 1 Page 9 of 15 October, 2004
Page 10
WESTCODE
WESTCODE An IXYS Company Anode Shorted Gate Turn-Off Thyristor type G1000NC450
WESTCODEWESTCODE
Curves
Figure 1 - On-state characteristics of Limit device
10000
G1000NC450
Issue 1
(A)
T
1000
100
Instantaneous on state current, I
10
1.00 2.00 3.00 4.00 5.00 6.00 7.00
Figure 2 - Maximum surge and I2t Ratings
100000
G1000NC450
Issue 1
Tj=25°C
Tj=125°C
Instantaneous on state voltage, V
T
(V)
1.00E+07
Tj (initial) = 125°C
I2t: V
10000
RRM
≤10V
1.00E+06
2
2
s)
t (A
Maximum I
Total peak half sine surge current (A)
I
: V
RRM
≤10V
1.00E+05
TSM
1000
135101 5 10 50 100
Duration of surge (ms)
Data Sheet. Type G1000NC450 Issue 1 Page 10 of 15 October, 2004
Duration of surge (cycles @ 50Hz)
Page 11
WESTCODE
WESTCODE An IXYS Company Anode Shorted Gate Turn-Off Thyristor type G1000NC450
WESTCODEWESTCODE
Figure 3 – Forward gate characteristics Figure 4 – Transient thermal impedance
1000
G1000NC450
Issue 1
FOR Tj=-40oC TO +125oC
0.1
G1000NC450
Issue 1
CATHODE
ANODE
(A)
FG
100
MINIMUM MAXIMUM
10
INSTANTANEOUS FORWARD GAT E CURRENT, I
1
00.511.52
INSTANTANEOUS FORWARD GATE VOLTAGE, V
(V)
FG
Figure 5 – Typical forward blocking voltage Vs. external gate-cathode resistance
1.2
G1000NC450
Issue 1
K/W)
o
, (
thJK
0.01
0.001
THERMAL IMPEDANCE JUNCTION TO SINK R
0.0001
0.001 0.01 0.1 1 10 100
TIME, (S)
DOUBLE-SIDE
Figure 6 – Gate trigger current Vs junction temperature
10
G1000NC450
Issue 1
1
DRM
/V
D
0.8
0.6
0.4
FORWARD BLOCKING AS A RATIO OF V
0.2
0
1 10 100 1000
EXTERNAL GATE-CATHODE RESISTANCE, R
Tj=50oC
Tj=80oC
Tj=105oC
Tj=125oC
(ΩΩΩΩ)
GK
(A)
GT
1
MAXIMUM
D.C. GATE TRIGGER CURRENT, I
TYPICAL
0.1
-50 -25 0 25 50 75 100 125 150
JUNCTION TEMPERATURE, T
(oC)
j
Data Sheet. Type G1000NC450 Issue 1 Page 11 of 15 October, 2004
Page 12
WESTCODE
f
WESTCODE An IXYS Company Anode Shorted Gate Turn-Off Thyristor type G1000NC450
WESTCODEWESTCODE
Figure 7 – Typical turn-on energy per pulse (excluding snubber discharge)
0.6
G1000NC450
Issue 1
VD=0.5V
DRM
IGM=20A, diGQ/dt=10A/ µs
o
Tj=25
0.5
0.4
(J)
ON
0.3
0.2
TURN-ON ENERGY PER PU LSE, E
0.1
di/dt=500A/µs
di/dt=400A/µs
di/dt=300A/µs
di/dt=200A/µs
di/dt=100A/µs
Figure 8 – Typical turn-on energy per pulse (including snubber discharge)
2
G1000NC450
Issue 1
VD=0.5V
DRM
IGM=20A, diG/dt=10A/ µs
(J)
TURN-ON ENERGY PER PULS E, E
1.5
ON
1
0.5
Cs=2µF, Rs=5W
Tj=25oC
di/dt=400A/µs
di/dt=300A/µs
di/dt=200A/µs
di/dt=100A/µs
0
0 500 1000 1500 2000
TURN-ON CURRENT, I
(A)
TM
Figure 9 – Maximum turn-on time Vs rate of rise o
on-state current
10
8
6
(µs)
gt
4
TURN-ON TIME, t
2
G1000NC450
Issue 1
VD=0.5V
DRM
≤
tr of I
2µs
GM
Tj=25oC
, ITM=1000A
IGM=10A
IGM=20A
IGM=40A
0
0 500 1000 1500 2000
TURN-ON CURRENT, I
(A)
TM
Figure 10 Typical peak turn-off gate current Vs turnoff current
400
G1000NC450
Issue 1
VD=2/3V
DRM
Tj=125oC
350
(A)
GQ
300
250
200
PEAK TURN-OFF GATE CURRE NT, I
150
diGQ/dt=40A/µs
diGQ/dt=30A/µs
diGQ/dt=20A/µs
0
10 100 1000
RATE OF RISE OF ON-STATE CURRENT, di/dt (A/ µs)
Data Sheet. Type G1000NC450 Issue 1 Page 12 of 15 October, 2004
100
0 500 1000 1500
TURN-OFF CURRENT, I
TGQ
(A)
Page 13
WESTCODE
f
WESTCODE An IXYS Company Anode Shorted Gate Turn-Off Thyristor type G1000NC450
WESTCODEWESTCODE
Figure 11 – Maximum gate turn-off charge Vs turnoff current
4
G1000NC450
Issue 1
VD=2/3V
DRM
(mC)
GQ
TYPICAL GATE TURN-OF F CHARGE, Q
Tj=125oC
3
2
1
diGQ/dt=20A/µs
diGQ/dt=30A/µs
diGQ/dt=40A/µs
diGQ/dt=50A/µs
Q
GQ
Figure 12 – Maximum turn-off time Vs turn-of
current
25
G1000NC450
Issue 1
VD=2/3V
DRM
Tj=125oC
20
15
(µs)
gq
10
TURN-OFF TIME, t
5
diGQ/dt=20A/µs
diGQ/dt=30A/µs
diGQ/dt=40A/µs
diGQ/dt=50A/µs
0
0 500 1000 1500
TURN-OFF CURRENT, I
TGQ
(A)
Figure 13 – Typical turn-off energy per pulse Vs turn-off current
1.6
G1000NC450
VD=2000V, VDM=1.2V
diGQ/dt=25A/µs
≤
L
0.3µH
s
Tj=125oC
1.2
(J)
off
0.8
TURN-OFF ENERGY PER PULSE, E
0.4
Issue 1
V
DM
CS=0.5mF
V
D
D
CS=1.5µF
CS=1µF
For other values of V
scale E
off
1000 2000 3000
CS=2µF
. Note:V
V
D
CS=3µF
D
≤
V
DM
1.5
1
0.5
DRM
0
0 500 1000 1500
TURN-OFF CURRENT, I
TGQ
(A)
Figure 14 – Typical turn-off energy per pulse vs turn-off current
2
G1000NC450
Issue 1
VDM=3000V, VD=0.5V
diGQ/dt=25A/µs
≤
0.3µH
L
s
1.6
Tj=125oC
(J)
off
1.2
0.8
TURN-OFF ENERGY PER P ULSE, E
0.4
DRM
Cs=0.5µF
Cs=1.5µF
Cs=1µF
Cs=2µF
Cs=3µF
≤
Note: V
V
DM
DRM
V
DM
For other values of VDM scale E
1500 3000 4500
V
DM
V
D
off
1.5
1
0.5
0
0 500 1000 1500
TURN-OFF CURR ENT, I
TGQ
(A)
0
0 500 1000 1500
TURN-OFF CURRENT, I
TGQ
(A)
Data Sheet. Type G1000NC450 Issue 1 Page 13 of 15 October, 2004
Page 14
WESTCODE
f
WESTCODE An IXYS Company Anode Shorted Gate Turn-Off Thyristor type G1000NC450
WESTCODEWESTCODE
Figure 15 – Maximum permissible turn-off current Vs snubber capacitance
3
G1000NC450
Issue 1
diGQ/dt=25A/µs
≤
0.3µH
L
s
2.5
Tj=125oC
≤
1.5V
V
DM
D
V
DRM
D
VD=2/3V
DRM
≤
0.4V
V
D
DRM
2
(µF)
s
1.5
1
SNUBBER CAPACITANCE, C
0.5
VD=0.55V
Figure 16 – Maximum turn-off current Vs turn-of
voltage
(A)
TURN-OFF CURRENT, I
TGQ
1500
Cs=3µF
1200
Cs=2µF
Cs=1.4µF
900
Cs=1µF
600
Cs=0.5µF
300
G1000NC450
Issue 1
diGQ/dt=25A/µs
Ls<0.3µH
Tj=125oC
≤
1.5V
V
DM
D
V
D
0
0 500 1000 1500
TURN-OFF CURRENT, I
TGQ
(A)
Figure 17 – Maximum gate tail time (I
turn-off current
70
G1000NC450
Issue 1
VD=2/3V
DRM
Tj=125oC
60
l (µs)
tai
<1A), t
TGQ
TAIL TIME (I
50
<1A) Vs
TGQ
0
0 0.2 0.4 0.6 0.8 1
TURN-OFF VOLTAGE AS THE RATIO V
D/VDRM
Figure 18 – Minimum off-time to re-fire device Vs turn-off current
90
G1000NC450
Issue 1
VD=2/3V
DRM
diGQ/dt=25A/µs
Tj=125oC
80
(µs)
off
70
60
MINIMUM OFF-TIME TO RE-FIRE DEVICE, t
40
0 500 1000 1500
Data Sheet. Type G1000NC450 Issue 1 Page 14 of 15 October, 2004
TURN-OFF CURRENT, I
TGQ
(A)
50
0 500 1000 1500
TURN-OFF CURRENT, I
TGQ
(A)
Page 15
WESTCODE
WESTCODE An IXYS Company Anode Shorted Gate Turn-Off Thyristor type G1000NC450
WESTCODEWESTCODE
Outline Drawing & Ordering Information
101A288
ORDERING INFORMATION (Please quote 10 digit code as below)
G1000 NC 45 0
Fixed
Type Code
Typical order code: G1000NC450 – 4500V V
IXYS Semiconductor GmbH
Edisonstraße 15
D-68623 Lampertheim
Tel: +49 6206 503-0
Fax: +49 6206 503-627
E-mail: marcom@ixys.de
IXYS Corporation
3540 Bassett Street
Santa Clara CA 95054 USA
Tel: +1 (408) 982 0700
Fax: +1 (408) 496 0670
E-mail: sales@ixys.net
The information contained herein is confidential and is protected by Copyright. The i nformation may not be used or disclosed
except with the written permission of and in the manner permitted by the proprietors Westcode Semiconductors Ltd.
In the interest of product improvement, Westcode reserves the right to change specifications at any time without prior notice.
Devices with a suffix code (2-letter, 3-letter or letter/digit/letter combination) added to their generic code are not necessari ly subject
to the conditions and limits contained in this report.
WESTCODE
An IXYS Company
Fixed
Outline Code
, 26mm clamp height capsule.
DRM
www.westcode.com
www.ixys.com
Fixed Voltage Code
/100
V
DRM
45
Westcode Semiconductors Ltd
Langley Park Way, Langley Park,
Chippenham, Wiltshire, SN15 1GE.
E-mail: WSL.sales@westcode,com
Westcode Semiconductors Inc
E-mail: WSI.sales@westcode.com
Fixed Code
Tel: +44 (0)1249 444524
Fax: +44 (0)1249 659448
3270 Cherry Avenue
Long Beach CA 90807 USA
Tel: +1 (562) 595 6971
Fax: +1 (562) 595 8182
© Westcode Semiconductors Ltd.
Data Sheet. Type G1000NC450 Issue 1 Page 15 of 15 October, 2004
Page 16
WESTCODE
WESTCODE An IXYS Company Anode Shorted Gate Turn-Off Thyristor type G1000NC450
WESTCODEWESTCODE
Data Sheet. Type G1000NC450 Issue 1 Page 16 of 15 October, 2004
Loading...
