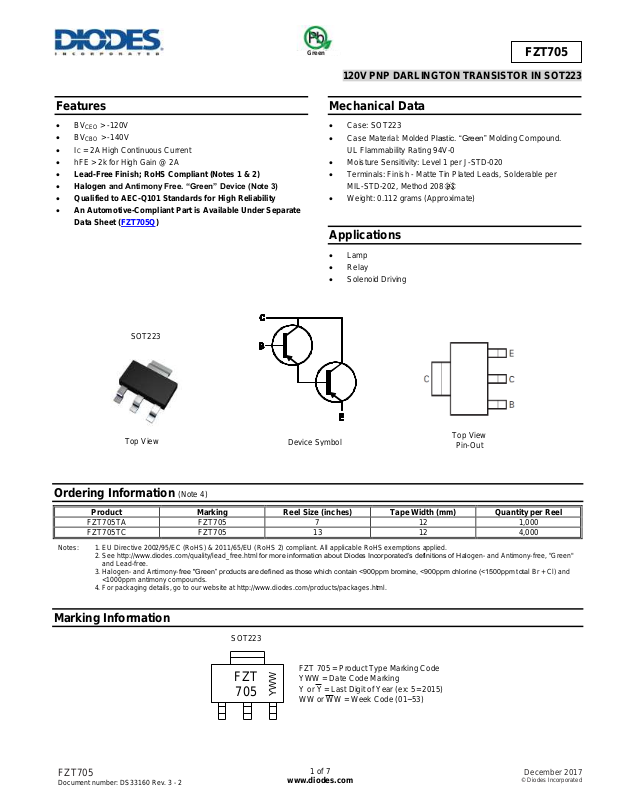

Datasheet FZT705TC Specification

FZT705

Document number: DS33160 Rev. 3 - 2

1 of 7

www.diodes.com

December 2017

© Diodes Incorporated

FZT705

Features

 BV

CEO

> -120V

 BV

CBO

> -140V

 IC = 2A High Continuous Current
 hFE > 2k for High Gain @ 2A
 Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
 Halogen and Antimony Free. “Green” Device (Note 3)
 Qualified to AEC-Q101 Standards for High Reliability
 An Automotive-Compliant Part is Available Under Separate

Data Sheet (FZT705Q)

Mechanical Data

 Case: SOT223
 Case Material: Molded Plastic. “Green” Molding Compound.

UL Flammability Rating 94V-0

 Moisture Sensitivity: Level 1 per J-STD-020
 Terminals: Finish - Matte Tin Plated Leads, Solderable per

MIL-STD-202, Method 208

 Weight: 0.112 grams (Approximate)

Applications

 Lamp
 Relay
 Solenoid Driving

Product

Marking

Reel Size (inches)

Tape Width (mm)

Quantity per Reel

FZT705TA

FZT705

7

12

1,000

FZT705TC

FZT705

13

12

4,000

SOT223

Top View

Device Symbol

Top View

Pin-Out

Green

YWW

FZT

705

FZT 705 = Product Type Marking Code
YWW = Date Code Marking
Y or Y = Last Digit of Year (ex: 5= 2015)
WW or WW = Week Code (01~53)

SOT223

120V PNP DARLINGTON TRANSISTOR IN SOT223

Ordering Information (Note 4)

Notes: 1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

FZT705

Document number: DS33160 Rev. 3 - 2

2 of 7

www.diodes.com

December 2017

© Diodes Incorporated

FZT705

Characteristic

Symbol

Value

Unit

Collector-Base Voltage

V

CBO

-140

V

Collector-Emitter Voltage

V

CEO

-120

V

Emitter-Base Voltage

V

EBO

-12

V

Continuous Collector Current

IC

-2

A

Peak Pulse Current

ICM

-4

A

Characteristic

Symbol

Value

Unit

Power Dissipation

(Note 5)

PD

3.0

W

(Note 6)

2.0

(Note 7)

1.6

(Note 8)

1.2

Thermal Resistance, Junction to Ambient

(Note 5)

R

θJA

41.7

°C/W

(Note 6)

62.5

(Note 7)

78.1

(Note 8)

104

Thermal Resistance Junction to Lead

(Note 9)

R

θJL

12.9

Operating and Storage Temperature Range

T

J, TSTG

-55 to +150

°C

Characteristic

Symbol

Value

Unit

JEDEC Class

Electrostatic Discharge - Human Body Model

ESD HBM

2,000

V

2

Electrostatic Discharge - Machine Model

ESD MM

≥ 200

V

B

Absolute Maximum Ratings (@T

Thermal Characteristics (@T

= +25°C, unless otherwise specified.)

A

ESD Ratings (Note 10)

= +25°C, unless otherwise specified.)

A

Notes: 5. For a device mounted with the collector lead on 50mm x 50mm 2oz copper that is on a single-sided 1.6mm FR4 PCB; device is measured under

still air conditions whilst operating in a steady-state.

6. Same as Note 5, except the device is mounted on 25mm x 25mm 2oz copper.

7. Same as Note 5, except the device is mounted on 25mm x 25mm 1oz copper.

8. Same as Note 5, except the device is mounted on minimum recommended pad layout.

9. Thermal resistance from junction to solder-point (at the end of the collector lead).

10. Refer to JEDEC specification JESD22-A114 and JESD22-A115.

FZT705

Document number: DS33160 Rev. 3 - 2

3 of 7

www.diodes.com

December 2017

© Diodes Incorporated

FZT705

Thermal Characteristics and Derating Information

FZT705

Document number: DS33160 Rev. 3 - 2

4 of 7

www.diodes.com

December 2017

© Diodes Incorporated

FZT705

Characteristic

Symbol

Min

Typ

Max

Unit

Test Condition

Collector-Base Breakdown Voltage

BV

CBO

-140 — —

V

IC = -100µA

Collector-Emitter Breakdown Voltage (Note 11)

BV

CEO

-120 — —

V

IC = -10mA

Emitter-Base Breakdown Voltage

BV

EBO

-12 — —

V

IE = -100µA

Collector-Base Cut-Off Current

I

CBO

—

—

-100

-10

nA
µA

V

CB

= -120V

V

CB

= -120V, TA = +100°C

Collector-Emitter Cut-Off Current

I

CES

— — -10

µA

V

CE

= -80V

Emitter Cut-Off Current

I

EBO

— — -100

nA

V

EB

= -8V

DC Current Gain (Note 9)

hFE

3,000
3,000
3,000
2,000

—

—
—

30,000

—

—

IC = -10mA, V

CE

= -5V

IC = -100mA, V

CE

= -5V

IC = -1A, V

CE

= -5V

IC = -2A, V

CE

= -5V

Collector-Emitter Saturation Voltage (Note 11)

V

CE(sat)

— — —
—

-1.3

-2.5

V

IC = -1A, IB = -1mA
IC = -2A, IB = -2mA

Base-Emitter Saturation Voltage (Note 11)

V

BE(sat)

— — -1.8

V

IC = -1A, IB = -10mA

Base-Emitter Turn-On Voltage (Note 11)

V

BE(on)

— — -1.7

V

IC = -1A, V

CE

=- 5V

Output Capacitance (Note 9)

C

obo

—

15 — pF

V

EB

= -10V, f = 1MHz

Current Gain-Bandwidth Product (Note 11)

fT

—

160 — MHz

V

CE

= -10V, IC = -100mA,

f=20MHz

Turn-On Time

ton

—

0.6 — µs

V

CC

= -10V, IC = -500mA

I

B1

= -IB2 = 0.5mA

Turn-Off Time

t

off

—

0.8 — µs

Electrical Characteristics (@T

Note: 11. Measured under pulsed conditions. Pulse width ≤ 300 µs. Duty cycle ≤ 2%.

= +25°C, unless otherwise specified.)

A

FZT705

Document number: DS33160 Rev. 3 - 2

5 of 7

www.diodes.com

December 2017

© Diodes Incorporated

FZT705

Typical Electrical Characteristics (@T

= +25°C, unless otherwise specified.)

A

FZT705

Document number: DS33160 Rev. 3 - 2

6 of 7

www.diodes.com

December 2017

© Diodes Incorporated

FZT705

SOT223

SOT223

Dim

Min

Max

Typ

A

1.55

1.65

1.60

A1

0.010

0.15

0.05

b

0.60

0.80

0.70

b1

2.90

3.10

3.00 C 0.20

0.30

0.25 D 6.45

6.55

6.50

E

3.45

3.55

3.50

E1

6.90

7.10

7.00 e - - 4.60

e1

- - 2.30 L 0.85

1.05

0.95 Q 0.84

0.94

0.89

All Dimensions in mm

SOT223

Dimensions

Value (in mm)

C

2.30

C1

6.40 X 1.20

X1

3.30

Y

1.60

Y1

1.60

Y2

8.00

A1

A

7°

7°

D

b

e

e1

b1

C

E1

L

0°-10°

Q

E

0.25

Seating

Plane

Gauge

Plane

X1

Y1

Y

X

C

C1 Y2

Package Outline Dimensions

Please see http://www.diodes.com/package-outlines.html for the latest version.

Suggested Pad Layout

Please see http://www.diodes.com/package-outlines.html for the latest version.

For high voltage applications, the appropriate industry sector guidelines should be considered with regards to creepage and clearance distances between device
terminals and PCB tracking.
