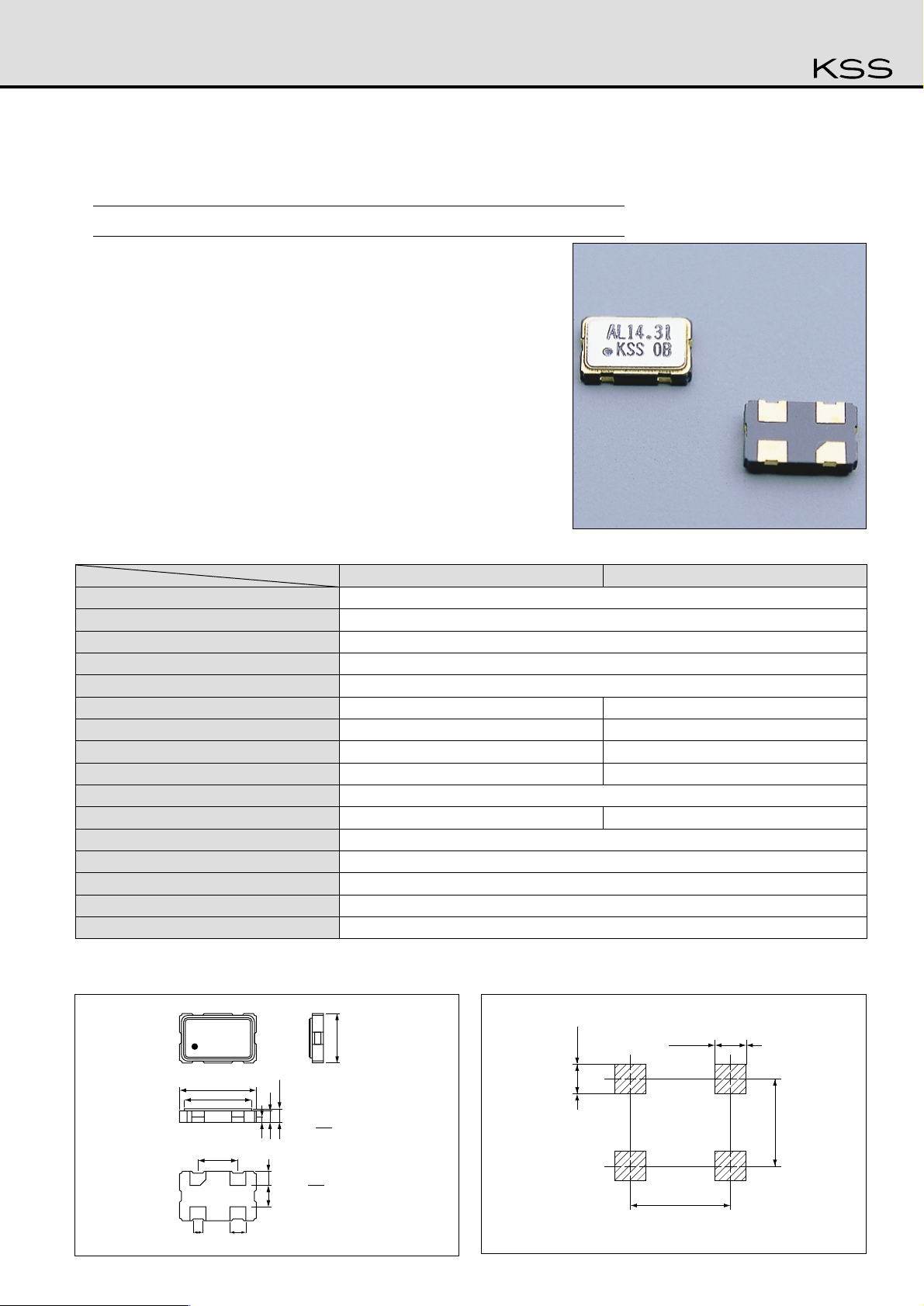

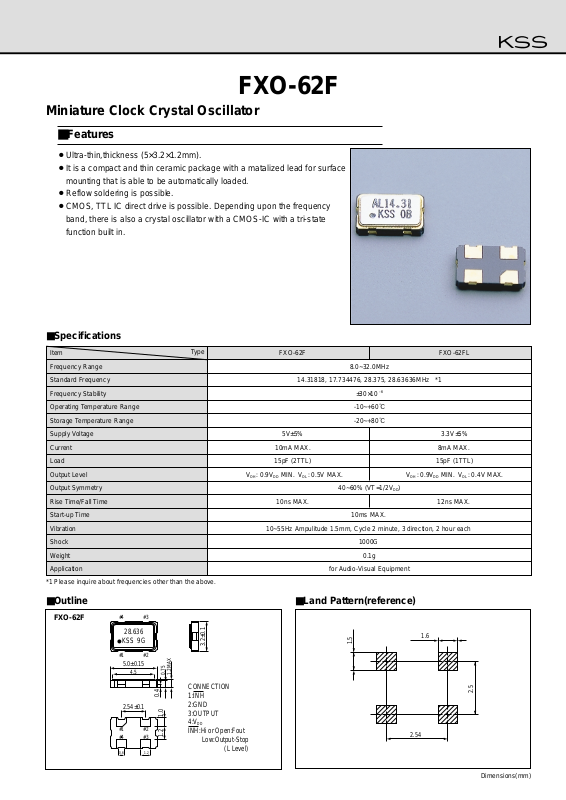

FXO-62F
Miniature Clock Crystal Oscillator
■Features
¡Ultra-thin,thickness (5×3.2×1.2mm).
¡It is a compact and thin ceramic package with a matalized lead for surface
mounting that is able to be automatically loaded.
¡Reflow soldering is possible.
¡CMOS, TTL IC direct drive is possible. Depending upon the frequency
band, there is also a crystal oscillator with a CMOS-IC with a tri-state
function built in.
■Outline ■Land Pattern(reference)
Dimensions(mm)
1.6
2.5
2.54
1.5
FXO-62F
KSS 9G
CONNECTION
1:INH
2:GND
3:OUTPUT
4:V
DD
INH:Hi or Open:Fout
Low:Output-Stop
(L Level)
0.4
1.01.2
0.75
1.2MAX
5.0±0.15
28.636
4.5
2.54±0.1
3.2±0.1
0.6 1.2
#4 #3
#1 #2
#1 #2
#4 #3
■Specifications
Item
Type
FXO-62F FXO-62FL
Frequency Range 8.0~32.0MHz
Standard Frequency 14.31818, 17.734476, 28.375, 28.63636MHz *1
Frequency Stability ±30×10
–6
Operating T emperature Range -10~+60:
Storage T emperature Range -20~+80:
Supply Voltage 5V±5% 3.3V±5%
Current 10mA MAX. 8mA MAX.
Load 15pF (2TTL) 15pF (1TTL)
Output Level V
OH
: 0.9VDD MIN. V
OL
: 0.5V MAX. V
OH
: 0.9VDD MIN. V
OL
: 0.4V MAX.
Output Symmetry 40~60% (VT=1/2V
DD
)
Rise Time/Fall Time 10ns MAX. 12ns MAX.
Start-up Time 10ms MAX.
Vibration 10~55Hz Ampulitude 1.5mm, Cycle 2 minute, 3 direction, 2 hour each
Shock 1000G
Weight 0.1g
Application for Audio-Visual Equipment
*1 Please inquire about frequencies other than the above.
