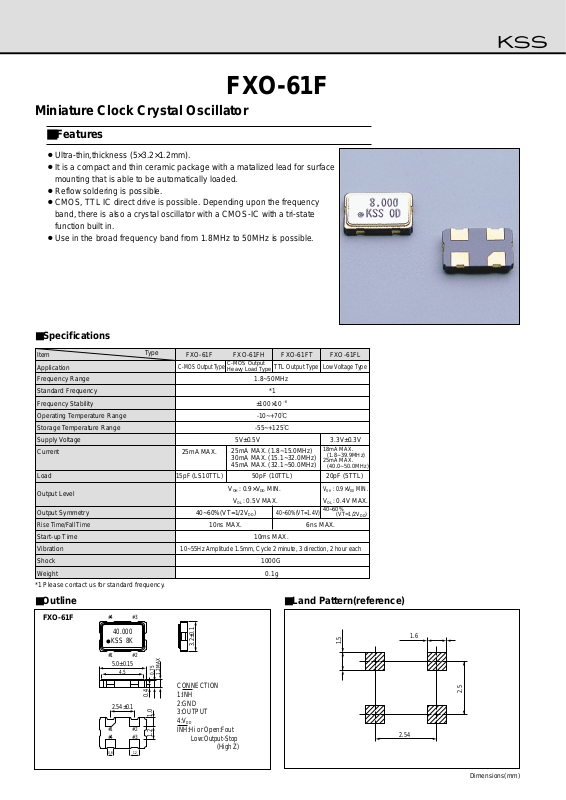

FXO-61F
Miniature Clock Crystal Oscillator
■Features
¡Ultra-thin,thickness (5×3.2×1.2mm).
¡It is a compact and thin ceramic package with a matalized lead for surface
mounting that is able to be automatically loaded.
¡Reflow soldering is possible.
¡CMOS, TTL IC direct drive is possible. Depending upon the frequency
band, there is also a crystal oscillator with a CMOS-IC with a tri-state
function built in.
¡Use in the broad frequency band from 1.8MHz to 50MHz is possible.
■Specifications
■Outline
Item
Type
FXO-61F FXO-61FH FXO-61FT FXO-61FL
Application
C-MOS Output Type
TTL Output Type
Low Voltage Type
Frequency Range 1.8~50MHz
Standard Frequency *1
Frequency Stability ±100×10
–6
Operating T emperature Range -10~+70:
Storage T emperature Range -55~+125:
Supply Voltage 5V±0.5V 3.3V±0.3V
Current 25mA MAX.
Load
15pF (LS10TTL)
50pF (10TTL) 20pF (5TTL)
Output Level
V
OH
: 0.9×VDD MIN.
V
OH
: 0.9×VDD MIN.
V
OL
: 0.5V MAX. V
OL
: 0.4V MAX.
Output Symmetry 40~60%(VT=1/2V
DD
)
40~60%(VT=1.4V)
Rise Time/Fall Time
10ns MAX. 6ns MAX.
Start-up Time 10ms MAX.
Vibration
10~55Hz Amplitude 1.5mm, Cycle 2 minute, 3 direction, 2 hour each
Shock 1000G
Weight 0.1g
C-MOS Output
Heavy Load Type
*1 Please contact us for standard frequency.
(VT=1/2VDD)
40~60%
25mA MAX. (1.8~15.0MHz)
30mA MAX. (15.1~32.0MHz)
45mA MAX. (32.1~50.0MHz)
18mA MAX.
(1.8~39.9MHz)
25mA MAX.
(40.0~50.0MHz)
■Land Pattern(reference)
Dimensions(mm)
1.6
2.5
2.54
1.5
FXO-61F
KSS 8K
CONNECTION
1:INH
2:GND
3:OUTPUT
4:V
DD
INH:Hi or Open:Fout
Low:Output-Stop
(High Z)
0.4
1.01.2
0.75
1.2MAX
5.0±0.15
40.000
4.5
2.54±0.1
3.2±0.1
0.6 1.2
#4 #3
#1 #2
#1 #2
#4 #3
