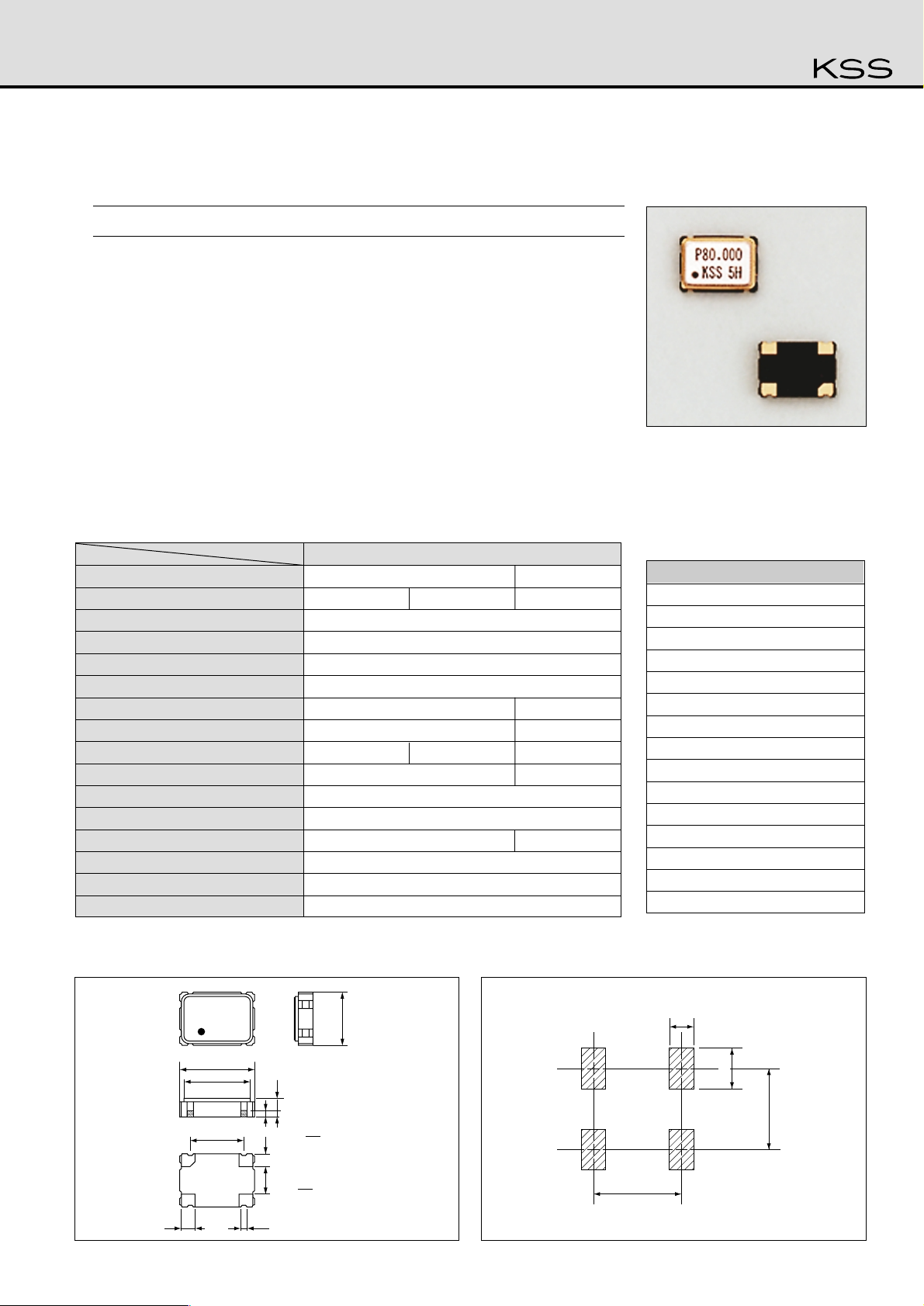

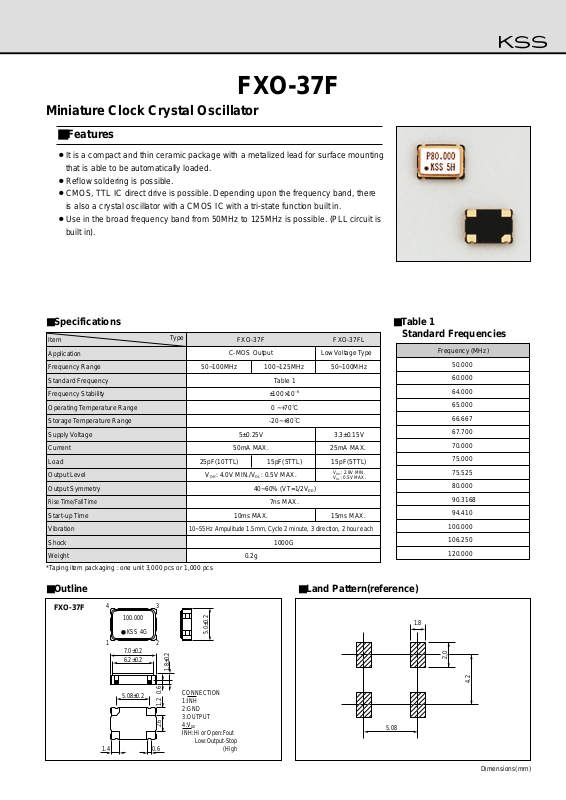

FXO-37F
Miniature Clock Crystal Oscillator
■Features
¡It is a compact and thin ceramic package with a metalized lead for surface mounting
that is able to be automatically loaded.
¡Reflow soldering is possible.
¡CMOS, TTL IC direct drive is possible. Depending upon the frequency band, there
is also a crystal oscillator with a CMOS IC with a tri-state function built in.
¡Use in the broad frequency band from 50MHz to 125MHz is possible. (PLL circuit is
built in).
■Specifications ■Table 1
Standard Frequencies
■Outline ■Land Pattern(reference)
Item
Type
FXO-37F FXO-37FL
Application
Frequency Range 50~100MHz 100~125MHz 50~100MHz
Standard Frequency Table 1
Frequency Stability ±100×10
–6
Operating T emperature Range 0 ~+70:
Storage T emperature Range -20~+80:
Supply Voltage 5±0.25V 3.3±0.15V
Current 50mA MAX. 25mA MAX.
Load 25pF(10TTL) 15pF(5TTL) 15pF(5TTL)
Output Level V
OH
: 4.0V MIN./VOL : 0.5V MAX.
Output Symmetry 40~60% (VT=1/2V
DD
)
Rise Time/Fall Time
7ns MAX.
Start-up Time 10ms MAX. 15ms MAX.
Vibration
10~55Hz Ampulitude 1.5mm, Cycle 2 minute, 3 direction, 2 hour each
Shock 1000G
Weight 0.2g
*Taping item packaging : one unit 3,000 pcs or 1,000 pcs
V
OH
: 2.8V MIN.
V
OL
: 0.5V MAX.
C-MOS Output Low Voltage Type
Frequency (MHz)
50.000
60.000
64.000
65.000
66.667
67.700
70.000
75.000
75.525
80.000
90.3168
94.410
100.000
106.250
120.000
Dimensions(mm)
FXO-37F
34
100.000
KSS 4G
12
7.0±0.2
6.2±0.2
5.08±0.2
1.4 0.6
0.61.22.6
1.8±0.2
CONNECTION
1:INH
2:GND
3:OUTPUT
4:V
DD
INH:Hi or Open:Fout
Low:Output-Stop
(High
5.0±0.2
1.8
2.0
4.2
5.08
