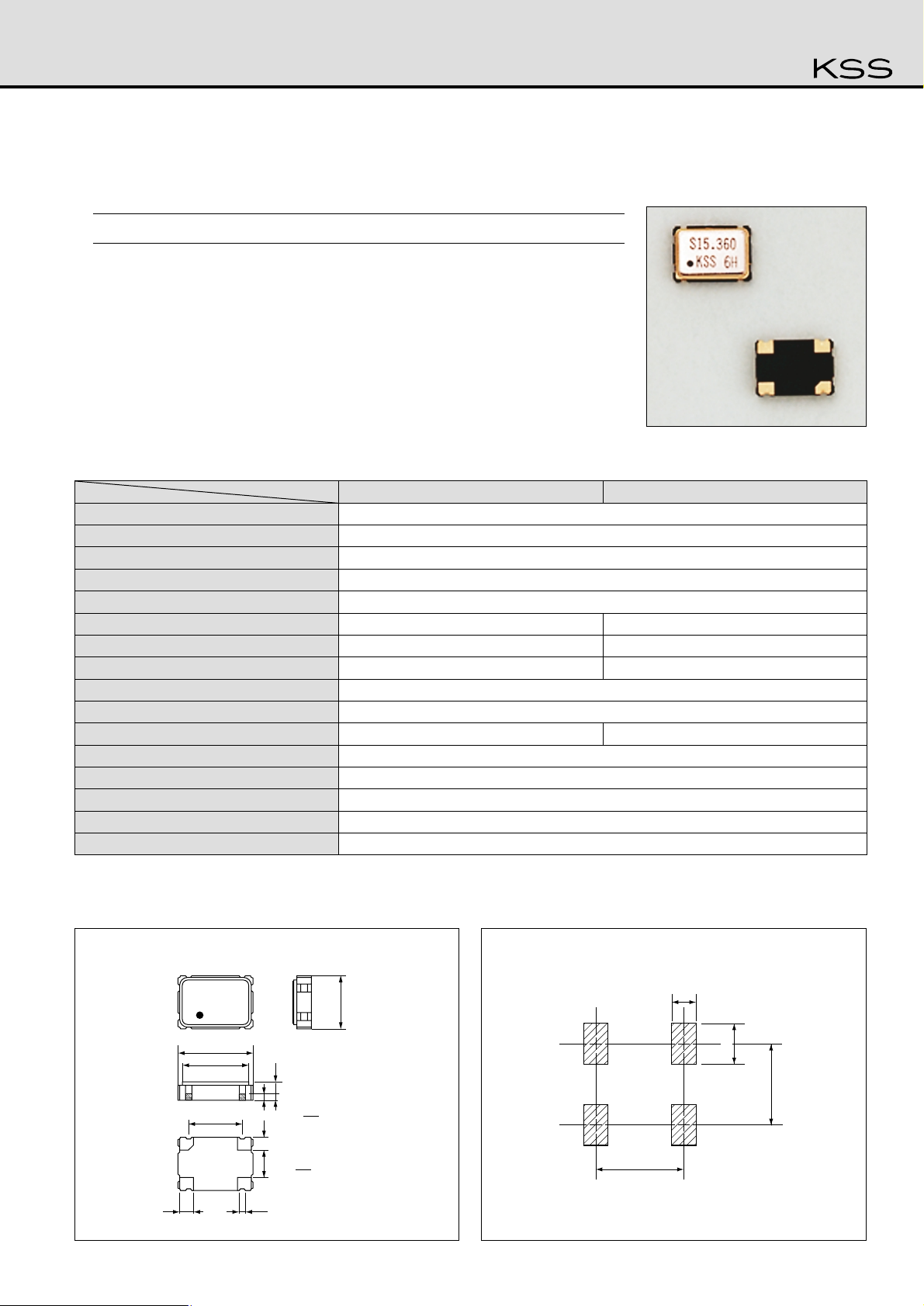

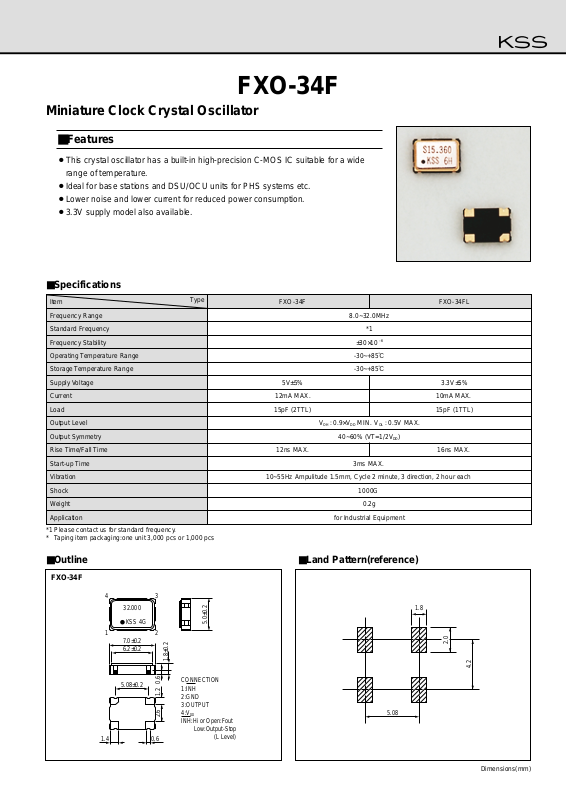

FXO-34F
Miniature Clock Crystal Oscillator
■Features
■Specifications
■Outline ■Land Pattern(reference)
Item
Type
FXO-34F FXO-34FL
Frequency Range 8.0~32.0MHz
Standard Frequency *1
Frequency Stability ±30×10
–6
Operating T emperature Range -30~+85:
Storage T emperature Range -30~+85:
Supply Voltage 5V±5% 3.3V±5%
Current 12mA MAX. 10mA MAX.
Load 15pF (2TTL) 15pF (1TTL)
Output Level V
OH
: 0.9×VDD MIN. V
OL
: 0.5V MAX.
Output Symmetry 40~60% (VT=1/2V
DD
)
Rise Time/Fall Time 12ns MAX. 16ns MAX.
Start-up Time 3ms MAX.
Vibration 10~55Hz Ampulitude 1.5mm, Cycle 2 minute, 3 direction, 2 hour each
Shock 1000G
Weight 0.2g
Application for Industrial Equipment
*1 Please contact us for standard frequency.
* Taping item packaging:one unit 3,000 pcs or 1,000 pcs
¡This crystal oscillator has a built-in high-precision C-MOS IC suitable for a wide
range of temperature.
¡Ideal for base stations and DSU/OCU units for PHS systems etc.
¡Lower noise and lower current for reduced power consumption.
¡3.3V supply model also available.
Dimensions(mm)
FXO-34F
32.000
KSS 4G
7.0±0.2
6.2±0.2
5.08±0.2
34
1.8±0.2
CONNECTION
0.61.22.6
1:INH
2:GND
3:OUTPUT
4:V
INH:Hi or Open:Fout
Low:Output-Stop
(L Level)
5.0±0.2
DD
5.08
12
1.4 0.6
1.8
2.0
4.2
