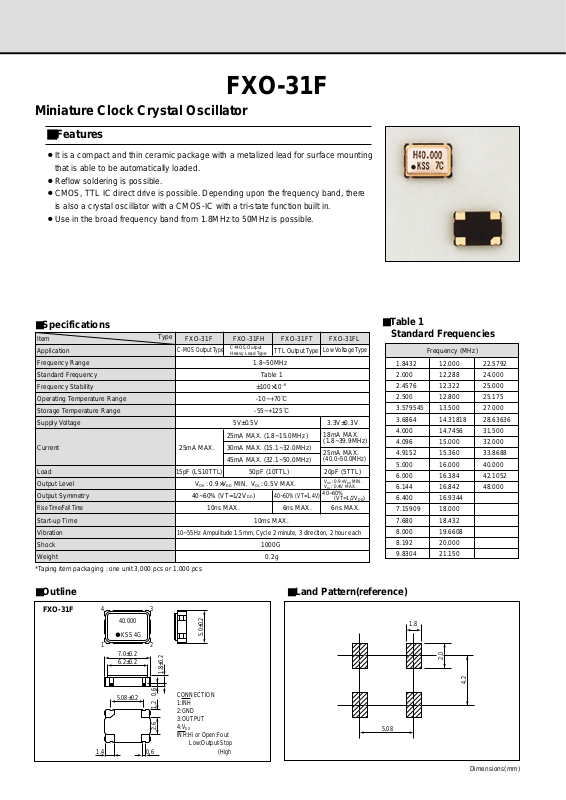

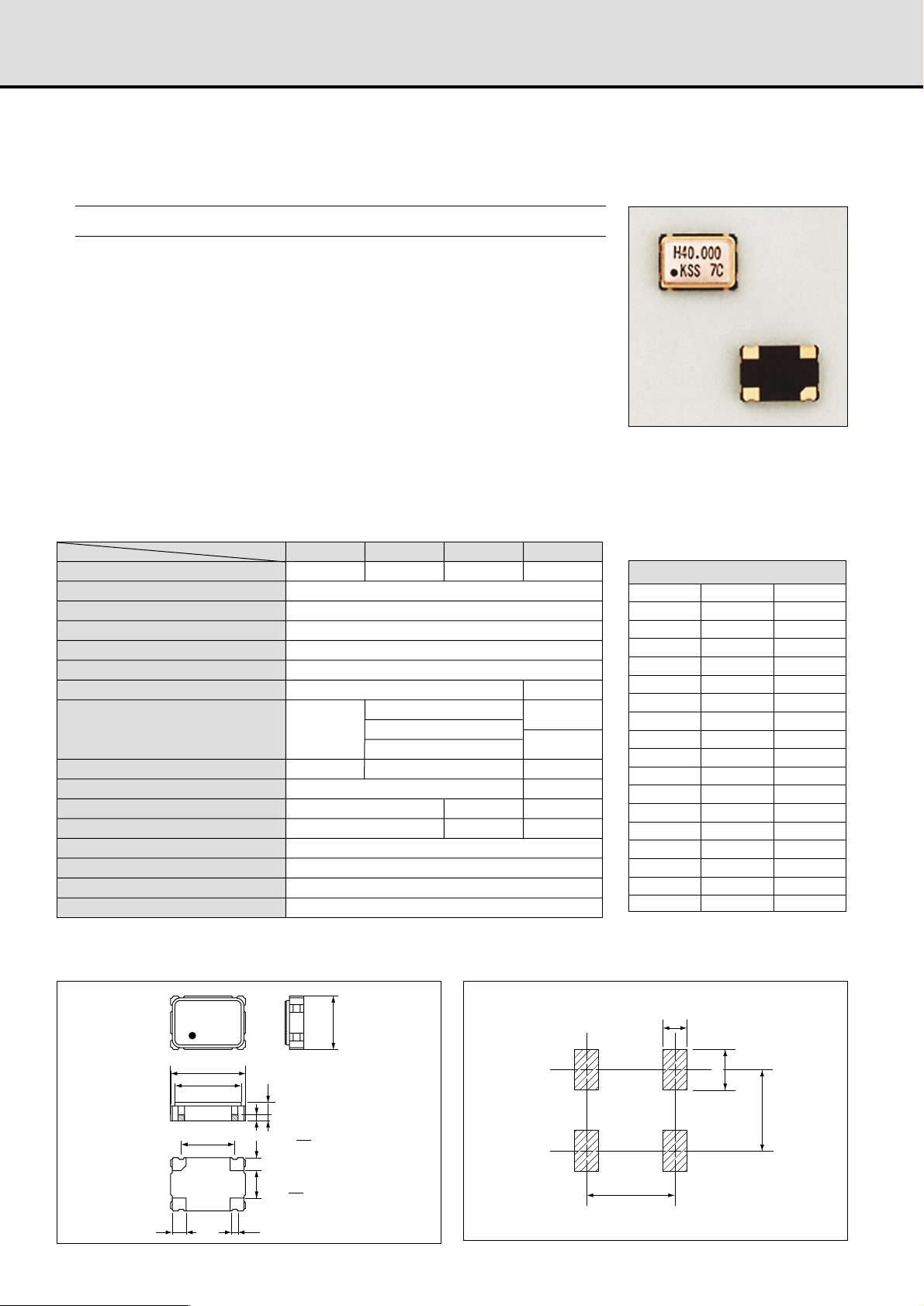

FXO-31F
Miniature Clock Crystal Oscillator
■Features
¡It is a compact and thin ceramic package with a metalized lead for surface mounting
that is able to be automatically loaded.
¡Reflow soldering is possible.
¡CMOS, TTL IC direct drive is possible. Depending upon the frequency band, there
is also a crystal oscillator with a CMOS-IC with a tri-state function built in.
¡Use in the broad frequency band from 1.8MHz to 50MHz is possible.
■Specifications
■Table 1
Standard Frequencies
■Outline ■Land Pattern(reference)
Item
Type
FXO-31F FXO-31FH FXO-31FT FXO-31FL
Application
Frequency Range 1.8~50MHz
Standard Frequency Table 1
Frequency Stability ±100×10
–6
Operating T emperature Range -10~+70:
Storage T emperature Range -55~+125:
Supply Voltage 5V±0.5V 3.3V±0.3V
25mA MAX. (1.8~15.0MHz)
Current 25mA MAX. 30mA MAX. (15.1~32.0MHz)
45mA MAX. (32.1~50.0MHz)
Load
15pF (LS10TTL)
50pF (10TTL) 20pF (5TTL)
Output Level V
OH
: 0.9×V
DD
MIN. V
OL
: 0.5V MAX.
Output Symmetry 40~60% (VT=1/2V
DD)
40~60% (VT=1.4V)
Rise Time/Fall Time
10ns MAX. 6ns MAX. 6ns MAX.
Start-up Time 10ms MAX.
Vibration
10~55Hz Ampulitude 1.5mm, Cycle 2 minute, 3 direction, 2 hour each
Shock 1000G
Weight 0.2g
V
OH
: 0.9×VDD MIN.
V
OL
: 0.4V MAX.
*Taping item packaging : one unit 3,000 pcs or 1,000 pcs
(VT=1/2VDD)
40~60%
18mA MAX.
(1.8~39.9MHz)
25mA MAX.
(40.0~50.0MHz)
C-MOS Output Type
Low Voltage Type
C-MOS Output
Heavy Load Type
TTL Output Type
Frequency (MHz)
1.8432 12.000 22.5792
2.000 12.288 24.000
2.4576 12.322 25.000
2.500 12.800 25.175
3.579545 13.500 27.000
3.6864 14.31818 28.63636
4.000 14.7456 31.500
4.096 15.000 32.000
4.9152 15.360 33.8688
5.000 16.000 40.000
6.000 16.384 42.1052
6.144 16.842 48.000
6.400 16.9344
7.15909 18.000
7.680 18.432
8.000 19.6608
8.192 20.000
9.8304 21.150
Dimensions(mm)
FXO-31F
34
40.000
KSS 4G
12
7.0±0.2
6.2±0.2
1.8±0.2
5.08±0.2
1.4 0.6
0.61.22.6
CONNECTION
1:INH
2:GND
3:OUTPUT
4:V
DD
INH:Hi or Open:Fout
Low:Output-Stop
(High
5.0±0.2
1.8
2.0
4.2
5.08
