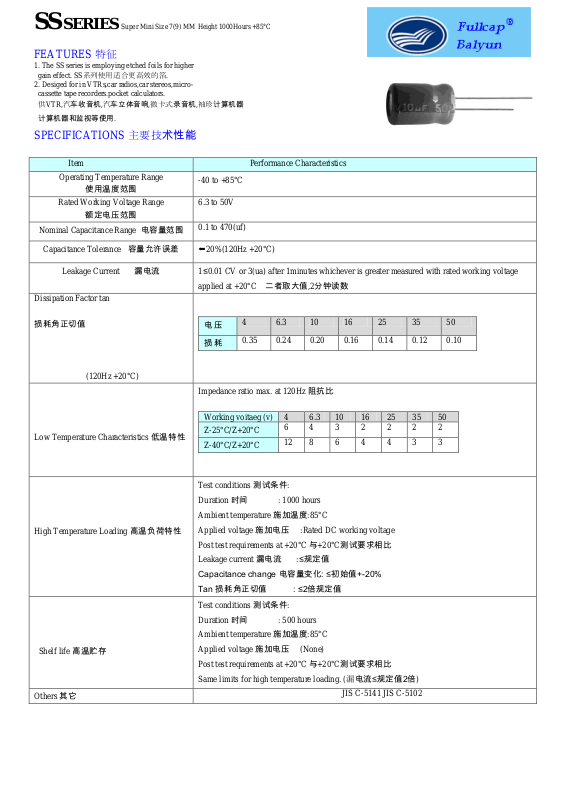

SS SERIES Super Mini Size 7(9) MM Height 1000Hours +85°C
Item
Performance Characteristics
Operating Temperature Range
使用温度范围
-40 to +85°C
Rated Working Voltage Range
额定电压范围
6.3 to 50V
Nominal Capacitance Range 电容量范围
0.1 to 470(uf)
Capacitance Tolerance 容量允许误差
20%(120Hz +20°C)
Leakage Current 漏电流
1≤0.01 CV or 3(ua) after 1minutes whichever is greater measured with rated working voltage
applied at +20°C 二者取大值,2分钟读数
Dissipation Factor tan
损耗角正切值
(120Hz +20°C)
电 压
4
6.3
10
16
25
35
50
损 耗
0.35
0.24
0.20
0.16
0.14
0.12
0.10
Low Temperature Characteristics 低温特性
Impedance ratio max. at 120Hz 阻抗比
Working voitaeg (v)
4
6.3
10
16
25
35
50
Z-25°C/Z+20°C
6
4
3
2
2
2
2
Z-40°C/Z+20°C
12
8
6
4
4
3
3
High Temperature Loading 高温负荷特性
Test conditions 测试条件:
Duration 时间 : 1000 hours
Ambient temperature 施加温度:85°C
Applied voltage 施加电压 :Rated DC working voltage
Post test requirements at +20°C 与+20°C测试要求相比
Leakage current 漏电流 :≤规定值
Capacitance change 电容量变化: ≤初始值+-20%
Tan 损耗角正切值 : ≤2倍规定值
Shelf life 高温贮存
Test conditions 测试条件:
Duration 时间 : 500 hours
Ambient temperature 施加温度:85°C
Applied voltage 施加电压 (None)
Post test requirements at +20°C 与+20°C测试要求相比
Same limits for high temperature loading. (漏电流≤规定值2倍)
Others 其它
JIS C-5141 JIS C-5102
FEATURES 特征
1. The SS series is employing etched foils for higher
gain effect. SS系列使用适合更高效的箔.
2. Desiged for in VTRs,car radios,car stereos,micro-
cassette tape recorders.pocket calculators.
供VTR,汽车收音机,汽车立体音响,微卡式录音机,袖珍计算机器
计算机器和监视等使用.
SPECIFICATIONS 主要技术性能
Page 2

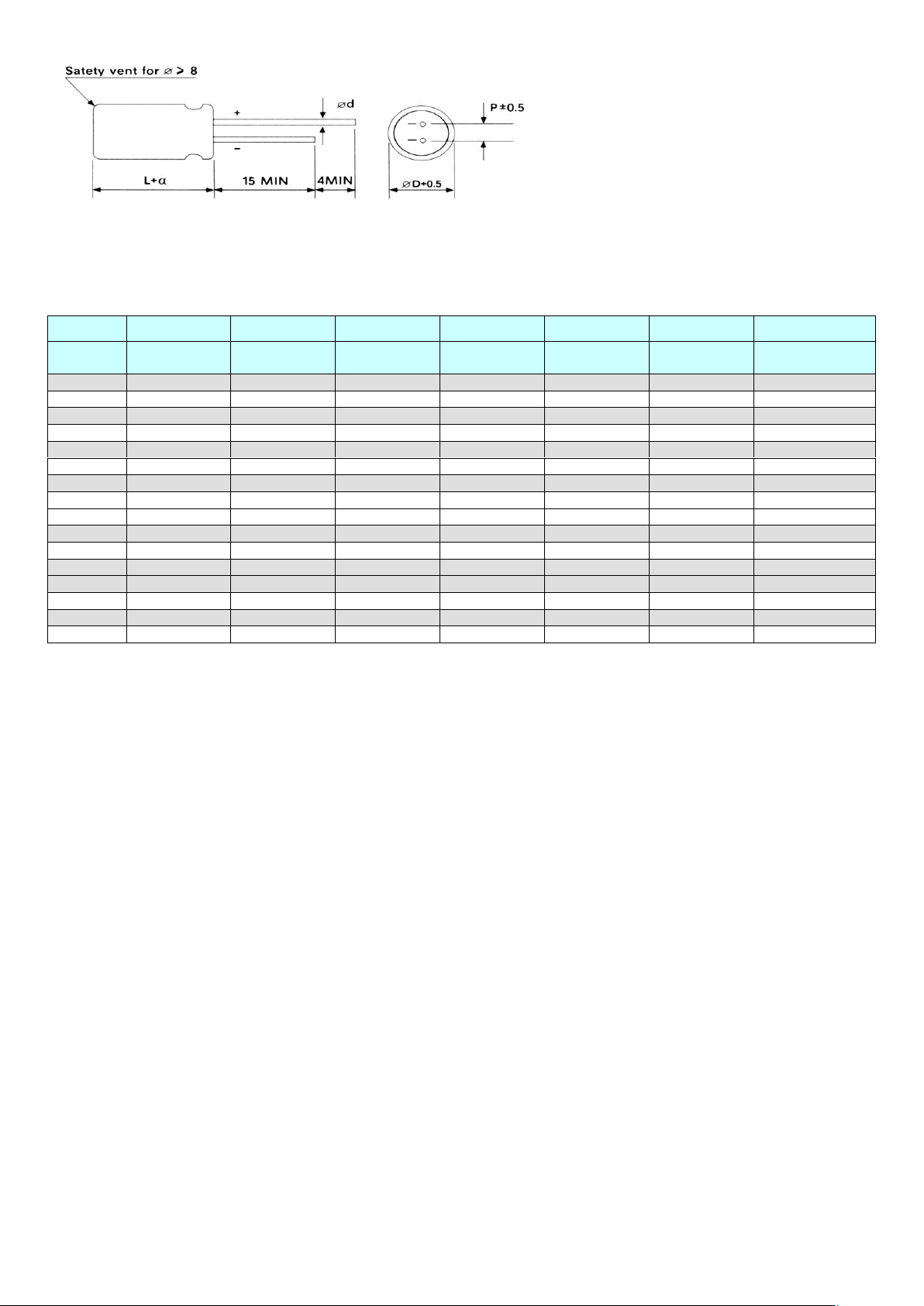

CASE SIZE TABLE 外形图及尺寸表 Unit:mm
电压
4V
6.3V
10V
16V
25V
35V
50V
容量
0G
0J
1A
1C
1E
1V
1H
0.1
4*5
0.22
4*5
0.33
4*5
0.47
4*5
1
4*5
2.2
4*5
4*5
3.3
4*5
4*5
4.7
4*5
4*5
4*5
10
4*5
4.5*5
5*5
8*5
22
4*5
4*5
5*5
5*5
6.3*5
6.3*5
33
5*5
5*5
5*5
6.3*5
6.3*5
8*5
47
5*5
5*5
6.3*5
6.3*5
8*5
100
6.3*5
6.3*5
220
6.3*5
8*5
330
8*5
8*5
470
Dimensions ΦDxL(mm)
