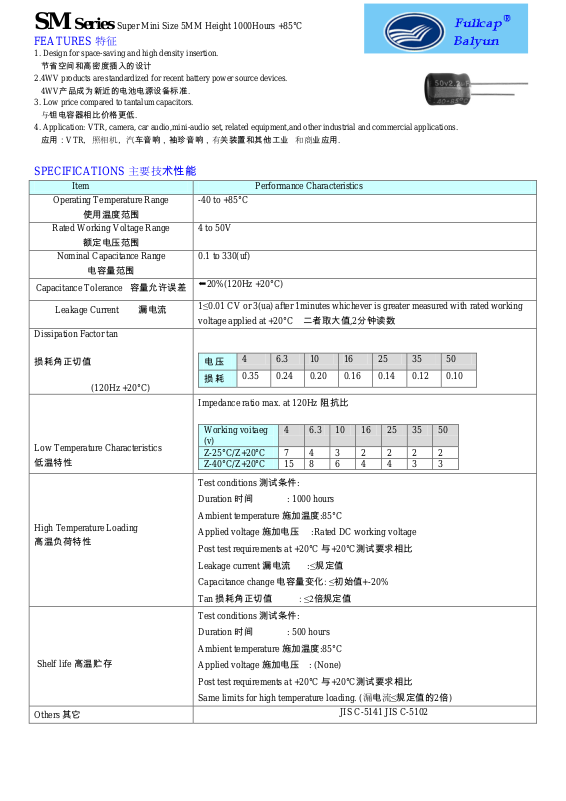

SM Series Super Mini Size 5MM Height 1000Hours +85°C
Item
Performance Characteristics
Operating Temperature Range
使用温度范围
-40 to +85°C
Rated Working Voltage Range
额定电压范围
4 to 50V
Nominal Capacitance Range
电容量范围
0.1 to 330(uf)
Capacitance Tolerance 容量允许误差
20%(120Hz +20°C)
Leakage Current 漏电流
1≤0.01 CV or 3(ua) after 1minutes whichever is greater measured with rated working
voltage applied at +20°C 二者取大值,2分钟读数
Dissipation Factor tan
损耗角正切值
(120Hz +20°C)
电 压
4
6.3
10
16
25
35
50
损 耗
0.35
0.24
0.20
0.16
0.14
0.12
0.10
Low Temperature Characteristics
低温特性
Impedance ratio max. at 120Hz 阻抗比
Working voitaeg
(v)
4
6.3
10
16
25
35
50
Z-25°C/Z+20°C
7
4
3
2
2
2
2
Z-40°C/Z+20°C
15
8
6
4
4
3
3
High Temperature Loading
高温负荷特性
Test conditions 测试条件:
Duration 时间 : 1000 hours
Ambient temperature 施加温度:85°C
Applied voltage 施加电压 :Rated DC working voltage
Post test requirements at +20°C 与+20°C测试要求相比
Leakage current 漏电流 :≤规定值
Capacitance change 电容量变化: ≤初始值+-20%
Tan 损耗角正切值 : ≤2倍规定值
Shelf life 高温贮存
Test conditions 测试条件:
Duration 时间 : 500 hours
Ambient temperature 施加温度:85°C
Applied voltage 施加电压 : (None)
Post test requirements at +20°C 与+20°C测试要求相比
Same limits for high temperature loading. (漏电流≤规定值的2倍)
Others 其它
JIS C-5141 JIS C-5102
FEATURES 特征
1. Design for space-saving and high density insertion.
节省空间和高密度插入的设计
2.4WV products are standardized for recent battery power source devices.
4WV产品成为新近的电池电源设备标准.
3. Low price compared to tantalum capacitors.
与钽电容器相比价格更低.
4. Application: VTR, camera, car audio,mini-audio set, related equipment,and other industrial and commercial applications.
应用：VTR，照相机，汽车音响，袖珍音响，有关装置和其他工业 和商业应用.
SPECIFICATIONS 主要技术性能
Page 2

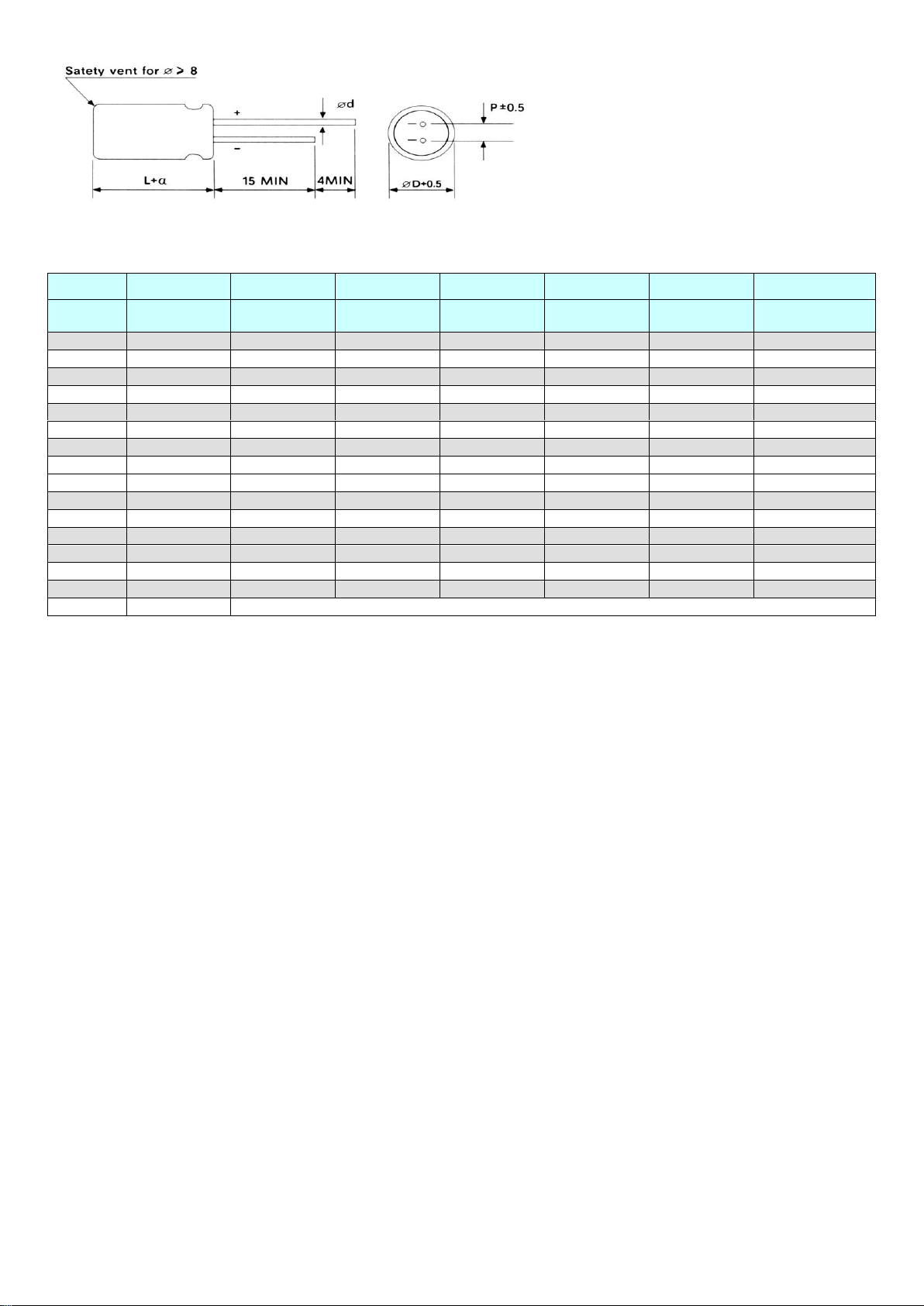

CASE SIZE TABLE 外形图及尺寸表 Unit:mm
电压
4V
6.3V
10V
16V
25V
35V
50V
容量
0G
0J
1A
1C
1E
1V
1H
0.1
4*5
0.22
4*5
0.33
4*5
0.47
4*5
1
4*5
2.2
3*5
4*5
3.3
3*5
4*5
4*5
4.7
3*5
4*5
4*5
5*5
10
3*5
4*5
5*5
5*5
6.3*5
22
3*5
4*5
5*5
4*5
6.3*5
6.3*5
8*5
33
4*5
4*5
5*5
5*5
6.3*5
8*5
8*5
47
4*5
5*5
6.3*5
6.3*5
8*5
8*5
100
5*5
6.3*5
8*5
8*5
8*5
220
6.3*5
8*5
8*5
330
8*5
8*5
470
Dimensions ΦDxL(mm)
