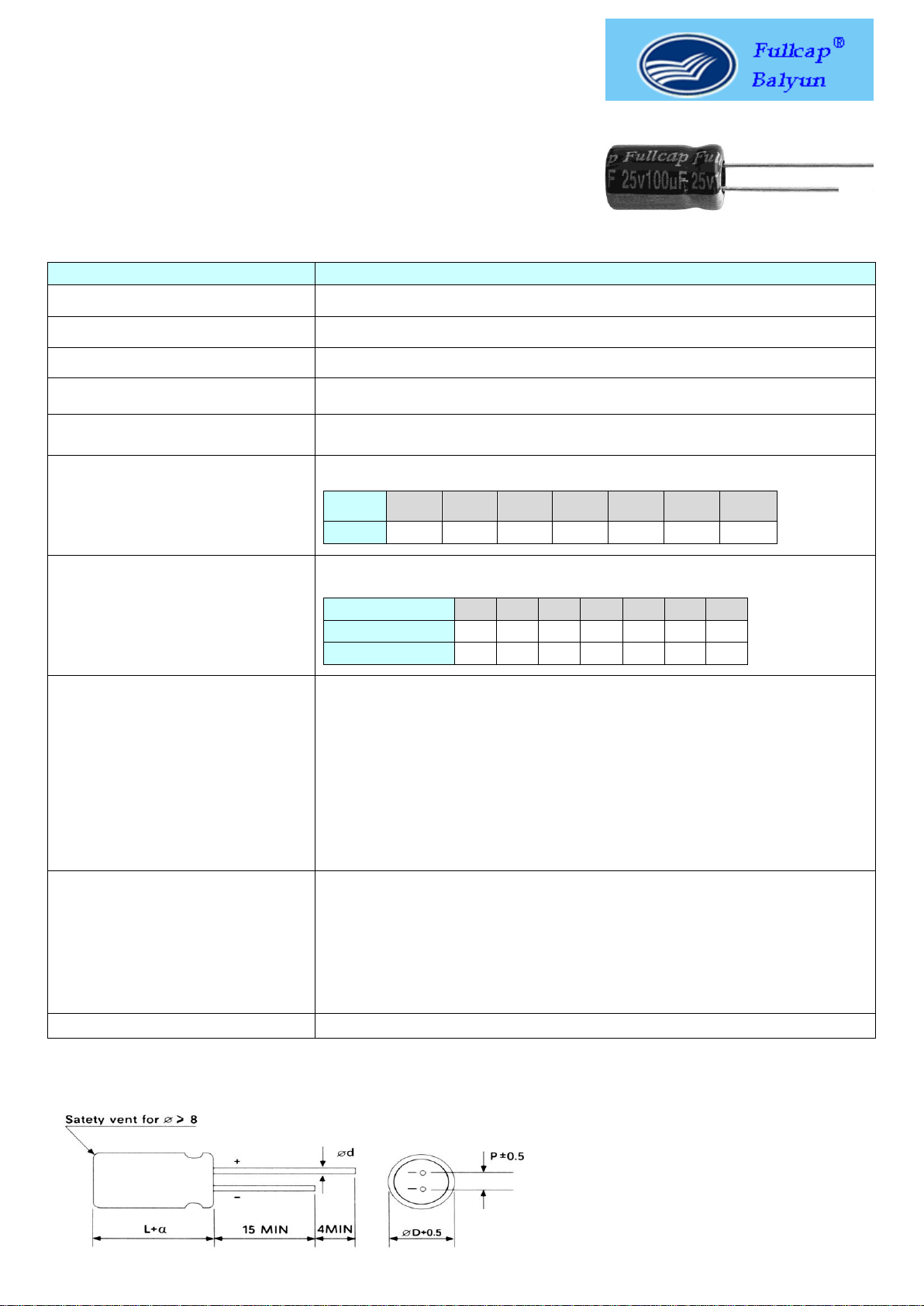

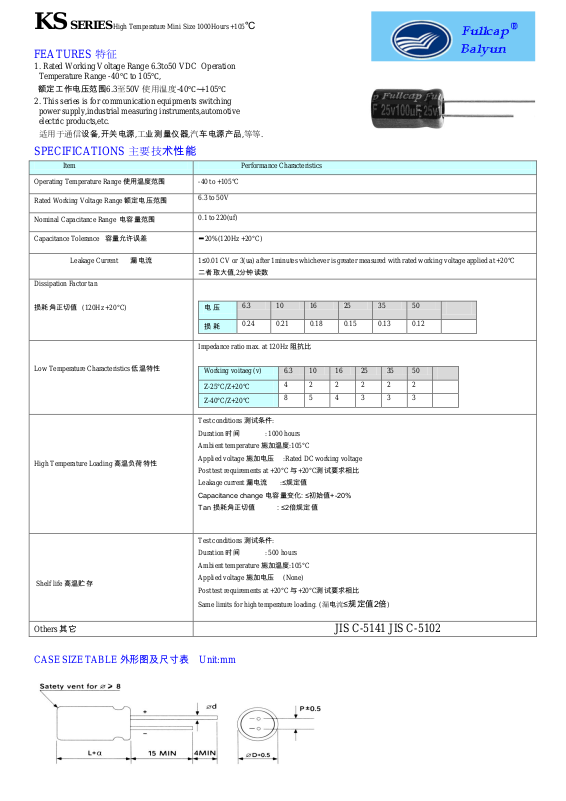

KS SERIES High Temperature Mini Size 1000Hours +105℃
Item
Performance Characteristics
Operating Temperature Range 使用温度范围
-40 to +105°C
Rated Working Voltage Range 额定电压范围
6.3 to 50V
Nominal Capacitance Range 电容量范围
0.1 to 220(uf)
Capacitance Tolerance 容量允许误差
20%(120Hz +20°C)
Leakage Current 漏电流
1≤0.01 CV or 3(ua) after 1minutes whichever is greater measured with rated working voltage applied at +20°C
二者取大值,2分钟读数
Dissipation Factor tan
损耗角正切值 (120Hz +20°C)
电 压
6.3
10
16
25
35
50
损 耗
0.24
0.21
0.18
0.15
0.13
0.12
Low Temperature Characteristics 低温特性
Impedance ratio max. at 120Hz 阻抗比
Working voitaeg (v)
6.3
10
16
25
35
50
Z-25°C/Z+20°C
4 2 2 2 2
2
Z-40°C/Z+20°C
8 5 4 3 3
3
High Temperature Loading 高温负荷特性
Test conditions 测试条件:
Duration 时间 : 1000 hours
Ambient temperature 施加温度:105°C
Applied voltage 施加电压 :Rated DC working voltage
Post test requirements at +20°C 与+20°C测试要求相比
Leakage current 漏电流 :≤规定值
Capacitance change 电容量变化: ≤初始值+-20%
Tan 损耗角正切值 : ≤2倍规定值
Shelf life 高温贮存
Test conditions 测试条件:
Duration 时间 : 500 hours
Ambient temperature 施加温度:105°C
Applied voltage 施加电压 (None)
Post test requirements at +20°C 与+20°C测试要求相比
Same limits for high temperature loading. (漏电流≤规定值2倍)
Others 其它
JIS C-5141 JIS C-5102
FEATURES 特征
1. Rated Working Voltage Range 6.3to50 VDC Operation
Temperature Range -40℃ to 105℃,
额定工作电压范围6.3至50V 使用温度-40℃~+105℃
2. This series is for communication equipments switching
power supply,industrial measuring instruments,automotive
electric products,etc.
适用于通信设备,开关电源,工业测量仪器,汽车电源产品,等等.
SPECIFICATIONS 主要技术性能
CASE SIZE TABLE 外形图及尺寸表 Unit:mm
Page 2
Dimensions ΦDxL(mm)
电压
6.3V
10V
16V
25V
35V
50V
容量
0J
1A
1C
1E
1V
1H
0.1
4*7
0.22
4*7
0.33
4*7
0.47
4*7
1
4*7
2.2
4*7
3.3
4*7
4.7
4*7
5*7
10
4*7
5*7
5*7
6.3*7
22
4*7
5*7
5*7
6.3*7
6.3*7
8*7
33
5*7
5*7
6.3*7
6.3*7
8*7
47
5*7
6.3*7
6.3*7
8*7
100
6.3*7
8*7
8*7
220
8*7
8*7
330
Allowable Ripple (mA rms)at 105℃ 120Hz
