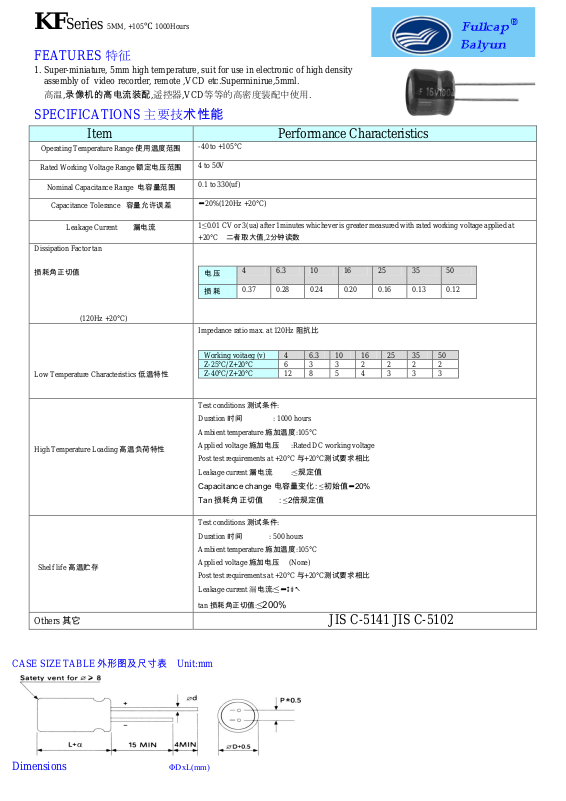

KFSeries 5MM, +105℃ 1000Hours
Item
Performance Characteristics
Operating Temperature Range 使用温度范围
-40 to +105°C
Rated Working Voltage Range 额定电压范围
4 to 50V
Nominal Capacitance Range 电容量范围
0.1 to 330(uf)
Capacitance Tolerance 容量允许误差
20%(120Hz +20°C)
Leakage Current 漏电流
1≤0.01 CV or 3(ua) after 1minutes whichever is greater measured with rated working voltage applied at
+20°C 二者取大值,2分钟读数
Dissipation Factor tan
损耗角正切值
(120Hz +20°C)
电 压
4
6.3
10
16
25
35
50
损 耗
0.37
0.28
0.24
0.20
0.16
0.13
0.12
Low Temperature Characteristics 低温特性
Impedance ratio max. at 120Hz 阻抗比
Working voitaeg (v)
4
6.3
10
16
25
35
50
Z-25°C/Z+20°C
6 3 3 2 2 2 2
Z-40°C/Z+20°C
12 8 5 4 3 3 3
High Temperature Loading 高温负荷特性
Test conditions 测试条件:
Duration 时间 : 1000 hours
Ambient temperature 施加温度:105°C
Applied voltage 施加电压 :Rated DC working voltage
Post test requirements at +20°C 与+20°C测试要求相比
Leakage current 漏电流 :≤规定值
Capacitance change 电容量变化: ≤初始值20%
Tan 损耗角正切值 : ≤2倍规定值
Shelf life 高温贮存
Test conditions 测试条件:
Duration 时间 : 500 hours
Ambient temperature 施加温度:105°C
Applied voltage 施加电压 (None)
Post test requirements at +20°C 与+20°C测试要求相比
Leakage current 漏电流:≤
tan 损耗角正切值:≤200%
Others 其它
JIS C-5141 JIS C-5102

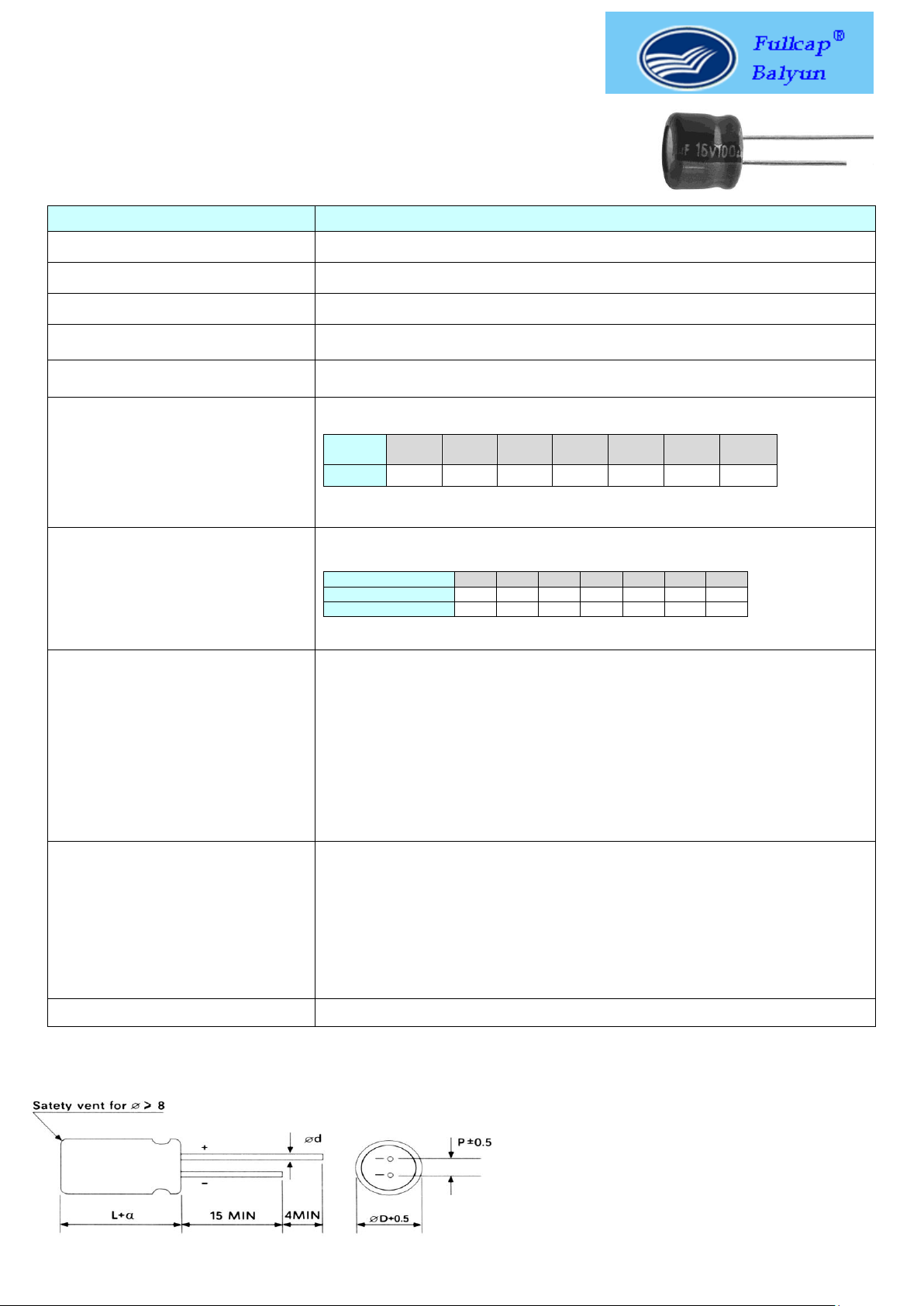

CASE SIZE TABLE 外形图及尺寸表 Unit:mm
Dimensions ΦDxL(mm)
FEATURES 特征
1. Super-miniature, 5mm high temperature, suit for use in electronic of high density
assembly of video recorder, remote ,VCD etc.Superminirue,5mml.
高温,录像机的高电流装配,遥控器,VCD等等的高密度装配中使用.
SPECIFICATIONS 主要技术性能
Page 2
电压
4V
6.3V
10V
16V
25V
35V
50V
容量
0G
0J
1A
1C
1E
1V
1H
0.1
4*5
0.22
4*5
0.33
4*5
0.47
4*5
1
4*5
2.2
4*5
4*5
3.3
4*5
4*5
4.7
4*5
4*5
4*5
10
4*5
4.5*5
5*5
6.3*5
22
4*5
4*5
5*5
5*5
6.3*5
6.3*5
8*5
33
5*5
5*5
5*5
6.3*5
6.3*5
8*5
47
5*5
5*5
6.3*5
6.3*5
8*5
100
6.3*5
6.3*5
220
6.3*5
8*5
330
8*5
8*5
470
