FST3126
Quad Bus Switch
FST3126 Quad Bus Switch
August 1997
Revised December 1999
General Description
The Fairchild Switch FST3126 provides four high-speed
CMOS TTL-compatible bus switches. The low on resistance of the switch allows inputs to be connect ed to outputs without adding propagation delay or generating
additional ground bounce noise.
The device is organized as four 1- bit switches with separate OE inputs. When OE is HIGH, the switch is ON and
Port A is connected to Port B. When OE is LOW, the switch
is OPEN and a high-impedan ce state exists between the
two ports.
Features
■ 4Ω switch connection between two ports.
■ Minimal propagation delay through the switch.
■ Low l
■ Zero bounce in flow-through mode.
■ Control inputs compatible with TTL level.
.
CC
Ordering Code:
Order Number Package Number Package Description
FST3126M M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow
FST3126QSC MQA16 16-Lead Quarter Size Outline Package (QSOP), JEDEC MO-137, 0.150 Wide
FST3126MTC MTC14 14-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
Devices also availab l e in Tape and Reel. Specify by appending the s uffix let te r “X” to the ordering code.
Logic Diagram
Connection Diagrams
Pin Assignment for SOIC and TSSOP
Pin Assignment for QSOP
Pin Descriptions
Pin Name Description
OE
, OE2, OE3, OE4Bus Switch Enables
1
1A, 2A, 3A, 4A Bus A
1B, 2B, 3B, 4B Bus B
NC Not Connected
© 1999 Fairchild Semiconductor Corporation DS500044 www.fairchildsemi.com
Truth Table
Inputs Inputs/Outputs
OE A,B
LZ
HA = B
Page 2
Absolute Maximum Ratings(Note 1) Recommended Operating
Supply Voltage (VCC) −0.5V to +7.0V
DC Switch Voltage (V
FST3126
DC Input Voltage (V
DC Input Diode Current (l
DC Output (I
DC V
OUT
/GND Current (ICC/I
CC
Storage Temperature Range (T
) −0.5V to +7.0V
S
) (Note 2) −0.5V to +7.0V
IN
) VIN<0V −50mA
IK
) Sink Current 128mA
) +/− 100mA
GND
) −65°C to +150 °C
STG
Conditions
Power Supply Operating (V
Input Voltage (V
Output Voltage (V
Input Rise and Fall Time (t
Switch Control Input 0nS/V to 5nS/V
Switch I/O 0nS/V to DC
Free Air Operating Temperature (T
Note 1: The “Absolute Maximum Ratings” are those values bey ond which
the safety of the d evice cannot be guaranteed. The device sh ould not be
operated at these limit s. The parametric values defin ed in the Electrical
Characteristics tables are not guaranteed at the absolute maximum rating.
The “Recomme nded O peratin g Cond itions ” table will defin e the condition s
for actual device operation.
Note 2: The input and output ne gative vo ltage ra tings may be excee ded if
the input and output diode current ratings are observed.
Note 3: Unused control inputs must be held high or low. They may not float.
(Note 3)
CC)
)0V to 5.5V
IN
)0V to 5.5V
OUT
, tf)
r
) −40 °C to +85 °C
A
DC Electrical Characteristics
V
Symbol Parameter
V
IK
V
IH
V
IL
I
I
I
OZ
R
ON
I
CC
∆I
Note 4: Typi c al values are at VCC = 5.0V and TA = +25°C
Note 5: Measured by the volta ge drop between A an d B pins at the indicated c urrent through the switch. On resistance is determined by the lower of the
voltages on the two (A or B) pins.
Clamp Diode Voltage 4.5 −1.2 V IIN = −18mA
HIGH Level Input Voltage 4.0–5.5 2.0 V
LOW Level Input Voltage 4.0–5.5 0.8 V
Input Leakage Current 5.5 ±1.0 µA0≤ VIN ≤5.5V
OFF-STATE Leakage Current 5.5 ±1.0 µA0 ≤A, B ≤V
Switch On Resistance 4.5 4 7 Ω VIN = 0V, IIN = 64mA
(Note 5) 4.5 4 7 Ω VIN = 0V, IIN = 30mA
Quiescent Supply Current 5.5 3 µAVIN = VCC or GND,
Increase in I
CC
per Input 5.5 2.5 mA One input at 3.4V.
CC
CC
(V)
4.5 8 15 Ω V
4.0 11 20 Ω V
TA = −40 °C to +85 °C
Min
Typ
(Note 4)
Max
Units Conditions
CC
= 2.4V, IIN = 15mA
IN
= 2.4V, IIN = 15mA
IN
I
= 0
OUT
Other inputs at VCC or GND
4.0V to 5.5V
www.fairchildsemi.com 2
Page 3
AC Electrical Characteristics
= −40 °C to +85 °C,
T
A
C
= 50pF, RU = RD = 500Ω
Symbol Parameter
L
= 4.5 − 5.5V VCC = 4.0V
V
CC
Units Conditions Figure No.
Min Max Min Max
t
PHL,tPLH
t
PZH
t
PHZ
Note 6: This par ameter is guar anteed by design but is not tested. The bus switch contr ibutes no propagation delay other than the RC delay of the typical On
resistance of the switch and the 50pF load c apacitance, when driven by an ideal voltage source (zero outp ut im pedance).
Prop Delay Bus to Bus (Note 6)
, t
Output Enable Time 1.0 4.5 5.0 ns VI = 7V for t
PZL
, t
Output Disable Time 1.5 5.7 6.2 ns VI = 7V for t
PLZ
0.25 0.25 ns
VI=OPEN Figure 1
PZL Figure 1
= OPEN for t
V
I
PLZ Figure 1
VI = OPEN for t
PZH
PHZ
Figure 2
Figure 2
Figure 2
Capacitance (Note 7)
Symbol Parameter Typ Max Units Conditions
C
IN
C
I/O
Note 7: TA = +25°C, f = 1 MHz, Ca pacitance is charac te riz ed but not tested.
Control Pin Input Capacitance 3 pF VCC = 5.0V
Input/Output Capacitance 5 pF VCC = 5.0V, OE = 0V
AC Loading and Waveforms
FST3126
Note: Input driven by 50 Ω source terminated in 50 Ω
includes load and stray capacitance
Note: C
L
Note: Input PRR = 1.0MHz, t
= 500ns
W
FIGURE 1. AC Test Circuit
FIGURE 2. AC Waveforms
3 www.fairchildsemi.com
Page 4
Physical Dimensions inches (millimeters) unless otherwise noted
FST3126

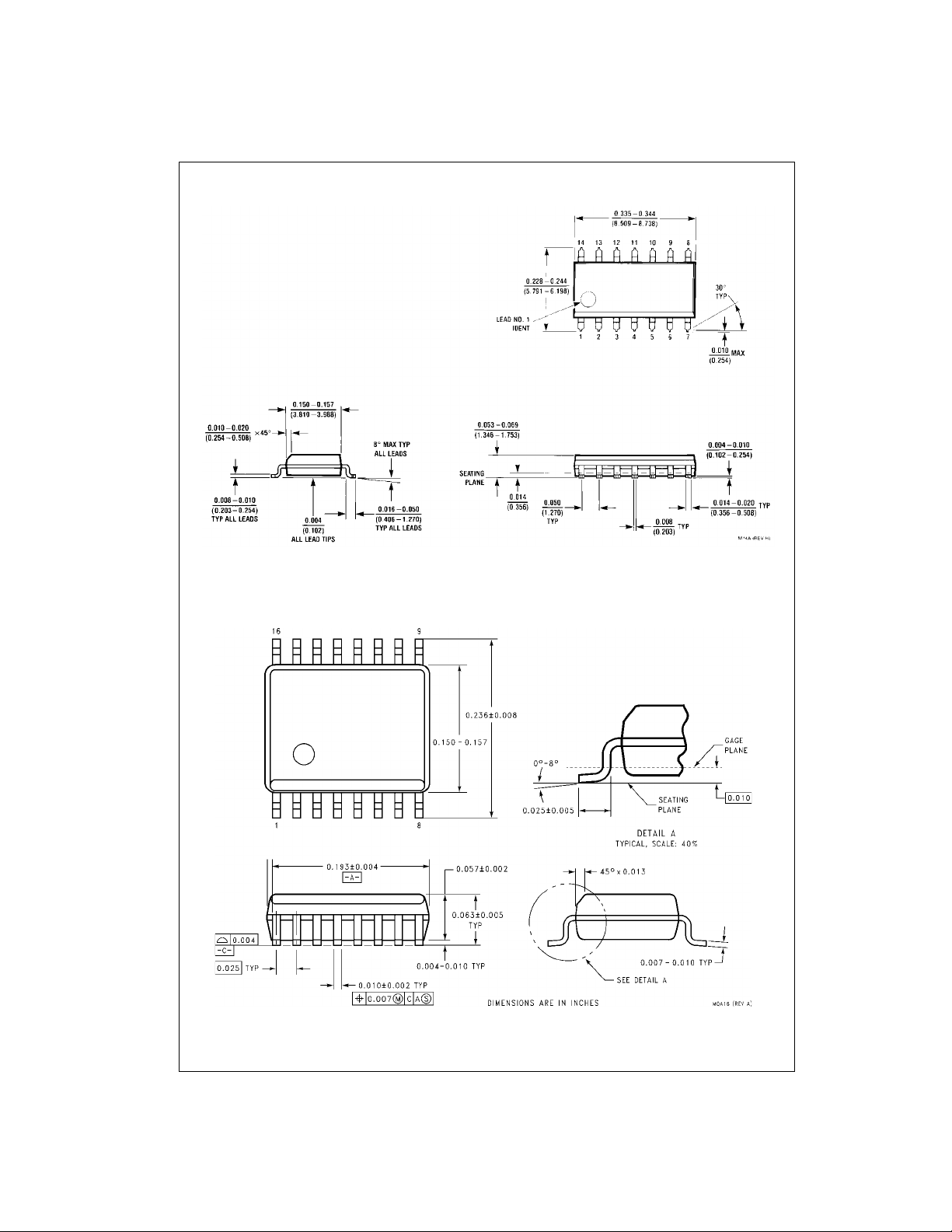

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150 Narrow
Package Number M14A
16-Lead Quarter Size Outline Package (QSOP), JEDEC MO-137, 0.150 Wide
www.fairchildsemi.com 4
Package Number MQA16
Page 5
Physical Dimensions inches (millimeters) unless otherwise noted (Continued)
FST3126
14-Lead Thin Shrin k Small Ou tlin e Pack age (TSSOP), JEDEC MO-153, 4.4mm Wide
Package Number MTC14
Technology Description
The Fairchild Switch family derives from and embodies Fairchild’s proven switch t echnology used for several years in it s
74LVX3L384 (FST3384) bus switch product.
5 www.fairchildsemi.com
Page 6
FST3126 Quad Bus Switch
Fairchild does not assume any responsibility for use of any circuitr y described, no circuit patent licenses are implied a nd
Fairchild reserves the right at any time without notice to change said circuitry and specifications.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are device s or syste ms
which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provided in the labeling, can be reasonably expected to result in a significant inju ry to the
user.
www.fairchildsemi.com 6
