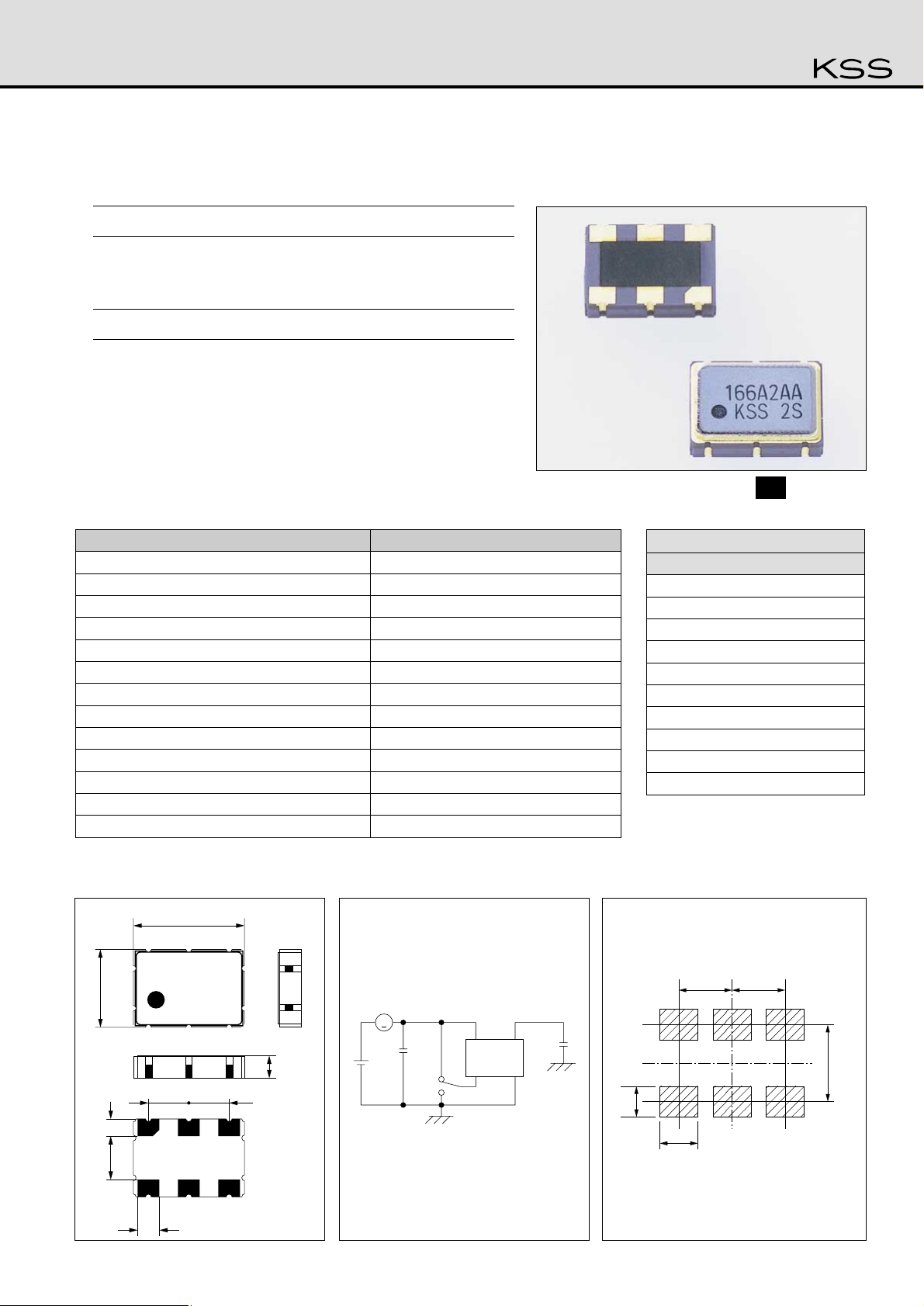

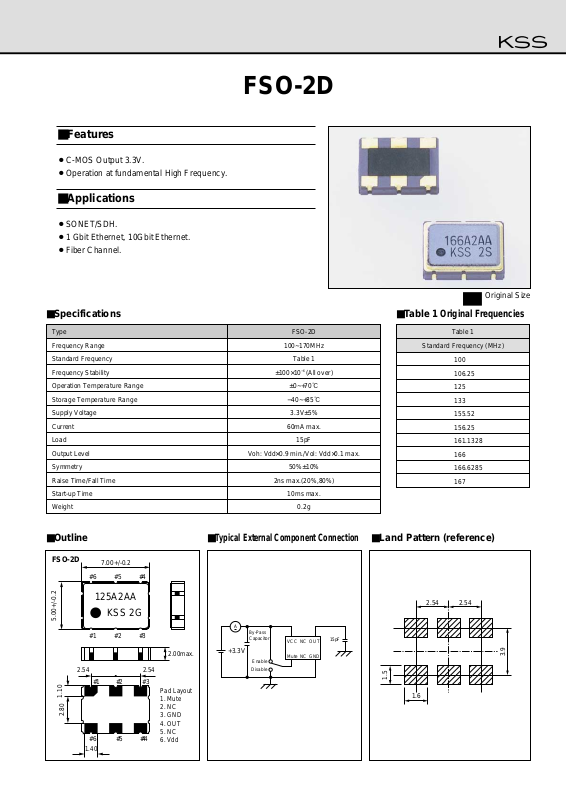

FSO-2D
■Features
¡C-MOS Output 3.3V.
¡Operation at fundamental High Frequency.
■Applications
¡SONET/SDH.
¡1 Gbit Ethernet, 10Gbit Ethernet.
¡Fiber Channel.
■Specifications
Type FSO-2D
Frequency Range
Standard Frequency
Frequency Stability
Operation Temperature Range
Storage Temperature Range
Supply Voltage
Current
Load
Output Level
Symmetry
Raise Time/Fall Time
Start-up Time
Weight
100~170MHz
Table 1
±100×10
−6
(All over)
±0~+70:
−40~+85:
3.3V±5%
60mA max.
15pF
Voh: Vdd×0.9 min./Vol: Vdd×0.1 max.
50%±10%
2ns max.(20%,80%)
10ms max.
0.2g
■Table 1
Original Frequencies
Table 1
Standard Frequency (MHz)
100
106.25
125
133
155.52
156.25
161.1328
166
166.6285
167
■Outline ■Land Pattern (reference)■
Typical External Component Connection
125A2AA
KSS 2G
1.40
2.54
2.00max.
Pad Layout
1. Mute
2. NC
3. GND
4. OUT
5. NC
6. Vdd
2.54
4
5.00+/-0.2
7.00+/-0.2
2.80
1.10
#6 #5 #4
#6 #5 #4
#1 #2 #3
#1 #2 #3
FSO-2D
Original Size
By-Pass
Capacitor
+3.3V
Enable
Disable
VCC NCAOUT
Mute NC GND
2.54 2.54
15pF
3.9
1.5
1.6
