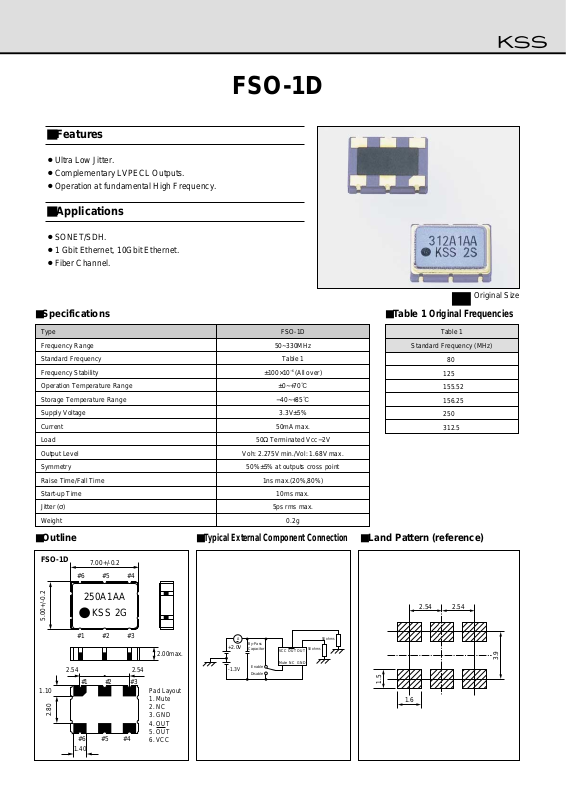

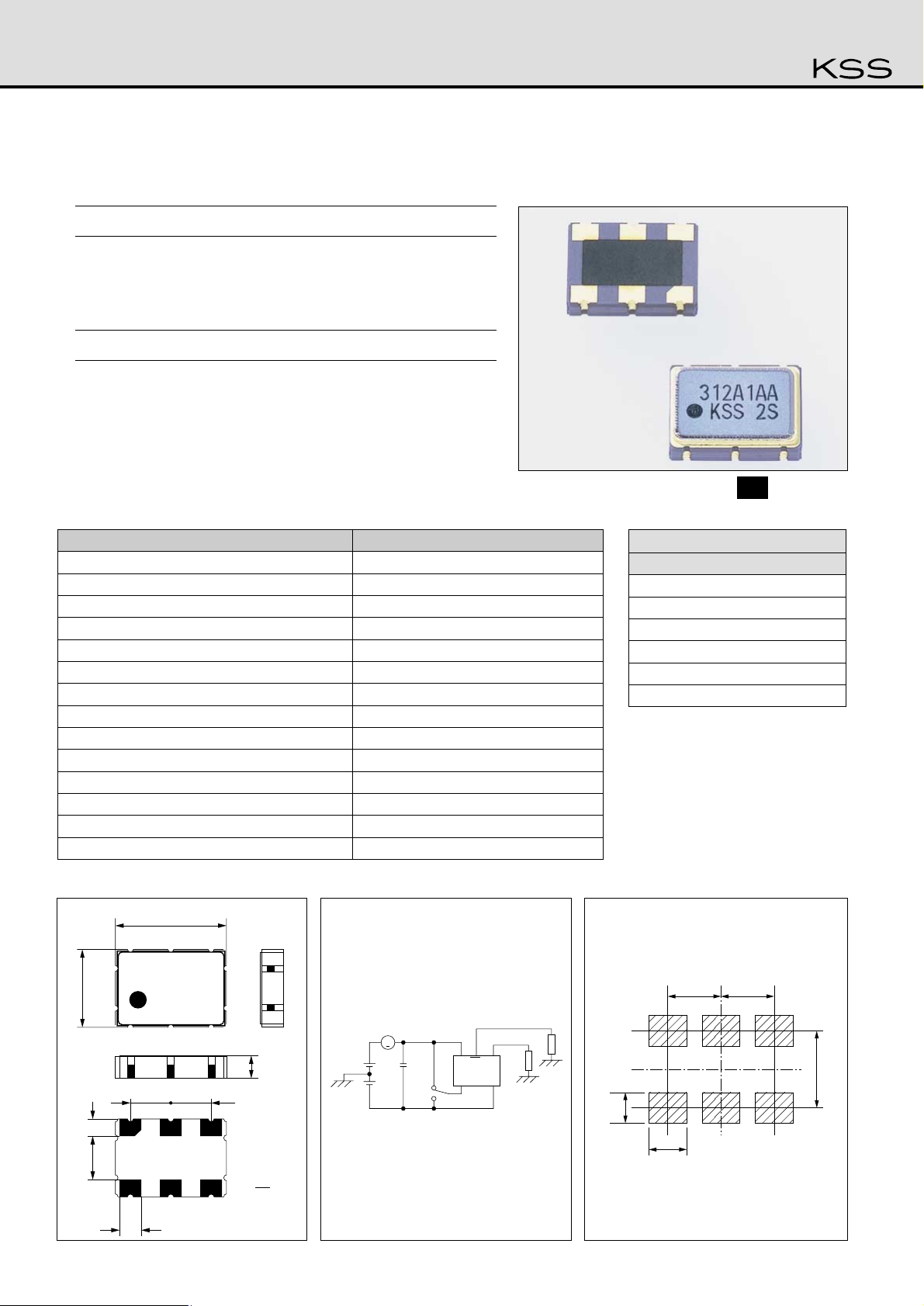

FSO-1D
■Features
¡Ultra Low Jitter.
¡Complementary LVPECL Outputs.
¡Operation at fundamental High Frequency.
■Applications
¡SONET/SDH.
¡1 Gbit Ethernet, 10Gbit Ethernet.
¡Fiber Channel.
■Specifications
Type FSO-1D
Frequency Range
Standard Frequency
Frequency Stability
Operation Temperature Range
Storage Temperature Range
Supply Voltage
Current
Load
Output Level
Symmetry
Raise Time/Fall Time
Start-up Time
Jitter (σ)
Weight
50~330MHz
Table 1
±100×10
−6
(All over)
±0~+70:
−40~+85:
3.3V±5%
50mA max.
50Ω Terminated Vcc−2V
Voh: 2.275V min./Vol: 1.68V max.
50%±5% at outputs cross point
1ns max.(20%,80%)
10ms max.
5ps rms max.
0.2g
■Table 1
Original Frequencies
Table 1
Standard Frequency (MHz)
80
125
155.52
156.25
250
312.5
■Outline ■Land Pattern (reference)■
Typical External Component Connection
250A1AA
KSS 2G
1.40
2.54
2.00max.
Pad Layout
1. Mute
2. NC
3. GND
4. OUT
5. OUT
6. VCC
2.54
5.00+/-0.2
7.00+/-0.2
2.80
1.10
#6 #5 #4
#6 #5 #4
#1 #2 #3
#1 #2 #3
FSO-1D
Original Size
By-Pass
+2.0V
Capacitor
Enable
-1.3V
Disable
VCC OUTAOUT
Mute NC GND
2.54 2.54
50 ohms
50 ohms
3.9
1.5
1.6
