SBD
Type :
FS
FSLLLL00005555AAAA015
FSFS
015
015015
OULINE DRAWING
FEATURES
FEATURES
FEATURESFEATURES
*Similar to TO-220AC Case
*Fully Molded Isolation
*Extremely Low Forward Voltage Drop
*Low Power Loss,High Efficiency
*High Surge Capability
Maximum Ratings
Rating Symbol
Repetitive Peak Reverse Voltage
Average Rectified Output Current IO 5
RMS Forward Current I
Surge Forward Current I
Operating JunctionTemperature Range Tjw -40 to +125
Storage Temperature Range T
Mounting torque Ftor recommended torque = 0.5 N•m
V
15
RRM
Tc=103°C
7.85
F(RMS)
130
FSM
-40 to +125
stg
50Hz Half Sine Wave ,1cycle
Non-repetitive
Approx Net Weight:
FSL05A015
50 Hz half Sine Wave
Resistive Load
1.7g
Unit
V
A
A
A
°C
°C
Electrical • Thermal Characteristics
Characteristics Symbol Conditions Min. Typ. Max. Unit
Peak Reverse Current IRM
Peak Forward Voltage VFM
Thermal Resistance
Rth(j-c) Junction to Case - - 5
Rth(c-f) Cace to Fin - - 1.5
Tj= 25°C, V
Tj= 25°C, I
RM
= V
FM
RRM
= 5 A
- - 5 mA
- - 0.38 V
/W
°C
/W
°C
Page 2

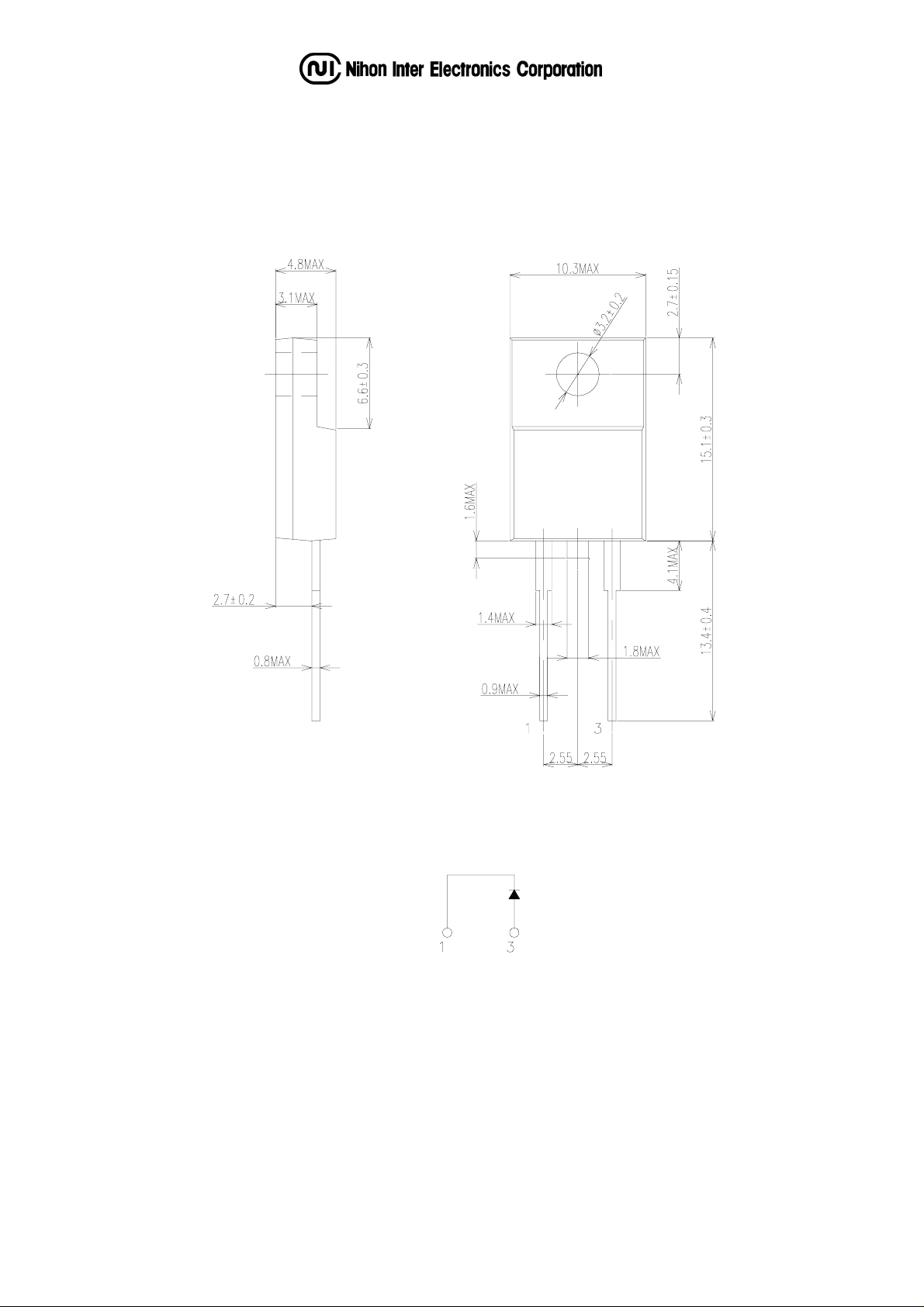

FSL05A015 OUTLINE DRAWING
(Dimention in mm)
