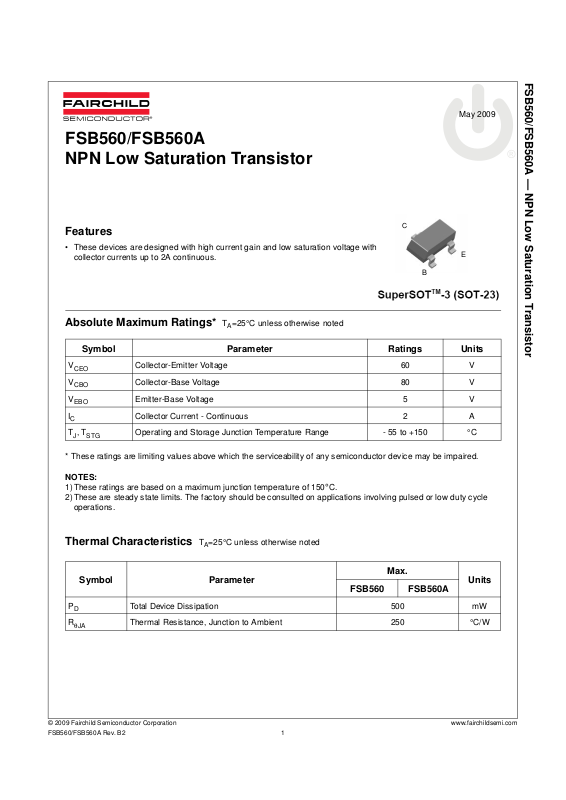

FSB560/FSB560A

NPN Low Saturation Transistor

Features

• These devices are designed with high current gain and low saturation voltage with collector currents up to 2A continuous.

FSB560/FSB560A — NPN Low Saturation Transistor

May 2009

Absolute Maximum Ratings* T

=25°C unless otherwise noted

Symbol Parameter Ratings Units

CEO

CBO

EBO

TJ, T

STG

* These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

NOTES:

1)These ratings are based on a maximum junction temperature of 150°C.

2)These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.

Thermal Characteristics T

Collector-Emitter Voltage 60 V

Collector-Base Voltage 80 V

Emitter-Base Voltage 5 V

Collector Current - Continuous 2 A

Operating and Storage Junction Temperature Range - 55 to +150 °C

=25°C unless otherwise noted

Max.

Symbol Parameter

Units

FSB560 FSB560A

θJA

FSB560/FSB560A Rev. B2 1

Total Device Dissipation 500 mW

Thermal Resistance, Junction to Ambient 250 °C/W

Page 2

FSB560/FSB560A — NPN Low Saturation Transistor

Electrical Characteristics T

=25°C unless otherwise noted

Symbol Parameter Test Conditions Min. Max. Units

Off Characteristics

CEO

CBO

EBO

CBO

EBO

On Characteristics*

VCE(sat) Collector-Emitter Saturation Voltage IC = 1A, IB = 100mA

VBE(sat) Base-Emitter Saturation Voltage IC = 1A, IB = 100mA 1.25 V

VBE(on) Base-Emitter On Voltage IC = 1A, VCE = 2V 1 V

Collector-Emitter Breakdown Voltage IC = 10mA 60 V

Collector-Base Breakdown Voltage IC = 100µA 80 V

Emitter-Base Breakdown Voltage IE = 100µA 5 V

Collector Cutoff Current VCB = 30V

VCB = 30V, TA = 100°C

10010nA

µA

Emitter Cutoff Current VEB = 4V 100 nA

DC Current Gain IC = 100mA, VCE = 2V

IC = 500mA, VCE = 2V FSB560 FSB560A IC = 1A, VCE = 2V IC = 2A, VCE = 2V

IC = 2A, IB = 200mA FSB560 FSB560A

70 100 250

300 550

300 350 300

mV mV mV

Small Signal Characteristics

obo

Output Capacitance VCB = 10V, IE = 0, f = 1MHz 30 pF

Transition Frequency IC = 100mA, VCE = 5V, f = 100MHz 75 MHz

* Pulse Test: Pulse Width ≤ 300µs, Duty Cycle ≤ 2.0%

FSB560/FSB560A Rev. B2 2

Page 3

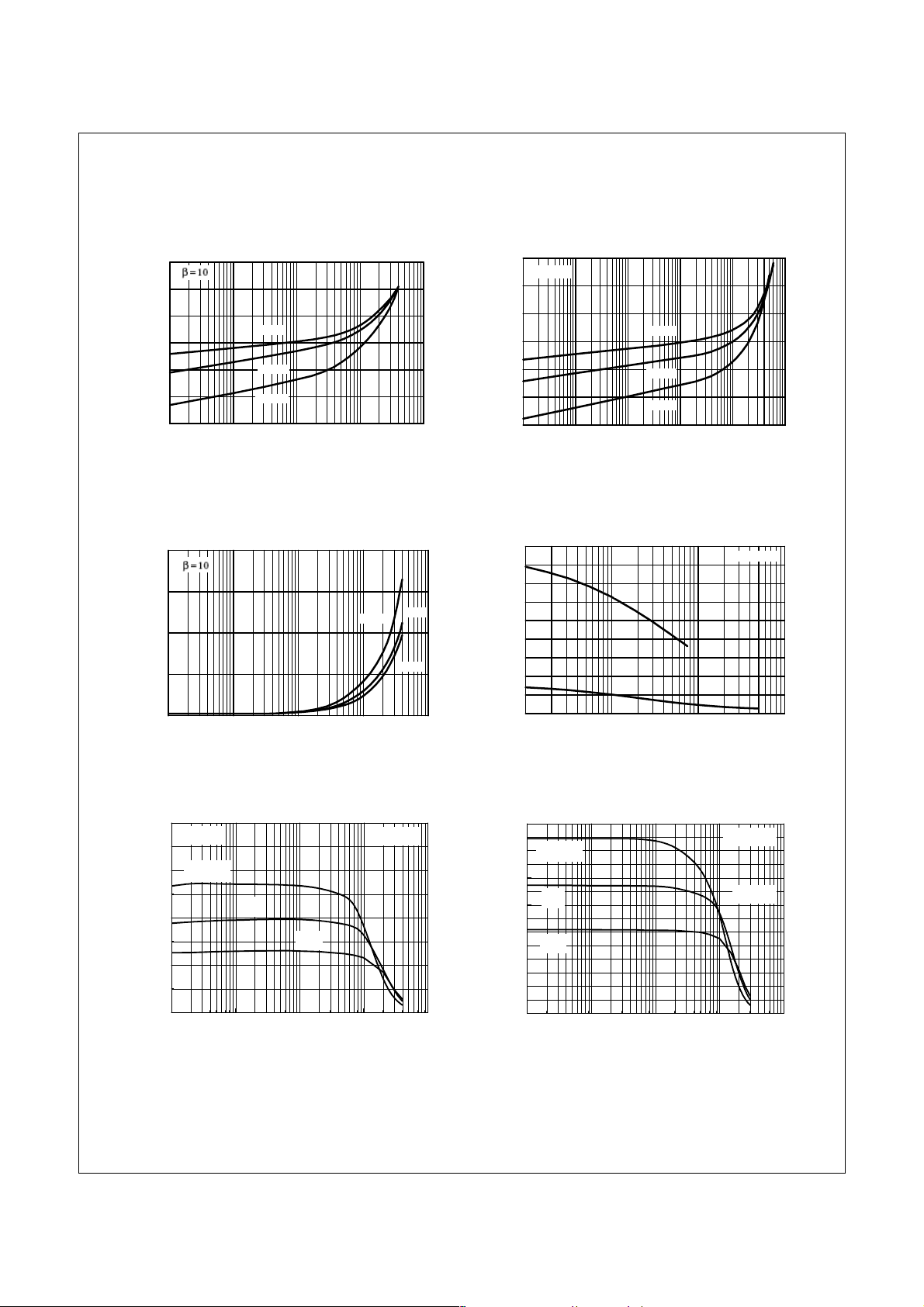

Typical Performance Characteristics

Base-Emitter Saturation

Voltage vs Collector Current

0.001 0.01 0.1 1 10

0.2

0.4

0.6

0.8

1.2

1.4

I - COLLECTOR CURRENT (A)

V -BASE-EMITTER SATURATION VOLTAGE(V)

ESAT

25 °C

- 40 °C

125 °C

β = 10

Base-Emitter On Voltage vs.

Collector Current

0.0001 0.001 0.01 0.1 1 10

0.2

0.4

0.6

0.8

1.2

1.4

I - COLLECTOR CURRENT (A)

V - BASE-EMITTER ON VOLTAGE (V)

BEON

25 °C

- 40 °C

125 °C

V = 2.0V

Collector-Emitter Saturation Voltage vs Collector Current

0.001 0.01 0.1 1 10

0.2

0.4

0.6

0.8

I - COLLECTOR CURRENT (mA)

V - COLLECTOR-EMITTER VOLTAGE (V)

CESAT

- 40°C

25°C

125°C

β = 10

(mA)

Input/Output Capacitance vs.

Reverse Bias Voltage

0.1 0.2 0.5 1 2 5 10 20 50 100

100

150

200

250

300

350

400

450

V - COLLECTOR VOLTAGE (V)

CAPACITANCE (pf)

f = 1.0 MHz

ibo

obo

0.001 0.010 0.100 1.000 10.000

100

200

300

400

FSB560

-40oC

VCE = 2 V

TA=150oC

25oC

- DC CURRENT GAIN

IC- COLLECTOR CURRENT [A]

0.001 0.010 0.100 1.000 10.000

100

200

300

400

500

600

700

FSB560A

-40oC

VCE = 2 V

TA=125oC

25oC

- DC CURRENT GAIN

IC- COLLECTOR CURRENT [A]

FSB560/FSB560A — NPN Low Saturation Transistor

Figure 1. Base-Emitter Saturation Voltage

vs Collector Current

Figure 3. Collector-Emitter Saturation Voltage

vs Collector Current

Figure 2. Base-Emitter On Voltage

vs Collector Current

Figure 4. Input/Output Capacitance

vs Reverse Bias Voltage

FSB560/FSB560A Rev. B2 3

Figure 5. Current Gain vs Collector Current Figure 6. Current Gain vs Collector Current

Page 4

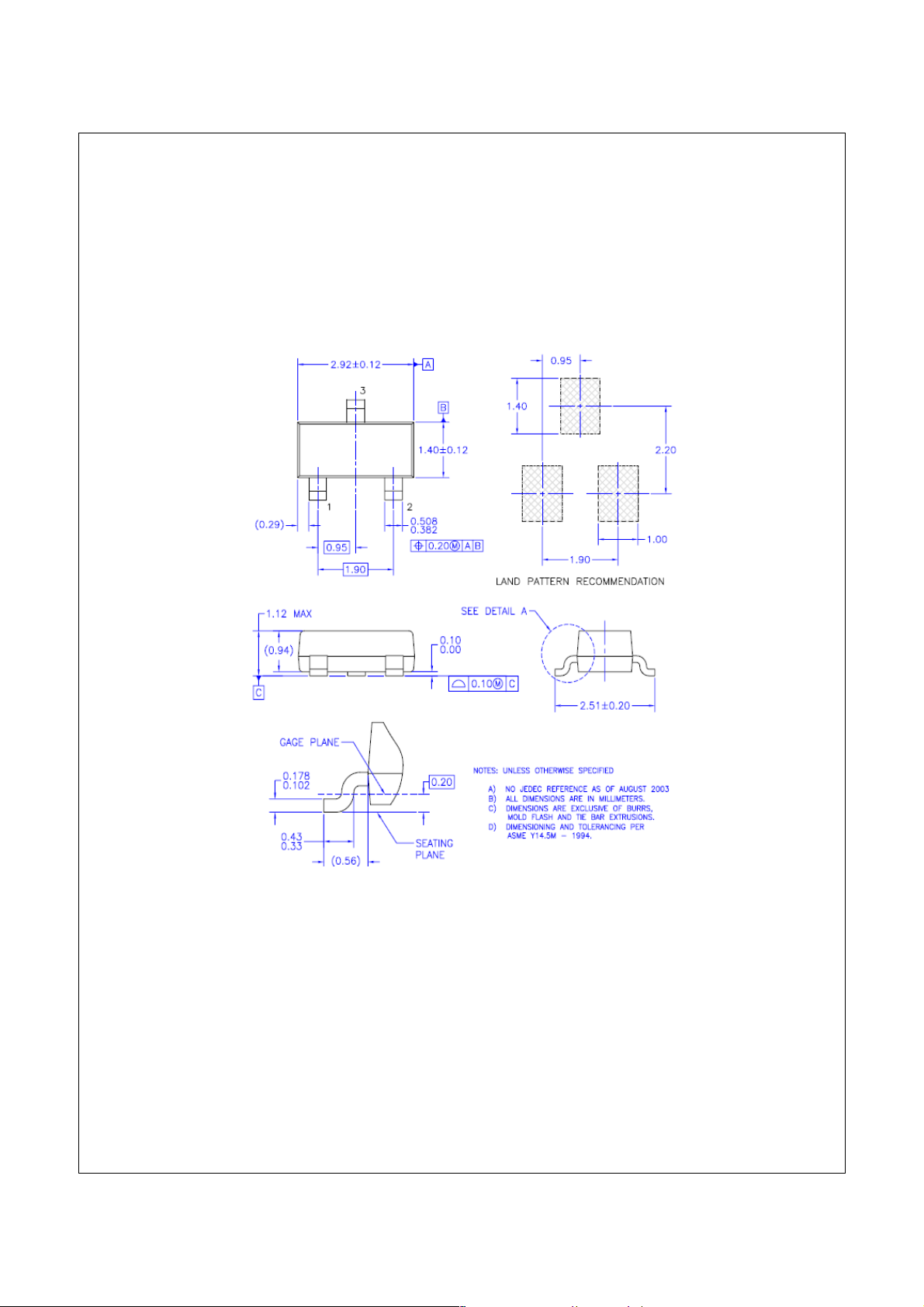

Physical Dimensions

SuperSOT-23

FSB560/FSB560A — NPN Low Saturation Transistor

FSB560/FSB560A Rev. B2 4
