1.0 Features

• Matches MK3727 center frequency characteristics

• Phase-locked loop (PLL) device synthesizes output

clock frequency from crystal oscillator or external reference clock

• On-chip tunable voltage-controlled crystal oscillator (VCXO) allows precise system frequency tuning

• 3.3V supply voltage

• Very low phase noise PLL

• Use with “pullable” 14pF crystals – no external pad-

ding capacitors required

• Small circuit board footprint (8-pin 0.150″ SOIC)

• Custom frequency selections available - contact your

local AMI Sales Representative for more information

PLL Clock Generator IC with VCXO

PLL Clock Generator IC with VCXOPLL Clock Generator IC with VCXO

2.0 Description

The FS6128 is a monolithic CMOS clock generator IC designed to minim ize cost a nd com ponen t coun t i n d igital video/audio systems.

At the core of the FS6128 is circu itry that implements a voltage-controlle d crystal oscillator (VCXO) when an external resonator (nominally 13.5MHz) is attached. The VCXO allows device f requenc ies to b e precis el y adjusted for use in systems that have frequency matching requirements, such as digital satellite receivers.

A high-resolution ph ase-locked loop gener ates an output clock (CLK) through a pos t-divider. T he CLK f requenc y is ratiometrically derived from the VCXO frequency. The locking of the CLK frequency to other s ystem reference frequencies can el iminate unpredicta ble artifacts in video systems and reduce electromagnetic interference (EMI) due to frequency harmonic stacking.

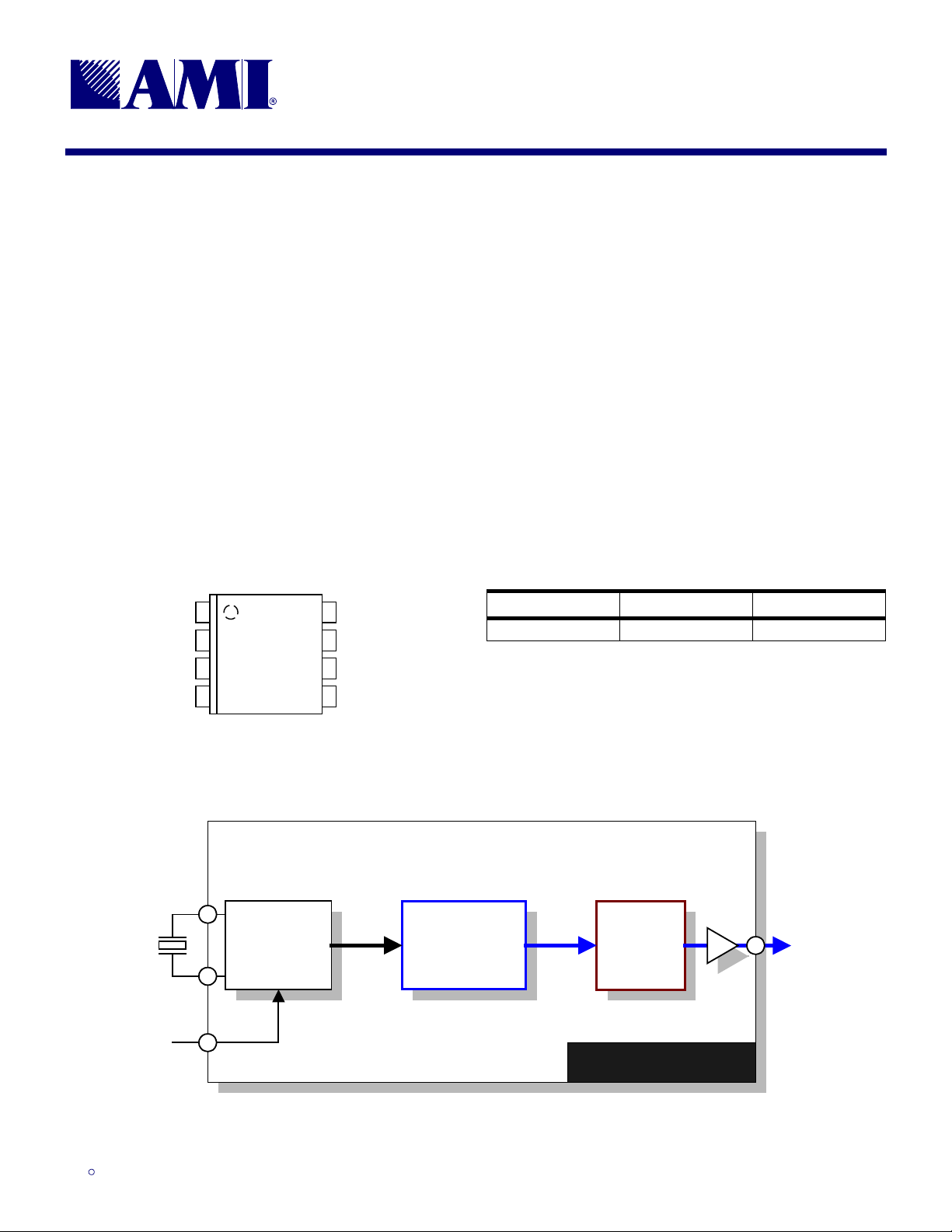

Figure 1: Pin Configuration

XIN

VDD

XTUNE

VSS

1 8

2

3

4

8-pin (0.150″) SOIC

FS6128-07

Figure 2: Block Diagram

XIN

VCXO

XOUT

7

6

5

XOUT VSS VDD CLK

Table 1: Crystal / Output Frequencies

DEVICE f

FS6128-07 13.500 27.000

NOTE: Contact AMI for custom PLL frequencies

PLL

DIVIDER

(MHz) CLK (M Hz)

XIN

CLK

XTUNE

FS6128-07
