Datasheet FRS1B-S-DC12V, FRS1B-S-DC24V Specification

FRS1

RELAY

Subminiature SPDT RELAY

FEATURES

Low coil power consumption

Small size and low cost

PCB mounting, DIL pitch terminal

Standard and high sensitive operation use

Dust cover or sealed type

Recognized File No: E141516(N)

C

SPECIFICATIONS

COIL RATING

RATED

VOLTAGE

(V DC)

3202545
5 56 70 120 FRS1(K)B: 0.45
6 80 100 180 75 Max. 10 Min. 110 Max. FRS1(K) : 0.36

9 180 220 400 FRS1(K)H: 0.20
12 320 400 700
24 1280 1600 2800

COIL RESISTANCE

Ω +/- 10 %

FRS1(K)B FRS1(K) FRS1(K)H

MUST OPERATE

VOLTAGE

% OF RATED VOLTAGE (AT +20oC)

MUST DROPOUT

VOLTAGE

MAXIMUM
VOLTAGE

CONSUMPTION

POWER

(W)

CHARACTERISTICS

Contact Arrangement 1 Form C (SPDT )
Contact Material Silver Alloy (Gold Flash)

Contact Resistance 50mΩ Max.

1A 125VAC / 30VDC

Contact Rating (Resistive Load)

Switching Voltage DC60V Max. AC220V Max.
Operate Time (Initial) 5ms Max.
Release Time (Initial) 5ms Max.

Insulation Resistance 100MΩ Min. ( 500V DC)

Dielectric Strength

Shock Resistance 10g Approx.
Vibration 10-55Hz, Double Amplitude 1.5mm
Ambient Temperature

Operation Life

Weight 4g Approx.

[Specifications are subject to change without notices.]

2A 125VAC / 30VDC
3A 125VAC / 30VDC
5A 125VAC / 30VDC (Only available for "B" type -- 0.45W)

500Vrms, 1 minute between open contacts
500Vrms, 1 minute between coil and contact

o

-25

C to +75oC
Mechanical : 10
Electrical : 10

7

5

FORWARD INDUSTRIAL COMPANY.

RM. 1405, Wu Sang House, 655 Nathan Road, Mongkok, Kowloon, Hong Kong.

TEL : [phone] FAX : [phone] E-MAIL : [e-mail] WEBSITE : http://www.ficrelay.com.hk

(O/B COMMERCIAL UNION LTD)

FRS1 RELAY

ORDERING INFORMATION

FRS1 H - S 3 - DC12V

RATED VOLTAGE

NIL: 1AMP

CONTACT RATING

NIL : HAND SOLDER
S : SEALED TYPE

NIL : 0.36W
B : 0.45W (AVAILABLE WITH 5AMP)
H : 0.2W HIGH SENSITIVE

RELAY MODEL
FRS1
FRS1K

2 : 2AMP
3 : 3AMP
5 : 5AMP

(For "B" TYPE ONLY)

Note : Pb-Free and RoHS compliant relays are available.
For ordering, please add suffix "Pb-Free" or "RoHS" to standard relay part numbers.

For example : FRS1-S3 DC 12V "Pb-Free" for Pb-Free Relay
For example : FRS1-S3 DC 12V "RoHS" for RoHS Compliance Relay

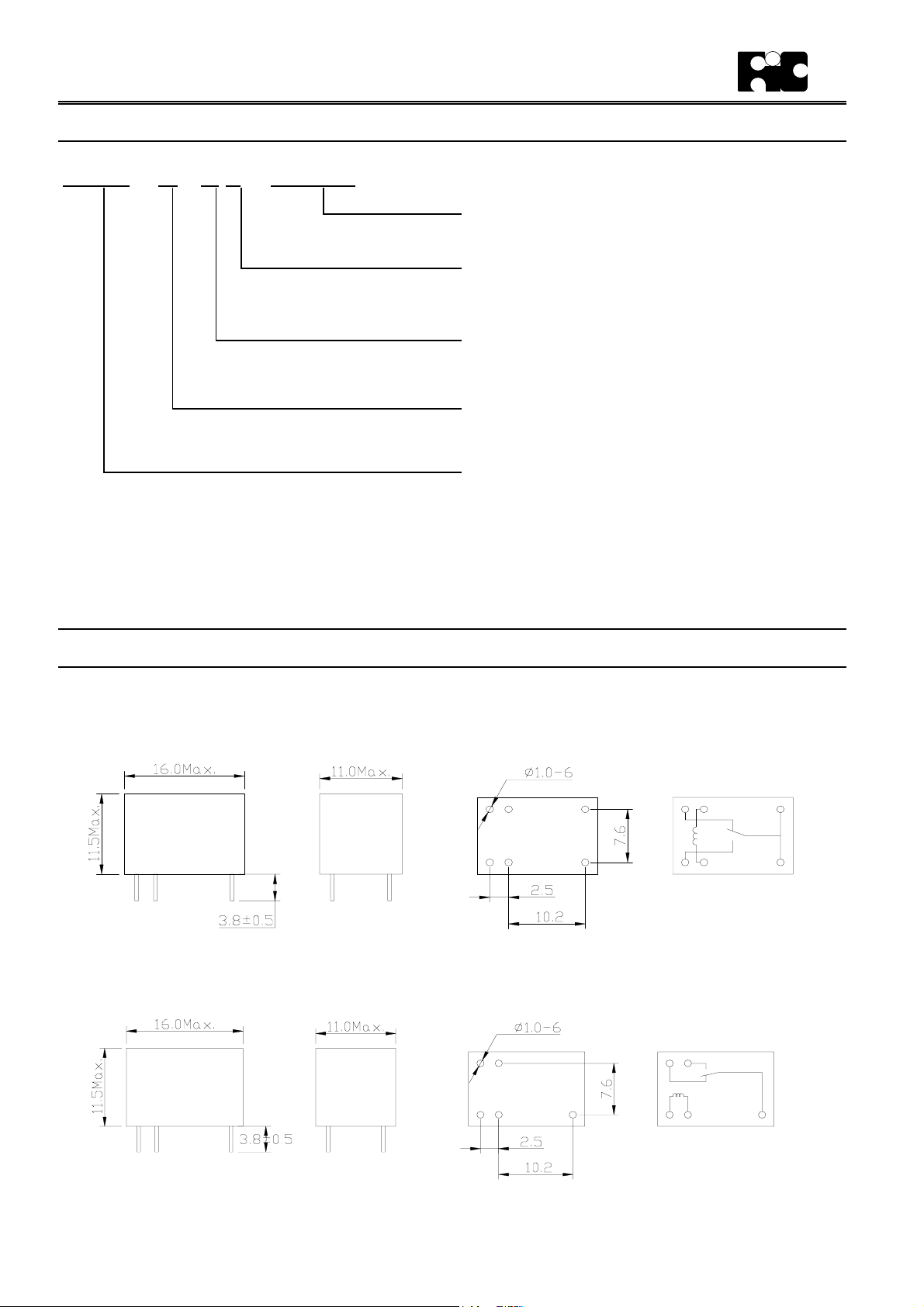

DIMENSIONS (UNIT:mm)

FRS1

MOUNTING HOLES

TERMIN AL
ARRANGEMENT
(BOTTOM VIEW )

FRS1K

MOUNTING HOLES

TER MINAL
ARRANGEMENT
(BOTTOM VIEW)
