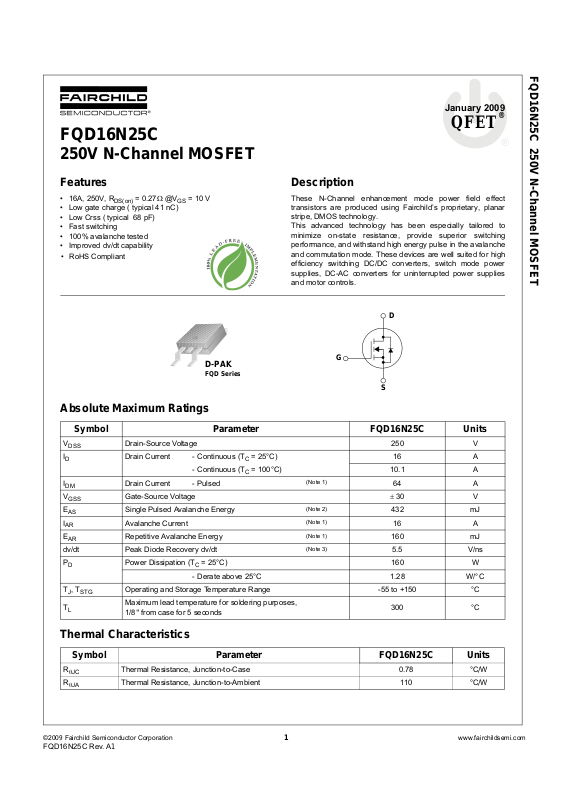

FQD16N25C 250V N-Channel MOSFET
FQD16N25C
250V N-Channel MOSFET
Features
• 16A, 250V, R
• Low gate charge ( typical 41 nC)
• Low Crss ( typical 68 pF)
•Fast switching
• 100% avalanche tested
• Improved dv/dt capability
• RoHS Compliant
= 0.27Ω @VGS = 10 V
DS(on)
D-PAK
FQD Series
January 2009
QFET
Description
These N-Channel enhancement mode power field effect
transistors are produced using Fairchild’s proprietary, planar
stripe, DMOS technology.
This advanced technology has been especially tailored to
minimize on-state resistance, provide superior switching
performance, and withstand high energy pulse in the avalanche
and commutation mode. These devices are well suited for high
efficiency switching DC/DC converters, switch mode power
supplies, DC-AC converters for uninterrupted power supplies
and motor controls.
D
G
S
®
Absolute Maximum Ratings
Symbol Parameter FQD16N25C Units
V
DSS
I
D
I
DM
V
GSS
E
AS
I
AR
E
AR
dv/dt Peak Diode Recovery dv/dt
P
D
T
, T
J
STG
T
L
Drain-Source Voltage 250 V
Drain Current - Continuous (TC = 25°C) 16 A
- Continuous (T
Drain Current - Pulsed
Gate-Source Voltage ± 30 V
Single Pulsed Avalanche Energy
Avalanche Current
Repetitive Avalanche Energy
Power Dissipation (TC = 25°C) 160 W
- Derate above 25°C 1.28 W/°C
Operating and Storage Temperature Range -55 to +150 °C
Maximum lead temperature for soldering purposes,
1/8" from case for 5 seconds
= 100°C) 10.1 A
C
(Note 1)
(Note 2)
(Note 1)
(Note 1)
(Note 3)
64 A
432 mJ
16 A
160 mJ
5.5 V/ns
300 °C
Thermal Characteristics
Symbol Parameter FQD16N25C Units
R
θJC
R
θJA
Thermal Resistance, Junction-to-Case 0.78 °C/W
Thermal Resistance, Junction-to-Ambient 110 °C/W
©2009 Fairchild Semiconductor Corporation 1 www.fairchildsemi.com
FQD16N25C Rev. A1
Page 2
Package Marking and Ordering Information
Device Marking Device Package Reel Size Tape Width Quantity
FQD16N25C FQD16N25CTM D-PAK 380mm 16mm 2,500
FQD16N25C FQD16N25CTF D-PAK 380mm 16mm 2,000
FQD16N25C 250V N-Channel MOSFET
Electrical Characteristics T
= 25°C unless otherwise noted
C
Symbol Parameter Test Conditions Min Typ Max Units
Off Characteristics
BV
DSS
∆BV
∆T
J
I
DSS
I
GSSF
I
GSSR
On Characteristics
V
GS(th)
R
DS(on)
g
FS
Dynamic Characteristics
C
iss
C
oss
C
rss
Switching Characteristics
t
d(on)
t
r
t
d(off)
t
f
Q
g
Q
gs
Q
gd
Drain-Source Diode Characteristics and Maximum Ratings
I
S
I
SM
V
SD
t
rr
Q
rr
NOTES:
1. Repetitive Rating : Pulse width limited by maximum junction temperature
2. L = 2.7mH, IAS = 16A, VDD = 50V, RG = 25 Ω, Starting TJ = 25°C
3. ISD ≤ 16A, di/dt ≤300A/µs, VDD ≤ BV
4. Pulse Test : Pulse width ≤ 300µs, Duty cycle ≤ 2%
5. Essentially independent of operating temperature
Drain-Source Breakdown Voltage VGS = 0 V, ID = 250 µA 250 -- -- V
/
DSS
Breakdown Voltage Temperature Coefficient ID = 250 µA, Referenced to 25°C -- 0.31 -- V/°C
Zero Gate Voltage Drain Current VDS = 250 V, VGS = 0 V -- -- 10 µA
V
= 200 V, TC = 125°C -- -- 100 µA
DS
Gate-Body Leakage Current, Forward VGS = 30 V, VDS = 0 V -- -- 100 nA
Gate-Body Leakage Current, Reverse VGS = -30 V, VDS = 0 V -- -- -100 nA
Gate Threshold Voltage VDS = VGS, ID = 250 µA2.0--4.0V
Static Drain-Source On-Resistance VGS = 10 V, ID = 8A -- 0.22 0.27 Ω
Forward Transconductance VDS = 40 V, ID =8 A (Note 4) -- 10.5 -- S
Input Capacitance VDS = 25 V, VGS = 0 V,
Output Capacitance -- 170 220 pF
Reverse Transfer Capacitance -- 68 89 pF
f = 1.0 MHz
Turn-O n Delay Time VDD = 125 V, ID = 16A,
R
= 25 Ω
Turn-O n Rise Time --
Turn-Off Delay Time --
G
(Note 4, 5)
Turn-Off Fall Time --
Total Gate Charge VDS = 200 V, ID = 16A,
= 10 V
V
Gate-Source Charge --
Gate-Drain Charge --
GS
(Note 4, 5)
-- 830 1080 pF
--
15 40
130 270
135 280
105 220
--
41 53.5
5.6
22.7
-- nC
-- nC
Maximum Continuous Drain-Source Diode Forward Current -- -- 16 A
Maximum Pulsed Drain-Source Diode Forward Current -- -- 64 A
Drain-Source Diode Forward Voltage VGS = 0 V, IS = 16 A -- -- 1.5 V
Reverse Recovery Time VGS = 0 V, IS = 16 A,
/ dt = 100 A/µs (Note 4)
dI
Reverse Recovery Charge -- 2.47 --
Starting TJ = 25°C
DSS,
F
-- 260 -- ns
ns
ns
ns
ns
nC
µC
FQD16N25C Rev. A1
2 www.fairchildsemi.com
Page 3
Typical Performance Characteristics
Figure 1. On-Region Characteristics Figure 2. Transfer Characteristics
FQD16N25C 250V N-Channel MOSFET
-55oC
Notes :※
1. VDS = 40V
2. 250µ s Pulse Test
10
10
, Drain Current [A]
D
I
-1
10
V
Top : 15.0 V
10.0 V
8.0 V
7.0 V
1
6.5 V
6.0 V
5.5 V
5.0 V
Bottom : 4.5 V
0
-1
10
GS
0
10
VDS, Drain-Source Voltage [V]
Notes :※
1. 250µ s Pulse Test
= 25℃
2. T
C
1
10
1
10
150oC
25oC
0
10
, Drain Current [A]
D
I
-1
10
246810
VGS, Gate-Source Voltage [V]
Figure 3. On-Resistance Variation vs. Figure 4. Body Diode Forward Voltage
Drain Current and Gate Voltage Variation vs. Source Current
and Temperatue
1.5
1.0
[Ω ],
DS(ON)
R
0.5
VGS = 10V
VGS = 20V
Drain-Source On-Resistance
Note : T※J = 25℃
0.0
0 1020304050
ID, Drai n Cur rent [A]
1
10
0
10
, Reverse Drain Current [A]
DR
I
-1
10
0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6 1.8
150℃
VSD, Source-Drain voltage [V]
25℃
Notes :※
1. VGS = 0V
2. 250µ s Pulse Tes t
Figure 5. Capacitance Characteristics Figure 6. Gate Charge Characteristics
3000
2500
2000
1500
1000
Capacitance [pF]
500
FQD16N25C Rev. A1
0
10
Notes :※
1. VGS = 0 V
2. f = 1 MHz
-1
C
C
C
C
iss
C
oss
C
rss
0
10
VDS, Drain- Source Voltage [ V]
= Cgs + Cgd (Cds = shorted)
iss
= Cds + C
oss
gd
= C
rss
gd
1
10
12
10
8
6
4
, Gate-Source Voltage [V]
2
GS
V
0
0 1020304050
QG, Total Gate Charge [nC]
3 www.fairchildsemi.com
VDS = 50V
VDS = 125V
VDS = 200V
Note : I※D = 15.6A
Page 4
Typical Performance Characteristics (Continued)
Figure 7. Breakdown Voltage Variation Figure 8. On-Resistance Variation
vs. Temperature vs. Temperature
FQD16N25C 250V N-Channel MOSFET
1.2
1.1
1.0
, (Normalized)
DSS
BV
0.9
Drain-Source Breakdown Voltage
0.8
-100 -50 0 50 100 150 200
Notes :※
1. VGS = 0 V
2. I
TJ, Junct ion Temperature [oC]
= 250 µ A
D
3.0
2.5
2.0
1.5
, (Normalized)
1.0
DS(ON)
R
Drain-Source On-Resistance
0.5
0.0
-100 -50 0 50 100 150 200
TJ, Junct ion Temperat ure [oC]
Notes :※
1. VGS = 10 V
2. I
Figure 9. Maximum Safe Operating Area Figure 10. Maximum Drain Current
vs. Case Temperature
2
10
1
10
0
10
, Drain Current [A]
D
I
-1
10
0
10
Operation in This Area
is Limited by R
DS(on)
10ms
100ms
DC
* Notes :
1. T
= 25 oC
C
= 150 oC
2. T
J
3. Single Pulse
1
10
VDS, Drain-SourceVoltage[V]
1ms
20
µs
10
µs
100
2
10
15
10
, Drain Current [A]
D
I
5
0
25 50 75 100 125 150
TC, Case Temperature [oC]
= 8.9 A
D
Figure 11. Transient Thermal Response Curve
0
10
D=0.5
0.2
-1
10
0.1
0.05
0.02
0.01
-2
10
(t), Thermal Response
?JC
Z
-5
10
FQD16N25C Rev. A1
10
P
DM
* Notes :
1. Z
single pulse
-4
-3
10
-2
10
?JC
2. Duty Factor, D=t
3. TJM - TC = PDM * Z
-1
10
t1, Square Wave Pulse Duration [sec]
4 www.fairchildsemi.com
t
1
t
2
(t) = 0.78 0C/W Max.
1/t2
(t)
?JC
0
10
1
10
Page 5

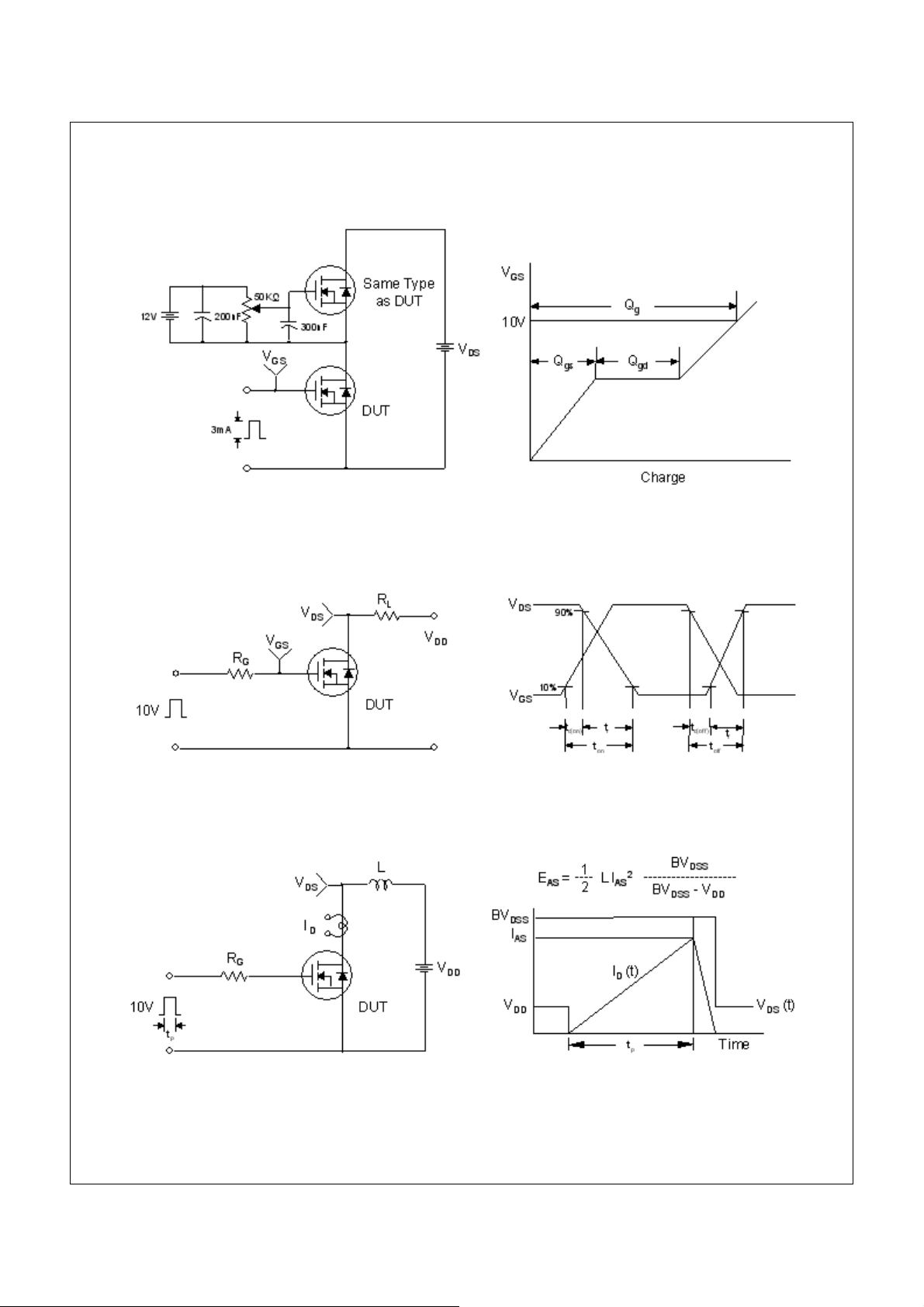

Gate Charge Test Circuit & Waveform
Resistive Switching Test Circuit & Waveforms
FQD16N25C 250V N-Channel MOSFET
FQD16N25C Rev. A1
Unclamped Inductive Switching Test Circuit & Waveforms
5 www.fairchildsemi.com
Page 6

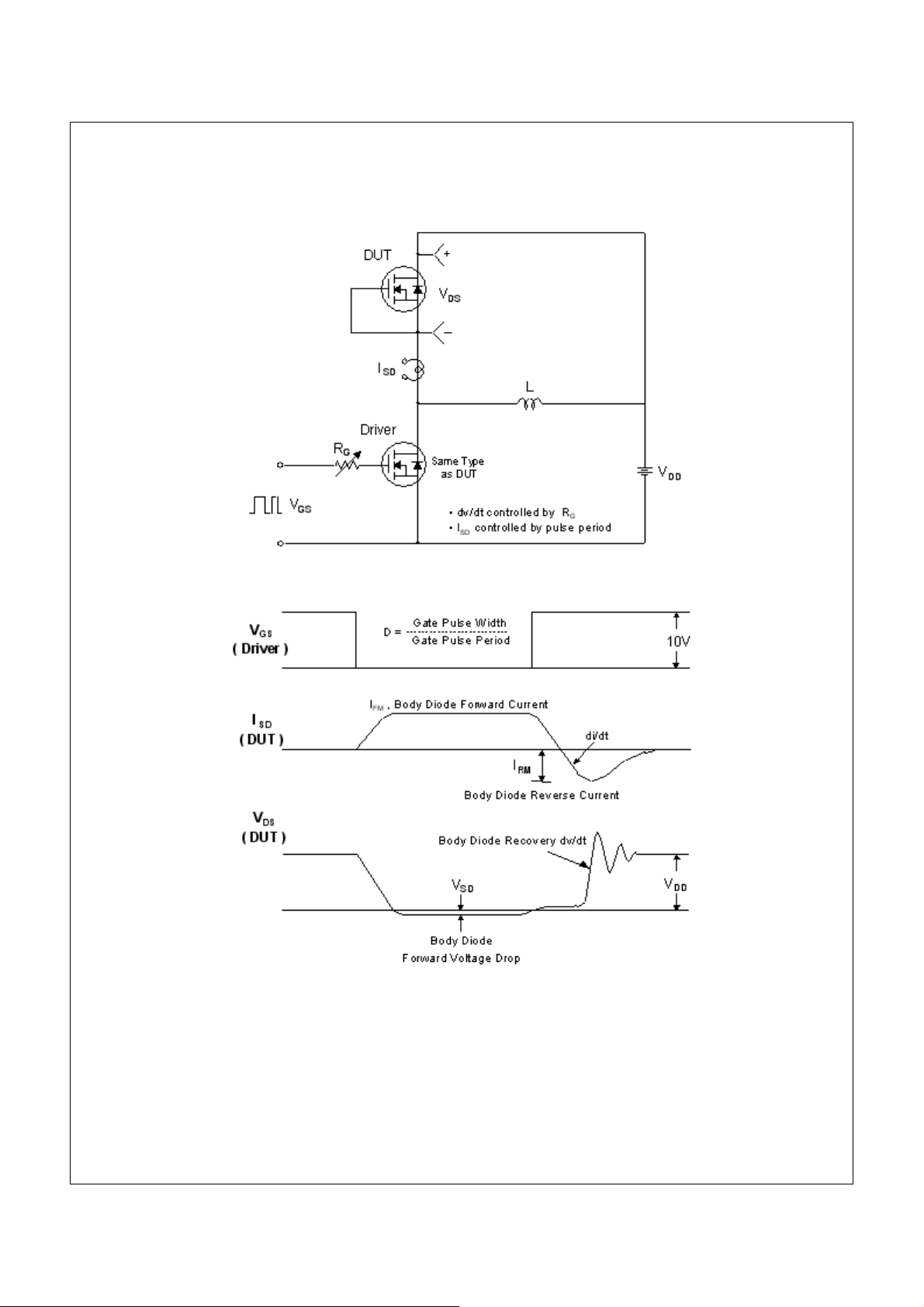

Peak Diode Recovery dv/dt Test Circuit & Waveforms
FQD16N25C 250V N-Channel MOSFET
FQD16N25C Rev. A1
6 www.fairchildsemi.com
Page 7
Mechanical Dimensions
TO-252 (DPAK) (FS PKG Code 36)
FQD16N25C 250V N-Channel MOSFET
1:1
Scale 1:1 on letter size paper
Dimensions shown below are in:
millimeters
Part Weight per unit (gram): 0.33
FQD16N25C Rev. A1
7 www.fairchildsemi.com
Page 8
TRADEMARKS
tm
®
tm
tm
The following includes registered and unregistered trademarks and service marks, owned by Fairchild Semiconductor and/or its global subsidiaries, and is not
intended to be an exhaustive list of all such trademarks.
Build it Now™
CorePLUS™
CorePOWER™
CROSSVOLT™
CTL™
Current Transfer Logic™
EcoSPARK
EfficentMax™
EZSWITCH™ *
™
Fairchild
Fairchild Semiconductor
FACT Quiet Series™
FACT
FAST
FastvCore™
FlashWriter
FPS™
®
®
®
®
®
*
®
F-PFS™
* EZSWITCH™ and FlashWriter
®
are trademarks of System General Corporation, used under license by Fairchild Semiconductor.
®
FRFET
Global Power Resource
Green FPS™
Green FPS™ e-Series™
GTO™
IntelliMAX™
ISOPLANAR™
MegaBuck™
MICROCOUPLER™
MicroFET™
MicroPak™
MillerDrive™
MotionMax™
Motion-SPM™
OPTOLOGIC
OPTOPLANAR
PDP SPM™
Power-SPM™
PowerTrench
PowerXS™
®
®
®
®
SM
Programmable Active Droop™
®
QFET
QS™
Quiet Series™
RapidConfigure™
™
Saving our world, 1mW /W /kW at a time™
SmartMax™
SMART START™
®
SPM
STEALTH™
SuperFET™
SuperSOT™-3
SuperSOT™-6
SuperSOT™-8
SupreMOS™
SyncFET™
®
The Power Franchise
®
TinyBoost™
TinyBuck™
TinyLogic
TINYOPTO™
TinyPower™
TinyPWM™
TinyWire™
μSerDes™
UHC
Ultra FRFET™
UniFET™
VCX™
VisualMax™
XS™
®
®
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE
RELIABILITY, FUNCTION, OR DESIGN. FAIRCHILD DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY
PRODUCT OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
THESE SPECIFICATIONS DO NOT EXPAND THE TERMS OF FAIRCHILD’S WORLDWIDE TERMS AND CONDITIONS, SPECIFICALLY THE WARRANTY
THEREIN, WHICH COVERS THESE PRODUCTS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE
EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR CORPORATION.
As used herein:
1. Life support devices or systems are devices or systems which, (a) are
intended for surgical implant into the body or (b) support or sustain life,
and (c) whose failure to perform when properly used in accordance with
instructions for use provided in the labeling, can be reasonably
expected to result in a significant injury of the user.
ANTI-COUNTERFEITING POLICY
Fairchild Semiconductor Corporation’s Anti-Counterfeiting Policy. Farichild’s Anti-Counterfeiting Policy is also stated on our external website,
www.fairchildsemi.com, under Sales Support
.
2. A critical component in any component of a life support, device, or
system whose failure to perform can be reasonably expected to cause
the failure of the life support device or system, or to affect its safety or
effectiveness.
Counterfeiting of semiconductor parts is a growing problem in the industry. All manufactures of semiconductor products are experiencing counterfeiting of their
parts. Customers who inadvertently purchase counterfeit parts experience many problems such as loss of brand reputation, substandard performance, failed
application, and increased cost of production and manufacturing delays. Fairchild is taking strong measures to protect ourselves and our customers from the
proliferation of counterfeit parts. Farichild strongly encourages customers to purchase Farichild parts either directly from Fairchild or from Authorized Fairchild
Distributors who are listed by country on our web page cited above. Products customers buy either from fairchild directly or from Authorized Fairchild
Distributors are genuine parts, have full traceability, meet Fairchild’s quality standards for handing and storage and provide access to Farichild’s full range of
up-to-date technical and product information. Fairchild and our Authorized Distributors will stand behind all warranties and will appropriately address and
warranty issues that may arise. Fairchild will not provide any warranty coverage or other assistance for parts bought from Unauthorized Sources. Farichild is
committed to combat this global problem and encourage our customers to do their part in stopping this practice by buying direct or from authorized distributors.
PRODUCT STATUS DEFINITIONS
Definition of Terms
Datasheet Identification Product Status Definition
Advance Information Formative / In Design
Preliminary First Production
No Identification Needed Full Production
Obsolete Not In Production
Datasheet contains the design specifications for product development. Specifications
may change in any manner without notice.
Datasheet contains preliminary data; supplementary data will be published at a later
date. Fairchild Semiconductor reserves the right to make changes at any time without
notice to improve design.
Datasheet contains final specifications. Fairchild Semiconductor reserves the right to
make changes at any time without notice to improve the design.
Datasheet contains specifications on a product that is discontinued by Fairchild
Semiconductor. The datasheet is for reference information only.
Rev. I37
FQD16N25C Rev. A1
www.fairchildsemin.com
Loading...
