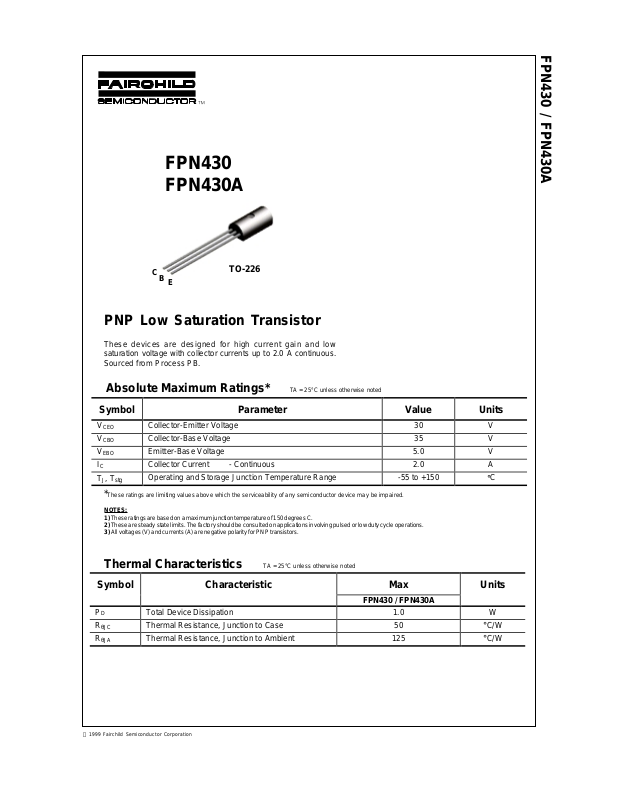

These devices are designed for high current gain and low
saturation voltage with collector currents up to 2.0 A continuous.
Sourced from Process PB.
Absolute Maximum Ratings* TA = 25°C unless otherwise noted
SymbolParameterValueUnits
V
CEO
V
CBO
V
EBO
I
C
TJ, T
stg
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
NOTES:
1) These ratings are based on a maximum junction temperature of 150 degrees C.
2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
3) All voltages (V) and currents (A) are negative polarity for PNP transistors.
Collector-Emitter V ol tage30V
Collector-Base Voltage35V
Emitter-Base Volt age5.0V
Collector Current - Continuous2.0A
Operating and Storage Junction Temperature Range-55 to +150
C
°
Thermal Characteristics TA = 25°C unless otherwise noted
SymbolCharacteristicMaxUnits
FPN430 / FPN430A
P
D
R
θ
JC
R
θ
JA
1999 Fairchild Semiconductor Corporation
Total Device Dissipation1.0W
Thermal Resistance, Junction to Case50
Thermal Resistance, Junction to Ambient125
°C/W
°C/W
Page 2
PNP Low Saturation Transistor
(continued)
Electrical Characteristics TA = 25°C unless otherwise noted
SymbolParameterTest ConditionsMinMaxUnits
OFF CHARACTERISTICS
BV
CEO
BV
CBO
BV
EBO
I
CBO
I
EBO
ON CHARACTERISTICS*
h
FE
V
sat
CE(
V
sat
BE(
V
BE(on)
Collector-Emitter Breakdown
IC = 10 mA, IB = 030V
Voltage
Collector-Base Breakdown Voltage
Emitter-Base Breakdown Voltage
Collector Cutoff CurrentVCB = 30 V, I
Emitter Cutoff CurrentVEB = 4.0 V, I
DC Current Gain
Collector-Emitter S aturation Voltage
)
I
= 100 µA, IE = 0
C
I
= 100 µA, IC = 0
E
= 0
E
= 30 V, I
V
CB
= 100 mA, VCE = 2.0 V
I
C
I
= 1.0 A, VCE = 2.0 V
C
= 2.0 A, VCE = 2.0 V
I
C
= 1.0 A, IB = 100 mA
I
C
= 0, TA = 100°C
E
= 0100nA
C
430
430A
430
35V
5.0V
100
250
60
40
430A
I
= 2.0 A, IB = 200 mA
Base-Emitter Saturation VoltageIC = 1.0 A, IB = 100 mA1.25V
)
C
Base-Emitter Saturation VoltageIC = 1.0 A, VCE = 2.0 V1.0V
*Pulse T est: Pulse Width ≤ 300 µs, Duty Cycle ≤ 2.0%
NOTE: All voltages (V) and currents (A) are negative polarity for PNP transistors.
100MHz
Page 3
T ypical Characteristics
FPN430 / FPN430A
PNP Low Saturation Transistor
(continued)
Base-Emitter Saturation
Voltage vs Collector Curren t
1.6
β = 10
1.4
1.2
1
0.8
0.6
0.4
0.2
0.0010.010.1110
BESAT
V -BASE-EMITTER SATURATION VOLTAGE(V)
- 40 °C
125 °C
I - COLLECTOR CURRENT ( A)
C
25 °C
Collector-Emitter Saturation
Voltage vs Collector Current
1.2
β = 10
1
0.8
0.6
0.4
0.2
0
0.010.1110
CESAT
V - COL LECTOR-E MITTER VOL TAGE (V )
I - COLLECTOR CU RR ENT (A)
C
125 °C
25°C
- 40°C
Base-Emitter On Voltage vs
Collector Current
1.6
V = 2.0V
ce
1.4
1.2
1
0.8
0.6
0.4
0.2
BEON
0.00010.0010.010.1110
V - BA SE-EM I T TER O N VOLTAGE (V)
I - COLLECTOR CURRENT ( A)
C
- 40 °C
125 °C
25 °C
Input/Output Capacit ance vs
Reverse Bias Voltage
120
100
80
60
40
CAPACITANCE (pf)
20
0
0.10.5 110 2050 100
C
ibo
C
obo
V - COLLECTOR VOLTAGE (V)
CE
V = 2.0V
f = 1.0MHz
ce
Current Gain vs Collector Current
600
V = 2.0V
ce
500
400
300
200
FE
H - CURRENT GAIN
100
0
0.00010.0010.010.1110
125 °C
25°C
- 40°C
I - COLLECTOR CU RRENT ( A)
C
P ow e r D is s ipa t ion vs
Ambient Te mperat ure
1
0.75
0.5
0.25
D
P - POWER DISSIPATION (W)
0
0255075100125150
TO-226
TEM P E RATU RE ( C)
°
Page 4
TRADEMARKS
The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is
not intended to be an exhaustive list of all such trademarks.
Quiet Series™
SILENT SWITCHER
SMART ST ART™
SuperSOT™-3
SuperSOT™-6
SuperSOT™-8
SyncFET™
TinyLogic™
UHC™
VCX™
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER
NOTICE TO ANY PRODUCTS HEREIN T O IMPROVE RELIABILITY , FUNCTION OR DESIGN. FAIRCHILD
DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICA TION OR USE OF ANY PRODUCT
OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT
RIGHTS, NOR THE RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR CORPORA TION.
As used herein:
1. Life support devices or systems are devices or
systems which, (a) are intended for surgical implant into
the body, or (b) support or sustain life, or (c) whose
failure to perform when properly used in accordance
with instructions for use provided in the labeling, can be
reasonably expected to result in significant injury to the
user.
2. A critical component is any component of a life
support device or system whose failure to perform can
be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or
effectiveness.
PRODUCT STA TUS DEFINITIONS
Definition of Terms
Datasheet IdentificationProduct StatusDefinition
Advance Information
Preliminary
No Identification Needed
Obsolete
Formative or
In Design
First Production
Full Production
Not In Production
This datasheet contains the design specifications for
product development. Specifications may change in
any manner without notice.
This datasheet contains preliminary data, and
supplementary data will be published at a later date.
Fairchild Semiconductor reserves the right to make
changes at any time without notice in order to improve
design.
This datasheet contains final specifications. Fairchild
Semiconductor reserves the right to make changes at
any time without notice in order to improve design.
This datasheet contains specifications on a product
that has been discontinued by Fairchild semiconductor.
The datasheet is printed for reference information only.
Rev. G
