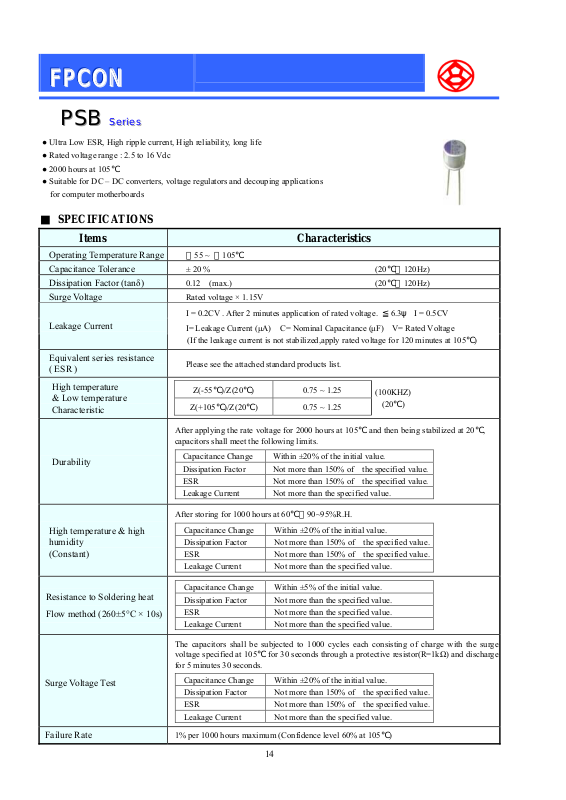

Page 1
F
P
C
F
F
P
P
P
● Ultra Low ESR, High ripple current, High reliability, long life
● Rated voltage range : 2.5 to 16 Vdc
● 2000 hours at 105℃
● Suitable for DC – DC converters, voltage regulators and decouping applications
for computer motherboards
■ SPECIFICATIONS
Operating Temperature Range －55 ~ ＋105℃
Capacitance Tolerance ± 20 % (20℃､120Hz)
Dissipation Factor (tanδ) 0.12 (max.) (20℃､120Hz)
Surge Voltage Rated voltage × 1.15V
Leakage Current
O
P
C
O
P
C
O
S
B
S
B
S
B
Items Characteristics
N
N
N
S
e
S
e
S
e
r
i
e
s
r
i
e
s
r
i
e
s
I = 0.2CV . After 2 minutes application of rated voltage. ≦6.3ψ I = 0.5CV
I= Leakage Current (µA) C= Nominal Capacitance (µF) V= Rated Voltage
(If the leakage current is not stabilized,apply rated voltage for 120 minutes at 105 )℃
Equivalent series resistance
( ESR )
High temperature
& Low temperature
Characteristic
Durability
High temperature & high
humidity
(Constant)
Resistance to Soldering heat
Flow method (260±5°C × 10s)
Please see the attached standard products list.
Z(-55 )/Z(20 )℃℃ 0.75 ~ 1.25
Z(+105 )/Z(20 )℃℃ 0.75 ~ 1.25
After applying the rate voltage for 2000 hours at 105 and then ℃ being stabilized at 20 , ℃
capacitors shall meet the following limits.
Capacitance Change Within ±20% of the initial value.
Dissipation Factor Not more than 150% of the specified value.
ESR Not more than 150% of the specified value.
Leakage Current Not more than the specified value.
After storing for 1000 hours at 60℃､90~95%R.H.
Capacitance Change Within ±20% of the initial value.
Dissipation Factor Not more than 150% of the specified value.
ESR Not more than 150% of the specified value.
Leakage Current Not more than the specified value.
Capacitance Change Within ±5% of the initial value.
Dissipation Factor Not more than the specified value.
ESR Not more than the specified value.
Leakage Current Not more than the specified value.
(100KHZ)
(20 )℃
Surge Voltage Test
Failure Rate
The capacitors shall be subjected to 1000 cycles each consisting of charge with the surge
voltage specified at 105 ℃ for 30 seconds through a protective resistor(R=1kΩ) and discharge
for 5 minutes 30 seconds.
Capacitance Change Within ±20% of the initial value.
Dissipation Factor Not more than 150% of the specified value.
ESR Not more than 150% of the specified value.
Leakage Current Not more than the specified value.
1% per 1000 hours maximum (Confidence level 60% at 105 )℃
14
Page 2
F
P
C
P
P
Size
Code
0605
0809
1010
0812
1012
C
C
S
S
S
O
O
O
B
B
B
F
F
P
P
P
■ STANDARD PRODUCTS
N
N
S
N
S
S
e
r
i
e
s
e
r
i
e
s
e
r
i
e
s
Rated
voltage
V. D C (µF) (-55 to 105℃､100KHz to 300KHz) 20 , 100KHz℃
2.5 220 2550 25 2PSB221M0605
4
6.3
10
16 39 1620 50 16PSB390M0605
2.5 560 3100 23 2PSB561M0809
4
6.3
10
16 82 2200 40 16PSB820M0809
2.5 1000 4300 20 2PSB102M1010
4
6.3
10
16
2.5
4 560 4800 11 4PSB561M0812
6.3 470 4800 11 6PSB471M0812
10
16
2.5 1500 5600 10 2PSB152M1012
4
6.3
10
16 330 4800 16 16PSB331M1012
Nominal
capacitance
100 2500 25 4PSB101M0605
150 2500 25 4PSB151M0605
68 2450 25 6PSB680M0605
82 2450 25 6PSB820M0605
100 2450 25 6PSB101M0605
120 2450 25 6PSB121M0605
47 2300 25 10PSB470M0605
56 2300 25 10PSB560M0605
82 2300 25 10PSB820M0605
220 3050 23 4PSB221M0809
330 3050 23 4PSB331M0809
150 3050 23 6PSB151M0809
220 3050 23 6PSB221M0809
120 2850 23 10PSB121M0809
150 2850 23 10PSB151M0809
470 4200 20 4PSB471M1010
680 4200 20 4PSB681M1010
330 3800 20 6PSB331M1010
470 3800 20 6PSB471M1010
270 3500 20 10PSB271M1010
330 3500 20 10PSB331M1010
150 3100 30 16PSB151M1010
220 3100 30 16PSB221M1010
680 4800 11 2PSB681M0812
820 4800 11 2PSB821M0812
1000 4800 11 2PSB102M0812
390 4800 11 10PSB391M0812
270 4500 11 10PSB271M0812
330 4500 11 10PSB331M0812
180 3700 20 16PSB181M0812
220 3700 20 16PSB221M0812
820 5600 10 4PSB821M1012
1200 5600 10 4PSB122M1012
680 5600 10 6PSB681M1012
820 5600 10 6PSB821M1012
470 5400 10 10PSB471M1012
560 5400 10 10PSB561M1012
Max. permissible ripple current
(mA r.m.s)
ESR
(mΩ) Max.
Part No.
15
