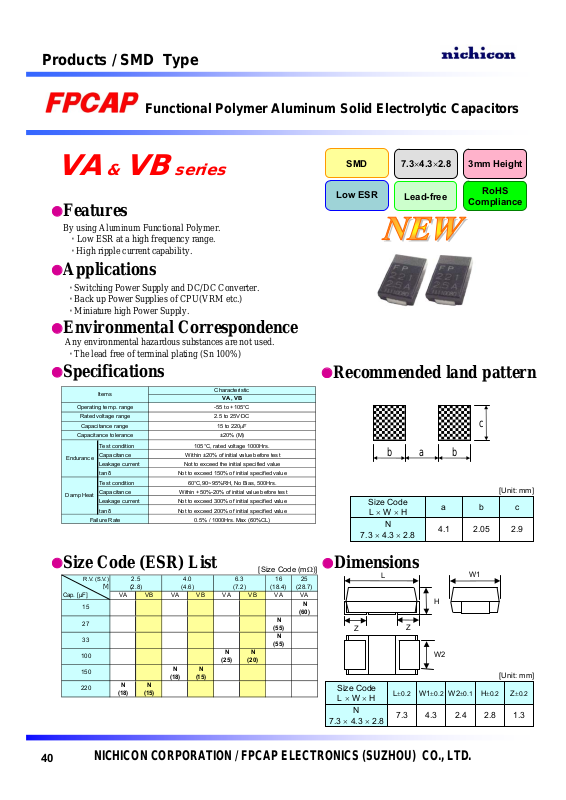

Products / SMD Type
Functional Polymer Aluminum Solid Electrolytic Capacitors
VA
&
VB
series
zFeatures
By using Aluminum Functional Polymer.
Low ESR at a high frequency range.
High ripple current capability.
zApplications
Switching Power Supply and DC/DC Converter.
Back up Power Supplies of CPU(VRM etc.)
Miniature high Power Supply.
zEnvironmental Correspondence
Any environmental hazardous substances are not used.
The lead free of terminal plating (Sn 100%)
zSpecifications
Ite ms
Operating temp. range
Rated voltage ran ge
Capacit ance range
Capacit ance toleranc e
Test c ondition
Endurance
Damp Heat
Capacit ance
Leakage curr ent
tan δ
Test c ondition
Capacit ance
Leakage curr ent
tan δ
Failure Rate 0.5% / 1000Hrs. Max (60%CL)
Within ±20% of initial value before test
Not to exceed the initial specif ied value
Not to exceed 150% of initial spec ified value
Within +50%-20% of initial value b efore test
Not to exceed 300% of initial spec ified value
Not to exceed 200% of initial spec ified value
Charac teristic
VA , VB
-55 to +105° C
2.5 to 25V·DC
15 to 220μF
±20% (M)
105°C, ra ted voltage 1000Hrs.
60°C,90~95%RH, No Bias, 500Hrs.
SMD
Low ESR
7.3×4.3×2.8
Lead-free
3mm Height
RoHS
Compliance
zRecommended land pattern
c
b ba
[Unit: mm]
Size
L ×
7.3 ×
Code
W ×
N
4.3 ×
H
2.8
a b c
4.1 2.05 2.9
zSize Code (ESR) List
R.V. (S.V.)
Cap. [μF] VA VB VA VB VA VB VA VA
40
[V]
15
27
33
100
150
220
NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.
2.5
(2.8)
N
(18)N(15)
4.0
(4.6)
N
(25)N(20)
N
(18)N(15)
[Size
6.3
(7.2)
Code (mΩ)]
16
(18.4)25(28.7)
N
(60)
N
(55)
N
(55)
zDimensions
L
Z
L
±
0.2
7.3 4.3 2.4 2.8 1.3
Size
L ×
7.3 ×
Z
Code
W ×
N
4.3 ×
H
2.8
W1
±
H
W2
0.2
W2
W1
[Unit: mm]
H
±
0.1
Z
±
0.2
±
0.2
Page 2
zPart number & Specifications
Rated
Voltage
(V) (μF, 120Hz)
2.5
4.0
6.3
16
25 15 RVA1E150MNG FP-025CM150M-VA R 188 0.12 60 1000 7.3 × 4.3 × 2. 8 Level 3
* In case of some doubt about measured values, measure after applying rated voltage for 120 minutes at 105°C.
Rated
Capacitanc e
NICHICON FPCAP (μA, 2 min) (120Hz)
220 RVA0E221MNG FP-2R5CM221M-VAR 700 0.12 18 2600 7.3 × 4. 3 × 2.8 Level 3
220 RVB0E221MNG FP-2R5CM221M-VBR 700 0.12 15 2800 7.3 × 4. 3 × 2.8 Level 3
150 RVA0G151MNG FP-4R0CM151M-V AR 700 0.12 18 2600 7.3 × 4.3 × 2.8 Level 3
150 RVB0G151MNG FP-4R0CM151M-V BR 700 0.12 15 2800 7.3 × 4.3 × 2.8 Level 3
100 RVA 0J101MNG FP-6R3CM101M-VAR 700 0.12 25 2000 7.3 × 4. 3 × 2.8 Level 3
100 RVB 0J101MNG FP-6R3CM101M-VBR 700 0.12 20 2400 7.3 × 4. 3 × 2.8 Level 3
27 RVA1C270MNG FP-016CM270M-VAR 216 0.12 55 1100 7.3 × 4.3 × 2.8 Level 3
33 RVA1C330MNG FP-016CM330M-VAR 264 0.12 55 1100 7.3 × 4.3 × 2.8 Level 3
Part Number
Leakage
Current*
tanδ ESR
(mΩ,
100kHz)
Rated Ripple
Current
(mA, r.m.s .)
Size
L×W×H(mm)
zFrequency Characteristics
MSL
(J-STD-020 D)
100000
6.3V100μF (VA series)
10000
1000
100
Impedance (mΩ)
10
1
0.1 1 10 100 1000 10000
Frequency (kHz)
zPart Number (EX) 6.3V, 100μF, VA series
Nichicon P/N
R VA 0J 101 M
Type
FPCAP P/N
Series name
Rated
Voltage
Rated
Capacitance
Capacitance
Tolerance
10000
6.3V100μF (VA series)
1000
100
ESR (mΩ)
10
1
0.1 1 10 100 1000 10000
Frequency (kHz)
N
Size Code
(N:
7.3×4.3×2.8)
G
Taping
code
Control code
VAFP 6R3 CM 101 M R
Commodity
Mark
Rated Voltage
Classification
Rated
Capacitance
Capacitance
Tolerance
Series name
NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.
Taping
code
Control code
