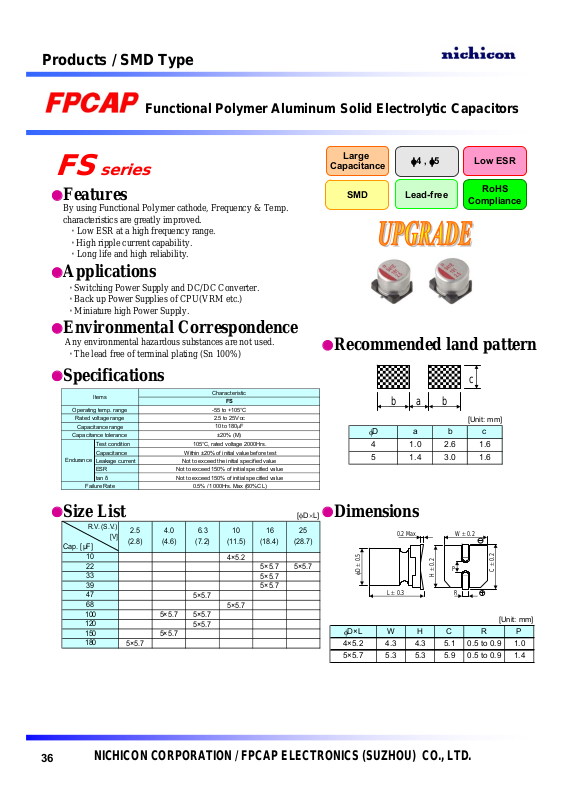

Page 1
Products / SMD Type
Functional Polymer Aluminum Solid Electrolytic Capacitors
FS
series
zFeatures
By using Functional Polymer cathode, Frequency & Temp.
characteristics are greatly improved.
Low ESR at a high frequency range.
High ripple current capability.
Long life and high reliability.
zApplications
Switching Power Supply and DC/DC Converter.
Back up Power Supplies of CPU(VRM etc.)
Miniature high Power Supply.
zEnvironmental Correspondence
Any environmental hazardous substances are not used.
The lead free of terminal plating (Sn 100%)
zSpecifications
Ite ms
Operating tem p. range
Rated voltage range
Capacitanc e range
Capacitanc e tolerance
Test c ondition
Endurance
Capacitanc e
Leakage current
ESR
tan δ
Failure Rate
Within ±20% of initial value befor e test
Not to exceed the initial specified value
Not to exceed 150% of initial specified value
Not to exceed 150% of initial specified value
Characteristic
FS
-55 to +105°C
DC
2.5 to 25V·
10 to 180μF
±20% (M)
105°C, rated voltage 2000Hrs.
0.5% / 1000Hrs. Max (60%CL)
Large
Capacitance
SMD
φ4 ,
φ5
Lead-free
Low ESR
RoHS
Compliance
zRecommended land pattern
c
b ba
[Unit: mm]
D abc
φ
4 1.0 2.6 1.6
5 1.4 3.0 1.6
zSize List
R.V. (S.V.)
Cap. [μF]
10
22
33
39
47
68
100
120
150
180
36
NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.
zDimensions
[φD×L]
2.5
[V]
(2.8)
5×5.7
4.0
(4.6)
5×5.7 5×5.7
5×5.7
6.3
(7.2)10(11.5)
5×5.7
5×5.7
4×5.2
5×5.7
16
(18.4)25(28.7)
5×5.7 5×5.7
5×5.7
5×5.7
0.2 Max
φD ± 0.5
L ±
0.3
D×L W H C R P
φ
4×5.2 4.3 4.3 5.1 0.5 to 0.9 1.0
5×5.7 5.3 5.3 5.9 0.5 to 0.9 1.4
W ±
0.2
P
H ± 0.2
R
C ± 0.2
[Unit: mm]
Page 2
zPart number & Specifications
Rated
Voltage
(V) (μF, 120Hz) NICHICON FPCAP (μA, 2 min) (120Hz) (mΩ, 100kHz) (mA, r.m.s.)φD×L(mm)
2.5 180 RFS0E181MCN1GS FP-2R5ME181M-FSR 300 0.12 21 2670 5 × 5.7
4.0
6.3
10
16
25 22 RFS1E220MCN1GS FP-025ME220M-FSR 300 0.12 40 2200 5 × 5.7
* In case of some doubt about measured values, measure after applying rated voltage for 120 minutes at 105°C.
Rated
Capac it anc e
100 RFS0G101M CN1GS FP -4R0ME 101M-FS R 300 0.12 22 2610 5 × 5.7
150 RFS0G151M CN1GS FP -4R0ME 151M-FS R 300 0.12 22 2610 5 × 5.7
47 RFS0J470MCN1GS FP-6R3ME470M-FSR 300 0.12 30 2000 5 × 5.7
100 RFS 0J101MCN1GS FP-6R3ME101M-FSR 300 0.12 24 2500 5 × 5.7
120 RFS 0J121MCN1GS FP-6R3ME121M-FSR 300 0.12 24 2500 5 × 5.7
10 RFS 1A100MCN1GB FP-010ME100M-FSR 100 0. 12 220 700 4 × 5.2
68 RFS 1A680MCN1GS FP-010ME680M-FSR 300 0. 12 30 2000 5 × 5.7
22 RFS 1C220MCN1GS FP-016ME220M-FS R 100 0.12 45 1210 5 × 5.7
33 RFS 1C330MCN1GS FP-016ME330M-FS R 105 0.12 35 2070 5 × 5.7
39 RFS 1C390MCN1GS FP-016ME390M-FS R 125 0.12 35 2070 5 × 5.7
Part Number
Leakage
Current *
tanδ ESR
Rated Ripple
Current
zFrequency Characteristics
10000
4.0V 150μF (FS series)
10000
4.0V 150μF (FS series)
Case Size
1000
100
10
Impedance (mΩ)
1
0.1 1 10 100 1000 10000
Frequency (kHz) Frequency (kHz)
zPart Number (EX) 2.5V, 180μF, FS series
Nichicon P/N
R FS 0E 181 M
Type
FPCAP P/N
Series name
Rated
Voltage
Rated
Capacitance
1000
100
ESR (mΩ)
10
1
0.1 1 10 100 1000 10000
Capacitance
Tolerance
CN
Configuration
1 GS
Control code
Taping code:
GB: Height under 5.2mm
GS: Height over 5.7mm
Taping
code
FSFP 2R5 ME 181 M R
Commodity
Mark
Rated Voltage
Classification
Rated
Capacitance
Capacitance
Tolerance
Series name
NICHICON CORPORATION / FPCAP ELECTRONICS (SUZHOU) CO., LTD.
Taping
code
Control code
37
