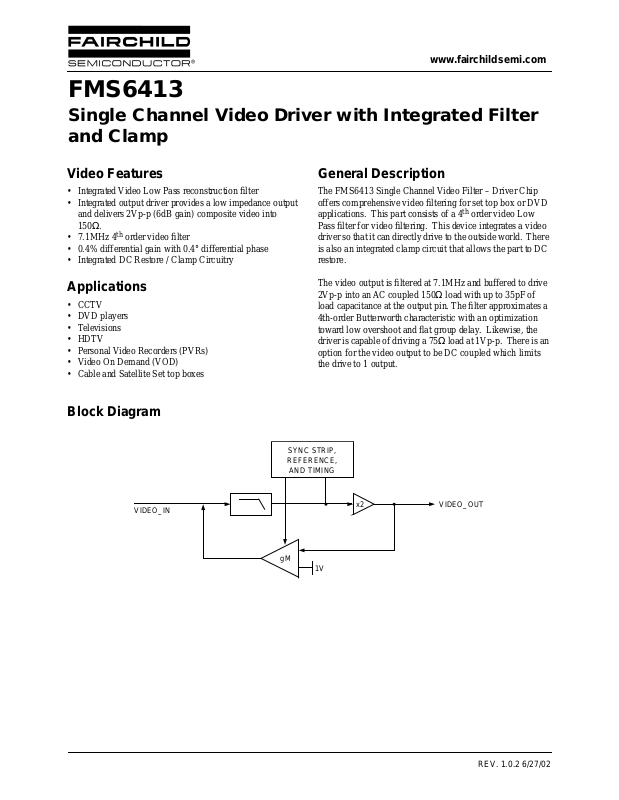

Single Channel Video Driver with Integrated Filter
and Clamp
Video Features
• Integrated Video Low Pass reconstruction filter
• Integrated output driver provides a low impedance output
and delivers 2Vp-p (6dB gain) composite video into
150 Ω .
• 7.1MHz 4
• 0.4% differential gain with 0.4° differential phase
• Integrated DC Restore / Clamp Circuitry
th
order video filter
Applications
• CCTV
• DVD players
• Televisions
• HDTV
• Personal Video Recorders (PVRs)
• Video On Demand (VOD)
• Cable and Satellite Set top boxes
Block Diagram
SYNC STRIP,
REFERENCE,
AND TIMING
General Description
The FMS6413 Single Channel Video Filter – Driver Chip
offers comprehensive video filtering for set top box or DVD
applications. This part consists of a 4
Pass filter for video filtering. This device integrates a video
driver so that it can directly driv e to the outside world. There
is also an integrated clamp circuit that allows the part to DC
restore.
The video output is filtered at 7.1MHz and buffered to drive
2Vp-p into an AC coupled 150 Ω load with up to 35pF of
load capacitance at the output pin. The filter approximates a
4th-order Butterworth characteristic with an optimization
toward low overshoot and flat group delay. Likewise, the
driver is capable of driving a 75 Ω load at 1Vp-p. There is an
option for the video output to be DC coupled which limits
the drive to 1 output.
th
order video Low
VIDEO_IN
gM
1V
x2
VIDEO_OUT
REV. 1.0.2 6/27/02
Page 2
Pin Configuration
FMS6413
FMS6413
8-Pin SOIC (S08)
1
VIDEO_IN
2
NC
3
GND_VIDEO
4
NC
VIDEO_OUT
VCC_VIDEO
NC
NC
8
7
6
5
Pin Description
Video Section
Pin#PinTypeDescription
1VIDEO_INInputVideo Input
8VIDEO_OUTOutputVideo Output: This pin is the filtered video output
Power/Ground Pins
Pin#PinTypeDescription
7VCC_VIDEOPower+5 VDC for Video
3GND_VIDEOPowerGround for Video
4NCNCReserved (Need to Float)
5NCNCReserved (Need to Float)
6NCNCReserved (Need to Float)
2NCNCReserved (Need to Float)
2
REV. 1.0.2 6/27/02
Page 3
FMS6413
Functional Description
Introduction
The FMS6413 is a monolithic continuous time video filter driver designed for reconstructing the video signals from a
D/A source. This chip is intended for use in applications
with AC coupled input and AC coupled outputs. (See
Figure 1) The reconstruction filter approximates a 4th-order
Butterworth characteristic with an optimization toward low
over-shoot and flat group delay. The video output is capable
of driving 2VP-P into an AC coupled 150 Ω video load, with
up to 35pF of load capacitance at the output pin. The channel
is clamped during sync to establish the appropriate output
voltage swing range. Thus the input coupling capacitor does
not behave according to the conventional RC time constant.
Clamping for the video channel settles to less than 10mv
within 5ms of a change in video input source. In most
applications the input coupling capacitor is 0.1µF. The input
typically sinks 1µA during active video, which nominally
tilts a horizontal line by about 2mV at the Video output.
During sync, the clamp typically sources 20µA to restore the
Typical Applications Diagram
VIDEO_IN
0.1µF
1
VIDEO_INVIDEO_OUT
2
NC (Reserved)
SYNC STRIP,
REF, AND TIMING
gM
1V
FMS6413
x2
VCC_VIDEO
DC level. The net result is that the average input current is
zero. An y change in the input coupling capacitor’s value will
inversely alter the amount of tilt per line. Such a change will
also linearly affect the clamp response time. This product is
robust and stable under all stated load and input conditions.
Capacitive bypassing VCC directly to ground ensures this
performance.
Video I/O
The video input is driven by either a low impedance source
of 1VP-P or the output of a 75 Ω terminated line. The input is
required to be AC coupled via a 0.1µF coupling capacitor
which allows for a settling time of 5ms. The video output is
capable of driving an AC coupled 150 Ω load at 2VP-P, or
1VP-P into a 75 Ω load. Up to 35pF of load capacitance
(at the output pin) can be driven without stability or slew
issues. The output is AC coupled with a 220µF or larger AC
coupling capacitor.
220µF
8
7
75Ω
0.1µF
Video Cable
+5.0V
1µF
VIDEO_OUT
75Ω
REV. 1.0.2 6/27/02
3
GND_VIDEO
4
NC (Reserved)NC (Reserved)
NC (Reserved)
Figure 1.
6
5
3
Page 4
FMS6413
Absolute Maximum Ratings
ParameterMinMaxUnits
VCC_VIDEO (Positive DC Supply Voltage)+6.5V
GND_VIDEO (Negative DC Supply Voltage) V
Analog and Digital I/OGND-0.3VCC+0.3V
Output Current (Continuous)60mA
Junction Temperature150°C
Storage Temperature Range-65+150°C
Lead Temperature (Soldering, 10s)260°C
Thermal Resistance ( Θ
Note: Functional operation under any of these conditions is NOT implied. Performance and reliability are guaranteed only if
Operating Conditions are not exceeded.
)115°C/W
JA
(beyond which the device may be damaged)
Operating Conditions
ParameterMinTypMaxUnits
Temperature Range070°C
VCC_VIDEO Range4.755.05.25V
GND_VIDEO0V
ICC (+5 VDC)60mA
4
REV. 1.0.2 6/27/02
Page 5
∆
FMS6413
Electrical Characteristics
1Vp-p signal at room temperature
Video Characteristics - Unless otherwise noted, typical output loading on video output is 150 Ω .
Condition
SymbolParameter
AVLow Frequency Gain (VIDEO_OUT)at 400KHz6.0dB
VIDEO_OUT Output Level (During
Sync)
tCLAMPClamp Response TimeSettled to Within 10mV,0.1µF cap
f1dB–1.0dB Bandwidth (Flatness)
(VIDEO_OUT)
fC–3dB Bandwidth (Flatness)
(VIDEO_OUT)
fSBStopband Rejection (VIDEO_OUT)fIN = 27MHz to 100MHz worst
ViInput Signal Dynamic RangeAC Coupled1.31.4VP-P
ISCOutput Short Circuit Current
1. Peaking capacitor increases video output at 4.2MHz nominally by 0.7dB
2. Sustained short circuit protection limited to 10 seconds
REV. 1.0.2 6/27/02
5
Page 6

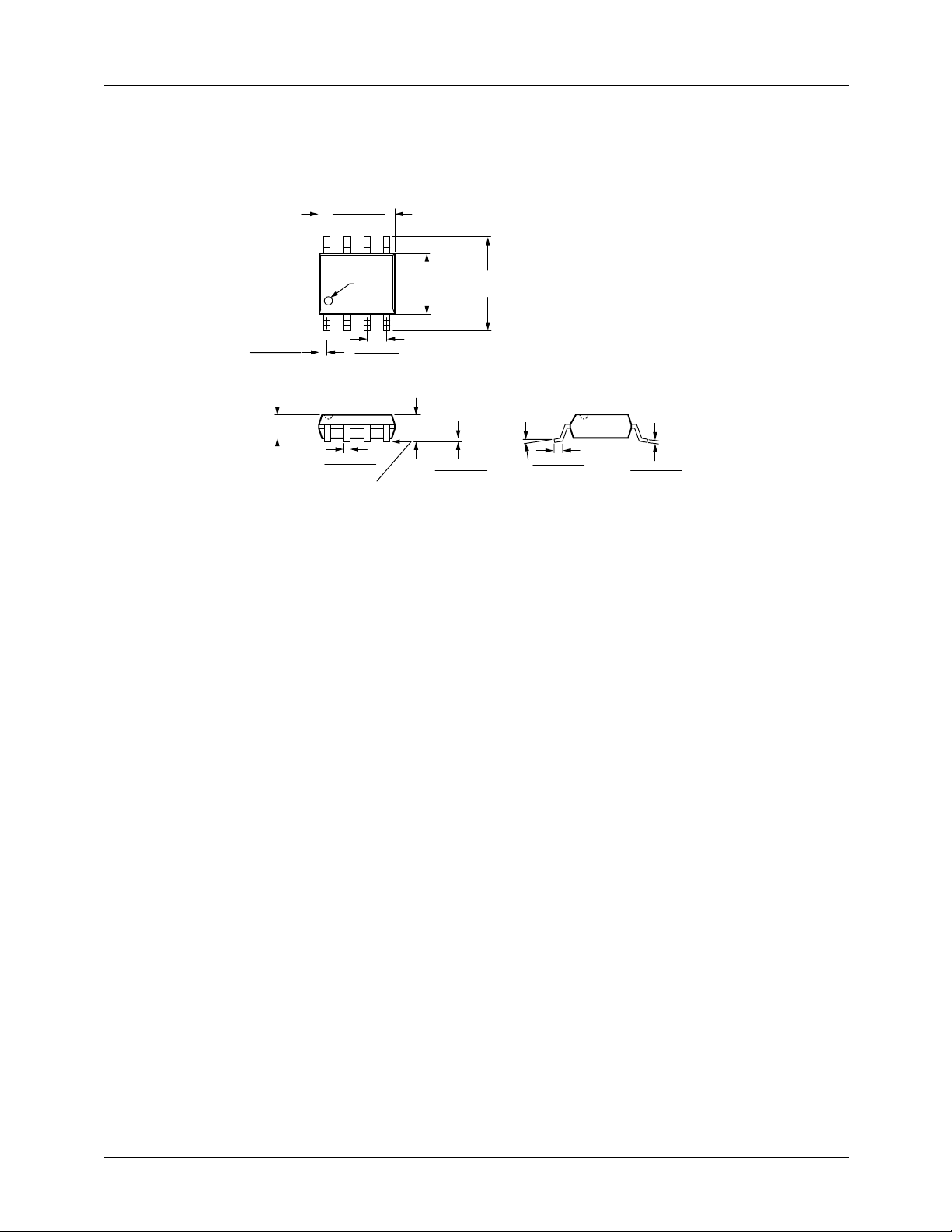

Mechanical Dimensions Inches (millimeters)
Package: S08
8-Pin SOIC
0.189 - 0.199
(4.80 - 5.06)
8
FMS6413
0.017 - 0.027
(0.43 - 0.69)
(4 PLACES)
0.055 - 0.061
(1.40 - 1.55)
PIN 1 ID
1
0.050 BSC
(1.27 BSC)
0.012 - 0.020
(0.30 - 0.51)
SEATING PLANE
0.148 - 0.158
(3.76 - 4.01)
0.059 - 0.069
(1.49 - 1.75)
0.228 - 0.244
(5.79 - 6.20)
0.004 - 0.010
(0.10 - 0.26)
0° - 8°
0.015 - 0.035
(0.38 - 0.89)
0.006 - 0.010
(0.15 - 0.26)
6
REV. 1.0.2 6/27/02
Page 7
Ordering Information
Part NumberTemperature RangePackage
FMS6413CS0° to 70°8 Pin SOIC (S08)
FMS6413CSX0° to 70°Tape and Reel
FMS6413
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO
ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT ASSUME
ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN;
NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES
OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD SEMICONDUCTOR
CORPORATION. As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the body, or
(b) support or sustain life, and (c) whose failure to perform
when properly used in accordance with instructions for use
provided in the labeling, can be reasonably expected to
result in a significant injury of the user.
www.fairchildsemi.com
2. A critical component in any component of a life support
device or system whose failure to perform can be
reasonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
6/27/02 0.0m 004
2002 Fairchild Semiconductor Corporation
Stock#DS30006413
