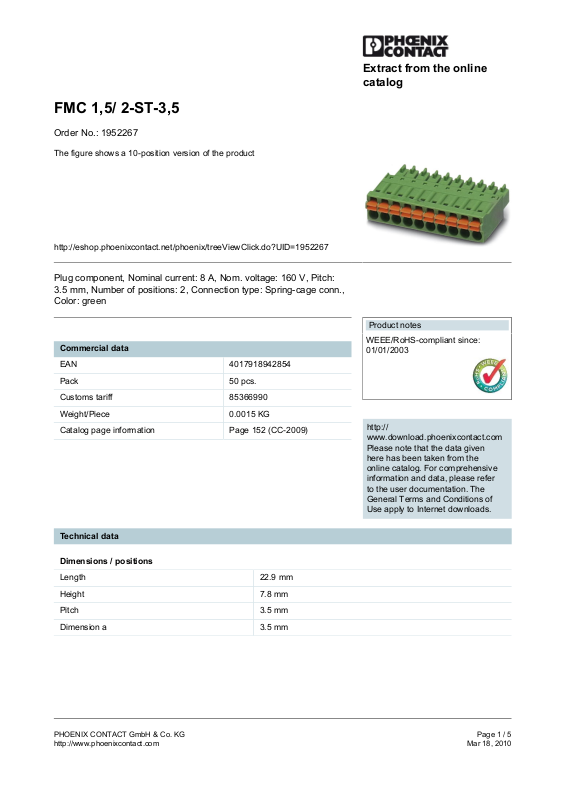

FMC 1,5/ 2-ST-3,5
Order No.: 1952267

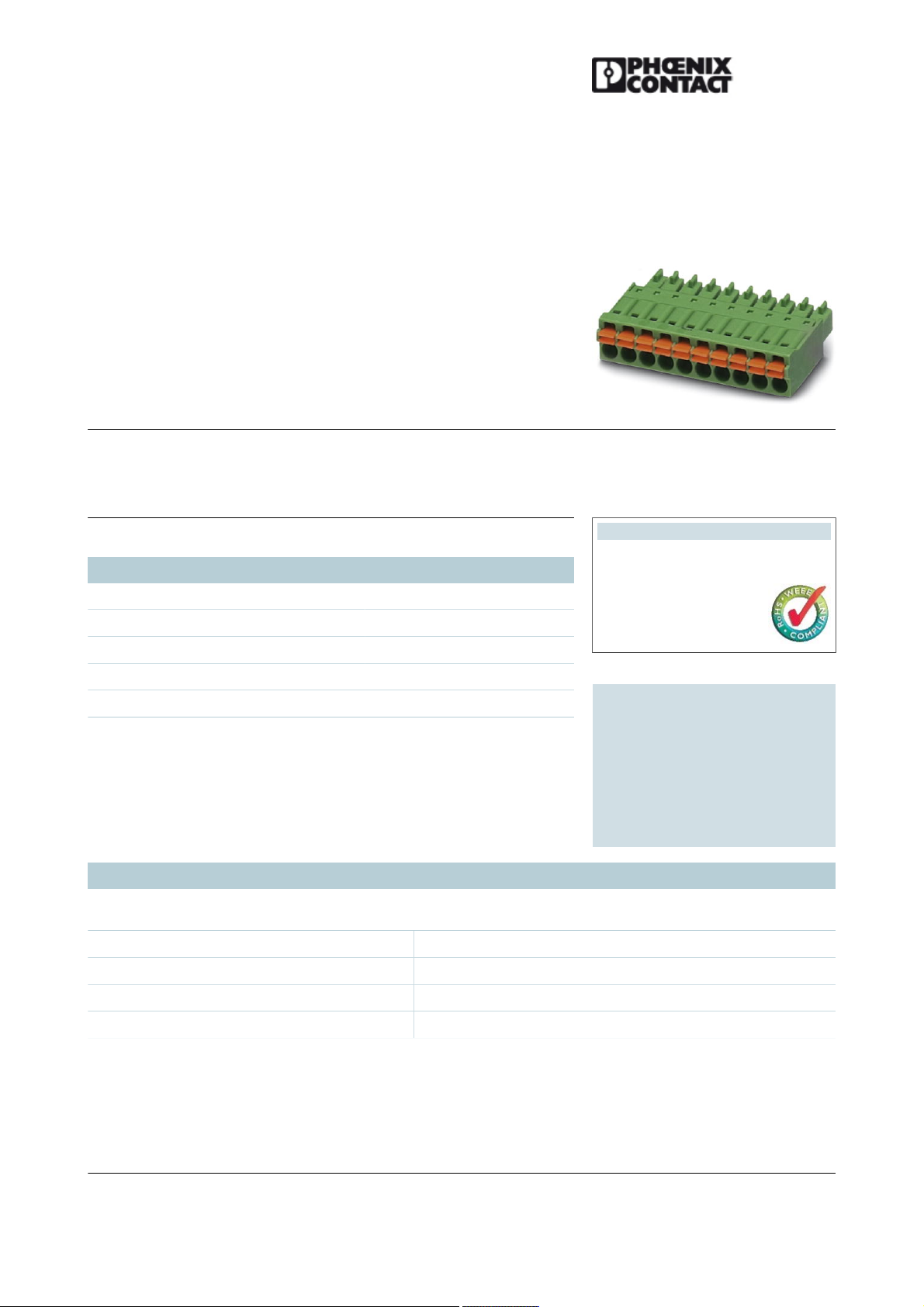

The figure shows a 10-position version of the product
http://eshop.phoenixcontact.net/phoenix/treeViewClick.do?UID=1952267
Extract from the online
catalog
Plug component, Nominal current: 8 A, Nom. voltage: 160 V, Pitch:
3.5 mm, Number of positions: 2, Connection type: Spring-cage conn.,
Color: green
Commercial data
EAN 4017918942854
Pack 50 pcs.
Customs tariff 85366990
Weight/Piece 0.0015 KG
Catalog page information Page 152 (CC-2009)
Technical data
Product notes
WEEE/RoHS-compliant since:
01/01/2003
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Dimensions / positions
Length 22.9 mm
Height 7.8 mm
Pitch 3.5 mm
Dimension a 3.5 mm
PHOENIX CONTACT GmbH & Co. KG Page 1 / 5
http://www.phoenixcontact.com Mar 18, 2010
Page 2
FMC 1,5/ 2-ST-3,5 Order No.: 1952267
http://eshop.phoenixcontact.net/phoenix/treeViewClick.do?UID=1952267
Number of positions 2
Technical data
Insulating material group I
Rated surge voltage (III/3) 2.5 kV
Rated surge voltage (III/2) 2.5 kV
Rated surge voltage (II/2) 2.5 kV
Rated voltage (III/2) 160 V
Rated voltage (II/2) 320 V
Connection in acc. with standard EN-VDE
Nominal current I
Nominal voltage U
N
N
8 A
160 V
Nominal cross section 1.5 mm²
Maximum load current 8 A
Insulating material PA
Inflammability class acc. to UL 94 V0
Internal cylindrical gage A1
Stripping length 10 mm
Connection data
Conductor cross section solid min. 0.2 mm²
Conductor cross section solid max. 1.5 mm²
Conductor cross section stranded min. 0.2 mm²
Conductor cross section stranded max. 1.5 mm²
Conductor cross section stranded, with ferrule
0.25 mm²
without plastic sleeve min.
Conductor cross section stranded, with ferrule
1.5 mm²
without plastic sleeve max.
Conductor cross section stranded, with ferrule
0.25 mm²
with plastic sleeve min.
Conductor cross section stranded, with ferrule
0.75 mm²
with plastic sleeve max.
Conductor cross section AWG/kcmil min. 24
Conductor cross section AWG/kcmil max 16
PHOENIX CONTACT GmbH & Co. KG Page 2 / 5
http://www.phoenixcontact.com Mar 18, 2010
Page 3
FMC 1,5/ 2-ST-3,5 Order No.: 1952267
http://eshop.phoenixcontact.net/phoenix/treeViewClick.do?UID=1952267
Certificates / Approvals
Certification CUL, UL
CUL
Nominal voltage U
Nominal current I
N
N
150 V
8 A
AWG/kcmil 24-16
UL
Nominal voltage U
Nominal current I
N
N
150 V
8 A
AWG/kcmil 24-16
Accessories
Item Designation Description
Marking
1051993 B-STIFT Marker pen, for manual labeling of unprinted Zack strips, smear-
proof and waterproof, line thickness 0.5 mm
0804073 SK 3,5/2,8:FORTL.ZAHLEN Marker card, printed horizontally, self-adhesive, 10-section marker
strip, 14 identical decades marked 1-10, 11-20 etc. up to 91-100,
sufficient for 140 terminal blocks
0805030 SK 3,5/2,8:SO Marker card, special printing, self-adhesive, labeled acc. to
customer requirements, 14 identical marker strips per card, max.
25-position labeling per strip, color: White
0803883 SK U/2,8 WH:UNBEDRUCKT Unprinted marker cards, DIN A4 format, pitch as desired, self-
adhesive, with 50 stamped marker strips, 185 mm strip length, can
be labeled with the CMS system or manually with the M-PEN
PHOENIX CONTACT GmbH & Co. KG Page 3 / 5
http://www.phoenixcontact.com Mar 18, 2010
Page 4
FMC 1,5/ 2-ST-3,5 Order No.: 1952267
http://eshop.phoenixcontact.net/phoenix/treeViewClick.do?UID=1952267

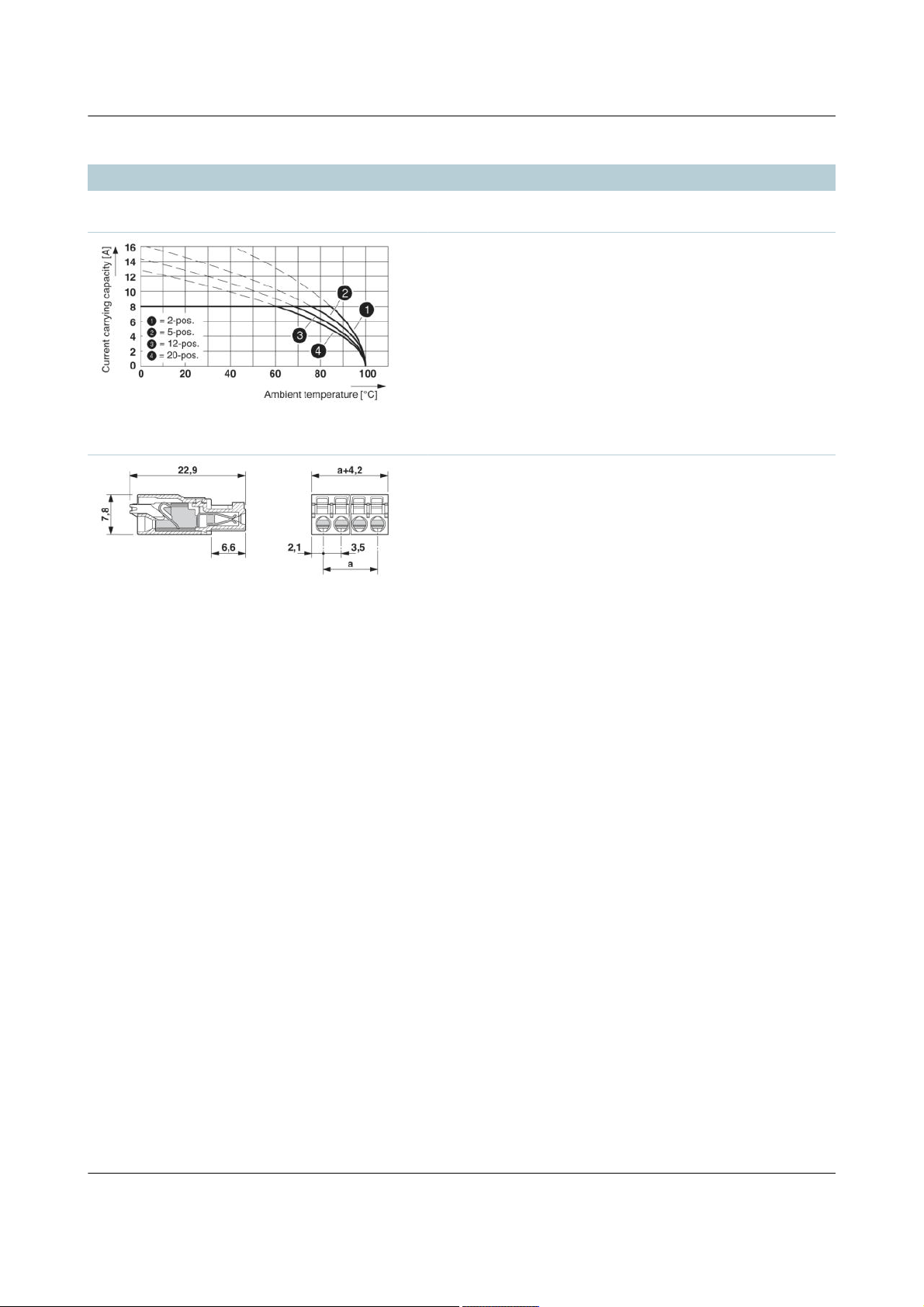

Diagrams/Drawings
Diagram
Dimensioned drawing
PHOENIX CONTACT GmbH & Co. KG Page 4 / 5
http://www.phoenixcontact.com Mar 18, 2010
Page 5
FMC 1,5/ 2-ST-3,5 Order No.: 1952267
http://eshop.phoenixcontact.net/phoenix/treeViewClick.do?UID=1952267
Address
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 00
Fax +49 5235 3 41200
http://www.phoenixcontact.com
© 2010 Phoenix Contact
Technical modifications reserved;
