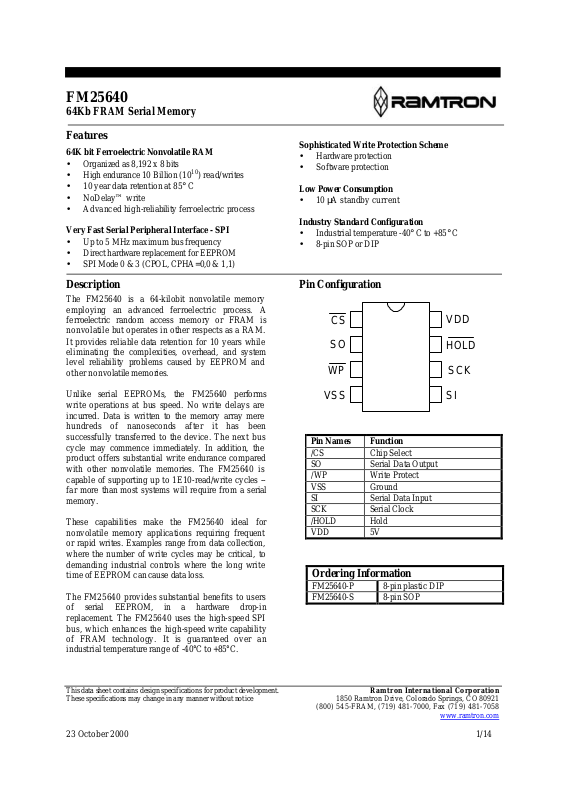

Datasheet FM25640-S, FM25640-P Datasheet (RAMTRON)

This data sheet contains design specifications for product development. Ramtron International Corporation
These specifications may change in any manner without not ice 1850 Ramtron Drive, Colorado Springs, CO 80921
(800) 545-FRAM, [phone], Fax [phone]
www.ramtron.com

23 October 2000 1/14

FM25640

64Kb FRAM Serial Memory

Features

64K bit Ferroelectric Nonvolatile RAM

• Organized as 8,192 x 8 bits

• High endurance 10 Billion (1010) read/writes

• 10 year data retention at 85° C

• NoDelay™ write

• Advanced high-reliability ferroelectric process

Very Fast Serial Peripheral Interface - SPI

• Up to 5 MHz maximum bus frequency

• Direct hardware replacement for EEPROM

• SPI Mode 0 & 3 (CPOL, CPHA=0,0 & 1,1)

Sophisticated Write Protection Scheme

• Hardware protection

• Software protection

Low Power Consumption

• 10 µA standby current

Industry Standard Configuration

• Industrial temperature -40° C to +85° C

• 8-pin SOP or DIP

Description

The FM25640 is a 64-kilobit nonvolatile memory
employing an advanced ferroelectric process. A
ferroelectric random access memory or FRAM is
nonvolatile but operates in other respects as a RAM.
It provides reliable data retention for 10 years while
eliminating the complexities, overhead, and system
level reliability problems caused by EEPROM and
other nonvolatile memories.

Unlike serial EEPROMs, the FM25640 performs
write operations at bus speed. No write delays are
incurred. Data is written to the memory array mere
hundreds of nanoseconds after it has been
successfully transferred to the device. The next bus
cycle may commence immediately. In addition, the
product offers substantial write endurance compared
with other nonvolatile memories. The FM25640 is
capable of supporting up to 1E10-read/write cycles -­far more than most systems will require from a serial
memory.

These capabilities make the FM25640 ideal for
nonvolatile memory applications requiring frequent
or rapid writes. Examples range from data collection,
where the number of write cycles may be critical, to
demanding industrial controls where the long write
time of EEPROM can cause data loss.

The FM25640 provides substantial benefits to users
of serial EEPROM, in a hardware drop-in
replacement. The FM25640 uses the high-speed SPI
bus, which enhances the high-speed write capability
of FRAM technology. It is guaranteed over an
industrial temperature range of -40°C to +85°C.

Pin Configuration

CS

SO

WP

VSS

VDD
HOLD

SCK

SI

Pin Names Function

/CS Chip Select
SO Serial Data Output
/WP Write Protect
VSS Ground
SI Serial Data Input
SCK Serial Clock
/HOLD Hold
VDD 5V

Ordering Information

FM25640-P 8-pin plastic DIP
FM25640-S 8-pin SOP

Ramtron FM25640

23 October 2000 2/14

Figure 1. Block Diagram

Instruction Decode

Clock Generator

Control Logic
Write Protect

Instruction Register

Address Register

Counter

`

2,048 x 32

FRAM Array

13

Data I/O Register

8

Nonvolatile Status

Register

3

WP

CS

HOLD

SCK

SO

Pin Description

Pin Name Pin Number I/O Pin Description

/CS 1 I Chip Select. Activates the device. When high, all outputs are tri-state and

the device ignores other inputs. The part remains in a low-power standby
mode. When low, the part recognizes activity on the SCK signal. A
falling edge on /C S must occur prior to every op-code.

SO 2 O Serial Output. SO is the data output pin. It is driven actively during a

read and remains tri-state at all other times including when HOLD\ is
low. Data transitions are driven on the falling edge of the serial clock.
* SO can be connected to SI for a single pin data interface since the part
communicates in half-duplex.

/WP 3 I Write Protect. This pin prevents write operations to the status register.

This is critical since other write protection features are controlled through
the status register. A complete explanation of write protection is provided
below. *Note that the function of /WP is different from the FM25040

where it prevents all writes to the part.
VSS 4 I Ground
SI 5 I Serial Input. All data is input to the device on this pin. The pin is

sampled on the rising edge of SCK and is ignored at other times. It

should always be driven to a valid logic level to meet IDD specifications.

* SI may be connected to SO for a single pin data interface.
SCK 6 I Serial Clock. All I/O activity is synchronized to the serial clock. Inputs

are latched on the rising edge and outputs occur on the falling edge. The

part is static so the clock frequency may be any value between 0 and 5

MHz and may be interrupted at any time.
/HOLD 7 I Hold. The /HOLD signal is used when the host CPU must interrupt a

memory operation for another task. Taking the /HOLD signal to a low

state pauses the current operation. The part ignores any transition on

SCK or /CS. All transitions on /HOLD must occur while SCK is low.
VDD 8 I Supply Voltage. 5V

Ramtron FM25640

23 October 2000 3/14

Overview

The FM25640 is a serial FRAM memory. The
memory array is logically organized as 8,192 x 8 and
is accessed using an industry standard Serial
Peripheral Interface or SPI bus. Functional operation
of the FRAM is similar to serial EEPROMs. The
major difference between the FM25640 and a serial
EEPROM with the same pin-out relates to its
superior write performance.

Memory Architecture

When accessing the FM25640, the user addresses
8,192 lo cations each with 8 data bits. These data bits
are shifted serially. The addresses are accessed using
the SPI protocol, which includes a chip select (to
permit multiple devices on the bus), an op-code and a
two-byte address. The upper 3 bits of the address
range are ‘don’t care’ values. The complete address
of 13-bits specifies each byte address uniquely.

Most functions of the FM25640 either are controlled
by the SPI interface or are handled automatically by
on-board circuitry. The access time for memory
operation essentially is zero, beyond the time needed
for the serial protocol. That is, the memory is read or
written at the speed of the SPI bus. Unlike an
EEPROM, it is not necessary to poll the device for a
ready condition since writes occur at bus speed. That
is, by the time a new bus transaction can be shifted
into the part, a write operation will be complete. This
is explained in more detail in the interface section
below.

Users expect several obvious system benefits from
the FM25640 due to its fast write cycle and high
endurance as compared with EEPROM. However
there are less obvious benefits as well. For example
in a high noise environment, the fast-write operation
is less susceptible to corruption than an EEPROM
since it is completed quickly. By contrast, an
EEPROM requiring milliseconds to write is
vulnerable to noise during much of the cycle.

Note that the FM25640 contains no power
management circuits other than a simple internal
power-on reset. It is the user’s responsibility to
ensure that VDD is within data sheet tolerances to
prevent incorrect operation.

Serial Peripheral Interface – SPI Bus

The FM25640 employs a Serial Peripheral Interface
(SPI) bus. It is specified to operate at speeds up to 5
MHz. This high-speed serial bus provides high
performance serial communication to a host
microcontroller. Many common microcontrollers
have hardware SPI ports allowing a direct interface.
It is quite simple to emulate the port using ordinary
port pins for microcontrollers that do not. The
FM25640 operates in SPI Mode 0 and 3.

The SPI interface uses a total of four pins: clock,
data-in, data-out, and chip select. It is possible to
connect the two data lines together. Figure 2
illustrates a typical system configuration using the
FM25640 with a microcontroller that offers an SPI
port. Figure 3 shows a similar configuration for a
microcontroller that has no hardware support for the
SPI bus.

Protocol Overview

The SPI interface is a synchronous serial interface
using clock and data lines. It is intended to support
multiple devices on the bus. Each device is activated
using a chip select. Once chip select is activated by
the bus master, the FM25640 will begin monitoring
the clock and data lines. The relationship between the
falling edge of /CS, the clock and data is dictated by
the SPI mode. The device will make a determination
of the SPI mode on the falling edge of each chip
select. While there are four such modes, the
FM25640 supports modes 0 and 3. Figure 4 shows
the required signal relationships for mo des 0 and 3.
For both modes, data is clocked into the FM25640 on
the rising edge of SCK and data is expected on the
first rising edge after /CS goes active. If the clock
begins from a high state, it will fall prior to beginning
data transfer in order to create the first rising edge.

The SPI protocol is controlled by op-codes. These
op-codes specify the commands to the part. After /CS
is activated the first byte transferred from the bus
master is the op-code. Following the op-code, any
addresses and data are then transferred.

Certain op-codes are commands with no subsequent
data transfer. The /CS must go inactive after an
operation is complete and before a new op-code can
be issued. There is one valid op-code only per active
chip select.

Ramtron FM25640

23 October 2000 4/14

Figure 2. System Configuration with SPI port

SPI

Micro controller

FM25640

MOSI : Master Out Slave In
MISO : Master In Slave Out
SS : Slave Select

FM25640

Figure 3. System Configuration without SPI port

Microcontroller

P1.0

P1.1

P1.2

FM25640

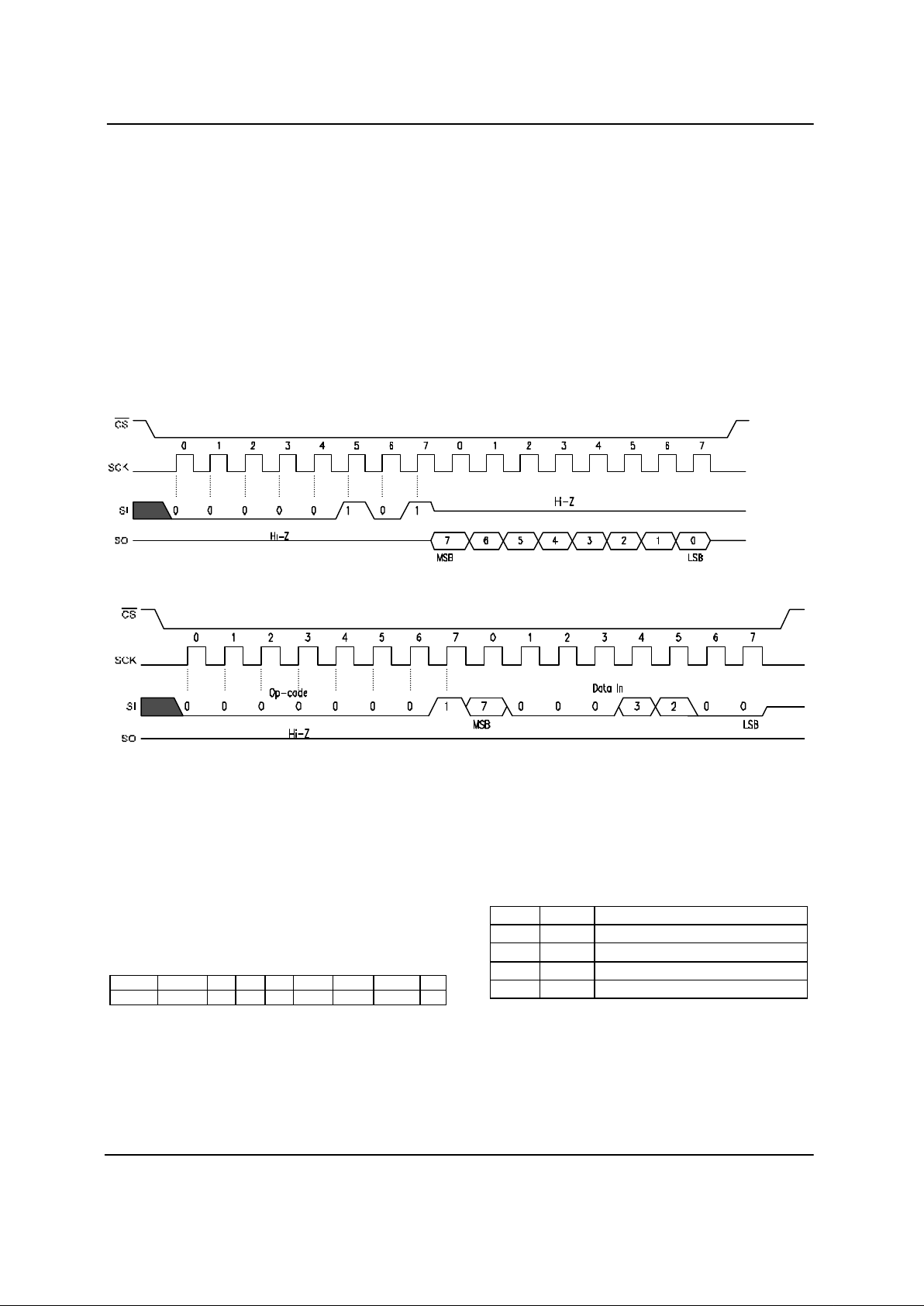

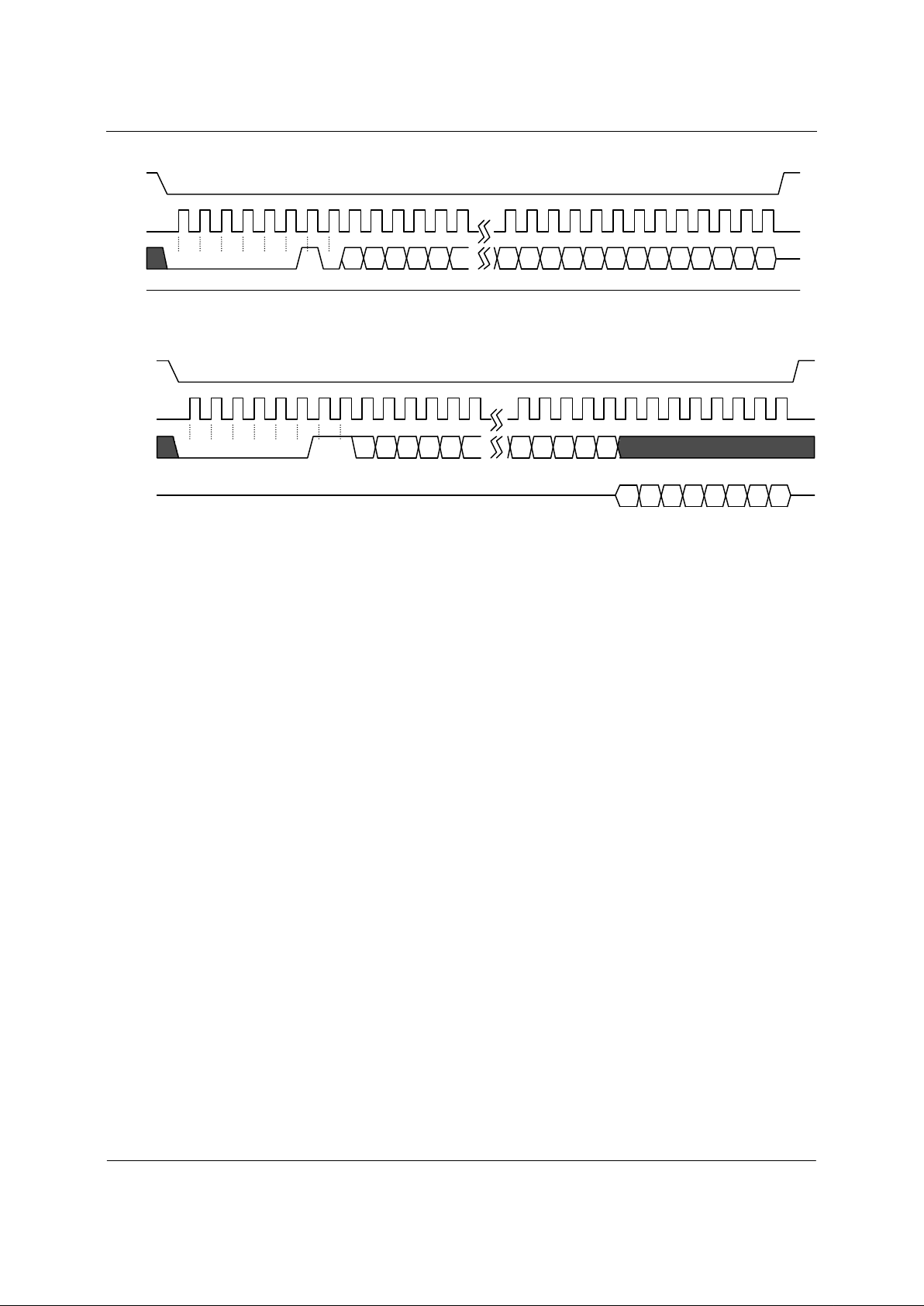

Figure 4. SPI Modes 0 & 3

SPI Mode 0: CPOL=0, CPHA=0

01234567

SPI Mode 3: CPOL=1, CPHA=1

01234567

Ramtron FM25640

23 October 2000 5/14

Data Transfer

All data transfers to and from the FM25640 occur in
8-bit groups. They are synchronized to the clock
signal (SCK) and they transfer most significant bit
(MSB) first. Serial inputs are clocked in on the rising
edge of SCK. Outputs are driven on the falling edge
of SCK.

Command Structure

There are six commands called op-codes that can be
issued by the bus master to the FM25640. They are
listed in the table below. These op-codes control the
functions performed by the memory. They can be
divided into three categories. First, are commands
that have no subsequent operations. They perform a
single function such as to enable a write operation.
Second are commands followed by one byte, either in
or out. They operate on the status register. La st are
commands for memory transactions followed by
address and one or more bytes of data.

Table 1. Op -code Commands

Name Description Op-code value
WREN Set Write Enable Latch

00000110b

WRDI Write Disable

00000100b

RDSR Read Status Register

00000101b

WRSR Write Status Register

00000001b

READ Read Memory Data

00000011b

WRITE Write Memory Data

00000010b

WREN - Set Write Enable Latch

The FM25640 will power up with writes disabled.
The WREN command must be issued prior to any
write operation. Sending the WREN op-code will
allow the user to issue subsequent op-codes for
write operations. These include writing the status
register and writing the memory.

Sending the WREN op-code causes the internal
Write Enable Latch to be set. A flag bit in the status
register, called WEL, indicates the state of the latch.
WEL=1 indicates that writes are permitted.
Attempting to write the WEL bit in the status
register has no effect. Completing any write
operation will automatically clear the write-enable
latch and prevent further writes without another
WREN command. Figure 4 below illustrates the
WREN command bus configuration.

WRDI - Write Disable

The WRDI command disables all write activity by
clearing the Write Enable Latch. The user can verify
that writes are dis abled by reading the WEL bit in
the status register and verifying that WEL=0. Figure
5 below illustrates the WRDI command bus
configuration.

Figure 5. WREN Bus Configuration

Figure 6. WRDI Bus Configuration

Ramtron FM25640

23 October 2000 6/14

RDSR - Read Status Register

The RDSR command allows the bus master to verify
the contents of the Status register. Reading Status
provides information about the current state of the
write protection features. Following the RDSR op­code, the FM25640 will return one byte with the
contents of the Status register. The Status register is
described in detail in a later section.

WRSR – Write Status Register

The WRSR command allows the user to select
certain write protection features by writing a byte to
the Status register. Prior to issuing a WRSR
command, the /WP pin must be high or inactive.
Note that on the FM25640, /WP only prevents
writing to the Status register, not the memory array.
Prior to sending the WRSR command, the user must
send a WREN command to enable writes. Note that
executing a WRSR command is a write operation
and therefore clears the Write Enable Latch. The bus
configuration of RDSR and WRSR are shown
below.

Figure 7. RDSR Bus Configuration

Figure 8. WRSR Bus Configuration

Status Register & Write Protection

The write protection features of the FM25640 are
multi -tiered. First, a WREN op-code must be issued
prior to any write operation. Assuming that writes are
enabled using WREN, writes to memory are
controlled by the Status register. As described above,
writes to the status register are performed using the
WRSR command and subject to the /WP pin. The
Status register is organized as follows.

Table 2. Status Register

Bit 7 6 5 4 3 2 1 0
Name WPEN 0 0 0 BP1 BP0 WEL 0

Bits 0 and 4-6 are fixed at 0 and can not be modified.
Note that the Ready bit in many EEPROMs is
unnecessary as the FRAM writes in real-time and is
never busy. The WPEN, BP1 and BP0 control write
protection features. They are nonvolatile! The WEL
flag indicates the state of the Write Enable Latch.

Writing the WEL bit in the status register has no
effect.

BP1 and BP0 are memory block write protection
bits. They specify portions of memory that are write
protected as shown in the following table.

Table 3. Block Memory Write Protection

BP1 BP0 Protected Address Range
0 0 None
0 1 1800h to 1FFFh (upper ¼)
1 0 1000h to 1FFFh (upper ½)
1 1 0000h to 1FFFh (all)

Ramtron FM25640

23 October 2000 7/14

The BP1 and BP0 bits and the Write Enable Latch
are the only mechanisms that protect the memory
from writes. The remaining write protection features
protect inadvertent changes to the block protect bits.

The WPEN bit controls the effect of the hardware
/WP pin. When WPEN is low, the /WP pin is
ignored. When WPEN is high, the /WP pin controls
write access to the status register. Thus the Status
register is write protected if WPEN=1 and /WP=0.

This scheme provides a write protection mechanism,
which can prevent software from writing the
memory under any circumstances. This occurs if the
BP1 and BP0 are set to 1, the WPEN bit is set to 1,
and /WP is set to 0. This occurs because the block
protect bits prevent writing memory and the /WP
signal in hardware prevents altering the block
protect bits (if WPEN is high). Therefore in this
condition, hardware must be involved in allowing a
write operation. The following table summarizes the
write protection conditions.

Table 4. Write Protection

WEL WPEN /WP Protected Blocks Unprotected Blocks Status Register

0 X X Protected Protected Protected
1 0 X Protected Unprotected Unprotected
1 1 0 Protected Unprotected Protected
1 1 1 Protected Unprotected Unprotected

Memory Operation

The SPI interface, with its relatively high maximum
clock frequency, highlights the fast write capability
of the FRAM technology. Unlike SPI-bus
EEPROMs, the FM25640 can perform sequential
writes at bus speed. No page register is needed and
any number of sequential writes may be performed.

Write Operation

All writes to the memory array begin with a WREN
op-code. The next op-code is the WRITE instruction.
This op-code is followed by a two-byte address
value. The upper 3-bits of the address are don’t care.
In total, the 13-bits specify the address of the first
byte of the write operation. Subsequent bytes ar e data
and they are written sequentially. Addresses are
incremented internally as long as the bus master
continues to issue clocks. If the last address of 1FFFh
is reached, the counter will roll over to 0000h. Data is
written MSB first.

Unlike EEPROMs, any number of bytes can be
written sequentially and each byte is written to
memory immediately after it is clocked in (after the
8th clock). The rising edge of /CS terminates a
WRITE op-code operation.

Read Operation

After the falling edge of /CS, the bus master can issue
a READ op-code. Following this instruction is a two ­byte address value. The upper 3-bits of the address
are don’t care. In total, the 13-bits specify the address
of the first byte of the read operation. After the op­code and address are complete, the SI line is ignored.
The bus master issues 8 clocks, with one bit read out
for each. Addresses are incremented internally as
long as the bus master continues to issue clocks. If
the last address of 1FFFh is reached, the counter will
roll over to 0000h. Data is read MSB first. The rising
edge of /CS terminates a READ op-code operation.
The bus configuration for read and write operations is
shown below.

Hold

The /HOLD pin can be used to interrupt a serial
operation without aborting it. If the bus master takes
the /HOLD pin low while SCK is low, the current
operation will pause. Taking the /HOLD pin high
while SCK is low will resume an operation. The
transitions of /HOLD must occur while SCK is low,
but the SCK pin can toggle during a hold state.

Ramtron FM25640

23 October 2000 8/14

Figure 9. Memory Write

0 1 2 3 4 5 6 7 0 1 2 3 4 5 3 4 5 6 7 0 1 2 3 4 5 6 7

op-code

0 0 0 0 0 0 1 0

MSB

13-bit Address

X X X 12 11 10 4 3 2 1 0 7 6 5 4 3 2 1 0

LSB MSB LSB

CS

SC K

SI

SO

D ata

Figure 10. Memory Read

0 1 2 3 4 5 6 7 0 1 2 3 4 5 3 4 5 6 7 0 1 2 3 4 5 6 7

op-code

0 0 0 0 0 0 1

M SB

13-bit Address

X X X 12 11 10 4 3 2 1 0

7 6 5 4 3 2 1 0

LSB MSB LSB

C S

SCK

SI

SO

D ata

1

Data Retention and Endurance

Data retention is specified in the electrical
specifications below. For purposes of clarity, this
section contrasts the retention and endurance of
FRAM with EEPROM. The retention performance
of FRAM is very comparable to EEPROM in its
characteristics. However, the effect of endurance
cycles on retention is different.

A typical EEPROM has a write endurance
specification that is fixed. Surpassing the specified
level of cycles on an EEPROM usually leads to a
hard memory failure. By contrast, the effect of
increasing cycles on FRAM produces an increase in
the soft error rate. That is, there is a higher likelihood
of data loss but the memory continues to function
properly. A hard failure would not occur by simply
exceeding the endurance specification; simply a
reduction in data retention reliability. While enough
cycles would cause an apparent hard error, this is
simply a very high soft error rate. This characteristic
makes it problematic to assign a fixed endurance
specification.

Endurance is a soft specification. Therefore, the user
may operate the device with different levels of
endurance cycling for different portions of the
memory. For example, critical data needing the
highest reliability level could be stored in memory
locations that receive comparatively few cycles. Data
with shorter-term use could be located in an area
receiving many more cycles. A scratchpad area,
needing little if any retention can be cycled until
there is virtually no retention capability remaining.
This would occur several orders of magnitude above
the endurance spec.

Internally, a FRAM operates with a read and restore
mechanism similar to a DRAM. Therefore,
endurance cycles are applied for each access: read or
write. The FRAM architecture is based on an array of
rows and columns. Each access causes a cycle for an
entire row. Therefore, data locations targeted for
substantially differing numbers of cycles should not
be located within the same row. In the FM25640,
there are 2048 rows each 32 bits wide. Each 4 bytes
in the address mark the beginning of a new row.

Ramtron FM25640

23 October 2000 9/14

Applications

The versatility of FRAM technology fits into many
diverse applications. Clearly the strength of higher
write endurance and faster writes make FRAM
superior to EEPROM in all but one-time
programmable applications. The advantage is most
obvious in data collection environments where writes
are frequent and data must be nonvolatile.

The attributes of fast writes and high write endurance
combine in many innovative ways. A short list of
ideas is provided here.

1. Data collection. In applications where data is
collected and saved, FRAM provides a superior
alternative to other solutions. It is more cost effective
than battery backup for SRAM and provides better
write attributes than EEPROM.

2. Configuration. Any nonvolatile memory can
retain a configuration. However, if the configuration
changes and power failure is a possibility, the higher
write endurance of FRAM allows changes to be
recorded without restriction. Any time the system­state is altered, the change can be written. This avoids
writing to memory on power-down when the
available time is short and power scarce.

3. High noise environments. Writing to EEPROM
in a noisy environment can be challenging. When
severe noise or power fluctuations are present, the
long write time of EEPROM creates a window of
vulnerability during which the write can be
corrupted. The fast write of FRAM is complete
within a microsecond. This time is typically too short
for noise or power fluctuations to disturb it.

4. Time to market. In a complex system, multiple
software routines may need to access the nonvolatile
memory. In this environment the time delay
associated with programming EEPROM adds undue
complexity to the software development. Each
software routine must wait for complete
programming before allowing access to the next
routine. When time to market is critical, FRAM can
eliminate this simple obstacle. As soon as a write is
issued to the FM25640, it is effectively done -- no
waiting.

5. RF/ID. In the area of contactless memory,
FRAM provides an ideal solution. Since RF/ID
memory is powered by an RF field, the long
programming time and high current consumption
needed to write EEPROM is unattractive. FRAM
provides a superior solution. The FM25640 is
suitable for multi -chip RF/ID products.

6. Maintenance tracking. In sophisticated systems,
the operating history and system -state during a failure
is important knowledge. Maintenance can be
expedited when this information has been recorded.
Due to the high write endurance, FRAM makes an
ideal system log. In addition, the convenient interface
of the FM25640 allows memory to be distributed
throughout the system using minimal additional
resources.

Ramtron FM25640

23 October 2000 10/14

Electrical Specifications

Absolute Maximum Ratings

Description Ratings

Ambient storage or operating temperature

-40°C to + 85°C

Voltage on any pin with respect to ground -1.0V to +7.0V
D.C. output current on any pin 5 mA
Lead temperature (Soldering, 10 seconds)

300° C

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a
stress rating only, and the functional operation of the devi ce at these or any other conditions above those listed in the
operational section of this specification is not implied. Exposure to absolute maximum ratings conditions for
extended periods may affect device reliability

DC Operating Conditions TA = -40° C to + 85° C, VDD = 4.5V to 5.5V unless otherwise specified

Symbol Parameter Min Typ Max Units Notes

VDD Main Power Supply 4.5 5.0 5.5 V 1
IDD VDD Supply Current

@ SCK = 1.0 MHz
@ SCK = 2.0 MHz
@ SCK = 5.0 MHz

0.9

1.6

3.0

1.2

2.5

4.5

mA 2

ISB Standby Current 1 10

µA

3

ILI Input Leakage Current 10

µA

4

ILO Output Leakage Current 10

µA

4

VIL Input Low Voltage -0.3 VDD x 0.3 V 1,5
VIH Input High Voltage VDD x 0.7 VDD + 0.5 V 1,5
VOL Output Low Voltage

@ IOL = 2 mA

0.4 V 1,5

VOH Output High Voltage

@ IOH = -2 mA

VDD - 0.8 V 1,5

VHYS Input Hysteresis VDD x .05 V 1,5

Notes

1. Referenced to VSS.

2. SCK toggling between VDD-0.3V and VSS, other inputs VSS or VDD-0.3V

3. SCK = SI = /CS=VDD. All inputs VSS or VDD.

4. VIN or VOUT = VSS to VDD

5. Characterized but not 100% tested in production.

Ramtron FM25640

23 October 2000 11/14

AC Parameters TA = -40° C to + 85° C, VDD = 4.5V to 5.5V unless otherwise specified

Symbol Parameter Min Max Units Note

fCK SCK Clock Frequency 0 5.0 MHz
tCH Clock High Time 90 ns
tCL Clock Low Time 90 ns
tCSU Chip Select Setup 90 ns
tCSH Chip Select Hold 90 ns
tOD Output Disable 100 ns 2
tODV Output Data Valid 60 ns
tOH Output Hold 0 ns
tD Deselect Time 100 ns
tR Data In Rise Time 1

µs

1,2

tF Data In Fall Time 1

µs

1,2
tH Data Hold Time 30 ns
tSU Data Setup Time 20 ns
tHS /Hold Setup Time 70 ns
tHH /Hold Hold Time 40 ns
tHZ /Hold Low to Hi-Z 100 ns 2
tLZ /Hold High to Data Active 50 ns 2

Notes

1. Rise and fall times measured between 10% and 90% of waveform.

2. Characterized but not 100% tested in production.

Capacitance TA = 25° C, f=1.0 MHz, VDD = 5V

Symbol Parameter Max Units Notes

CO Output capacitance (SDA) 8 pF 1
CI Input capacitance 6 pF 1

Notes

1. This parameter is periodically sampled and not 100% tested.

AC Test Conditions

Input Pulse Levels VDD * 0.1 to VDD * 0.9
Input rise and fall times 10 ns
Input and output timing levels VDD*0.5

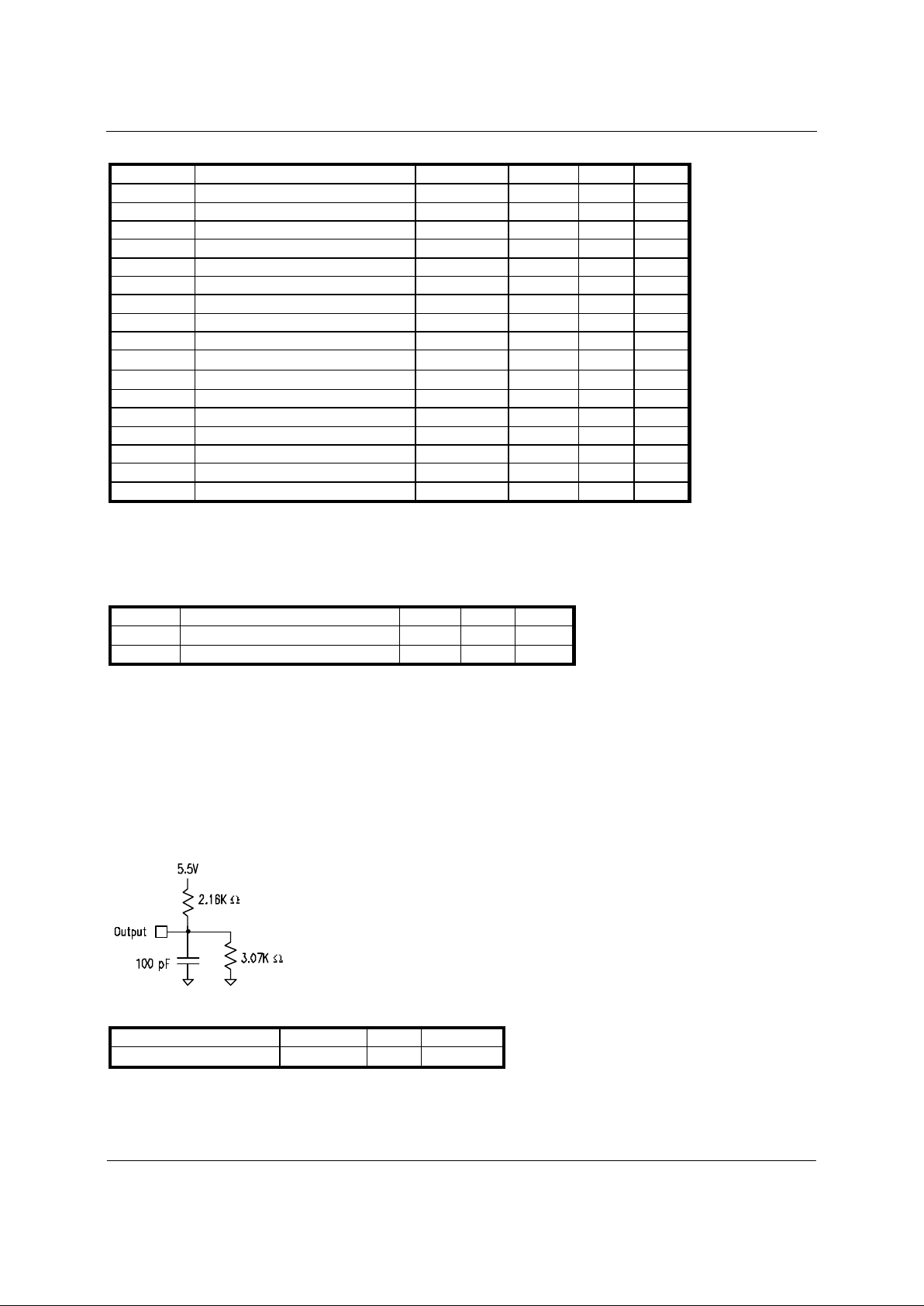

Equivalent AC Load Circuit

Data Retention TA = -40° C to + 85° C, VDD = 4.5V to 5.5V unless otherwise specified

Parameter Min Units Notes

Data Retention 10 Years 1

Notes

1. Data retention is specified at 85° C. The relationship between retention, temperature, and the associated

reliability level is characterized separately.

Ramtron FM25640

23 October 2000 12/14

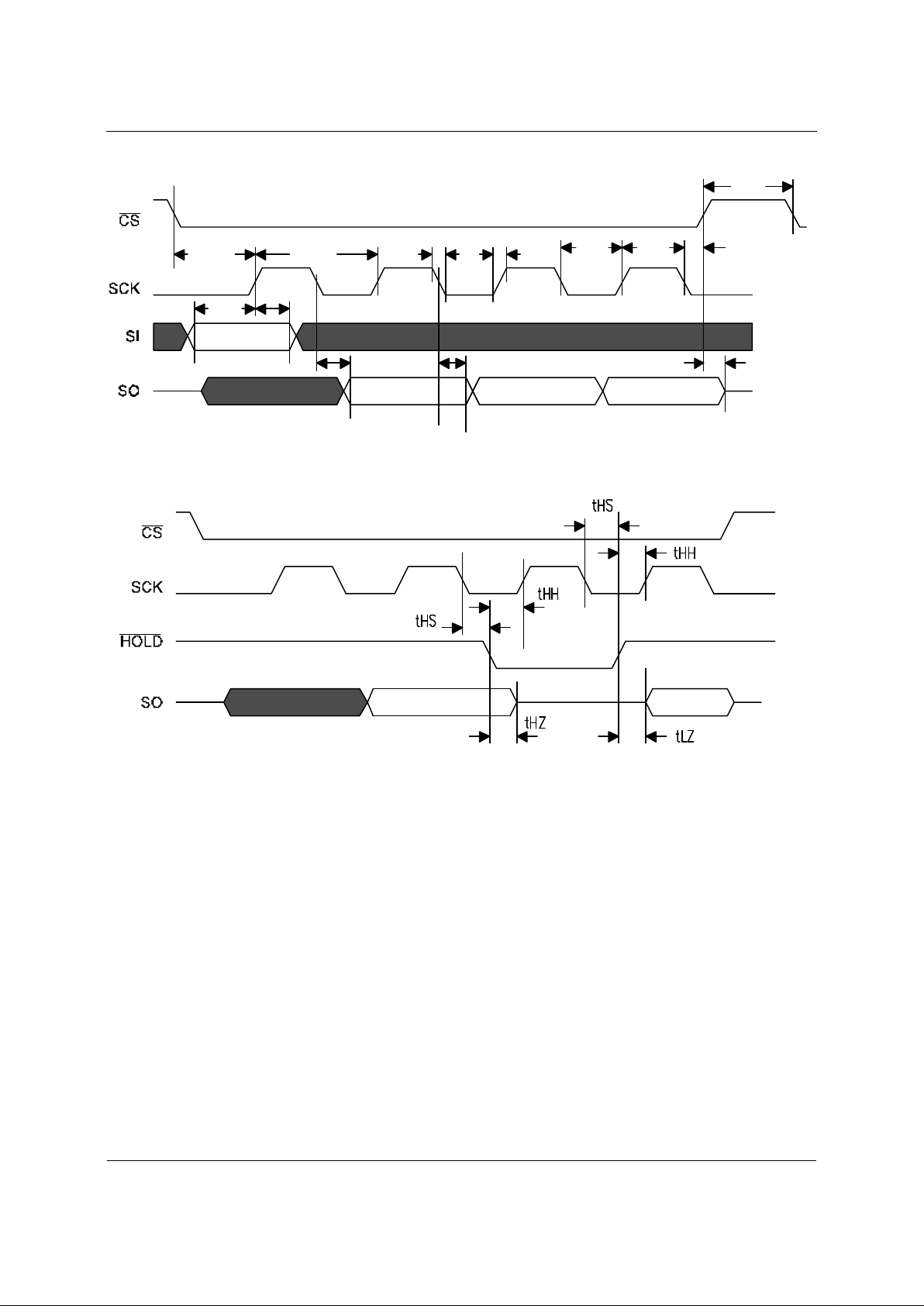

Serial Data Bus Timing

1/fCK

tCL tCH

tCSH

t ODV tOH t OD

tCSU

tSU

tH

tD

tRtF

/Hold Timing

Ramtron FM25640

23 October 2000 13/14

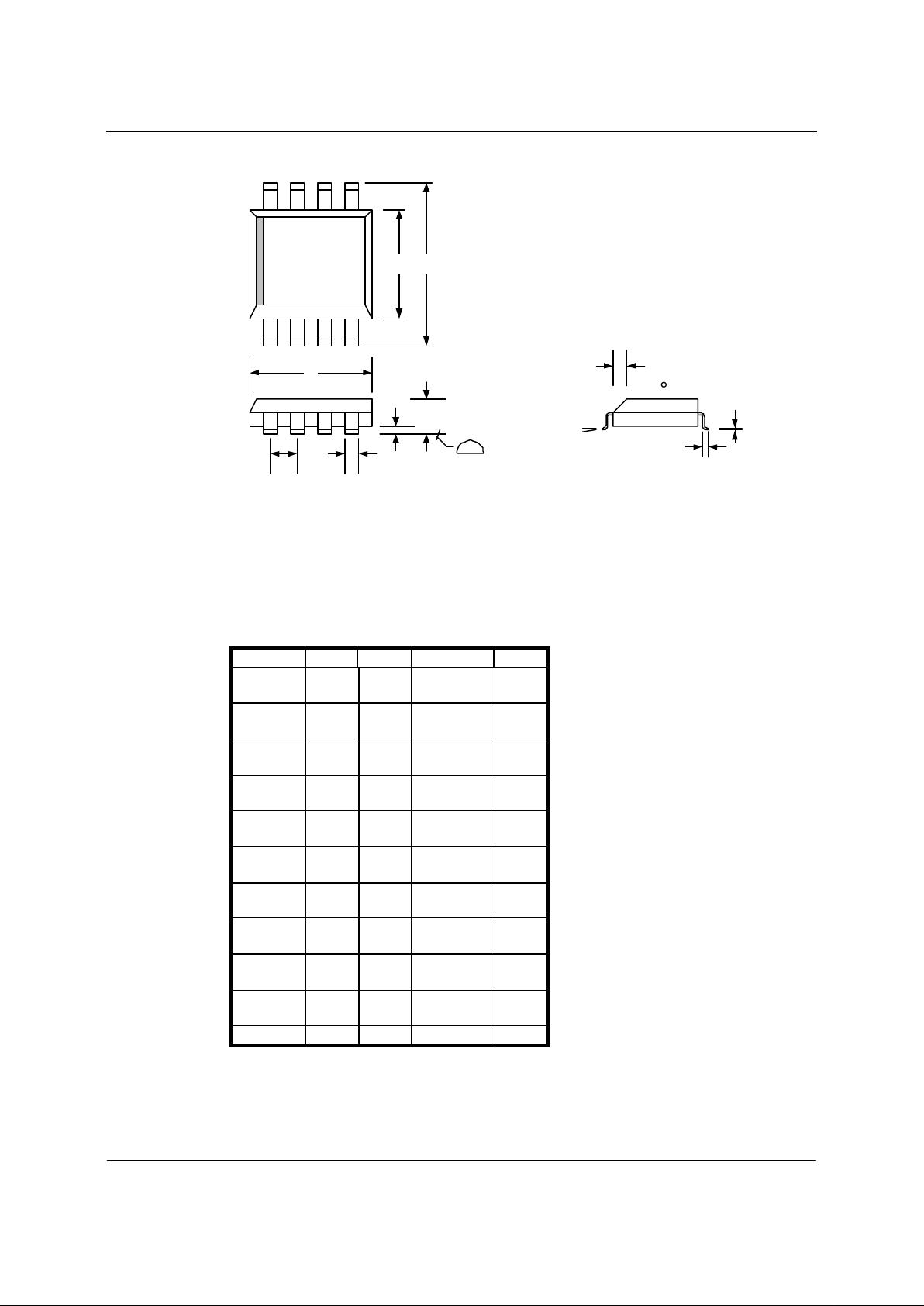

8-pin SOP JEDEC MS-012

Pin 1

Index

Area

E H

D

A1

A

B

e

.10 mm
.004 in.

α

h

45

L

C

Selected Dimensions

Refer to JEDEC MS-012 for complete dimensions and
notes.
Controlling dimensions is in millimeters. Conversions to
inches are not exact.

Symbol Dim Min Nom. Max

A mm

in.

1.35
.053

1.75
.069

A1 mm

in.

.10
.004

.25

.010

B mm

in.

.33
.013

.51

.020

C mm

in.

.19
.007

.25

.010

D mm

in.

4.80
.189

5.00
.197

E mm

in.

3.80
.150

4.00
.157

e mm

in.

1.27 BSC
.050 BSC

H mm

in.

5.80

.228

6.20

.244

h mm

in.

.25
.010

.50

.197

L mm

in.

.40
.016

1.27

.050

α

0°

8°

Ramtron FM25640

23 October 2000 14/14

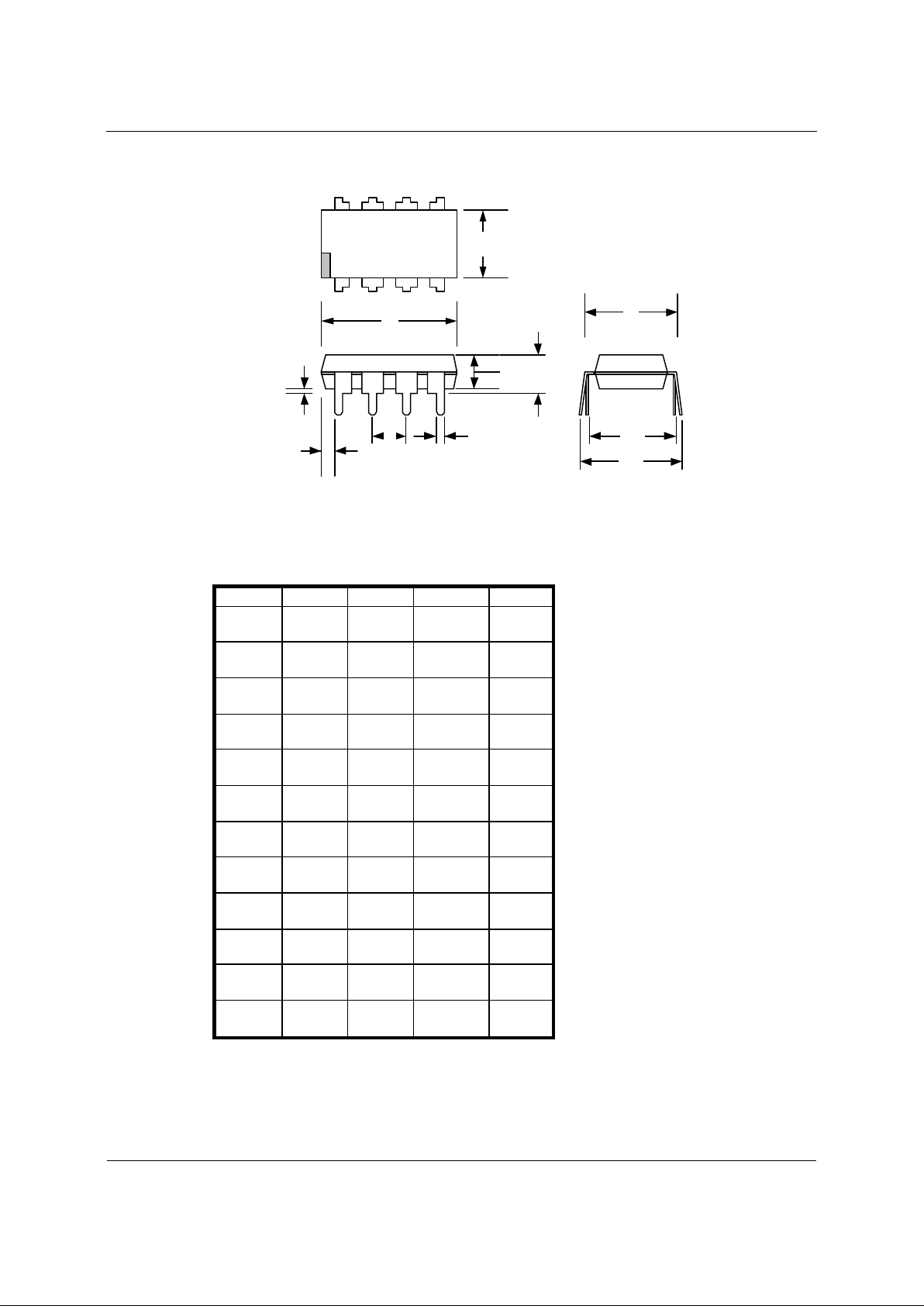

8-pin DIP JEDEC MS-001

Index

Area

E1

D

A1

e

D1

b

A2

A

eA

eB

E

Selected Dimensions

Refer to JEDEC MS -001 for complete dimensions and notes.
Controlling dimensions is in inches. Conversions to millimeters are
not exact.

Symbol Dim Min Nom. Max

A in.

mm

.210

5.33

A1 in.

mm

0.015
.381

A2 in.

mm

0.115

2.92

0.130

3.30

0.195

4.95

b in.

mm

0.014
.356

0.018
.457

0.022
.508

D in.

mm

0.355

9.02

0.365

9.27

0.400

10.2

D1 in.

mm

0.005
.127

E in.

mm

0.300

7.62

0.310

7.87

0.325

8.26

E1 in.

mm

0.240

6.10

0.250

6.35

0.280

7.11

e in.

mm

.100 BSC

2.54 BSC

eA in.

mm

.300 BSC

7.62 BSC

eB in.

mm

0.430

10.92

L in.

mm

0.115

2.92

0.130

3.30

0.150

3.81
