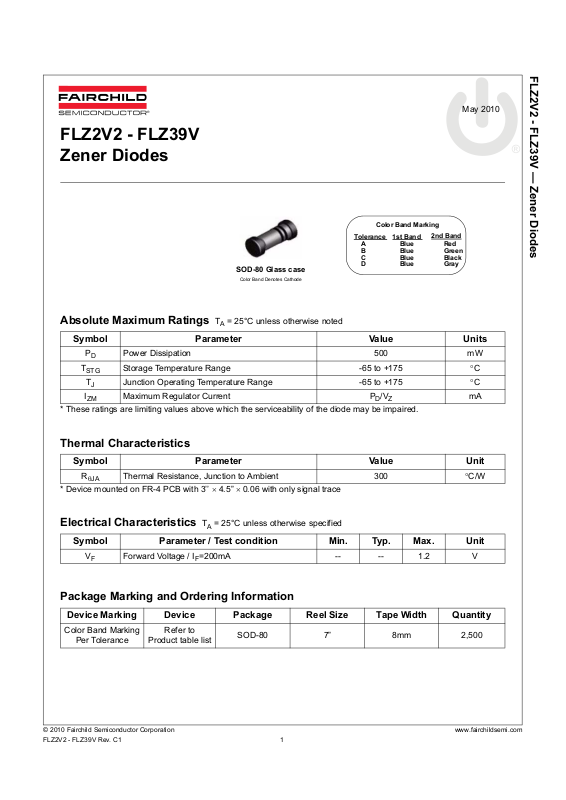

Page 1

FLZ2V2 - FLZ39V Zener Diodes

SOD-80 Glass case

Color Band Denotes Cathode

Color Band Marking

Tolerance

A Blue Red B Blue Green C Blue Black D Blue Gray

1st Band

2nd Band

FLZ2V2 - FLZ39V — Zener Diodes

May 2010

Absolute Maximum Ratings T

= 25°C unless otherwise noted

Symbol Parameter Value Units

STG

* These ratings are limiting values above which the serviceability of the diode may be impaired.

Power Dissipation 500 mW

Storage Temperature Range -65 to +175 °C

Junction Operating Temperature Range -65 to +175 °C

Maximum Regulator Current PD/V

Thermal Characteristics

Symbol Parameter Value Unit

θJA

* Device mounted on FR-4 PCB with 3’’ × 4.5” × 0.06 with only signal trace

Electrical Characteristics T

Symbol Parameter / Test condition Min. Typ. Max. Unit

Thermal Resistance, Junction to Ambient 300 °C/W

= 25°C unless otherwise specified

Forward Voltage / IF=200mA -- -- 1.2 V

Package Marking and Ordering Information

Device Marking Device Package Reel Size Tape Width Quantity

Color Band Marking

Per Tolerance

FLZ2V2 - FLZ39V Rev. C1 1

Refer to

Product table list

SOD-80 7” 8mm 2,500

Page 2

FLZ2V2 - FLZ39V — Zener Diodes

Electrical Characteristics T

Product

Group

FLZ2V2 FLZ2V2A 2.12 2.21 2.30 35 20 400 1 55 0.7

FLZ2V4 FLZ2V4A 2.33 2.42 2.52 35 20 400 1 84 1

FLZ2V7 FLZ2V7A 2.54 2.64 2.75 35 20 450 1 70 1

FLZ3V0 FLZ3V0A 2.85 2.96 3.07 35 20 450 1 35 1

FLZ3V3 FLZ3V3A 3.16 3.27 3.38 35 20 450 1 14 1

FLZ3V6 FLZ3V6A 3.455 3.57 3.695 48 20 850 1 2.8 1

FLZ3V9 FLZ3V9A 3.74 3.88 4.01 40 20 850 1 1.4 1

FLZ4V3 FLZ4V3A 4.04 4.15 4.29 32 20 850 1 0.47 1

FLZ4V7 FLZ4V7A 4.44 4.56 4.68 21 20 770 1 0.19 1

FLZ5V1 FLZ5V1A 4.81 4.94 5.07 17 20 685 1 0.19 1.5

FLZ5V6 FLZ5V6A 5.28 5.41 5.55 10.5 20 425 1 0.75 2.5

FLZ6V2 FLZ6V2A 5.78 5.94 6.09 8.5 20 255 1 3.3 3

FLZ6V8 FLZ6V8A 6.29 6.45 6.63 6.6 20 123 0.5 1.1 3.5

FLZ7V5 FLZ7V5A 6.85 7.04 7.22 6.6 20 95 0.5 0.3 4.0

FLZ8V2 FLZ8V2A 7.53 7.73 7.92 6.6 20 95 0.5 0.3 5

Product

Name

FLZ2V2B 2.22 2.32 2.41 35 20 400 1 55 0.7

FLZ2V4B 2.43 2.53 2.63 35 20 400 1 84 1

FLZ2V7B 2.69 2.80 2.91 35 20 450 1 70 1

FLZ3V0B 3.01 3.12 3.22 35 20 450 1 35 1

FLZ3V3B 3.32 3.43 3.53 35 20 450 1 14 1

FLZ3V6B 3.60 3.73 3.845 48 20 850 1 2.8 1

FLZ3V9B 3.89 4.03 4.16 40 20 850 1 1.4 1

FLZ4V3B 4.17 4.30 4.43 32 20 850 1 0.47 1

FLZ4V3C 4.30 4.44 4.57 32 20 850 1 0.47 1

FLZ4V7B 4.55 4.68 4.80 21 20 770 1 0.19 1

FLZ4V7C 4.68 4.81 4.93 21 20 770 1 0.19 1

FLZ5V1B 4.94 5.08 5.20 17 20 685 1 0.19 1.5

FLZ5V1C 5.09 5.23 5.37 17 20 685 1 0.19 1.5

FLZ5V6B 5.45 5.58 5.73 10.5 20 425 1 0.75 2.5

FLZ5V6C 5.61 5.76 5.91 10.5 20 425 1 0.75 2.5

FLZ6V2B 5.96 6.12 6.27 8.5 20 255 1 3.3 3

FLZ6V2C 6.12 6.28 6.44 8.5 20 255 1 3.3 3

FLZ6V8B 6.49 6.66 6.83 6.6 20 123 0.5 1.1 3.5

FLZ6V8C 6.66 6.83 7.01 6.6 20 123 0.5 1.1 3.5

FLZ7V5B 7.07 7.26 7.45 6.6 20 95 0.5 0.3 4.0

FLZ7V5C 7.29 7.49 7.67 6.6 20 95 0.5 0.3 4.0

FLZ8V2B 7.78 7.99 8.19 6.6 20 95 0.5 0.3 5

FLZ8V2C 8.03 8.24 8.45 6.6 20 95 0.5 0.3 5

Min. Typ. Max.

=25°C unless otherwise noted

(V) @ I

ZZT(Ω)

@ I

(mA)

@ I

(Ω)

(mA)

(µA)

@ V

Max. - Max. - Max -

VR(V)

FLZ2V2 - FLZ39V Rev. C1 2

Page 3

FLZ2V2 - FLZ39V — Zener Diodes

Electrical Characteristics (Continued) T

(V) @ I

Product

Group

FLZ9V1 FLZ9V1A 8.29 8.51 8.73 6.6 20 95 0.5 0.3 6

FLZ10V FLZ10VA 9.12 9.39 9.59 6.6 20 95 0.5 0.11 7

FLZ11V FLZ11VA 10.18 10.41 10.71 8.5 10 95 0.5 0.133 8

FLZ12V FLZ12VA 11.13 11.38 11.71 9.5 10 95 0.5 0.133 9

FLZ13V FLZ13VA 12.11 12.45 12.75 11.4 10 95 0.5 0.133 10

FLZ15V FLZ15VA 13.44 13.79 14.13 13.3 10 95 0.5 0.133 11

FLZ16V FLZ16VA 14.80 15.19 15.57 15.2 10 132 0.5 0.133 12

FLZ18V FLZ18VA 16.22 16.70 17.06 19.4 10 123 0.5 0.133 13

FLZ20V FLZ20VA 18.02 18.52 18.96 23.5 10 170 0.5 0.133 15

FLZ22V FLZ22VA 20.15 20.66 21.20 25.6 5 170 0.5 0.133 17

FLZ24V FLZ24VA 22.05 22.69 23.18 29.0 5 170 0.5 0.133 19

Product

Name

FLZ9V1B 8.57 8.80 9.01 6.6 20 95 0.5 0.3 6

FLZ9V1C 8.83 9.09 9.30 6.6 20 95 0.5 0.3 6

FLZ10VB 9.41 9.69 9.90 6.6 20 95 0.5 0.11 7

FLZ10VC 9.70 10.06 10.20 6.6 20 95 0.5 0.11 7

FLZ11VB 10.50 10.73 11.05 8.5 10 95 0.5 0.133 8

FLZ11VC 10.82 11.04 11.38 8.5 10 95 0.5 0.133 8

FLZ12VB 11.44 11.71 12.03 9.5 10 95 0.5 0.133 9

FLZ12VC 11.74 12.05 12.35 9.5 10 95 0.5 0.133 9

FLZ13VB 12.55 12.87 13.21 11.4 10 95 0.5 0.133 10

FLZ13VC 12.99 13.33 13.66 11.4 10 95 0.5 0.133 10

FLZ15VB 13.89 14.26 14.62 13.3 10 95 0.5 0.133 11

FLZ15VC 14.35 14.72 15.09 13.3 10 95 0.5 0.133 11

FLZ16VB 15.25 15.65 16.04 15.2 10 132 0.5 0.133 12

FLZ16VC 15.69 16.14 16.51 15.2 10 132 0.5 0.133 12

FLZ18VB 16.82 17.29 17.70 19.4 10 123 0.5 0.133 13

FLZ18VC 17.42 17.90 18.33 19.4 10 123 0.5 0.133 13

FLZ20VB 18.63 19.13 19.59 23.5 10 170 0.5 0.133 15

FLZ20VC 19.23 19.80 20.22 23.5 10 170 0.5 0.133 15

FLZ20VD 19.72 20.30 20.72 23.5 10 170 0.5 0.133 15

FLZ22VB 20.64 21.21 21.71 25.6 5 170 0.5 0.133 17

FLZ22VC 21.08 21.66 22.17 25.6 5 170 0.5 0.133 17

FLZ22VD 21.52 22.15 22.63 25.6 5 170 0.5 0.133 17

FLZ24VB 22.61 23.24 23.77 29.0 5 170 0.5 0.133 19

FLZ24VC 23.12 23.78 24.31 29.0 5 170 0.5 0.133 19

FLZ24VD 23.63 24.31 24.85 29.0 5 170 0.5 0.133 19

Min. Typ. Max.

=25°C unless otherwise noted

ZZT(Ω)

@ I

IZT

(mA)

ZZK(Ω)

@ I

(mA)

Max. - Max. - Max -

(µA)

@ V

VR(V)

FLZ2V2 - FLZ39V Rev. C1 3

Page 4

FLZ2V2 - FLZ39V — Zener Diodes

Electrical Characteristics (Continued) T

(V) @ I

Product

Group

FLZ27V FLZ27VA 24.26 24.89 25.52 38 5 210 0.5 0.133 21

FLZ30V FLZ30VA 26.99 27.69 28.39 46 5 210 0.5 0.133 23

FLZ33V FLZ33VA 29.68 30.45 31.22 55 5 210 0.5 0.133 25

FLZ36V FLZ36VA 32.14 32.96 33.79 63 5 210 0.5 0.133 27

FLZ39V FLZ39VA 34.68 35.57 36.47 72 5 210 0.5 0.133 30

Product

Name

FLZ27VB 24.97 25.62 26.26 38 5 210 0.5 0.133 21

FLZ27VC 25.63 26.29 26.95 38 5 210 0.5 0.133 21

FLZ27VD 26.29 26.97 27.64 38 5 210 0.5 0.133 21

FLZ30VB 27.70 28.41 29.13 46 5 210 0.5 0.133 23

FLZ30VC 28.36 29.09 29.82 46 5 210 0.5 0.133 23

FLZ30VD 29.02 29.77 30.51 46 5 210 0.5 0.133 23

FLZ33VB 30.32 31.10 31.88 55 5 210 0.5 0.133 25

FLZ33VC 30.90 31.70 32.50 55 5 210 0.5 0.133 25

FLZ33VD 31.49 32.30 33.11 55 5 210 0.5 0.133 25

FLZ36VB 32.79 33.63 34.49 63 5 210 0.5 0.133 27

FLZ36VC 33.40 34.27 35.13 63 5 210 0.5 0.133 27

FLZ36VD 34.01 34.89 35.77 63 5 210 0.5 0.133 27

FLZ39VB 35.36 36.26 37.19 72 5 210 0.5 0.133 30

FLZ39VC 36.00 36.92 37.85 72 5 210 0.5 0.133 30

FLZ39VD 36.63 37.58 38.52 72 5 210 0.5 0.133 30

Min. Typ. Max.

=25°C unless otherwise noted

ZZT(Ω)

@ I

IZT

(mA)

ZZK(Ω)

@ I

(mA)

Max. - Max. - Max -

(µA)

@ V

VR(V)

Note :

1. Zener Voltage(V The zener voltage is measured with the device junction in the thermal equilibrium at the lead temperature (TL) at 30°C ± 1°C and 3/8” lead length.

)

FLZ2V2 - FLZ39V Rev. C1 4

Page 5

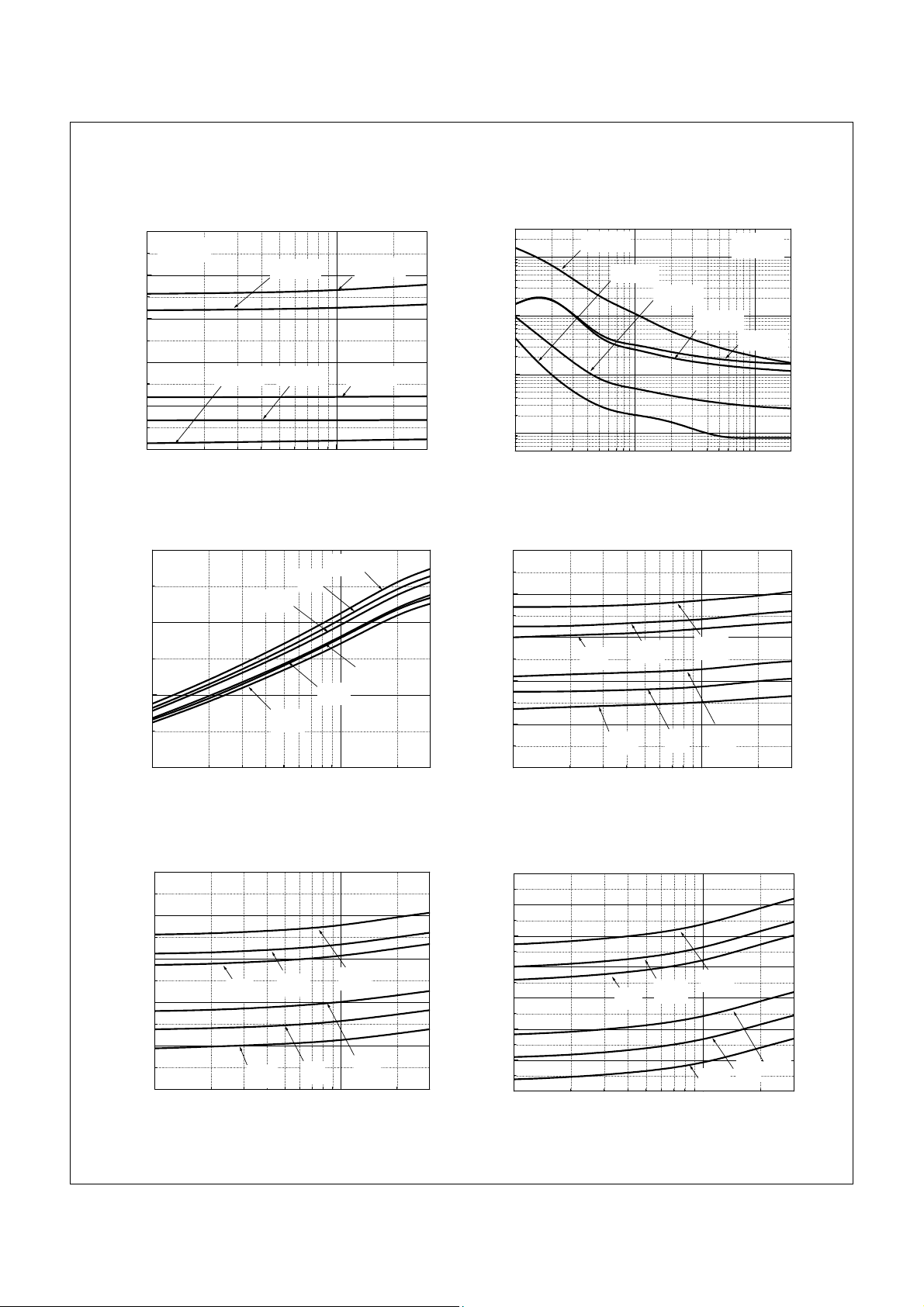

Typical Performance Characteristics

Figure 1. Zener current vs. Zener Voltage Figure 2. Zener current vs. Zener Impedence

TA = 25OC

FLZ2V2A

VZ - Zener Voltage [V]

123456789102030

FLZ33VD

FLZ6V8B

FLZ39VB

FLZ12VC

IZ - Zener Current, [mA]

1000

100

- Impedance [ohms]

0.1 1 10

FLZ2V2A

FLZ6V8B

FLZ12VC

IZ - Zener Current, [mA]

TA = 25OC

FLZ33VD

FLZ39VB

FLZ2V2 - FLZ39V — Zener Diodes

Figure 3. FLZ2V2A Zener current vs. Zener Voltage

2.5

-25OC

-0OC

25OC

2.0

85OC

1.5

VZ - Zener Voltage [V]

1.0 123456789 2030

100OC

125OC

IZ - Zener Current, [mA]

Figure 5. FLZ12VC Zener current vs. Zener Voltage

13.5

13.0

12.5

125OC

12.0

85OC

100OC

Figure 4. FLZ6V8B Zener current vs. Zener Voltage

7.2

7.0

6.8

100OC

VZ - Zener Voltage [V]

85OC

6.6

6.4

-25OC

6.2 123456789 2030

-0OC

125OC

25OC

IZ - Zener Current, [mA]

Figure 6. FLZ33VD Zener current vs. Zener Voltage

125OC

85OC

100OC

VZ - Zener Voltage [V]

11.5

11.0 123456789 2030

-25OC

-0OC

25OC

IZ - Zener Current, [mA]

VZ - Zener Voltage [V]

123456789 2030

-25OC

-0OC

25OC

IZ - Zener Current, [mA]

FLZ2V2 - FLZ39V Rev. C1 5

Page 6

Typical Performance Characteristics (Continued)

FLZ2V2 - FLZ39V — Zener Diodes

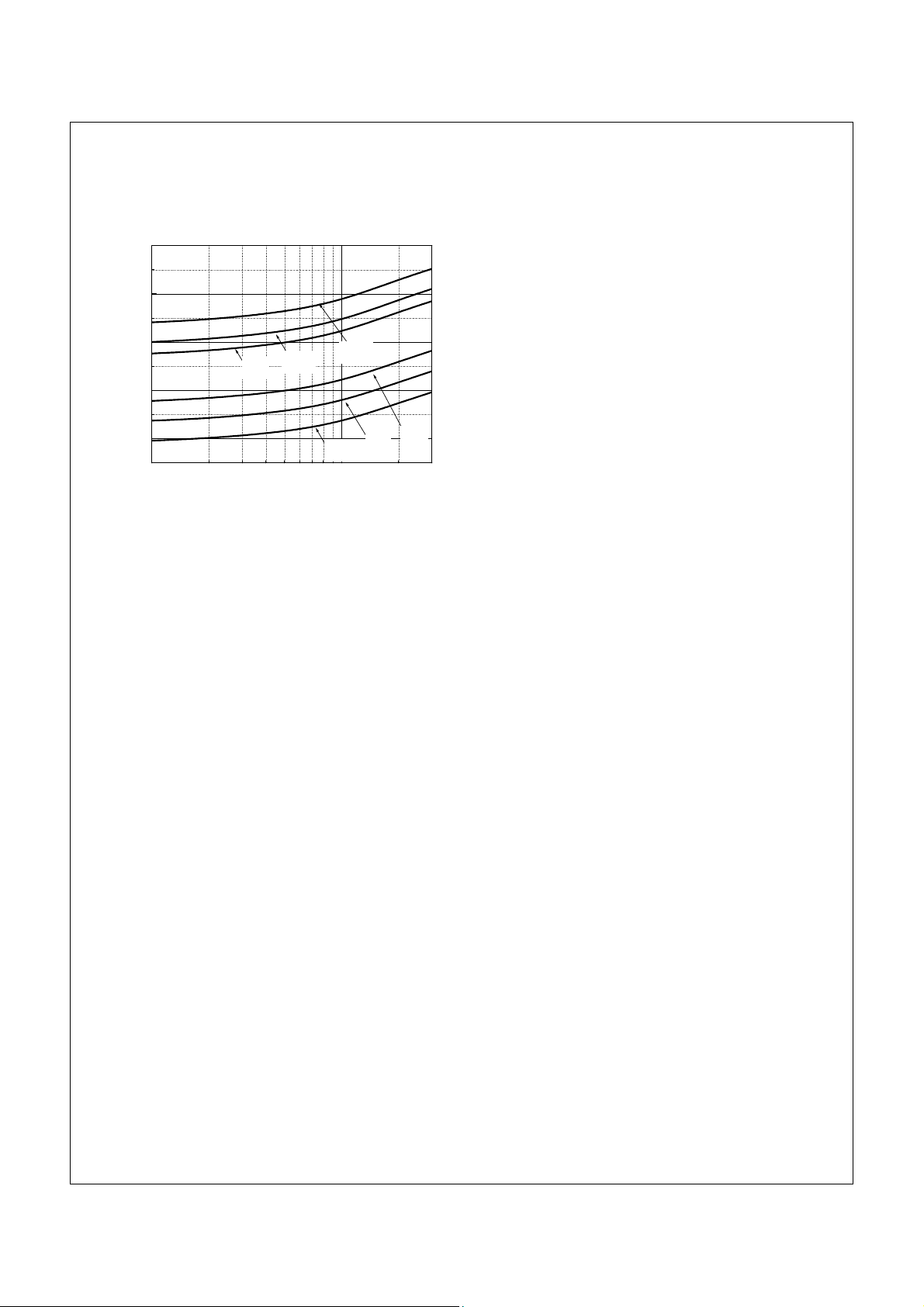

Figure 7. FLZ39VB Zener current vs. Zener Voltage

100OC

85OC

VZ - Zener Voltage [V]

123456789 2030

IZ - Zener Current, [mA]

125OC

-25OC

-0OC

25OC

FLZ2V2 - FLZ39V Rev. C1 6

Page 7

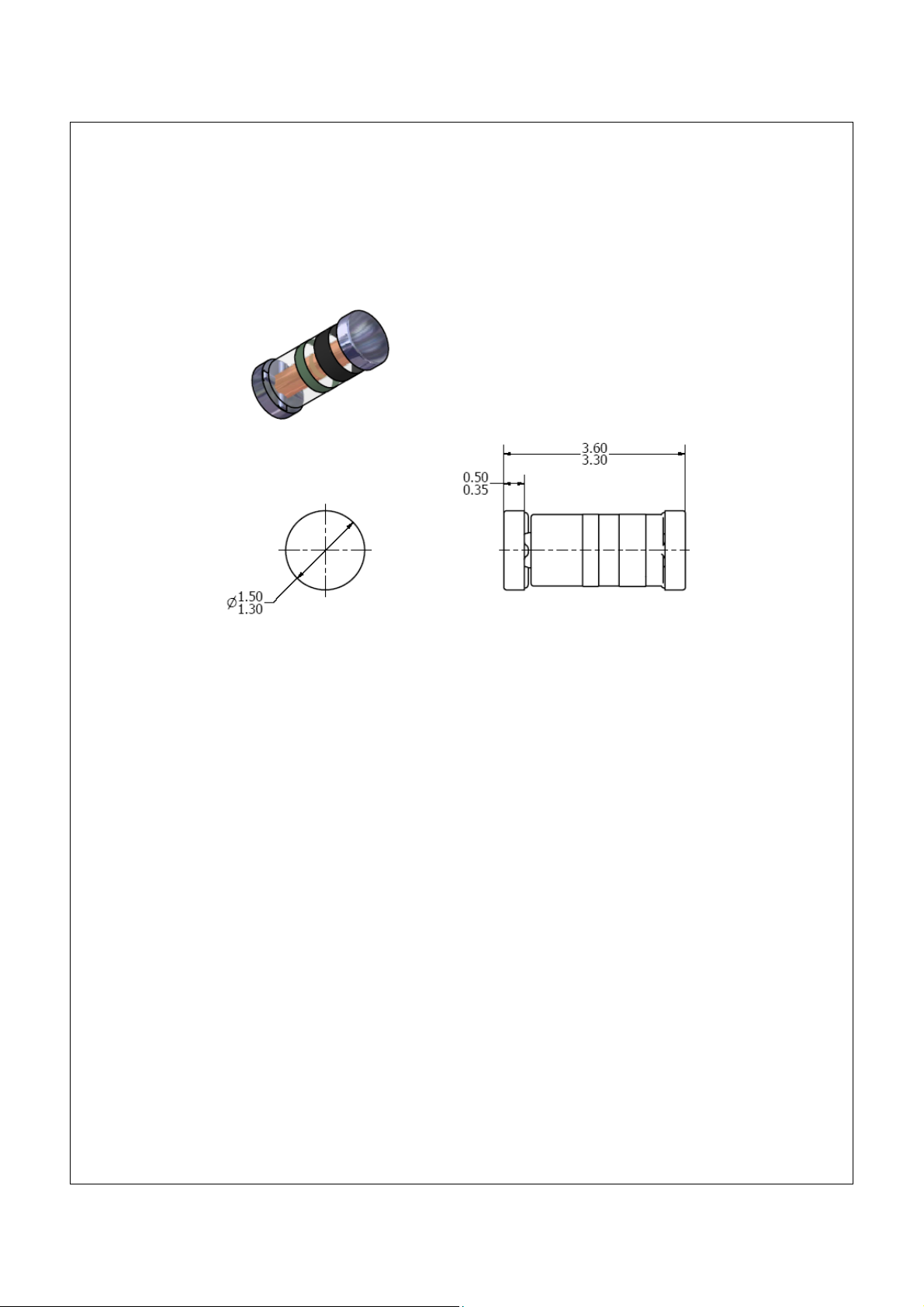

Mechanical Dimensions

FLZ2V2 - FLZ39V — Zener Diodes

SOD-80

Dimensions in Millimeters

FLZ2V2 - FLZ39V Rev. C1 7
