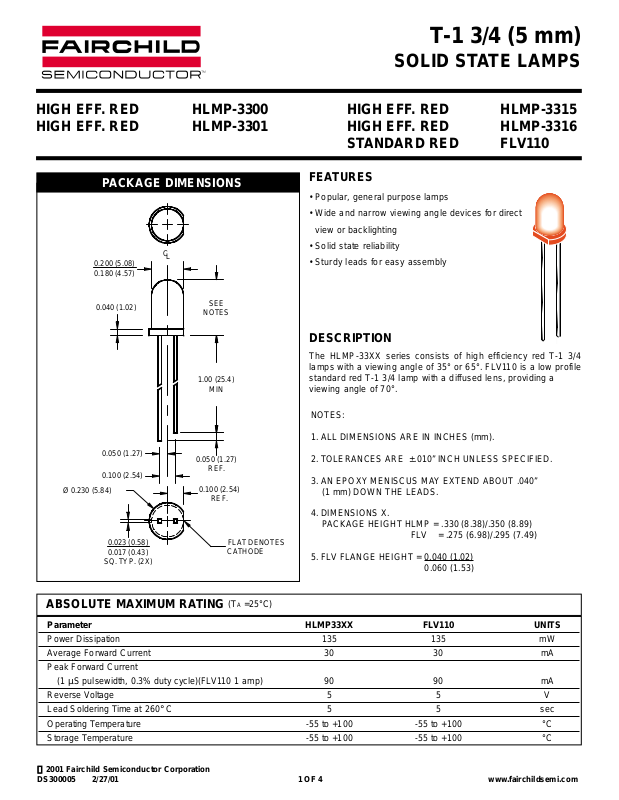

T-1 3/4 (5 mm)
SOLID STATE LAMPS
0.040 (1.02)
0.200 (5.08)
0.180 (4.57)
0.050 (1.27)
REF.
0.100 (2.54)
SEE
NOTES
1.00 (25.4)
MIN
C
L
0.100 (2.54)
REF.
Ø 0.230 (5.84)
0.023 (0.58)
0.017 (0.43)
SQ. TYP. (2X)
0.050 (1.27)
FLAT DENOTES
CATHODE
PACKAGE DIMENSIONS
HIGH EFF. RED HLMP-3300 HIGH EFF. RED HLMP-3315
HIGH EFF. RED HLMP-3301 HIGH EFF. RED HLMP-3316
STANDARD RED FLV110
DESCRIPTION
The HLMP-33XX series consists of high efficiency red T-1 3/4
lamps with a viewing angle of 35° or 65°. FLV110 is a low profile
standard red T-1 3/4 lamp with a diffused lens, providing a
viewing angle of 70°.
FEATURES
• Popular, general purpose lamps
• Wide and narrow viewing angle devices for direct
view or backlighting
• Solid state reliability
• Sturdy leads for easy assembly
Parameter HLMP33XX FLV110 UNITS
Power Dissipation 135 135 mW
Average Forward Current 30 30 mA
Peak Forward Current
(1 µS pulsewidth, 0.3% duty cycle)(FLV110 1 amp) 90 90 mA
Reverse Voltage 5 5 V
Lead Soldering Time at 260° C 5 5 sec
Operating Temperature -55 to +100 -55 to +100 °C
Storage Temperature -55 to +100 -55 to +100 °C
ABSOLUTE MAXIMUM RATING
(TA =25°C)
NOTES:
1. ALL DIMENSIONS ARE IN INCHES (mm).
2. TOLERANCES ARE ±.010” INCH UNLESS SPECIFIED.
3. AN EPOXY MENISCUS MAY EXTEND ABOUT .040”
(1 mm) DOWN THE LEADS.
4. DIMENSIONS X.
PACKAGE HEIGHT HLMP = .330 (8.38)/.350 (8.89)
FLV = .275 (6.98)/.295 (7.49)
5. FLV FLANGE HEIGHT = 0.040 (1.02)
0.060 (1.53)
2001 Fairchild Semiconductor Corporation
DS300005 2/27/01 1 OF 4 www.fairchildsemi.com
Page 2
Part Number HLMP-3300 HLMP-3301 HLMP-3315 HLMP-3316 FLV110 Condition
Luminous Intensity (mcd) IF= 10mA
Minimum 2.0 4.0 12 20 0.8*
Typical 3.5 7.0 18 35 3.0*
Forward Voltage (V) IF= 10mA
Maximum 3.0 3.0 3.0 3.0 2.0
Typical 2.2 2.2 2.2 2.2 1.6
Peak Wavelength (nm) 635 635 635 635 660 IF= 10mA
Reverse Voltage (V) 5 5 5 5 5 IR= 100µA
Viewing Angle (°) 65 65 35 35 70 IF= 10mA
ELECTRICAL / OPTICAL CHARACTERISTICS
(TA =25°C)
T-1 3/4 (5 mm)
SOLID STATE LAMPS
* For FLV110 Test IF= 20mA
www.fairchildsemi.com 2 OF 4 2/27/01 DS300005
Page 3

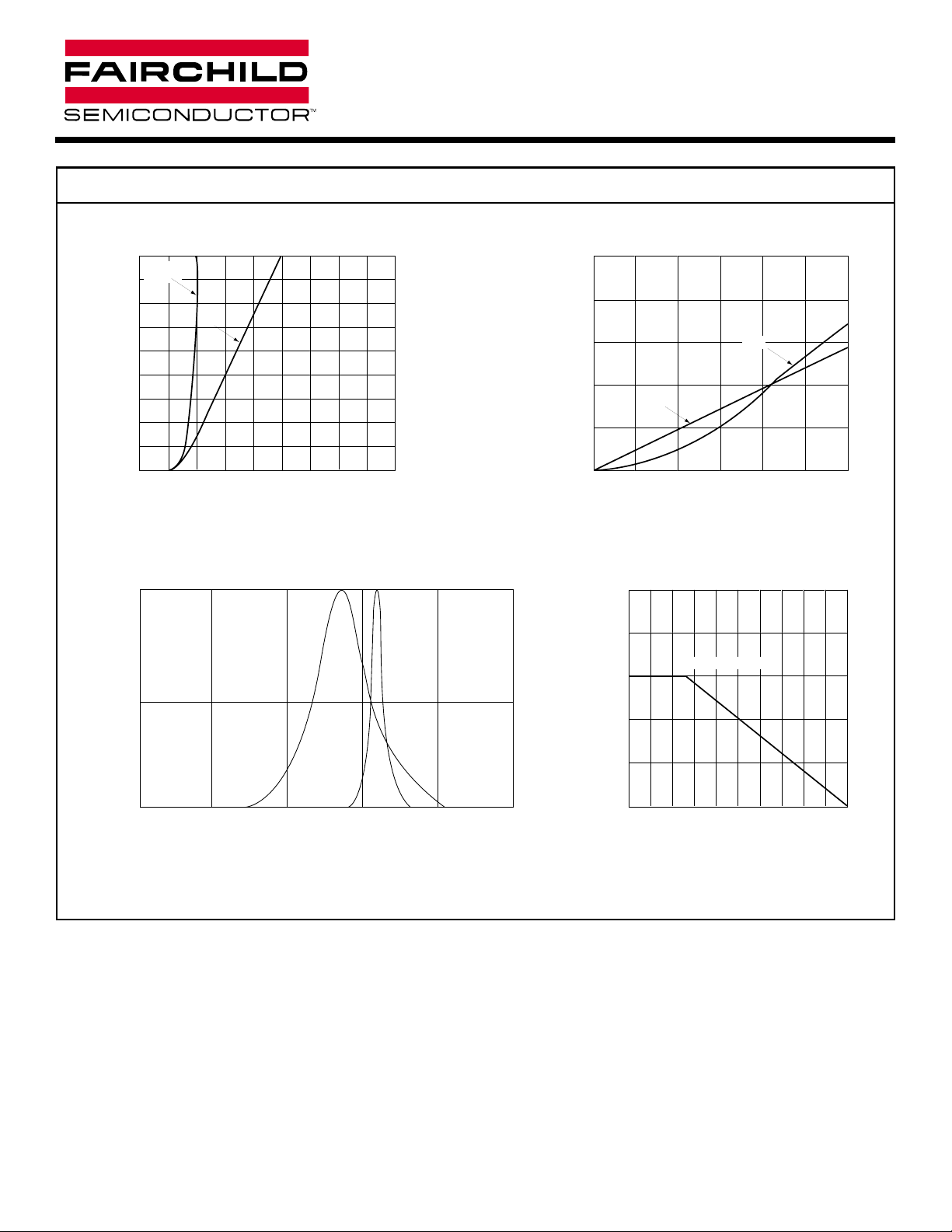

TYPICAL PERFORMANCE CURVES
(TA=25°C)
T-1 3/4 (5 mm)
SOLID STATE LAMPS
DS300005 2/27/01 3 OF 4 www.fairchildsemi.com
90
AlGaAs
80
RED
70
60
50
40
30
20
- FORWARD CURRENT (mA)
10
F
I
0
1.0 2.0 3.0 4.0 5.0
Fig. 1 Forward Current vs. Forward Voltage
1.0
HER
VF - FORWARD VOLTAGE (V)
AlGaAs RED
2.5
2.0
1.5
1.0
(NORMALIZED AT 20 mA)
0.5
AlGaAs
RED
HER
RELATIVE LUMNOUS INTENSITY
0.0
0 5 10 15 20 25 30
- DC FORWARD CURRENT (mA)
I
F
Fig. 2 Relative Luminous Intensity vs.
DC Forward Current
50
40
0.5
HER
RELATIVE INTENSITY
0
500 550 600 650 700 750
WAVELENGTH (nm)
Fig. 3 Relative Intensity vs. Peak Wavelength
30
20
10
- FORWARD CURRENT (mA)
F
I
0
0 20 40 60 85 100
HER, AlGaAs RED
TA - AMBIENT TEMPERATURE (˚C)
Fig. 4 Current Derating Curve
