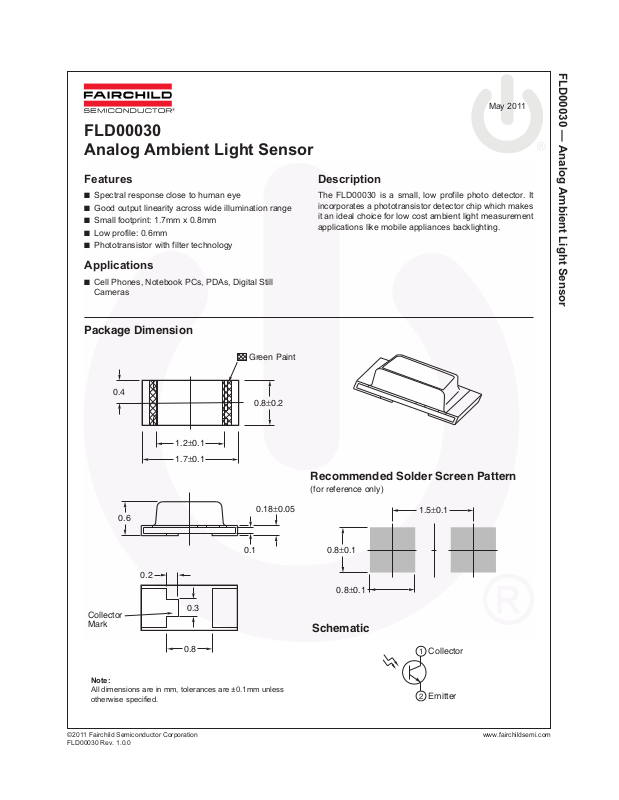

FLD00030 Analog Ambient Light Sensor

FLD00030 — Analog Ambient Light Sensor

May 2011

Features

■

Spectral response close to human eye Good output linearity across wide illumination range

■

Small footprint: 1.7mm x 0.8mm Low profile: 0.6mm

■

Phototransistor with filter technology

Applications

■

Cell Phones, Notebook PCs, PDAs, Digital Still Cameras

Package Dimension

Green Paint

0.4

0.8±0.2

1.2±0.1

1.7±0.1

Description

The FLD00030 is a small, low profile photo detector. It incorporates a phototransistor detector chip which makes it an ideal choice for low cost ambient light measurement applications like mobile appliances backlighting.

Recommended Solder Screen Pattern

(for reference only)

0.6

0.2

Collector Mark

Note:

All dimensions are in mm, tolerances are ±0.1mm unless otherwise specified.

0.3

0.8

0.18±0.05

0.1

0.8±0.1

Schematic

1.5±0.1

1

Collector

2

Emitter

Absolute Maximum Ratings

Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable above the recommended operating conditions and stressing the parts to these levels is not recommended. In addition, extended exposure to stresses above the recommended operating conditions may affect device reliability. The absolute maximum ratings are stress ratings only.

Symbol Parameter Min. Max. Unit

T

V

OPR

STG

CE

Collector-Emitter Voltage 6.0 V

Operating Temperature -40 +85 °C

Storage Temperature -40 +100 °C

FLD00030 — Analog Ambient Light Sensor

Electrical/Optical Characteristics

(TA = 25°C and VCE = 5.0V, unless speciﬁed otherwise)

Symbol Parameter Test Condition Min. Typ. Max. Unit

IL(1) Light Current (1) EV = 100 Lx

IL(2) Light Current (2) EV = 1,000 Lx

IL(3) Light Current (3) EV = 1,000 Lx

(3) / IL(2) Light Current Ratio 4.8

I

L

I

LEAK

V

Dark Current VCE = 10V, EV = 0 0.1 µA

Saturation Output Voltage VCC = 5V, EV = 1000 Lx

O

RL = 75kΩ

λ

Peak Sensitivity, Wavelength 630 nm

P

Notes:

1. White fluorescent light (color temperature = 6,500K)

2. Illuminance by CIE standard illuminant-A / 2856K incandescent lamp.

(1)

(2)

710 µA

200 230 µA

950 1,100 µA

,

4.5 4.6 V

Typical Performance Characteristics

FLD00030 — Analog Ambient Light Sensor

Fig. 1 Illuminance vs. Output Photocurrent

10

TA = 25°C, VCC = 5V

Flourescent Light

1

Incandescent Lamp

0.1

Output Current (mA)

0.01

110100 1000 10000

Illuminance Ev (Lux)

100

Fig. 3 Spectral Response

80

60

40

20

Relative Sensitivity (%)

0 300 400 500 600 700 800 900

Wavelength λ (nm)

Fig. 2 Illuminance vs. Output Voltage

10

1

0.1

(V)

O

0.01

1E-3

1E-4

1E-5

Output Voltage, V

1E-6

1E-7

0.1 101 100 1000 10000

Illuminance Ev (Lux)

Fig. 4 Light Current vs. Supply Voltage

1.04

Ev = 100 Lux Typ.

1.03

1.02

1.01

1.00

0.99

0.98

RelativeLight Current

0.97

0.96

2.0 2.5 3.0 3.5 4.0 4.5

= 25°C

T

A

Flourescent Light, R Flourescent Light, R Flourescent Light, R

Vcc (V)

= 1kΩ

L

= 7.5kΩ

L

= 75kΩ

L

Fig. 5 Light Current vs. Temperature

1.3

Ev = 100 Lux Typ.

1.2

1.1

1.0

0.9

0.8

RelativeLight Current

0.7

0.6

-40 -20 0 20 40 60 80 100

Temperature (°C)

Tape and Reel Dimension

3,000 units per reel

FLD00030 — Analog Ambient Light Sensor

2.2 ± 0.5

ø178.0 ± 1.0

ø60.0 ± 0.5

ø13.0 ± 0.5

9.0 ± 0.5

Progressive direction

2.0 ± 0.05

1.75

3.5 ± 0.05

4.0

Note: Tolerances are ±0.1mm unless otherwise stated. All dimensions in mm.

4.0

0.90

1.50

2

1

+0.10 –0.0

8.0

Emitter

2 1

Collector

+0.3 –0.1

12.0 ± 0.15

0.25

1.83

0.83

Reflow Profile

FLD00030 — Analog Ambient Light Sensor

260°C max. for 10 sec. max.

0.5°C to 3°C/sec 260°C

Pre-heating

1°C to 5°C/sec

180°C to 200°C

120 sec. max.

60 sec. max.

above 220°C

Temperature (°C)

Time (seconds)

Note: Reflow soldering should not be done more than twice.

220°C
