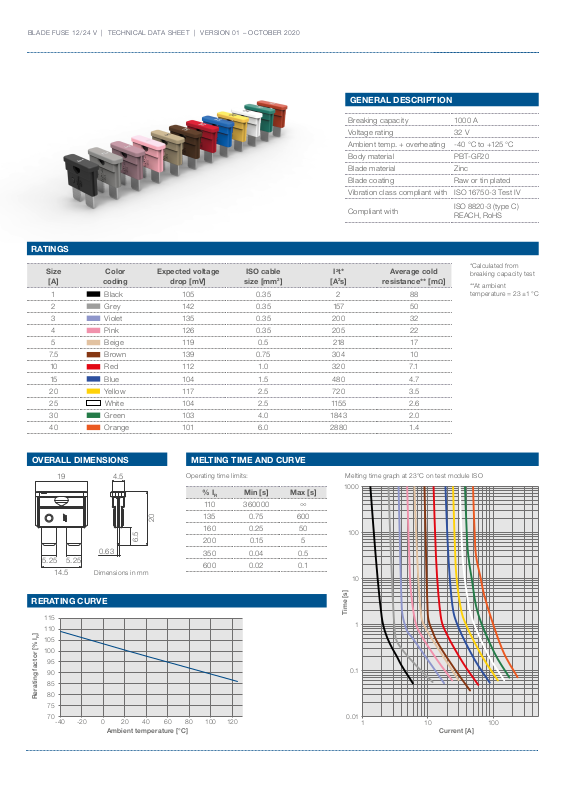

BLADE FUSE 12/24 V | TECHNICAL DATA SHEET | VERSION 01 – OCTOBER 2020
RATINGS
Size
[A]
1
2
3
4
5
7. 5
10
15
20
25
30
40
Color
coding
Expected voltage
drop [mV]
ISO cable
size [mm2]
Black 105 0.35 2 88
Grey 142 0.35 157 50
Violet 135 0.35 200 32
Pink 126 0.35 205 22
Beige 119 0.5 218 17
Brown 139 0.75 304 10
Red 112 1.0 320 7.1
Blue 104 1.5 480 4.7
Yell ow 117 2.5 720 3.5
White
104 2.5 1155 2.6
Green 10 3 4.0 1843 2.0
Orange 101 6.0 2880 1.4
GENERAL DESCRIPTION
Breaking capacity 1000 A
Voltage rating 32 V
Ambient temp. + overheating -40 °C to +125 °C
Body material PBT-G F20
Blade material Zinc
Blade coating Raw or tin plated
Vibration class compliant with ISO 16750-3 Test IV
Compliant with
I2t*
[A2s]
Average cold
resistance** [mΩ]
ISO 8820-3 (type C)
REACH, RoHS
*Calculated from
breaking capacity test
**At ambient
temperature = 23 ±1 °C
OVERALL DIMENSIONS
19
5.255.25
14. 5
4.5
20
6.5
0.63
Dimensions in mm
RERATING CURVE
115
110
]
R
105
100
95
90
85
80
Rerating factor [% I
75
70
-40 -20 0 20 40 60 80 100 120
Ambient temperature [°C]
MELTING TIME AND CURVE
Operating time limits:
% I
R
110 360000
135 0.75 600
160 0.25 50
200 0.15 5
350 0.04 0.5
600 0.02 0 .1
Min [s] Max [s]
Melting time graph at 23°C on test module ISO
1000
∞
100
10
Time [s]
1
0.1
0.01
1 10 100
Current [A]
