Page 1
1/9

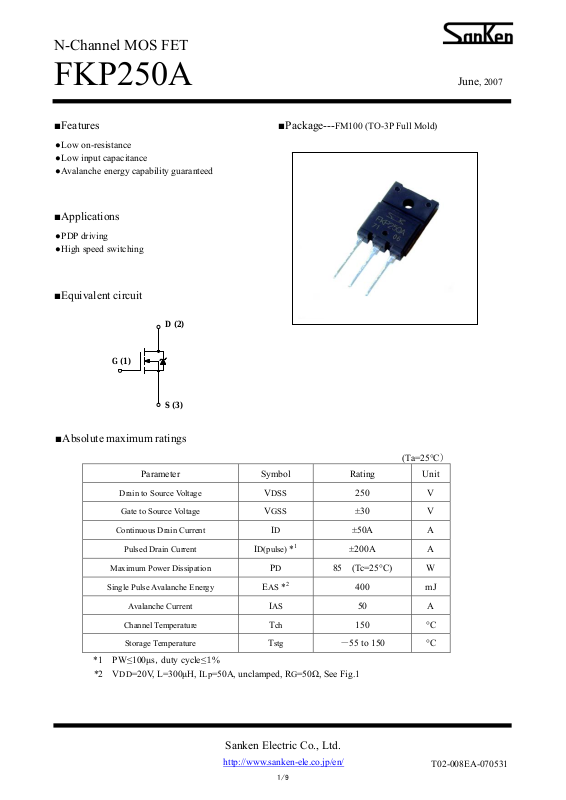

N-Channel MOS FET
FKP250A June, 2007
■Features
●Low on-resistance
●Low input capacitance
●Avalanche energy capability guaranteed
■Applications
●PDP driving
●High speed switching
■Equivalent circuit
G (1)
D (2)
■Package---FM100 (TO-3P Full Mold)
S (3)
■Absolute maximum ratings
(Ta=25°C）
Parameter Symbol Rating Unit
Drain to Source Voltage VDSS 250 V
Gate to Source Voltage VGSS ±30 V
Continuous Drain Current ID ±50A A
Pulsed Drain Current ID(pulse) *
Maximum Power Dissipation PD 85 (Tc=25°C) W
Single Pulse Avalanche Energy EAS *
Avalanche Current IAS 50 A
Channel Temperature Tch 150 °C
Storage Temperature Tstg －55 to 150 °C
*1 PW≤100μs，duty cycle≤１%
*2 V
DD=20V, L=300μH, ILp=50A, unclamped, RG=50Ω, See Fig.1
1
±200A A
2
400 mJ
Sanken Electric Co., Ltd.
http://www.sanken-ele.co.jp/en/
T02-008EA-070531
Page 2
2/9
N-Channel MOS FET
FKP250A June, 2007
Electrical characteristics
(Ta=25°C）
Parameter Symbol Test Conditions
MIN. TYP. MAX.
Limits
Unit
Drain to Source breakdown Voltage
Gate to Source Leakage Current
Drain to Source Leakage Current
Gate Threshold Voltage
Forward Transconductance
Static Drain to Source On-Resistance
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Turn-On Delay Time
Rise Time
Turn-Off Delay Time
Fall Time
V(BR)DSS ID=100μA,VGS=0V 250 V
IGSS VGS=± 3 0V ±100 nA
DSS VDS=250V, VGS=0V 100 μA
I
VTH VDS=10V, ID=1mA 3.0 4.5 V
Re(Yfs) VDS=10V, ID=25A 30 42 S
DS(on) ID=25A, VGS=10V 37 43 mΩ
R
Ciss 3800
Coss 630
Crss
td(on)
tr
td(off)
tf
DS=25V
V
GS=0V
V
f=1MHz
D=25A, VDD≈125V
I
L=5Ω, VGS=10V
R
G=5Ω
R
See Fig.2
pF
210
40
110
ns
160
90
Source-Drain Diode Forward Voltage
Gate Threshold Voltage Temp.
Coefficient
VSD ISD=50A,VGS=0V 1.0 1.5 V
ΔVTH
/ΔTch
V
DS=10V, ID=1mA -11 mV/°C
Sanken Electric Co., Ltd.
T02-008EA-070531
Page 3
3/9
N-Channel MOS FET
FKP250A June, 2007
Characteristic Curves (Tc=25℃)
50
40
ID-VDS Characteristics (typical)
VGS=10V
6.0V
30
5.5V
ID (A)
20
10
0
0246810
VDS (V)
5.0V
4.5V
60
RDS(ON)-ID Characteristics (typical)
VGS=10V
50
40
30
RDS(on) (m Ω)
20
10
0
0 1020304050
ID (A)
100
90
80
70
60
50
40
RDS(on) (mΩ)
30
20
10
0
-100 -50 0 50 100 150
RDS(ON)-Tc Characteristics (typical)
ID-VGS Character istics (typical)
50
40
30
ID (A)
20
10
0
0246810
5
4
3
VDS (V)
2
1
0
1 10 100
Tc (℃)
VGS ( V)
VDS-VGS Characteristics (typical)
VGS (V)
ID=25A
VGS=10V
VDS=10V
125℃
25℃
Tc=-55℃
ID=50A
ID=25A
Sanken Electric Co., Ltd.
T02-008EA-070531
Page 4
4/9
N-Channel MOS FET
FKP250A June, 2007
Characteristic Curves (Tc=25℃)
100
Re(yfs)-ID Characteristics (typical)
VDS=10V
10000
10
Tc=-55℃
1
Re(yfs) (S)
0.1
25℃
125℃
1000
Capacitance (pF)
100
0.01
0.01 0.1 1 10 100
ID (A)
IDR-VSD Characteristics (typical)
50
10
1000
40
100
30
IDR (A)
20
10
0
0.0 0.5 1.0 1.5
100
10V
VGS=0V
VSD (V)
PD-Ta Characteristics
10
ID [A]
1
0.1
0.01
80
60
With infinite heatsink
PD ( W)
40
Capacitance-VDS Characteristics (typical)
0 1020304050
VDS (V)
SAFE OPERATING AREA
ID(pulse) max
ID max
RDS(on) LIMITED
0.1 1 10 100 1000
VDS [V]
f=1MHz
VGS=0V
Ciss
Coss
Crss
100μs(1shot)
1ms
DC
20
Withou t heatsin k
0
050100150
Ta (℃)
Sanken Electric Co., Ltd.
T02-008EA-070531
Page 5
5/9
N-Channel MOS FET
FKP250A June, 2007
Fig.1 Unclamped Inductive Test Method
L
EAS=
V
I
V
GS
0V
R
G
L
V
DS
I
V
DD
Lp
I
L
(BR)DSS
V
DS
V
DD
(a) Test Circuit (b) Waveforms
Fig.2 Switching Time Test Method
R
L
V
I
R
I
D
V
DS
V
R
R
V
GS
0V
G
V
DD
P.W.=10μs
Duty cycle≦1%
(a) Test Circuit
GS
V
90%
10%
V
DS
90%
10%
t
d(on)
t
r
t
on
t
d(off)
t
f
t
off
(b) Waveforms
Sanken Electric Co., Ltd.
1
·L·ILP2·
2
DD≈125
D=25
L=5Ω
GS=10V
G=5Ω
V
(BR)DSS
DD(BR)DSS
VV
−
T02-008EA-070531
Page 6
6/9
N-Channel MOS FET
FKP250A June, 2007

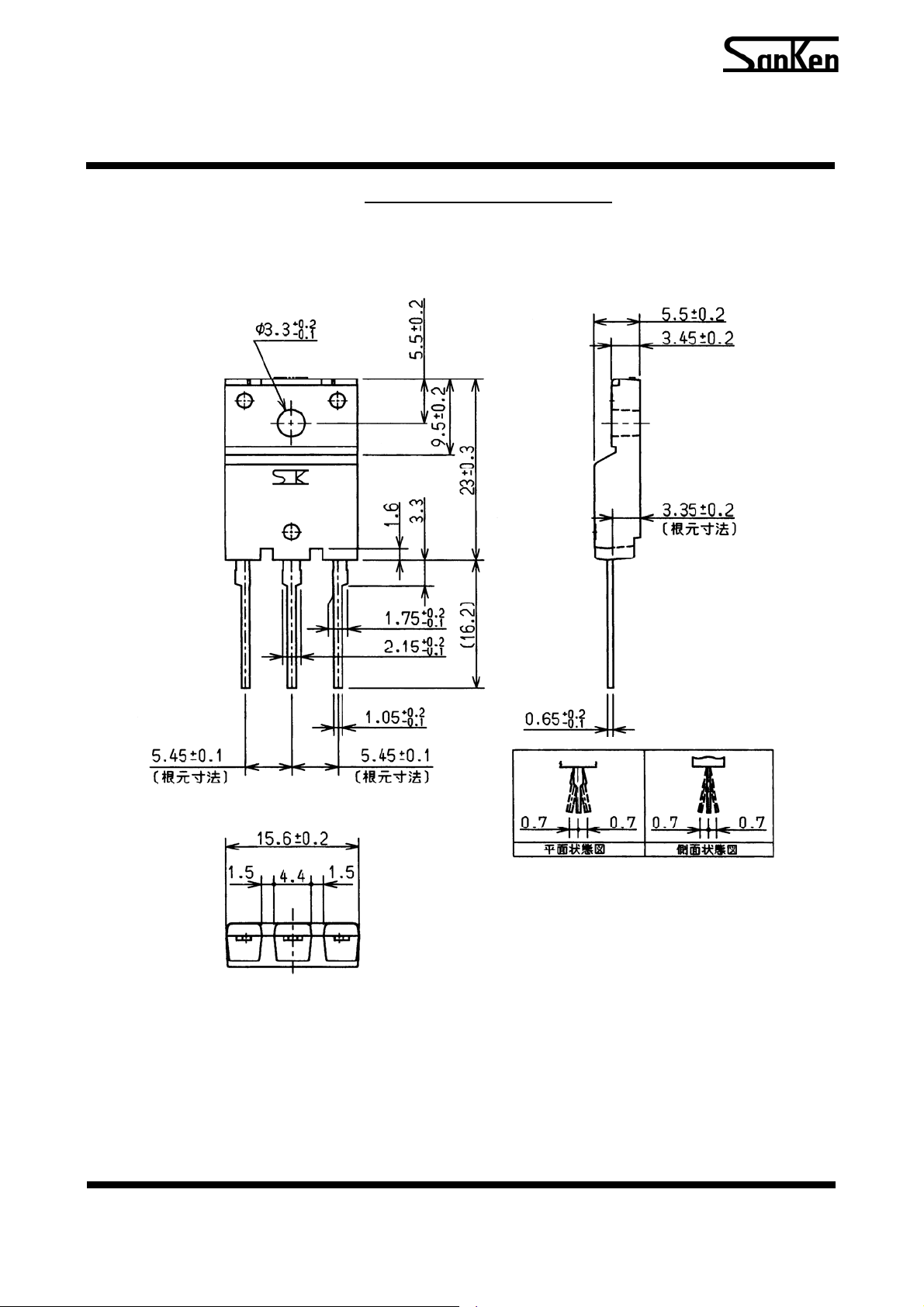

External dimensions
FM100 (TO-3P Full Mold)
(1) (2) (3)
(1) Gate
(2) Drain
(3) Source
Weight Approx. 6.5g
Sanken Electric Co., Ltd.
T02-008EA-070531
