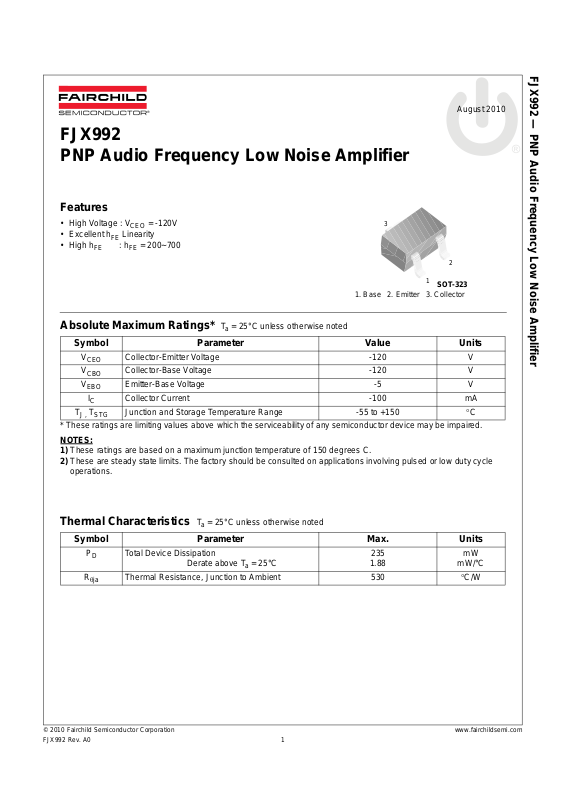

Page 1

FJX992 PNP Audio Frequency Low Noise Amplifier

Features

• High Voltage : V

• Excellent h

• High h

Linearity

: hFE = 200~700

CEO

= -120V

1. Base 2. Emitter 3. Collector

SOT-323

FJX992 — PNP Audio Frequency Low Noise Amplifier

August 2010

Absolute Maximum Ratings* T

= 25°C unless otherwise noted

Symbol Parameter Value Units

CEO

CBO

EBO

J , TSTG

* These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.

NOTES:

1) These ratings are based on a maximum junction temperature of 150 degrees C.

2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle

operations.

Thermal Characteristics T

Collector-Emitter Voltage -120 V Collector-Base Voltage -120 V Emitter-Base Voltage -5 V Collector Current -100 mA Junction and Storage Temperature Range -55 to +150 °C

= 25°C unless otherwise noted

Symbol Parameter Max. Units

θja

Total Device Dissipation Derate above T

= 25°C

235

1.88

mW/°C

Thermal Resistance, Junction to Ambient 530 °C/W

Page 2

FJX992 — PNP Audio Frequency Low Noise Amplifier

Electrical Characteristics T

= 25°C unless otherwise noted

Symbol Parameter Test Condition Min. Typ. Max. Units

OFF CHARACTERISTICS

(BR)CEO

(BR)CBO

(BR)EBO

CBO

EBO

Collector-Emitter Breakdown Voltage* IC=-1mA, IB=0 -120 V Collector-Base Breakdown Voltage IC=-100μA, IE=0 -120 V Emitter-Base Breakdown Voltage IE=-10μA, IC=0 -5 V Collector-Base Cutoff Current VCB=-120V, IE=0 -100 nA Emitter-Base Cutoff Current VEB=-5V, IC=0 -100 nA

ON CHARACTERISTICS

(sat) Collector-Emitter Saturation Voltage IC=-10mA, IB=-1mA -0.3 V

(on) Base-Emitter On Voltage VCE=-6V, IC=-1mA -0.65 V

DC Current Gain* VCE=-6V, IC=-0.1mA

=-6V, IC=-2mA

150 200 700

SMALL SIGNAL CHARACTERISTICS

obo

* Pulse Test: Pulse Width≤300μs, Duty Cycle≤2%

Current Gain - Bandwidth Product VCE=-6V, IC=-1mA 100 MHz Output Capacitance VCB=-10V, IE=0, f=1MHz 4 pF

Page 3

Typical Performance Characteristics

Figure 1. DC Current Gain Figure 2. Collector-Emitter Saturation Voltage

FJX992 — PNP Audio Frequency Low Noise Amplifier

1000

Ta = 125 oC

Tj = 25 oC

100

, DC CURRENT GAIN

0.1 1 10 100

Tj = 100 oC

Tj = 75 oC

IC [mA], COLLECTOR CURRENT

VCE = 6V

IC = 10 I

Tj = 125 oC

0.1

Tj = 25 oC

(sat),[V] SATURATION VOLTAGE

0.01

0.1 1 10 100

Tj = 100 oC

Tj = 75 oC

IC [mA], COLLECTOR CURRENT

Figure 3. Base-Emitter Saturation Voltage Figure 4. Base-Emitter On Voltage

IC = 10 I

Tj = 125 oC

Tj = 25 oC

(sat)[V], SATURATION VOLTAGE

0.1

0.1 1 10 100

Tj = 100 oC

Tj = 75 oC

IC [mA], COLLECTOR CURRENT

VCE = 6V

[mA], COLLECTOR CURRENT

0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

Tj = 125 oC

Tj = 100 oC

Tj = 75 oC

Tj = 25 oC

VBE(on) [V], BASE-EMITTER ON VOLTAGE

Figure 5. Collector-Emitter Cutoff Current Figure 6. Base-Emitter Cutoff Current

100

0.1

[nA], Collector-Base Cutoff Current

CBO

0.01 10 100

Tj = 125 oC

Tj = 100 oC

Tj = 75 oC

Tj = 25 oC

VCB [V], Collector-Base Volta g e

10000

Tj = 125 oC

1000

100

Tj = 100 oC

Tj = 75 oC

Tj = 25 oC

[pA], Emitter-Base Cutoff Current

EBO

0.1 12345

VEB [V], Emitter-Base Voltage

Page 4

Typical Performance Characteristics (Continued)

Figure 7. Collector Output Capacitance Figure 8. Collector Input Capacitance

9 8 7

6 5

f = 1MH z

100

f = 1MH z

FJX992 — PNP Audio Frequency Low Noise Amplifier

[pF], Output Capacitance

12345678910

VCB [V], Collector-Base Volta g e

[pF], Input Capacitance

12345

VEB [V], Collector-Base Voltage

Figure 9. Forward Bias Safe Operating Area Figure 10. Transient Thermal Resistance

FBSOA

100

[mA]

Icmax

Collector Current, I

0.1

0.1 1 10 100

Collector-Emitter V oltage, VCE[V]

Vceo(Max)

D=1%

0.1

10%

30%

0.01

50%

1E-3

r(t), Normalized Transient Thermal Resistance

1E-4

1E-5 1E-4 1E-3 0.01 0.1 1 10 100 1000

Single Pulse

Rthja(t)=r(t)*Rthja Rthja=530C/W

t1, time(sec)

Page 5

Physical Dimensions

FJX992 — PNP Audio Frequency Low Noise Amplifier

SOT-323

2.00±0.20

3°

1.25±0.10 2.10±0.10

1.00±0.10

0.135

0.275±0.100

+0.04 –0.01

0.10 Min.

0.95±0.15

0.05

3°

+0.05 –0.02

0.90

±0.10

1.30±0.10

Dimensions in Millimeters
