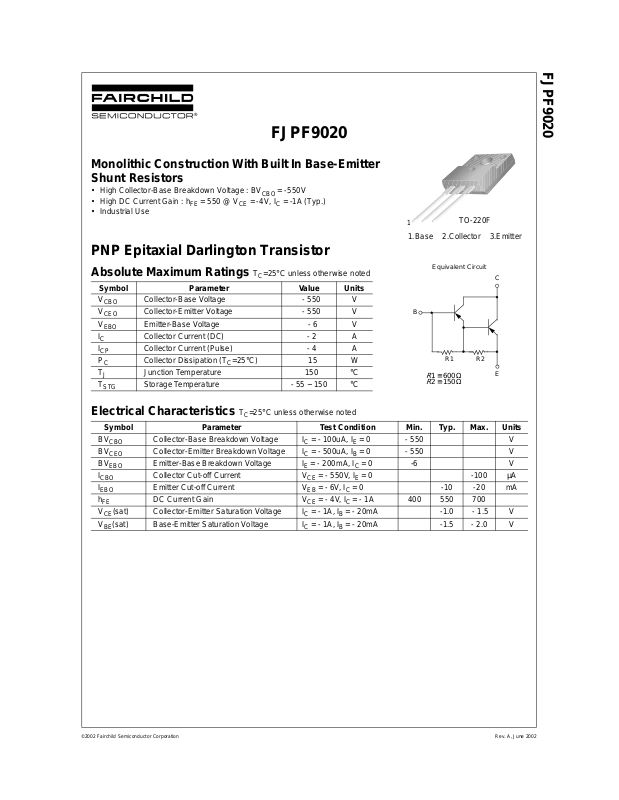

Page 1
FJPF9020
Monolithic Construction With Built In Base-Emitter
Shunt Resistors
• High Collector-Base Breakdown Voltage : BV
• High DC Current Gain : h
• Industrial Use
= 550 @ V
FE
CE
PNP Epitaxial Darlington Transistor
Absolute Maximum Ratings
Symbol Parameter Value Units
V
CBO
V
CEO
V
EBO
I
C
I
CP
P
C
T
J
T
STG
Collector-Base Voltage - 550 V
Collector-Emitter Voltage - 550 V
Emitter-Base Voltage - 6 V
Collector Current (DC) - 2 A
Collector Current (Pulse) - 4 A
Collector Dissipation (TC=25°C) 15 W
Junction Temperature 150 °C
Storage T emperature - 55 ~ 150 °C
= -550V
CBO
= -4V, IC = -1A (Typ.)
TC=25°C unless otherwise noted
1
TO-220F
1.Base 2.Collector 3.Emitter
Equivalent Circuit
C
B
R1
R
1600Ω≅
R
2150Ω≅
R2
E
FJPF9020
Electrical Characteristics
TC=25°C unless otherwise noted
Symbol Parameter Test Condition Min. Typ. Max. Units
BV
CBO
BV
CEO
BV
EBO
ICBO
IEBO
hFE
(sat) Collector-Emitter Saturation Voltage IC = - 1A, IB = - 20mA -1.0 - 1.5 V
V
CE
(sat) Base-Emitter Saturation Voltage IC = - 1A, IB = - 20mA -1.5 - 2.0 V
V
BE
Collector-Base Breakdown Voltage IC = - 100uA, IE = 0 - 550 V
Collector-Emitter Breakdown Voltage IC = - 500uA, IB = 0 - 550 V
Emitter-Base Breakdown Voltage IE = - 200mA, IC = 0 -6 V
Collector Cut-off Current V
Emitter Cut-off Current V
DC Current Gain V
= - 550V, IE = 0 -100 µA
CE
= - 6V, IC = 0 -10 -20 mA
EB
= - 4V, IC = - 1A 400 550 700
CE
©2002 Fairchild Semiconductor Corporation Rev. A, June 2002
Page 2
Typical Characteristics
FJPF9020
-3.0
-2.5
-2.0
-1.5
-1.0
[A], COLLECTOR CURRENT
-0.5
C
I
-0.0
-0 -1 -2 -3 -4 -5
IB = - 40mA
IB = - 15mA
IB = - 3mA
IB = - 1.5mA
VCE [V], COLLECTOR-EMITTER VOLTAGE
1000
VCE = - 4V
125oC
75oC
100
, DC CURRENT GAIN
FE
H
10
- 0.03
-0.1 -1
IC [A], COLLECTOR CURRENT
Figure 1. Static Characterstic Figure 2. DC current Gain
-4
-3
-2
-1
(sat) [V], SATURATION VOLTAGE
CE
V
-0
-1E-3 -0.01 -0.1
IB [A], BASE CURRENT
IC = - 2A
IC = - 1A
- 0.4
-3
IC / IB = 50
-2
125oC
75oC
-1
(sat) [V], SATURATION VOLTAGE
CE
V
-0
- 0.2
25oC
- 25oC
IC [A], COLLECTOR CURRENT
- 25oC
-1
25oC
- 4
- 4
Figure 3. V
-2.0
CE
VCE = - 4V
-1.5
-1.0
-0.5
[A], COLLECTOR CURRENT
C
I
-0.0
125oC
75oC
-0.0 -0.5 -1.0 -1.5 -2. 0 -2.5 -3.0
VBE [V], BASE-EMITTER VOLTAGE
Figure 5. Base-Emitter On Voltage Figure 6. Output Capacitance
©2002 Fairchild Semiconductor Corporation
(sat) vs. IB Characteristics Figure 4. Collector-Emitter Saturation Voltage
25oC
- 25oC
1000
100
Cob [pF], OUTPUT CAPACITANCE
10
-0 -5 -10 -15 -20 -25
VCB [V], COLLECTOR-BASE VOLTAGE
f = 1MHz
Rev. A, June 2002
Page 3
FJPF9020
Typical Characteristics
-10
IC (Pulse)
IC (DC)
-1
-0.1
-0.01
[A], COLLECTOR CURRENT
Single Pulse
C
I
-1E-3
o
C
Ta=25
-1 -10 -100 -1000
VCE [V], COLLECTOR-EMITTER VOLTAGE
(Continued)
10ms100ms
20
15
10
5
[W], COLLECTOR POWER DISSIPATION
C
0
P
0 25 50 75 100 125 150 175
TC [oC], CASE TEMPERATURE
Figure 7. Forward Bias Safe Operating Area Figure 8. Power Derating
©2002 Fairchild Semiconductor Corporation
Rev. A, June 2002
Page 4
Package Demensions
±0.10
3.30
±0.20
15.80
10.16
(7.00)
TO-220F
±0.20
ø3.18
±0.10
±0.20
6.68
(1.00x45°)
2.54
(0.70)
FJPF9020
±0.20
±0.20
15.87
±0.30
9.75
MAX1.47
0.80
0.35
2.54TYP
±0.20
[2.54
±0.10
±0.10
(30°)
#1
0.50
+0.10
–0.05
2.76
±0.20
2.54TYP
]
9.40
±0.20
[2.54
±0.20
±0.20
]
4.70
Dimensions in Millimeters
©2002 Fairchild Semiconductor Corporation Rev. A, June 2002
