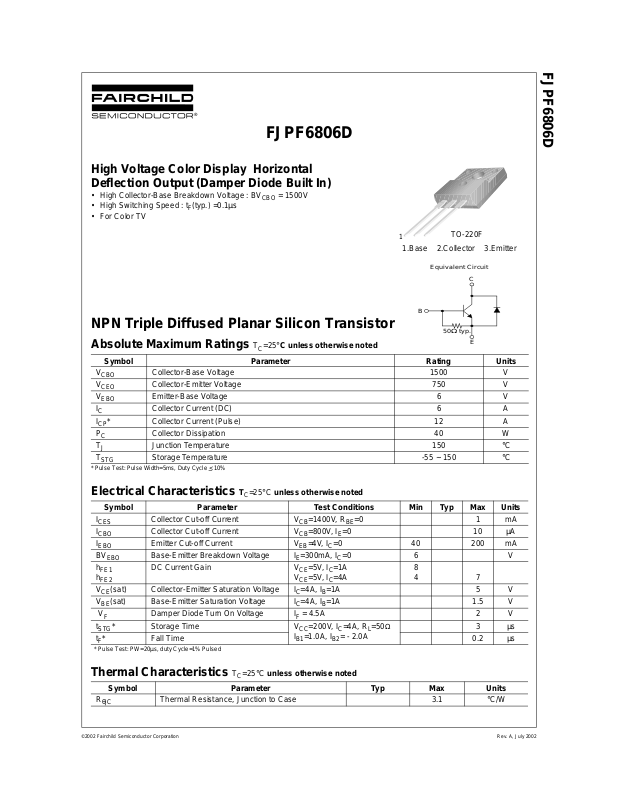

Page 1
FJPF6806D
High Voltage Color Display Horizontal
Deflection Output (Damper Diode Built In)
• High Collector-Base Breakdown Voltage : BV
• High Switching Speed : t
(typ.) =0.1µs
F
• For Color TV
CBO
= 1500V
FJPF6806D
1
TO-220F
1.Base 2.Collector 3.Emitter
Equivalent Circuit
C
B
NPN Triple Diffused Planar Silicon Transistor
Absolute Maximum Ratings
TC=25°C unless otherwise noted
50
Ω
typ.
E
Symbol Parameter Rating Units
V
CBO
V
CEO
V
EBO
I
C
* Collector Current (Pulse) 12 A
I
CP
P
C
T
J
T
STG
* Pulse Test: Pulse Width=5ms, Duty Cycle < 10%
Electrical Characteristics
Collector-Base Voltage 1500 V
Collector-Emitter Voltage 750 V
Emitter-Base Voltage 6 V
Collector Current (DC) 6 A
Collector Dissipation 40 W
Junction Temperature 150 °C
Storage Temperature -55 ~ 150 °C
TC=25°C unless otherwise noted
Symbol Parameter Test Conditions Min Typ Max Units
I
CES
I
CBO
I
EBO
BV
EBO
h
FE1
h
FE2
(sat) Collector-Emitter Saturation Voltage IC=4A, IB=1A 5 V
V
CE
(sat) Base-E mitter Saturat ion Voltage IC=4A, IB=1A 1.5 V
V
BE
V
F
* Storage Time VCC=200V, IC=4A, RL=50
t
STG
* Fall Time 0.2 µs
t
F
* Pulse Test: PW=20µs, duty Cycle=1% Pulsed
Collector Cut-off Current VCB=1400V, RBE=0 1 mA
Collector Cut-off Current VCB=800V, IE=0 10 µA
Emitter Cut-off Current VEB=4V, IC=0 40 200 mA
Base-Emitter Breakdown Voltage IE=300mA, IC=0 6 V
DC Current Gain VCE=5V, IC=1A
=5V, IC=4A
V
CE
8
47
Damper Diode Turn On Voltage IF = 4.5A 2 V
Ω
3 µs
IB1=1.0A, IB2= - 2.0A
Thermal Characteristics
TC=25°C unless otherwise noted
Symbol Parameter Typ Max Units
R
θjC
©2002 Fairchild Semiconductor Corporation Rev. A, July 2002
Thermal Resistance, Junction to Case 3.1 °C/W
Page 2
Typical Characteristics
FJPF6806D
8
7
6
5
4
3
2
[A], COLLECTOR CURRENT
C
I
1
0
0246810
IB = 2.0A
IB = 0.8A
VCE [V], COLLECTOR-EMITTER VOL TAGE
IB = 0.6A
IB = 0.4A
IB = 0.2A
100
Ta = 125oC
10
Ta = 25oC
, DC CURRENT GAIN
FE
H
Ta = - 25oC
1
0.1 1 10
IC [A], COLLECTOR CURRENT
Figure 1. Static Characteristic Figure 2. DC current Gain
10
IC = 5 I
B
1
Ta = 125oC
Ta = 25oC
Ta = - 25oC
0.1
10
IC = 3 I
B
1
0.1
VCE = 5V
Ta = 125oC
Ta = 25oC
Ta = - 25oC
(sat) [V], SATURATION VOLTAGE
CE
V
0.01
0.1 1 10
IC [A], COLLECTOR CURRENT
(sat) [V], SATURATION VOLTAGE
CE
V
0.01
0.1 1 10
IC [A], COLLECTOR CURRENT
Figure 3. Collector-Emitter Saturation Voltage Figure 4. Collector-Emitter Saturation Voltage
10
VCE = 5 V
8
6
4
2
[A], COLLECTOR CURRENT
C
I
0
0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4
Ta = 25 oC
Ta = 125 oC
VBE [V], BASE-EMITTER ON VOLTAGE
Ta = - 25 oC
s], SWITCHING TIME
µ
[
& t
t
1
F
STG
VCC = 200V,
= 4A, IB1 = 1A
I
C
0.1
1
IB2 [A], REVERSE BASE CURRENT
t
STG
t
F
Figure 5. Base-Emitter On Voltage Figure 6. Resistive Load Switching Time
©2002 Fairchild Semiconductor Corporation
Rev. A, July 2002
Page 3
FJPF6806D
Typical Characteristics
10
VCC = 200V,
= 4A, IB2 = - 2A
I
C
1
s], SWITCHING TIME
µ
[
F
& t
STG
t
0.1
IB1 [A], FORWARD BASE CURRENT
Figure 7. Resistive Load Switching Time Figure 8. Resistive Load Switching Time
15
12
9
6
3
[A], COLLECTOR CURRENT
C
I
1
10 100 1000 10000
VCE [V], COLLECTOR-EMITTER VOLTAGE
t
STG
t
1
F
RB2 = 0, IB1 = 15A
= 30V, L = 200µH
V
CC
VBE(off) = -3V
(Continued)
t
STG
1
t
s], SWITCHING TIME
µ
[
F
& t
STG
t
VCC = 200V,
I
= 1A,IB2 = - 2A
B1
0.1
1 10
F
IC [A], COLLECTOR CURRENT
100
IC (Pulse)
10
IC (DC)
1
0.1
[A], COLLECTOR CURRENT
C
I
TC = 25oC
Single Pulse
0.01
1 10 100 1000 10000
t = 100ms
t = 10ms
t = 1ms
VCE [V], COLECTOR-EMITTER VOLTAGE
Figure 9. Reverse Bias Safe Operating Area Figure 10. Forward Bias Safe Operating Area
80
70
60
50
40
30
20
[W], POWER DISSIPATION
D
P
10
0
0 25 50 75 100 125 150 175 200
TC [oC], CASE TEMPERATURE
Figure 11. Power Dera ting
©2002 Fairchild Semiconductor Corporation
Rev. A, July 2002
Page 4
Package Demensions
±0.10
3.30
±0.20
15.80
10.16
(7.00)
TO-220F
±0.20
ø3.18
±0.10
±0.20
6.68
(1.00x45°)
2.54
(0.70)
FJPF6806D
±0.20
±0.20
15.87
±0.30
9.75
MAX1.47
0.80
0.35
2.54TYP
±0.20
[2.54
±0.10
±0.10
(30°)
#1
0.50
+0.10
–0.05
2.76
±0.20
2.54TYP
]
9.40
±0.20
[2.54
±0.20
±0.20
]
4.70
©2002 Fairchild Semiconductor Corporation
Dimensions in Millimeters
Rev. A, July 2002
