Page 1

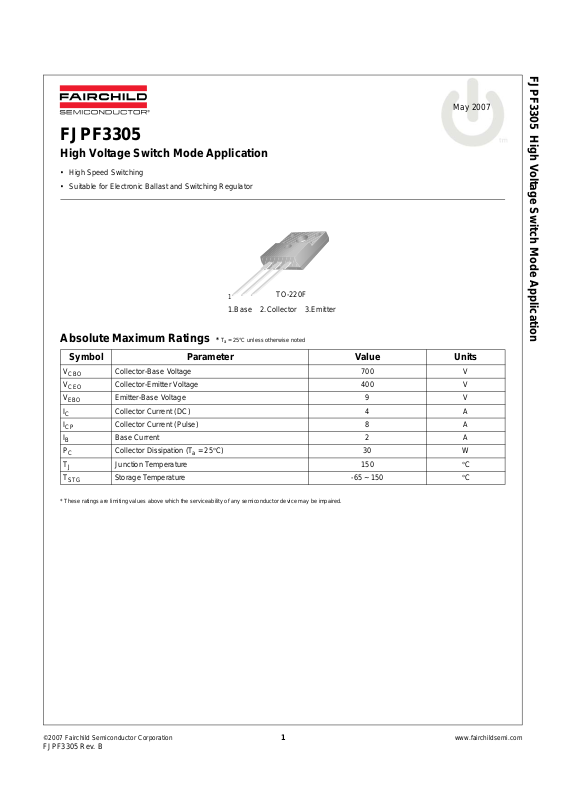

FJPF3305
High Voltage Switch Mode Application
• High Speed Switching
• Suitable for Electronic Ballast and Switching Regulator
FJPF3305 High Voltage Switch Mode Application
May 2007
TO-220F
Absolute Maximum Ratings * T
1
1.Base 2.Collector 3.Emitter
= 25°C unless otherwise noted
a
Symbol Parameter Value Units
V
CBO
V
CEO
V
EBO
I
C
I
CP
I
B
P
C
T
J
T
STG
* These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Collector-Base Voltage 700 V
Collector-Emitter Voltage 400 V
Emitter-Base Voltage 9 V
Collector Current (DC) 4 A
Collector Current (Pulse) 8 A
Base Current 2 A
Collector Dissipation (Ta = 25°C) 30 W
Junction Temperature 150 °C
Storage Temperature -65 ~ 150 °C
©2007 Fairchild Semiconductor Corporation 1 www.fairchildsemi.com
FJPF3305 Rev. B
Page 2
FJPF3305 High Voltage Switch Mode Application
Electrical Characteristics * T
= 25°C unless otherwise noted
C
Symbol Parameter Conditions Min. Typ. Max Units
BV
CBO
BV
CEO
BV
EBO
I
CBO
I
EBO
h
FE1
h
FE2
V
CE(sat)
V
BE(sat)
f
T
C
ob
t
ON
t
STG
t
F
* Pulse Test: PW ≤ 300μs, Duty Cycle ≤ 2%
Collector-Base Breakdwon Voltage IC = 500μA, IE = 0 700 V
Collector-Emitter Breakdown Voltage IC = 5mA, IB = 0 400 V
Emitter-Base Breakdown Voltage IE = 500μA, IC = 0 9 V
Collector Cut-off Current VCB = 700V, IE = 0 1 μA
Emitter Cut-off Current VEB = 9V, IC = 0 1 μA
DC Current Gain * VCE = 5V, IC = 1A
VCE = 5V, IC = 2A
Collector-Emitter Saturation Voltage IC = 1A, IB = 0.2A
IC = 2A, IB = 0.5A
IC = 4A, IB = 1A
Base-Emitter Saturation Voltage IC = 1A, IB = 0.2A
IC = 2A, IB = 0.5A
19
35
8
40
0.5
0.6
1.0
1.2
1.6
Current Gain Bandwidth Product VCE = 5V, IC = 1A 4 MHz
Output Capacitance VCB = 10V, f = 1MHz 65 pF
Turn On Time VCC = 125V
Storge Time 4.0 μs
Fall Time 0.9 μs
IC = 2A = 5IB1 = -5I
RL = 62.5Ω
B2
0.8 μs
hFE Classification
V
V
V
V
V
Classification H1 H2
h
FE2
19 ~ 28 26 ~ 35
FJPF3305 Rev. B
2 www.fairchildsemi.com
Page 3
Typical Performance Characteristics
Figure 1. Static Characteristic Figure 2. DC Current Gain (R-Grade)
5.0
4.5
4.0
3.5
3.0
2.5
2.0
1.5
1.0
[A], COLLECTOR CURRENT
C
I
0.5
0.0
012345678910
VCE [V], COLLECTOR-EMITTER VOLTAGE
Figure 3. DC Current Gain (O-Grade) Figure 4. Saturation Voltage (R-Grade)
IB = 300mA
IB = 100mA
IB = 50mA
100
VCE = 5V
Ta = 125 OC
Ta = - 25 OC
10
, DC CURRENT GAIN
FE
h
1
0.01 0.1 1 10
Ta = 75 OC
Ta = 25 OC
IC [A], COLLECTOR CUTRRENT
FJPF3305 High Voltage Switch Mode Application
100
VCE = 5V
Ta = 125 OC
Ta = - 25 OC
10
, DC CURR ENT GAIN
FE
h
1
0.01 0.1 1 10
Ta = 75 OC
Ta = 25 OC
IC [A], COLLECTOR CUTRRENT
10
IC = 4 I
B
Ta = 125 OC
1
Ta = 75 OC
0.1
(sat) [V], SATU R ATION VOL T A GE
CE
V
0.01
0.01 0.1 1 10
Ta = - 25 OC
Ta = 25 OC
IC [A], COLLECTOR CURRENT
Figure 5. Saturatin Voltage (O-Grade) Figure 6. Saturation Voltage (R-Grade)
10
IC = 4 I
B
Ta = 125 OC
1
Ta = 75 OC
0.1
(sat) [V], SATU R ATION VOLT A GE
CE
V
0.01
0.01 0.1 1 10
Ta = - 25 OC
Ta = 25 OC
IC [A], COLLECTOR CURRENT
10
IC = 4 I
B
1
Ta = - 25 OC
Ta = 125 OC
0.1
(sat) [V], SATU R ATION VOLT A GE
BE
V
0.01
0.01 0.1 1 10
Ta = 25 OC
Ta = 75 OC
IC [A], COLLECTOR CURRENT
FJPF3305 Rev. B
3 www.fairchildsemi.com
Page 4
Typical Performance Characteristics (Continued)
Figure 7. Saturation Voltage (O-Grade) Figure 8. Switching Time
FJPF3305 High Voltage Switch Mode Application
10
IC = 4 I
B
1
Ta = - 25 OC
Ta = 125 OC
0.1
(sat) [V], SATURATION VOLTAGE
CE
V
0.01
0.01 0.1 1 10
Ta = 25 OC
Ta = 75 OC
IC [A], COLLECTOR CURRENT
10
t
STG
1
t
F
0.1
[μs], SWITCH IN G TIME
STG
& t
F
t
IB1 = - IB2 = 0.4A
VCC = 125V
0.01
0.1 1 10
IC [A], COLLECTOR CURR E NT
Figure 9. Reverse Biased Safe Operating Area Figure 10. Forward Biased Safe Operating Area
10
100
10
IC (Pulse)
IC (DC)
1
5ms
1ms
500μs
[A], COLLECTOR CUR R E NT
C
IB1=2A, RB2=0
I
V
=50V, L=1mH
CC
1
10 100 1000
VCE [V], COLLECTOR-EMITTER VOLTAGE
Figure 11. Power Derating
50
40
30
20
[W], POWE R DISSIPATIO N
C
10
P
0
0 25 50 75 100 125 150 175
Tc[oC], CASE T E MPERATUR E
0.1
[A], COLLECTOR CURRENT
C
I
TC = 25OC
Single Pulse
0.01
1 10 100 1000
VCE [V], COLLE C T OR-EMITTER VOLTAGE
FJPF3305 Rev. B
4 www.fairchildsemi.com
Page 5
Mechanical Dimensions
0
15.80
2.54
0
FJPF3305 High Voltage Switch Mode Application
TO-220F
±0.1
10.16
(7.00)
±0.20
ø3.18
±0.10
±0.20
(0.70)
3.30
±0.20
6.68
±0.20
±0.20
(1.00x45°)
15.87
MAX1.47
±0.30
0.80
±0.10
9.75
0.35
±0.10
#1
2.54TYP
[2.54
±0.20
]
(30°)
2.54TYP
[2.54
±0.20
+0.10
0.50
–0.05
2.76
±0.2
]
9.40
±0.20
±0.20
4.70
Dimensions in Millimeters
